Electrical Plug On Heating/Air-Conditioning Control (GROUP 8, NO. 2/01)

Publication date: 2001-12-21
Reference number: GROUP 8, NO. 2/01

ELECTRICAL PLUG ON HEATING/AIR-CONDITIONING CONTROL

ELECTRICAL PLUG ON HEATING/AIR-CONDITIONING CONTROL

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 8, NO. 2/01, Date of Issue:  December 21, 2001
PORSCHE: 1997-on Boxster / Boxster S
GROUP: 8/9 - Air Conditioning, Electrics

DESCRIPTION

Electrical plug connection on the heating/air-conditioning control.

Certain conditions, such as high humidity, can cause condensation to form on the central vent. The condensation then drips onto the electrical plug connection of the heating/air-conditioning control causing corrosion to form on the electrical connector.

BULLETIN CONTENT

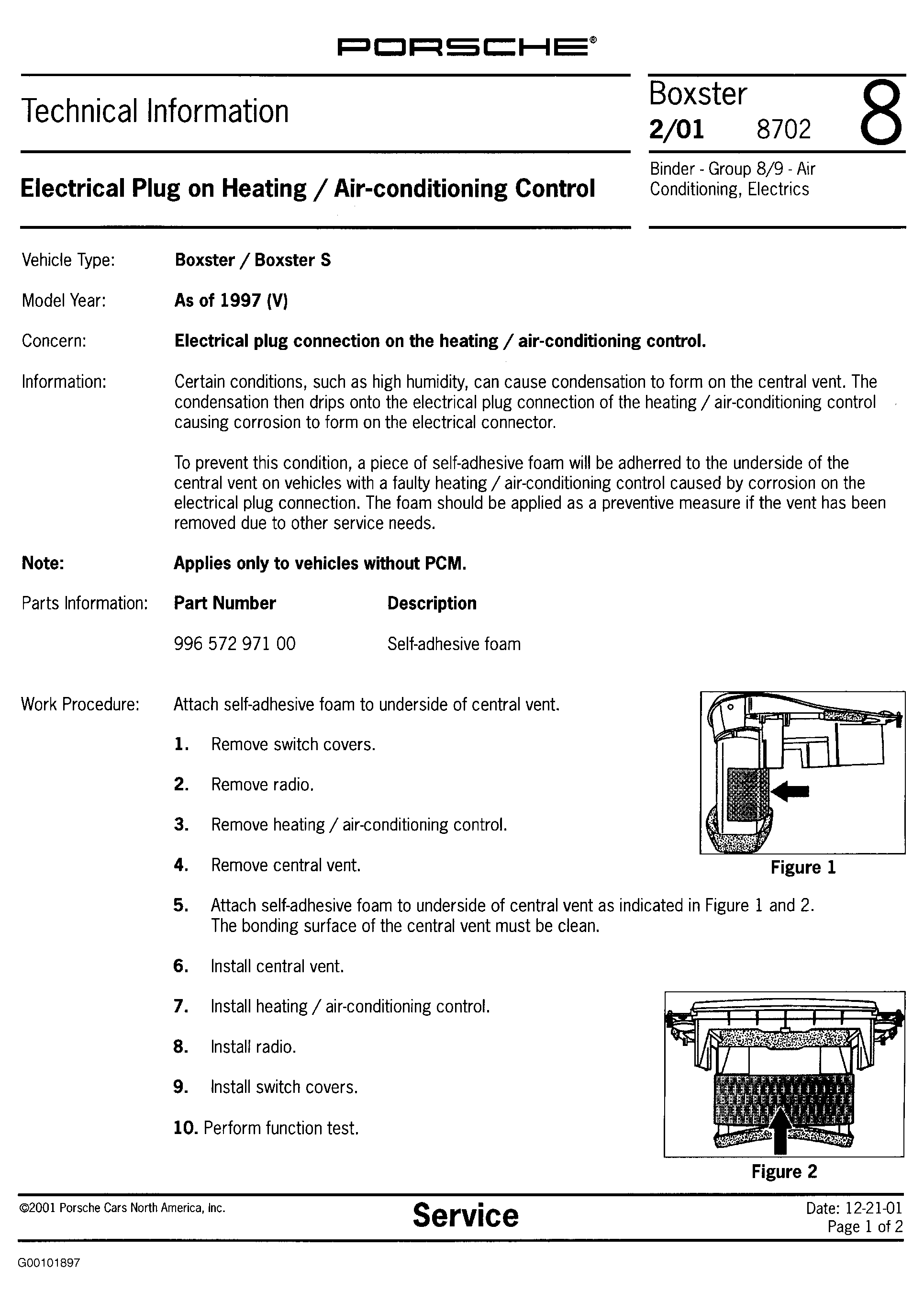

Fig 1: Page 1 of Bulletin
G00101897

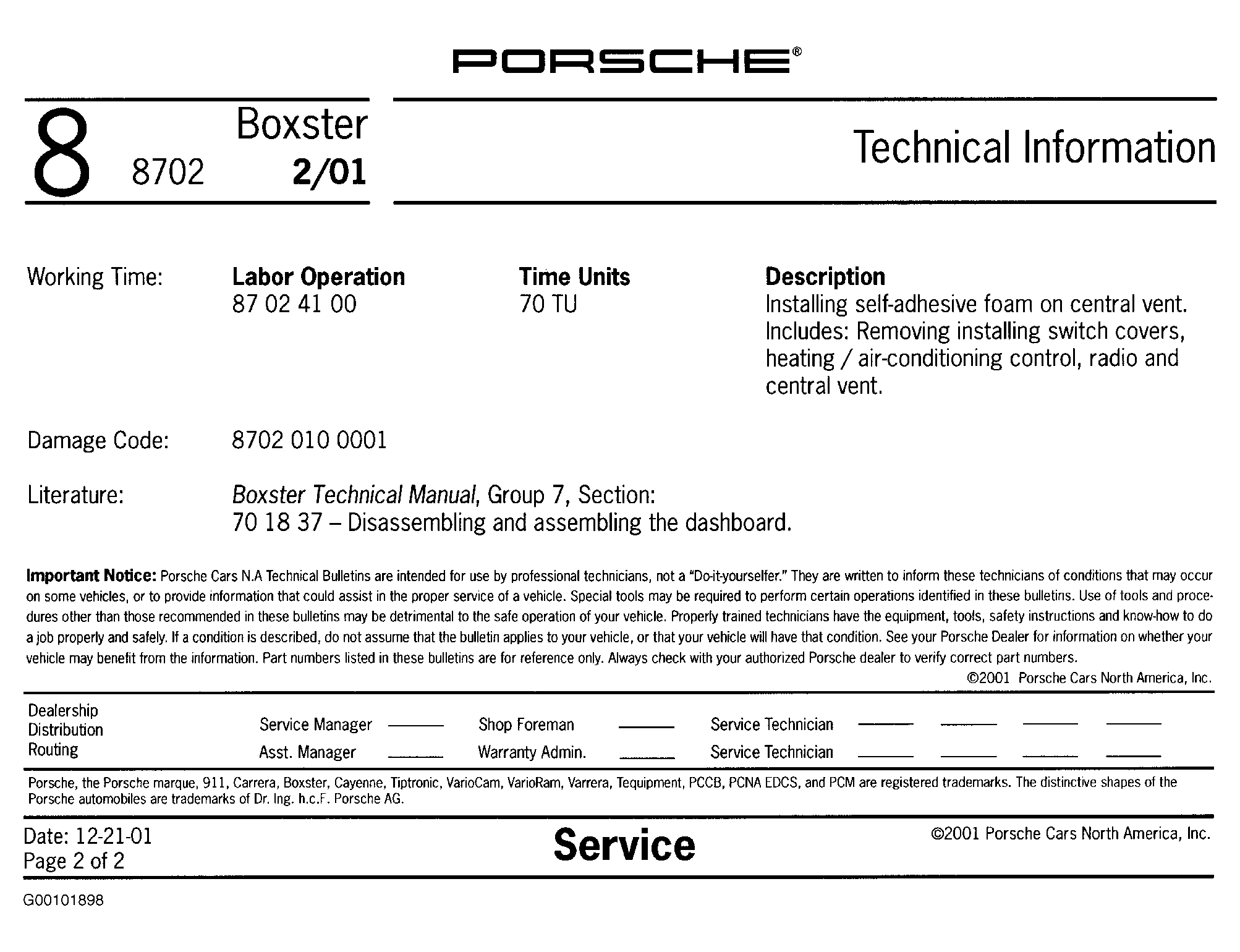

Fig 2: Page 2 of Bulletin
G00101898
