Removing The Cigarette Lighter

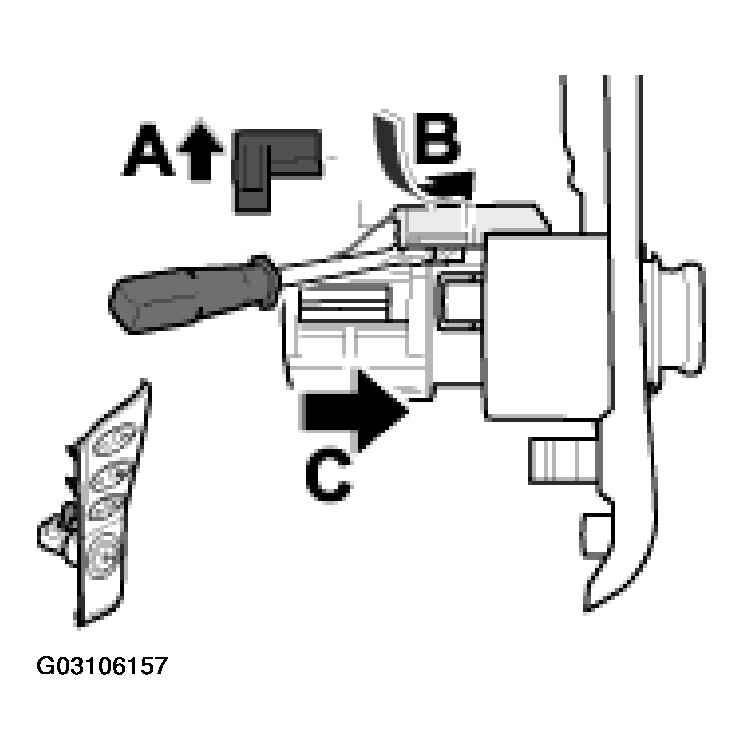

Fig 1: Removing Cigarette Lighter
G03106157Courtesy of PORSCHE OF NORTH AMERICA, INC.
  1. Disengage the cover -arrow A-  upwards. See Fig 1 .
  2. Press the lights bracket -arrow B-  out to the side with a narrow screwdriver. See Fig 1 .
  3. Disengage the cigarette lighter in the direction of -arrow C-  out of the front cover. See Fig 1 .
