Disassembling release for front lid

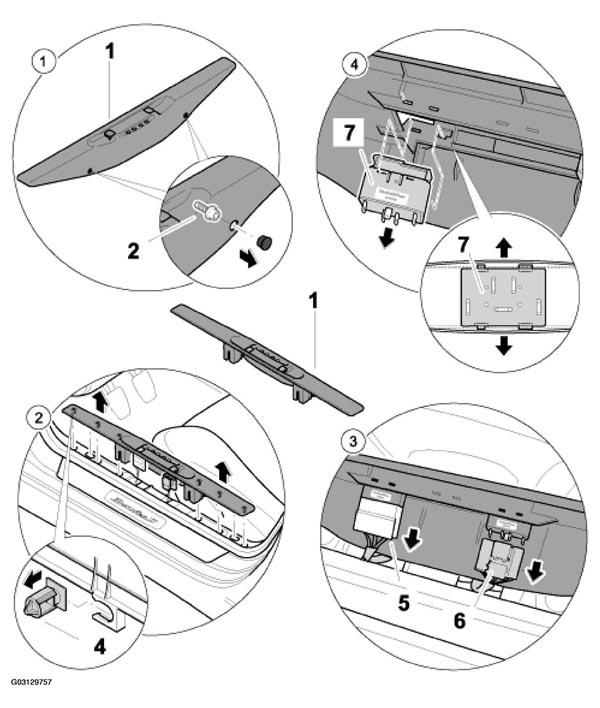

Fig 1: Disassembling Release For Front Lid Components (As Of MY 2001)
G03129757Courtesy of PORSCHE OF NORTH AMERICA, INC.
RELEASE FOR FRONT LID DISASSEMBLING PROCEDURE (AS OF MY 2001)

No. Procedure Instructions
1 Undoing hexagon socket head bolts -2-  . See Fig 1 . Remove plastic plugs -3-2-  . See Fig 1 .
2 Removing sill -1-  . See Fig 1 . Lilt sill -1-4-  . See Fig 1 .
3 Pulling off plug connections -5, 6-  . See Fig 1 . Pull off plug connections -5, 6-  . See Fig 1 .
4 Removing actuating switches of front lid -7, 8-  . See Fig 1 . Press the fastening ribs of the sill -arrows-7-  . See Fig 1 .
