Installation Procedure

    Fig 1: Fuel Pressure Pulsation Damper O-Ring
    GM2016995Courtesy of GENERAL MOTORS CORP.
  1. Apply a light coat of gasoline or spindle oil to a new O-ring (1) and install it to the fuel pressure pulsation damper.

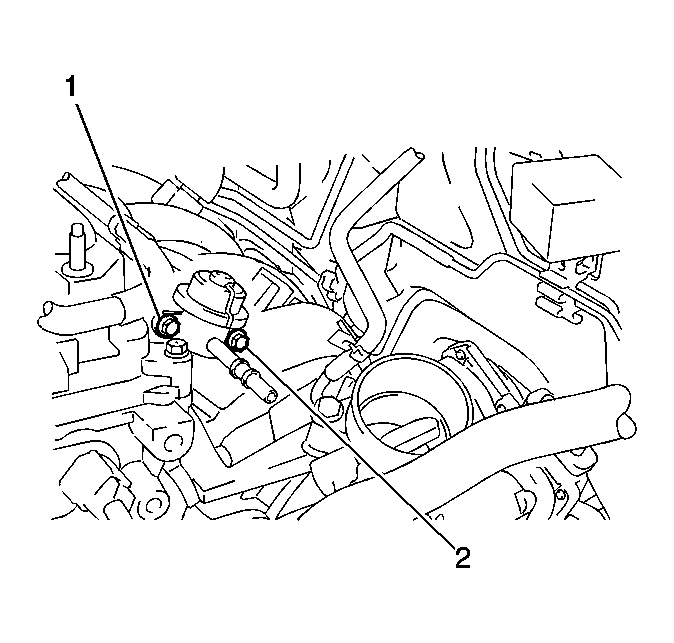

    2. Fig 2: Fuel Pressure Pulsation Damper Bolts
    GM2016994Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  2. Install the fuel pressure pulsation damper with the 2 bolts (1,2).

    Tighten:  9.0 N.m (80 lb in)

  3. Install fuel main tube.
  4. Install air cleaner cap with hose.
  5. Install engine cover. Refer to Engine Cover Replacement .
  6. Connect cable to negative battery terminal.
  7. Inspect for fuel leaks.
