Inflatable Restraint Side Impact Module - Left

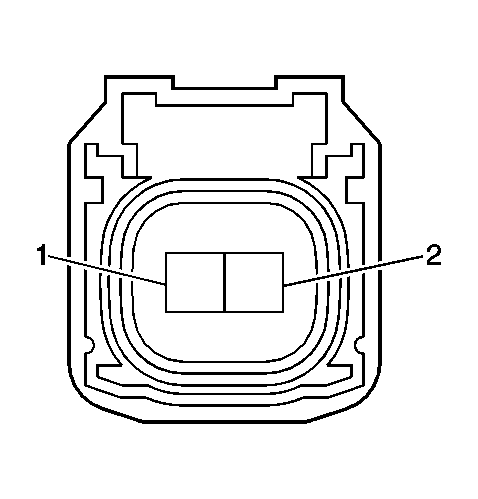

Fig 1: Inflatable Restraint Side Impact Module - Left Connector End View
GM2037205Courtesy of GENERAL MOTORS CORP.
Inflatable Restraint Side Impact Module - Left

Pin Wire Circuit Function
1 0.5 YE/BK - Side Impact Module - Left - High Control
2 0.5 YE - Side Impact Module - Left - Low Control
Connector Part Information
  • OEM: 90980-12698
  • Service: Serviced as a pigtail
  • Description: 2-Way F (YE)
