Inflatable Restraint Front Passenger Presence System (PPS) Module

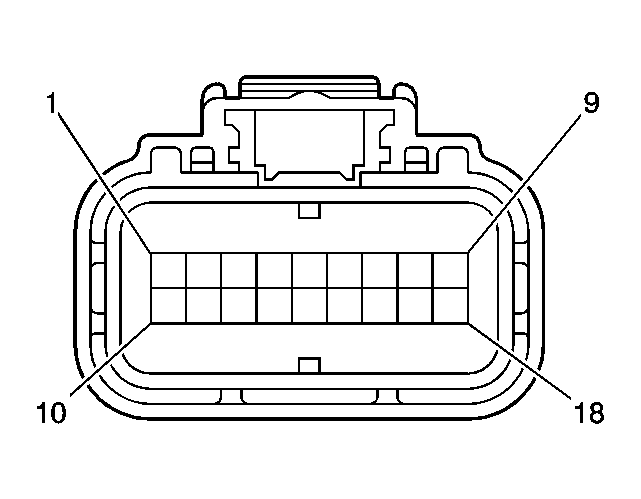

Fig 1: Inflatable Restraint Front Passenger Presence System (PPS) Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Pin	Wire	Circuit	Function
1-2	-	-	Not Used
3	OG	-	Seat Position Sensor - Low Reference
4	VT	-	Seat Position Sensor - Right - Signal
5	WH/BK	-	Ground
6	WH	-	PPS - Signal
7	L-GN	-	PPS - Voltage
8	YE	-	Seat Belt Tension Sensor - Passenger - Ground
9	BK	-	Battery Positive Voltage
10	WH	-	Low Speed Serial Data
11	WH	-	Occupant Sensor - Serial Data +
12	BK	-	Occupant Sensor - Serial Data -
13	D-GN	-	Seat Belt Switch - Right - Signal
14	PK	-	Seat Belt Switch - Right - Low Reference
15	GY	-	PPS - Ground
16	RD	-	Seat Belt Tension Sensor - Passenger - Signal
17	D-GN	-	Seat Belt Tension Sensor - Passenger - Voltage
18	-	-	Not Used
