Installation Procedure

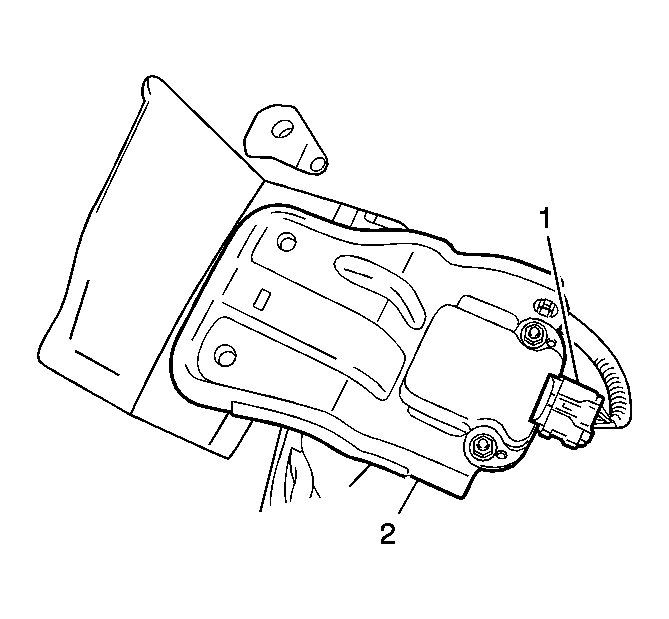

    Fig 1: Identifying Yaw Rate Sensor & Electrical Connector
    GM2023078Courtesy of GENERAL MOTORS CORP.
  1. Install the yaw rate sensor (2) to the vehicle.
  2. Connect the yaw rate sensor electrical connector (1).
    3. Fig 2: Yaw Rate Sensor Bracket & Bolt
    GM839796Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  3. Install the yaw rate sensor bracket (2) and the bolts (1).

    Tighten:  Tighten the yaw rate sensor bolts to 20 N.m (15 lb ft).

  4. Install the LH front seat. Refer to Front Seat Replacement - Bucket .
  5. Using the scan tool, perform the yaw rate sensor zero point calibration under the special functions menu.
