Installation Procedure

    Fig 1: Fuel Injector
    GM1285197Courtesy of GENERAL MOTORS CORP.
  1. Install NEW fuel injector seals.
  2. Install the fuel injector.
    3. Fig 2: Fuel Injector Retainer Clip
    GM1285199Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel injector retainer clip.
    4. Fig 3: Fuel Injector Electrical Connector Retainer & Tab
    GM1850541Courtesy of GENERAL MOTORS CORP.
  4. Install the fuel injector electrical connector.
  5. Push down on the fuel injector electrical connector retainer (2), securing the electrical connector.
    6. Fig 4: Fuel Rail & Bolts
    GM1836385Courtesy of GENERAL MOTORS CORP.
  6. Install the fuel rail with fuel injectors to the lower intake manifold.
    7. CAUTION: Refer to Fastener Caution .
  7. Install the fuel rail bolts and tighten to 10 N.m (89 lb in).
    8. Fig 5: Fuel Feed Pipe Components
    GM1838938Courtesy of GENERAL MOTORS CORP.
  8. Install the upper intake manifold. Refer to Upper Intake Manifold Replacement .
  9. Connect the fuel feed pipe (1) quick connect fitting to the fuel rail. Refer to Metal Collar Quick Connect Fitting Service .

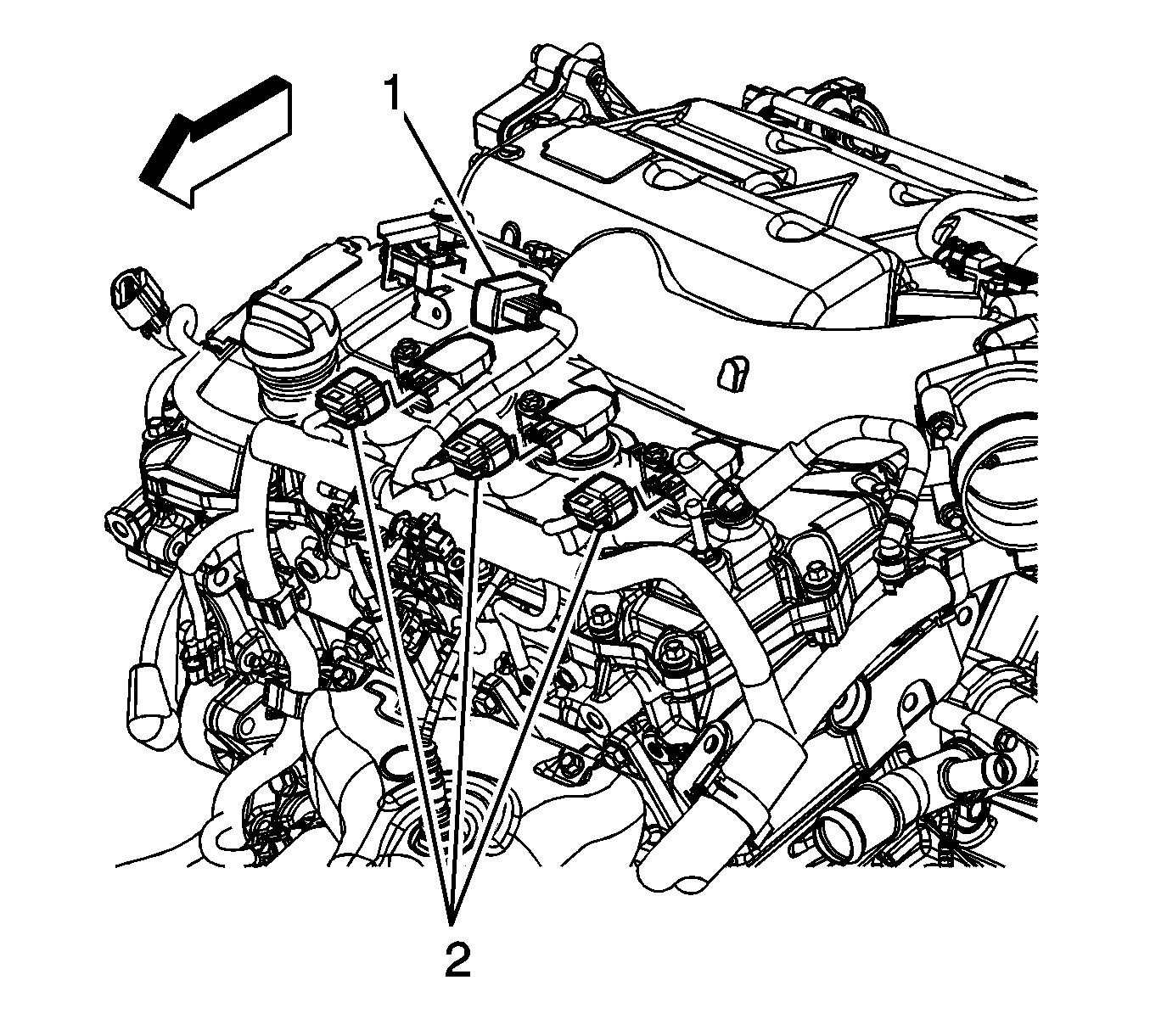

    10. Fig 6: Ignition Coil & Fuel Injector Wiring Harness Connectors
    GM1839726Courtesy of GENERAL MOTORS CORP.
  10. Connect the engine wiring harness electrical connector (1) to the fuel injector wiring harness electrical connector.
  11. Install the fuel injector sight shield. Refer to Fuel Injector Sight Shield Replacement .
