Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

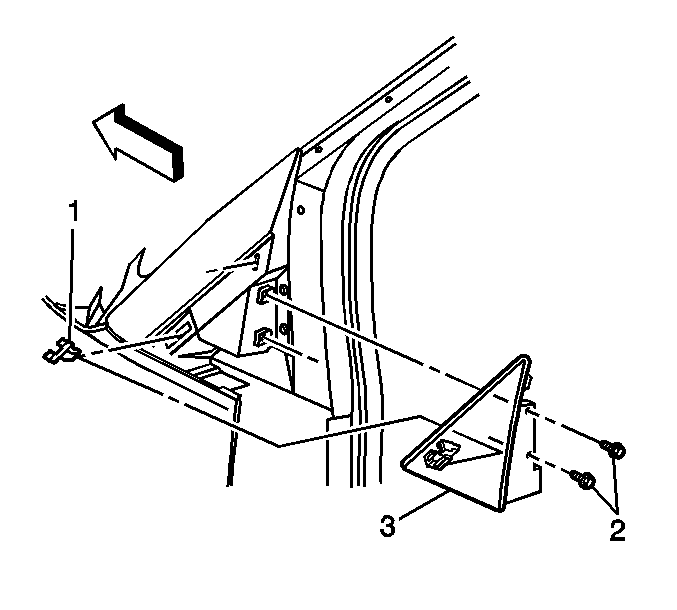

    Fig 1: Identifying Screws Retaining Applique To Filler Panel
    GM783836Courtesy of GENERAL MOTORS CORP.
  1. Install the applique (3) to the vehicle.
  2. Install the retainer (1) into the slot in the filler panel. Press the retainer into place.
    3. CAUTION: Refer to Fastener Caution .
  3. Install the screws (2) in order to retain the applique (3) to the upper fender filler panel and tighten to 2 N.m (18 lb in).
