Automatic Transmission Controls Schematics

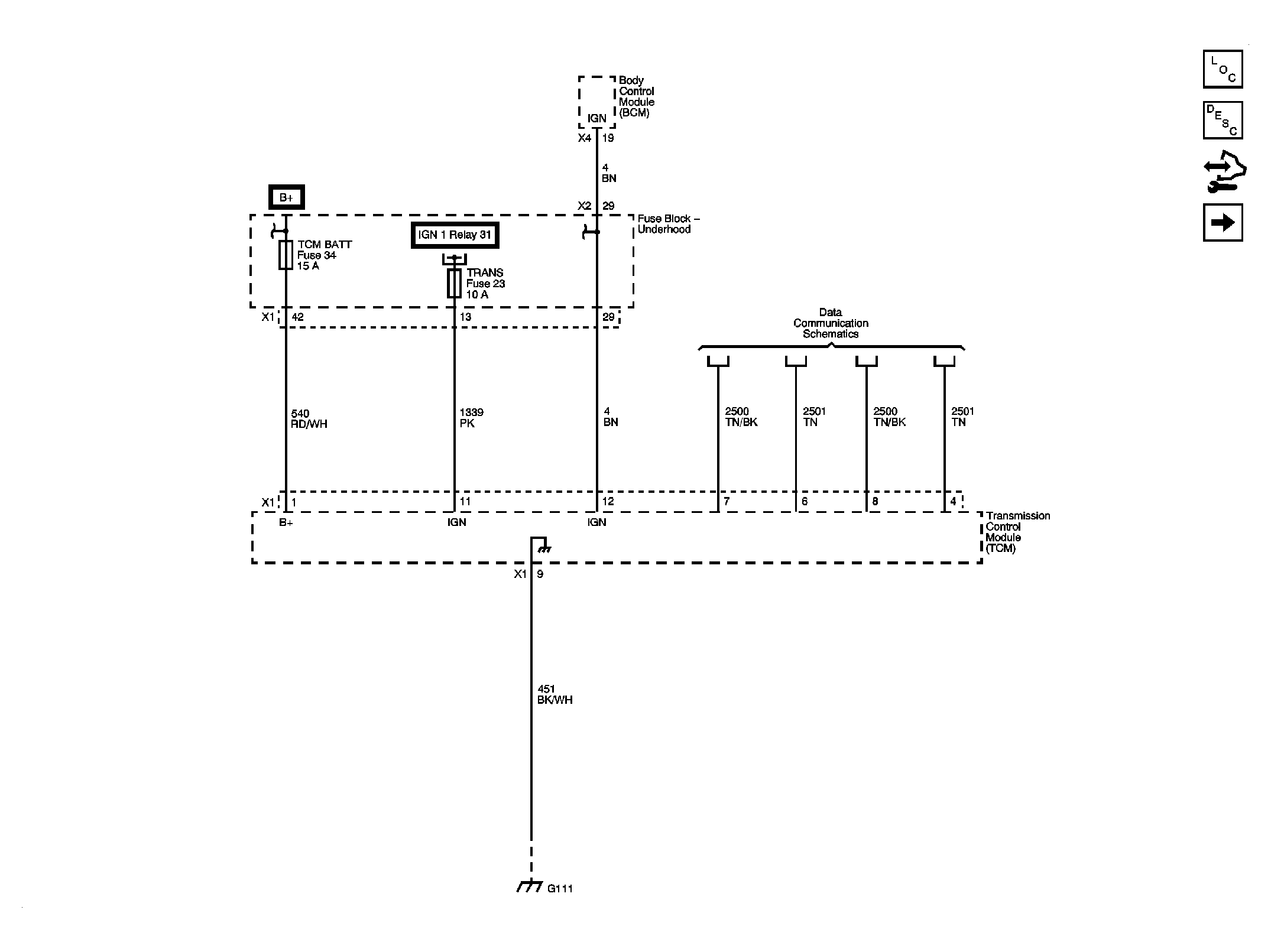

Fig 1: Power and Ground Schematic

Courtesy of GENERAL MOTORS CORP.

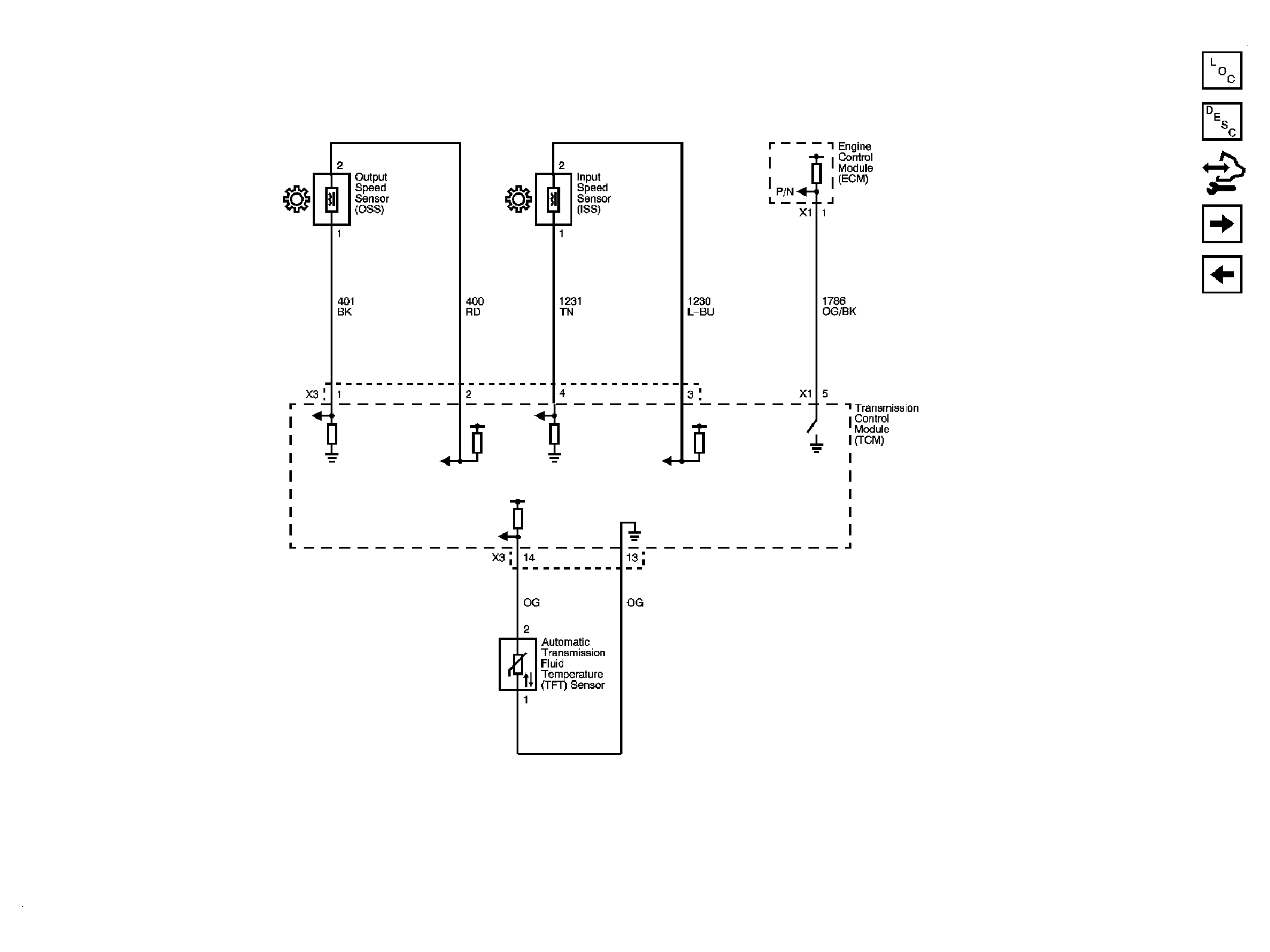

Fig 2: ISS, OSS, and TFT Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

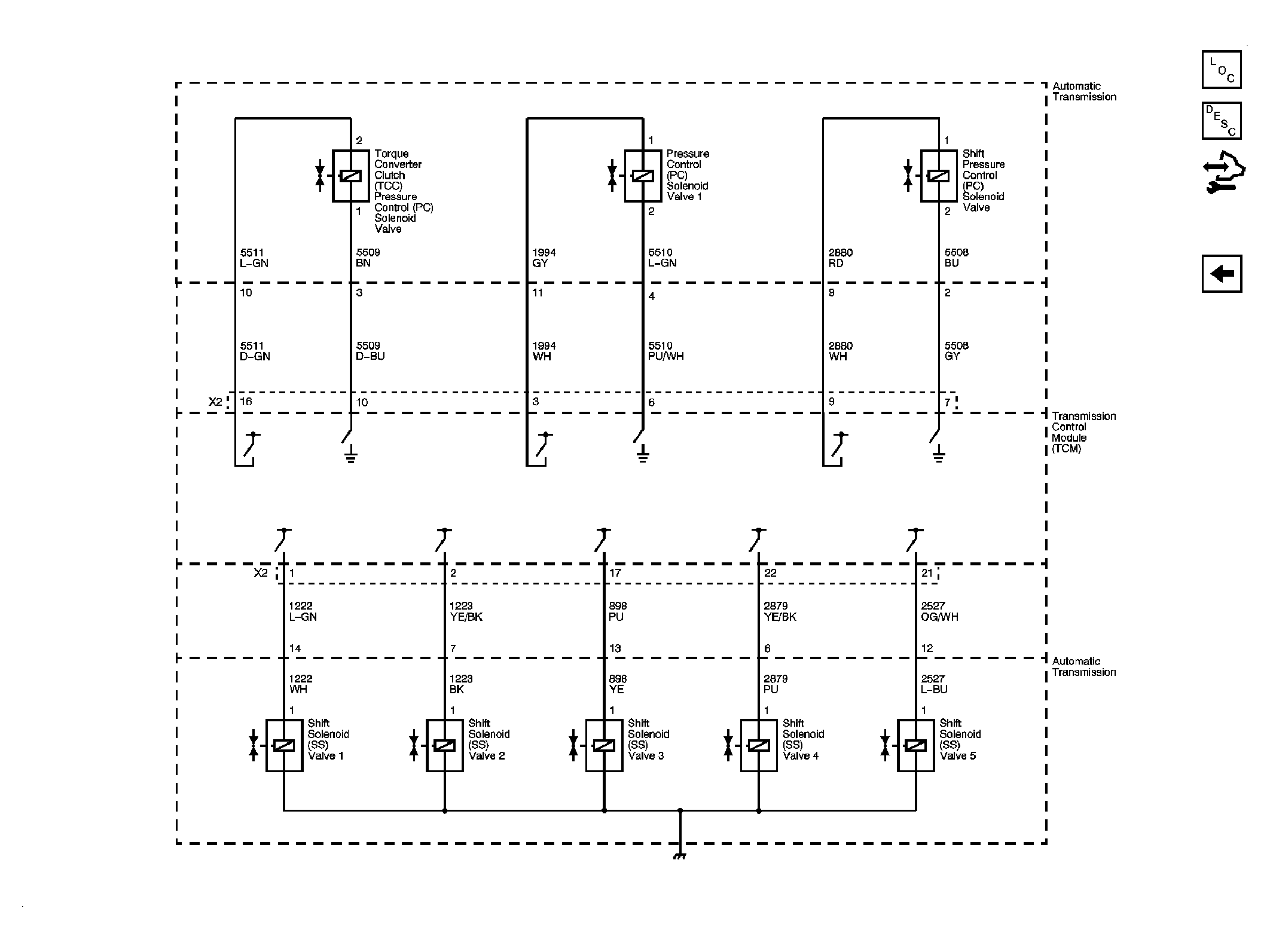

Fig 3: Shift and Pressure Solenoids Schematic

Courtesy of GENERAL MOTORS CORP.
