Seat Belt Retractor Anchor Plate Replacement

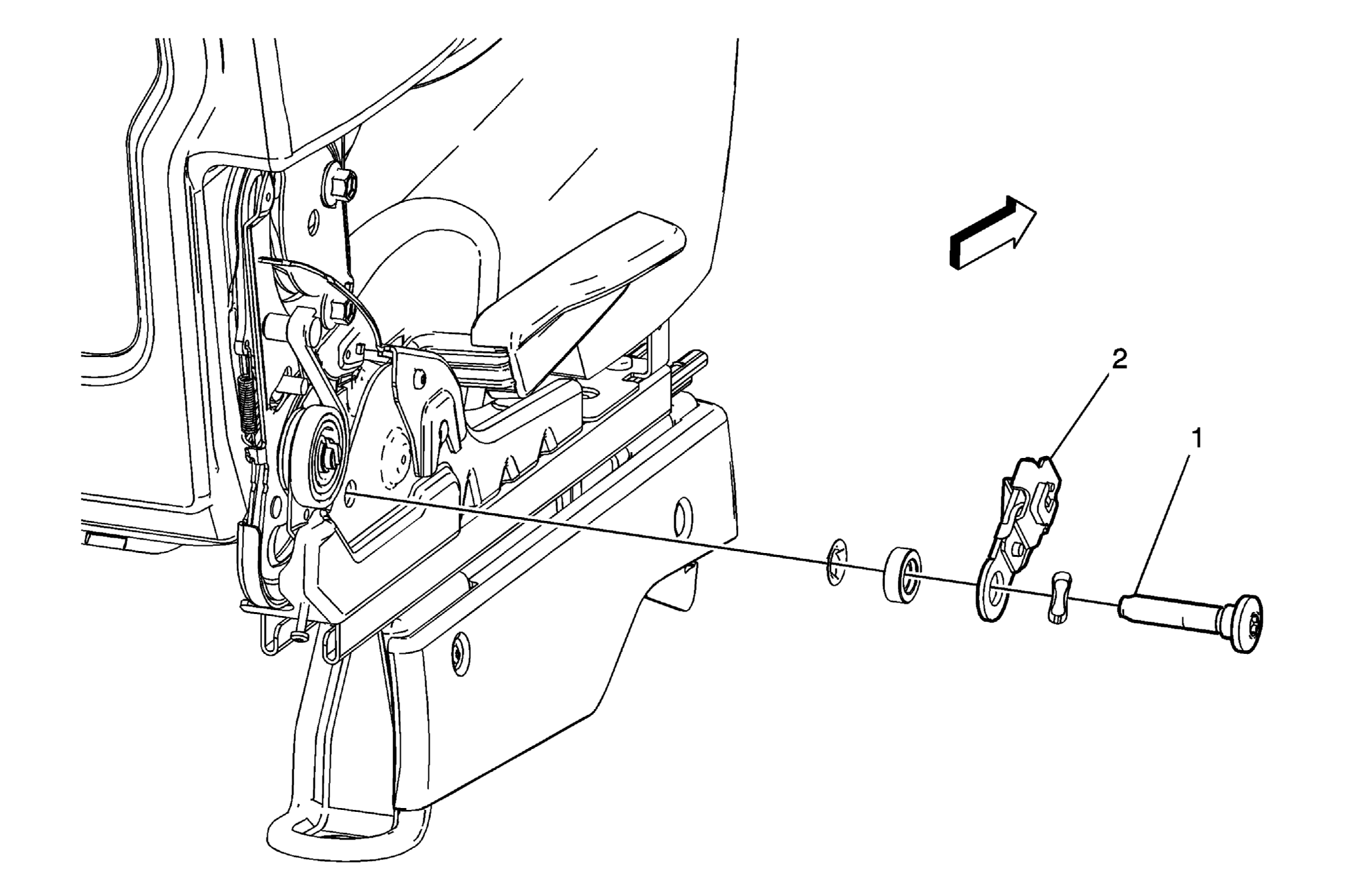

Fig 1: View Of Seat Belt Retractor Anchor Plate & Bolt

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Remove the front seat cushion outer trim panel. Refer to Front Seat Cushion Outer Trim Panel Replacement (Non-Fold Flat) or Front Seat Cushion Outer Trim Panel Replacement (Fold Flat) .
1	Seat Belt Retractor Anchor Plate Bolt CAUTION: Refer to Fastener Caution . Tighten:  50 N.m (37 lb ft)
2	Seat Belt Retractor Anchor Plate
