Guide Replacement - Rear Seat Shoulder Belt

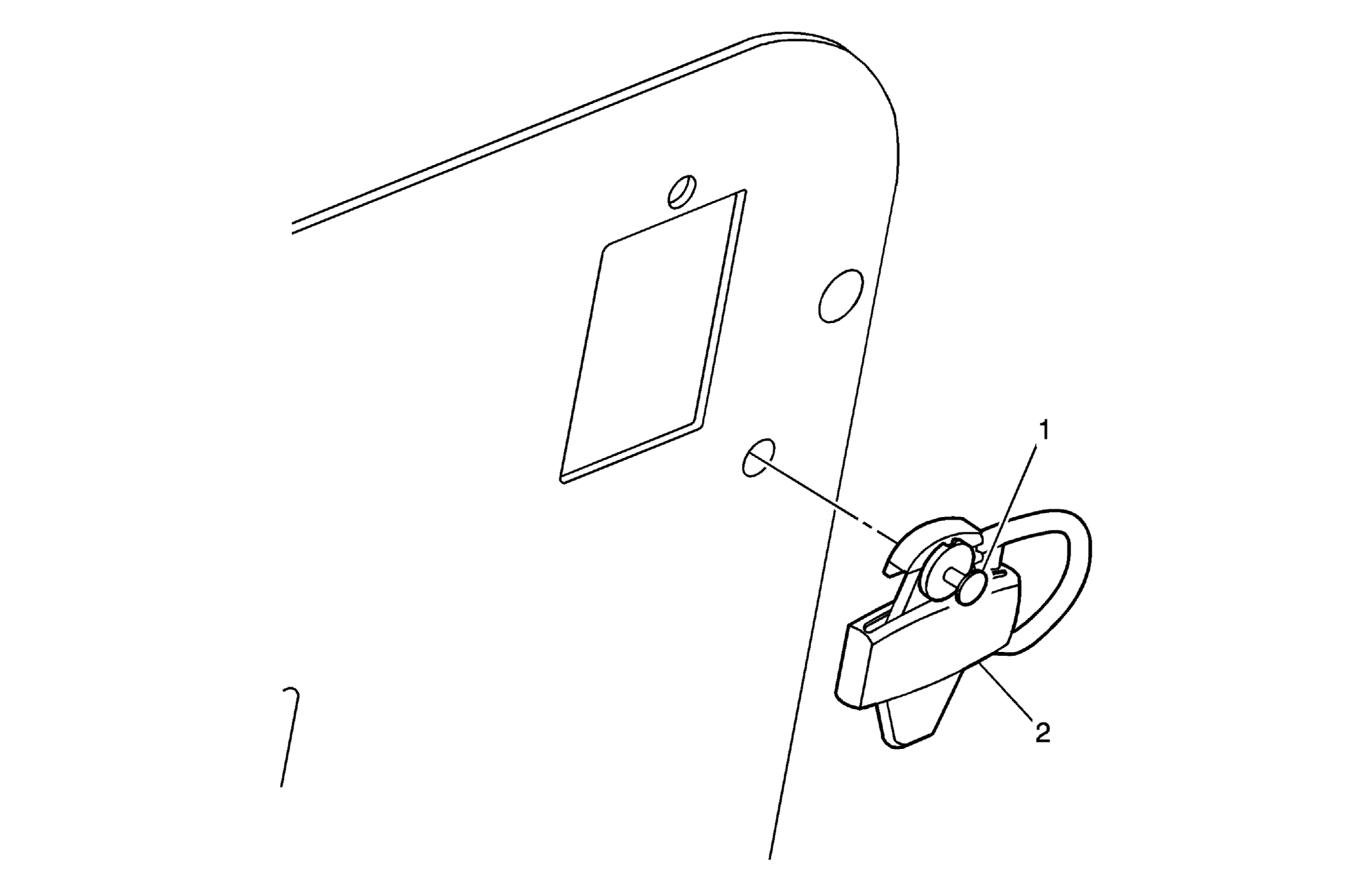

Fig 1: View Of Rear Seat Shoulder Belt Guide
GM1720537Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Seat Shoulder Belt Guide Plastic Push Pin Retainer
2 Rear Seat Shoulder Belt Guide
