Liftgate Lock Striker Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

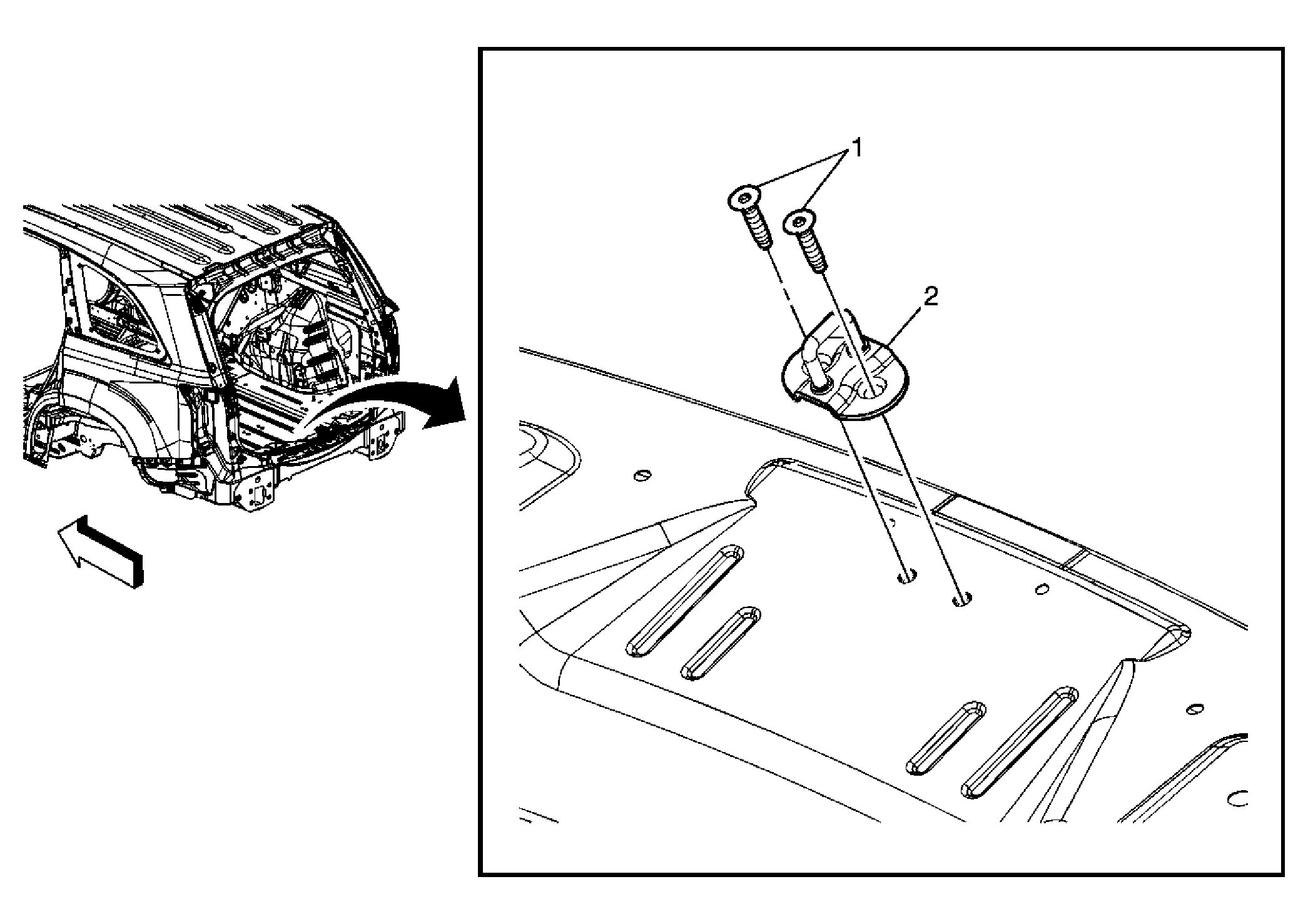

Fig 1: View Of Liftgate Lock Striker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Liftgate Lock Striker Screw (Qty: 2) Tighten: 25 N.m (18 lb ft)
2	Liftgate Lock Striker Tip: Mark the location of the striker with a grease pencil for installation purposes. Check lift gate closing efforts and align striker as required. Refer to Lock Striker Adjustment .
