Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: Front Axle Drain Plug
    GM1199411Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to Fastener Caution .
  1. Install the drain plug and tighten to 33 N.m (24 lb ft).
  2. Fill the differential carrier assembly with axle lubricant. Use the proper fluid. Refer to Approximate Fluid Capacities and Fluid and Lubricant Recommendations .

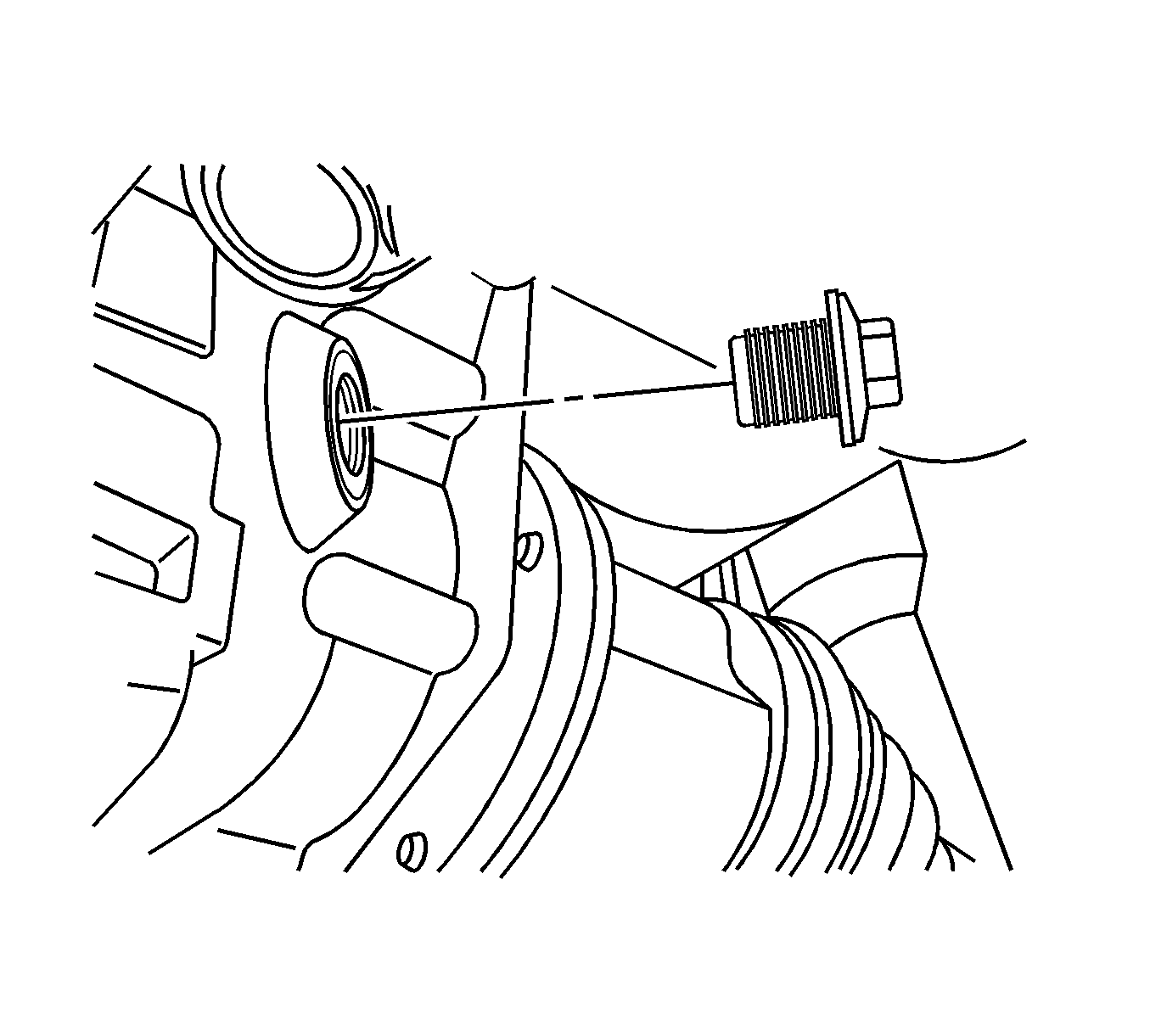

    3. Fig 2: Front Axle Fill Plug
    GM1199445Courtesy of GENERAL MOTORS CORP.
  3. Install the fill plug and tighten to 33 N.m (24 lb ft).
  4. Lower the vehicle.
