Installation Procedure

WARNING: This page is about a different car, the 2006 Pontiac Torrent and 2006 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

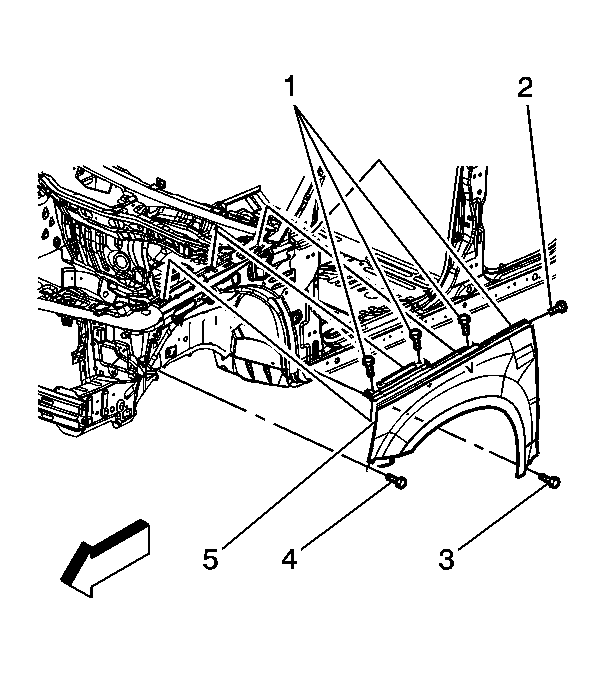

    Fig 1: View Of Front Fender & Bolts
    GM1360906Courtesy of GENERAL MOTORS CORP.
  1. Position the fender to the vehicle.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the upper fender bolts (1).

    Tighten:  Tighten the bolts to 9 N.m (80 lb in).

  3. Install the upper rear bolt through the door opening.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  4. Install the lower fender bolt.

    Tighten:  Tighten the bolt to 9 N.m (80 lb in).

  5. Secure the front of the rocker molding in place.
  6. Secure the front fascia assembly in place.
    7. Fig 2: View Of Antenna Bezel
    GM1360997Courtesy of GENERAL MOTORS CORP.
  7. Install the antenna bezel, if equipped.
  8. Install the front wheelhouse liner. Refer to Wheelhouse Liner Replacement - Front .
