Installation Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

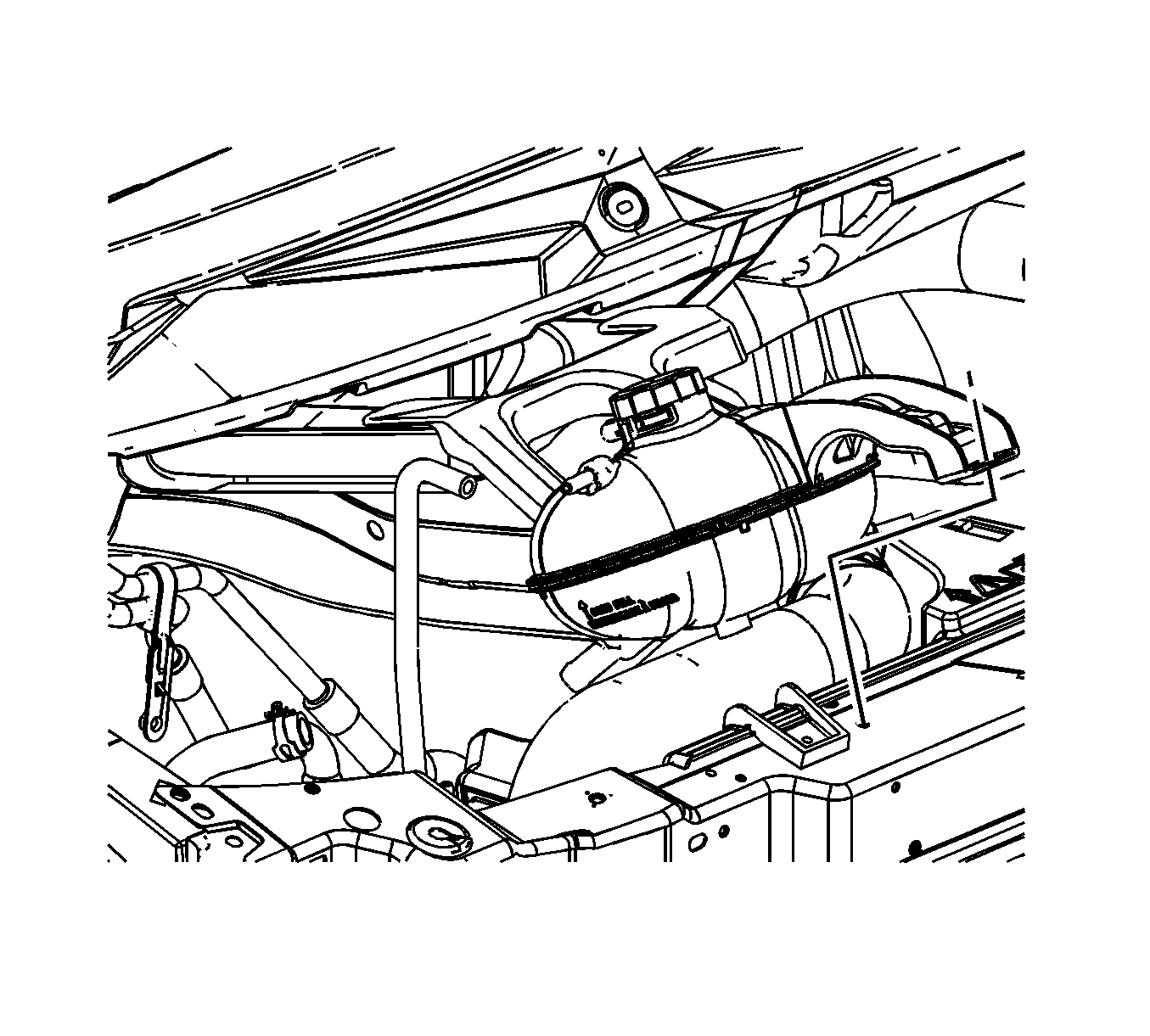

Fig 1: Identifying surge tank electrical connector

Courtesy of GENERAL MOTORS CORP.

Connect the surge tank electrical connector.

NOTE: Lubricate the inside diameters of the hoses with clean coolant prior to installation.

Install the surge tank to the vehicle.

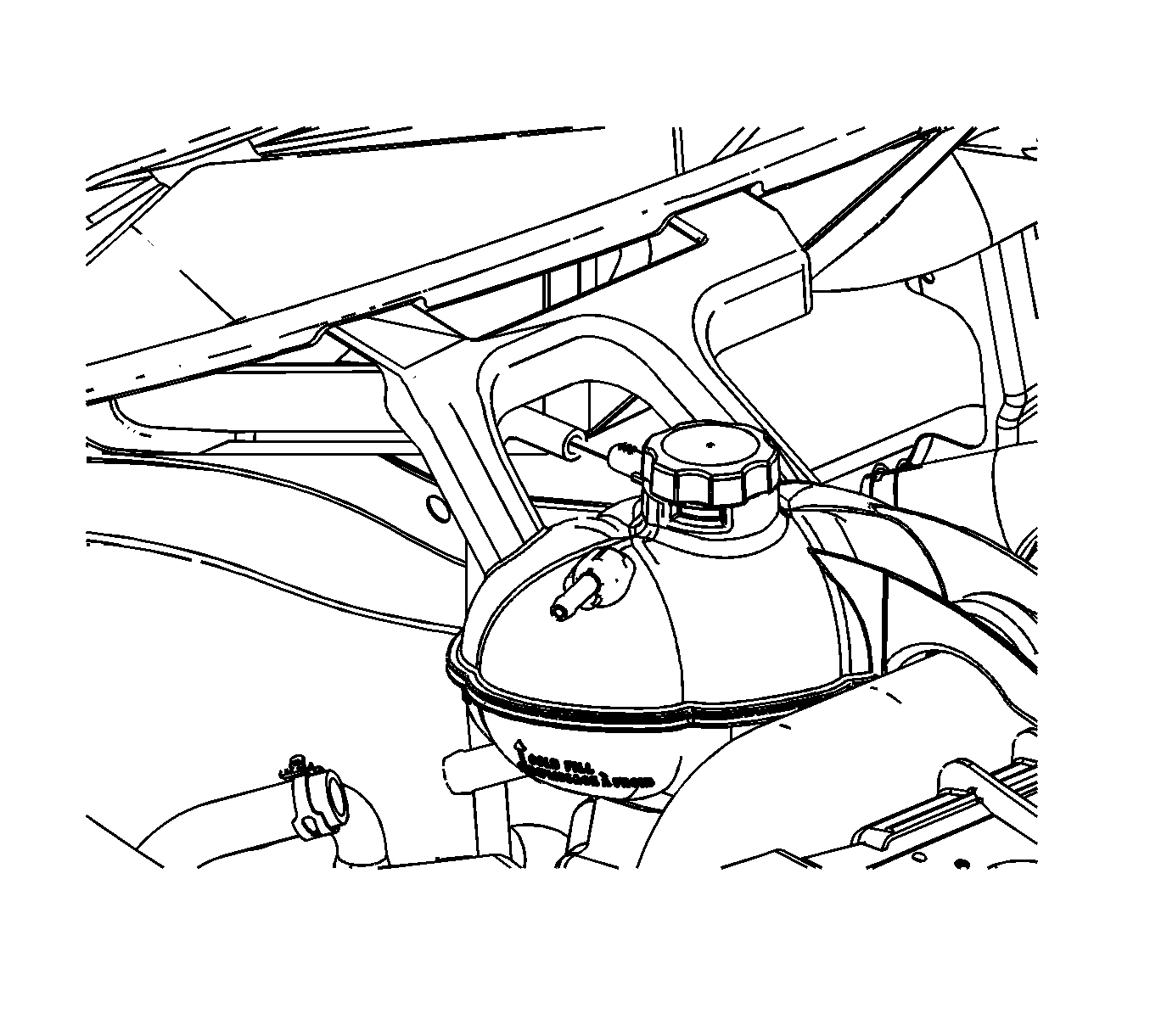

Fig 2: Identifying surge tank retaining bolt

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Fastener Caution .

Install the surge tank retaining bolt and tighten to 9 N.m (80 lb in).

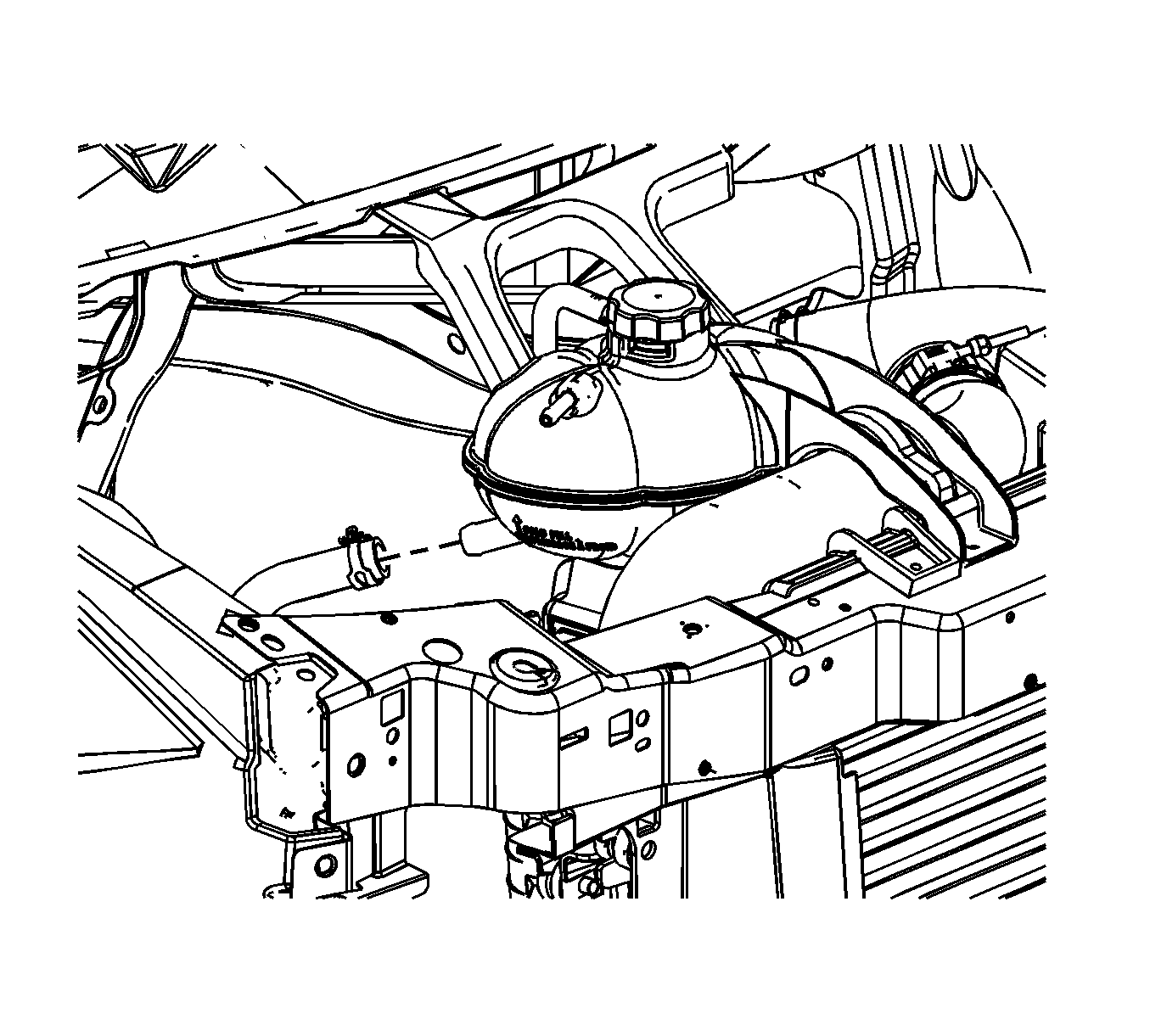

Fig 3: Identifying surge tank outlet hose

Courtesy of GENERAL MOTORS CORP.

Install the surge tank outlet hose to the surge tank.
Using J 38185 , reposition the surge tank outlet hose clamp. See Special Tools .

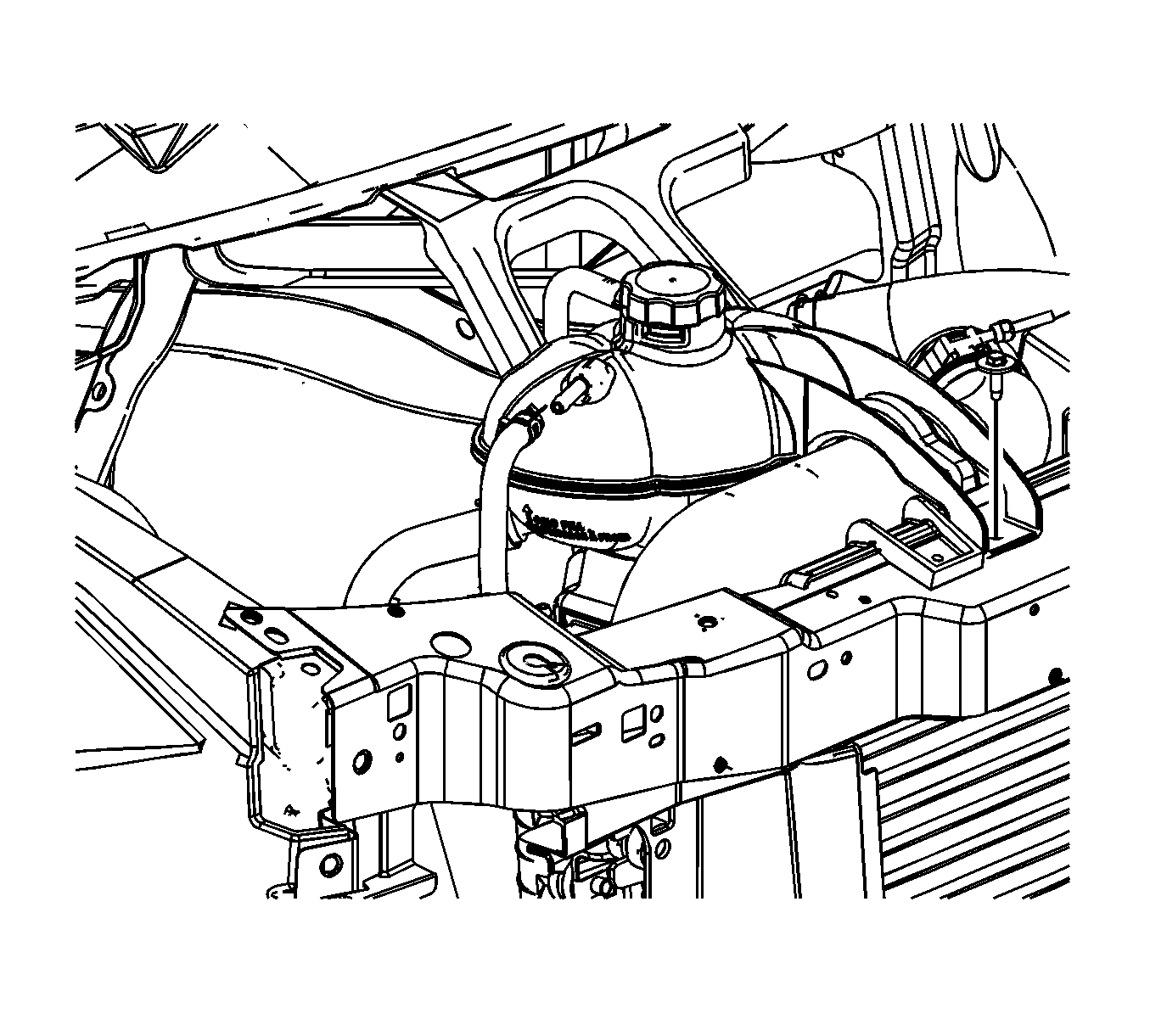

Fig 4: Identifying surge tank inlet hose

Courtesy of GENERAL MOTORS CORP.

Install the surge tank inlet hose to the surge tank.
Using J 38185 , reposition the surge tank inlet hose clamp. See Special Tools .

Fig 5: View Of overflow hose

Courtesy of GENERAL MOTORS CORP.

Install the overflow hose to the surge tank.
Fill the cooling system. Refer to Cooling System Draining and Filling (Static Fill) or Cooling System Draining and Filling (Vac N Fill) .
