Inflatable Restraint Vehicle Rollover Sensor Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2009 GMC Savana Special, 2009 GMC Savana Camper Special, 2009 GMC Savana, 2009 Chevrolet RV Cutaway, and 2009 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

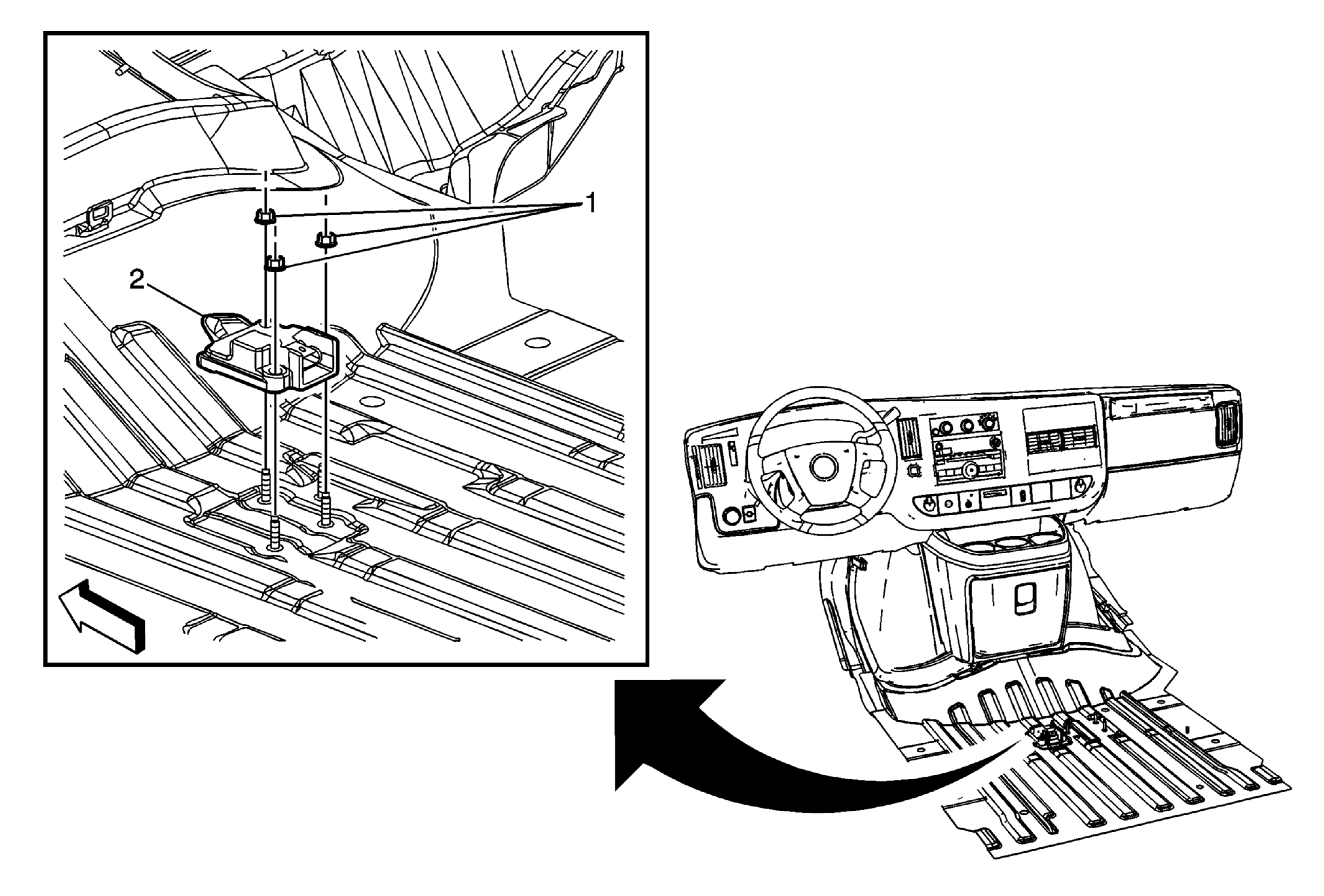

Fig 1: Inflatable Restraint Vehicle Rollover Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedure Disable the SIR. Refer to SIR Disabling and Enabling . Remove the front floor mat/carpet. Refer to Front Floor Mat/Carpet Replacement .
1	Inflatable Restraint Roll Over Sensor Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 10 N.m (88 lb in)
2	Inflatable Restraint Roll Over Sensor Procedure: Disconnect electrical connectors.

Callout

Component Name

WARNING: Refer to SIR Warning .

Preliminary Procedure

Disable the SIR. Refer to SIR Disabling and Enabling .
Remove the front floor mat/carpet. Refer to Front Floor Mat/Carpet Replacement .

Inflatable Restraint Roll Over Sensor Nuts (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 10 N.m (88 lb in)

Inflatable Restraint Roll Over Sensor
Procedure:
Disconnect electrical connectors.
