Windshield Frame Applique Replacement

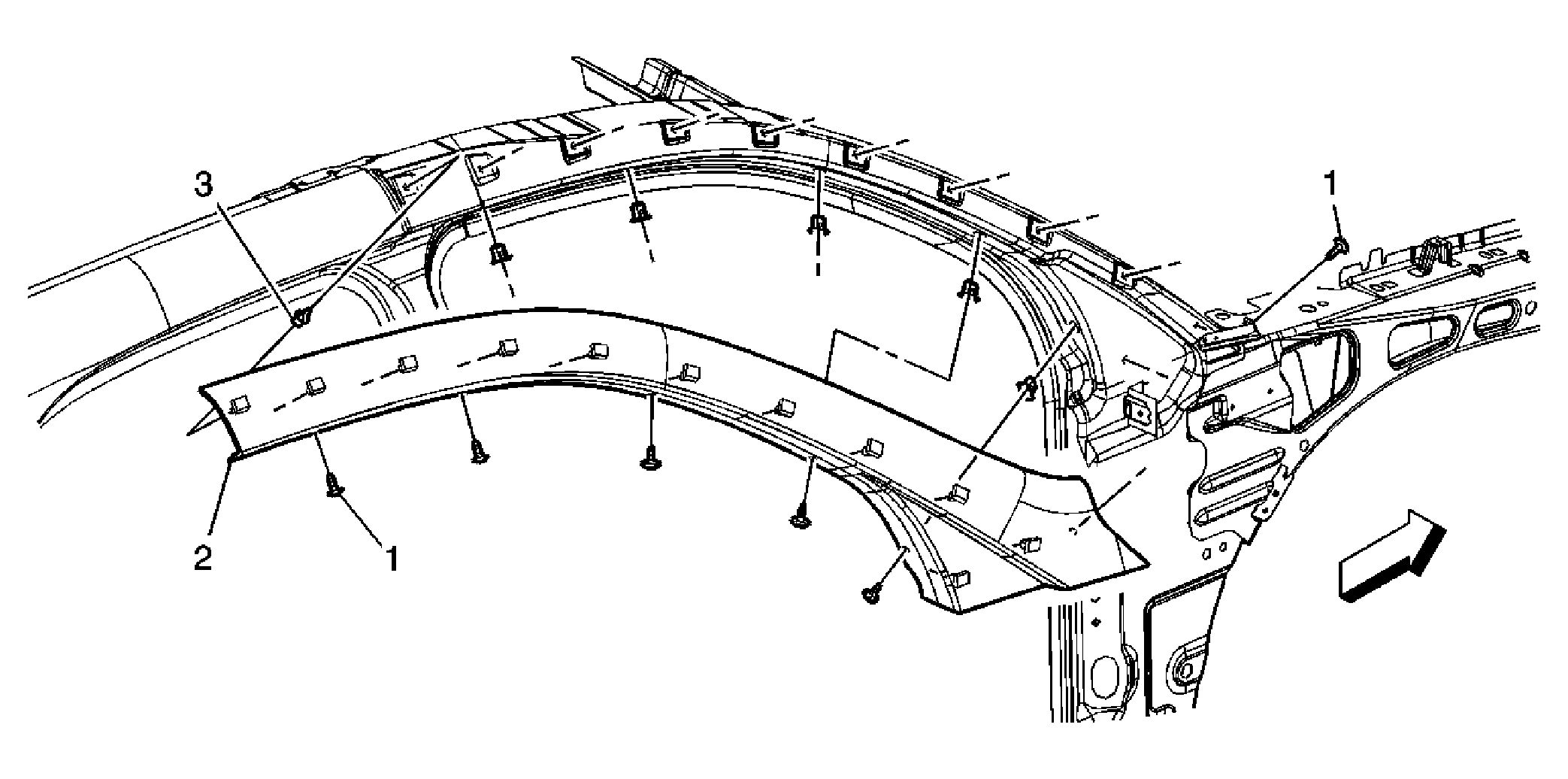

Fig 1: View Of Windshield Frame Applique & Retainers

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure:  Open the front door in order to access and remove the applique screws.
1	Windshield Frame Filler Panel Applique Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten:  2 N.m (18 lb in)
2	Windshield Frame Filler Panel Applique Assembly Tip:  The applique is to be pulled gently outboard in order to release the retainers and remove.
3	Windshield Frame Filler Panel Applique Retainer (Qty: 11)
