Installation Procedure

WARNING: This page is about a different car, the 2008 Pontiac G8. However, it is still accessible from the selected car via links, so may be relevant.

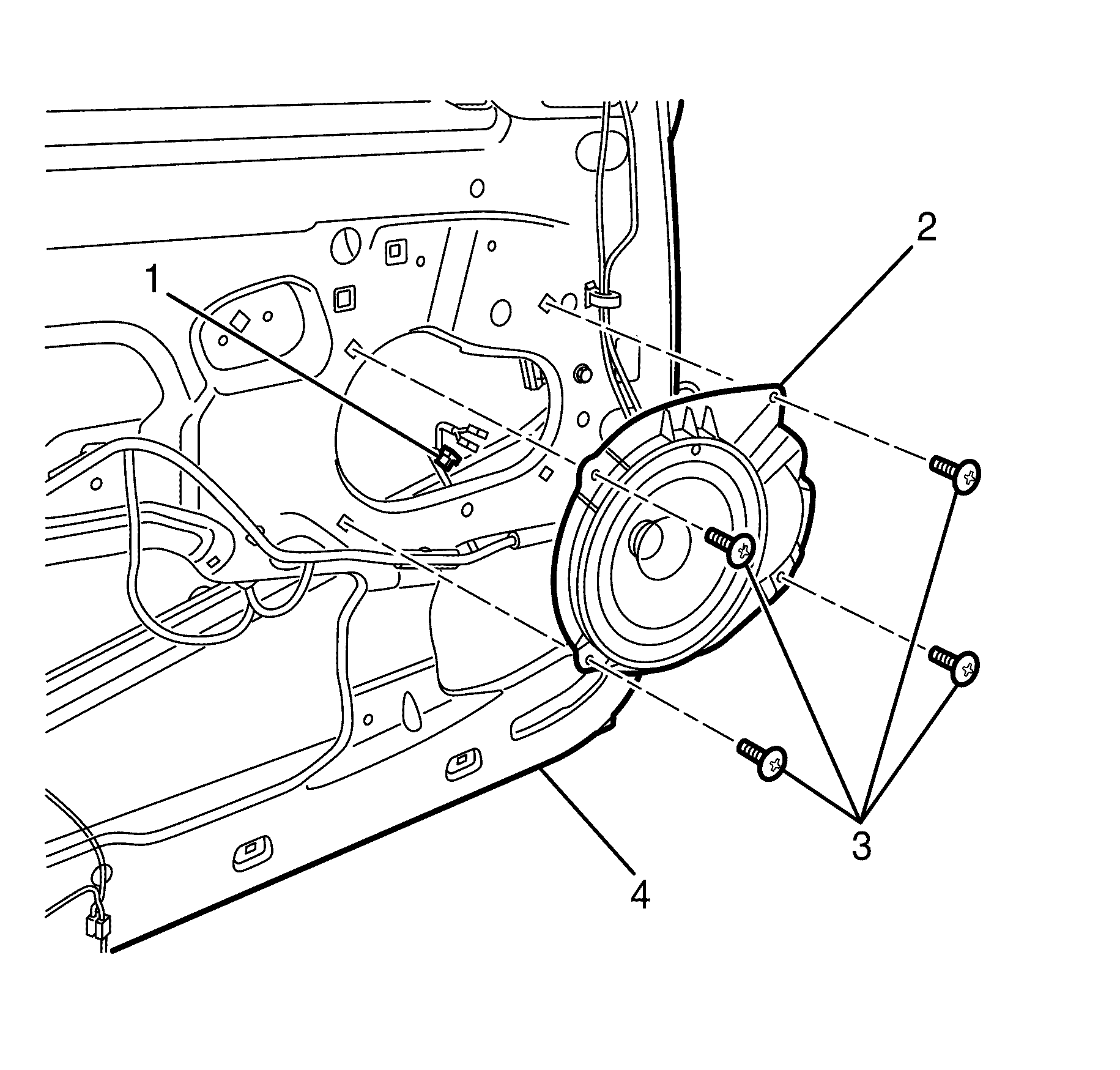

    Fig 1: Identifying Front Speaker Assembly To Door Frame Attaching Screws
    GM1957850Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector(s) (1).
  2. Install the speaker assembly (2) to the door frame (4).
    NOTE: Refer to Fastener Notice .
  3. Install the front speaker assembly to door frame attaching screws (3).

    Tighten:  Tighten the screws to 2 N.m (18 lb in).

  4. Install the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
