Door Control Module Schematics

WARNING: This page is about a different car, the 2009 Cadillac DTS. However, it is still accessible from the selected car via links, so may be relevant.

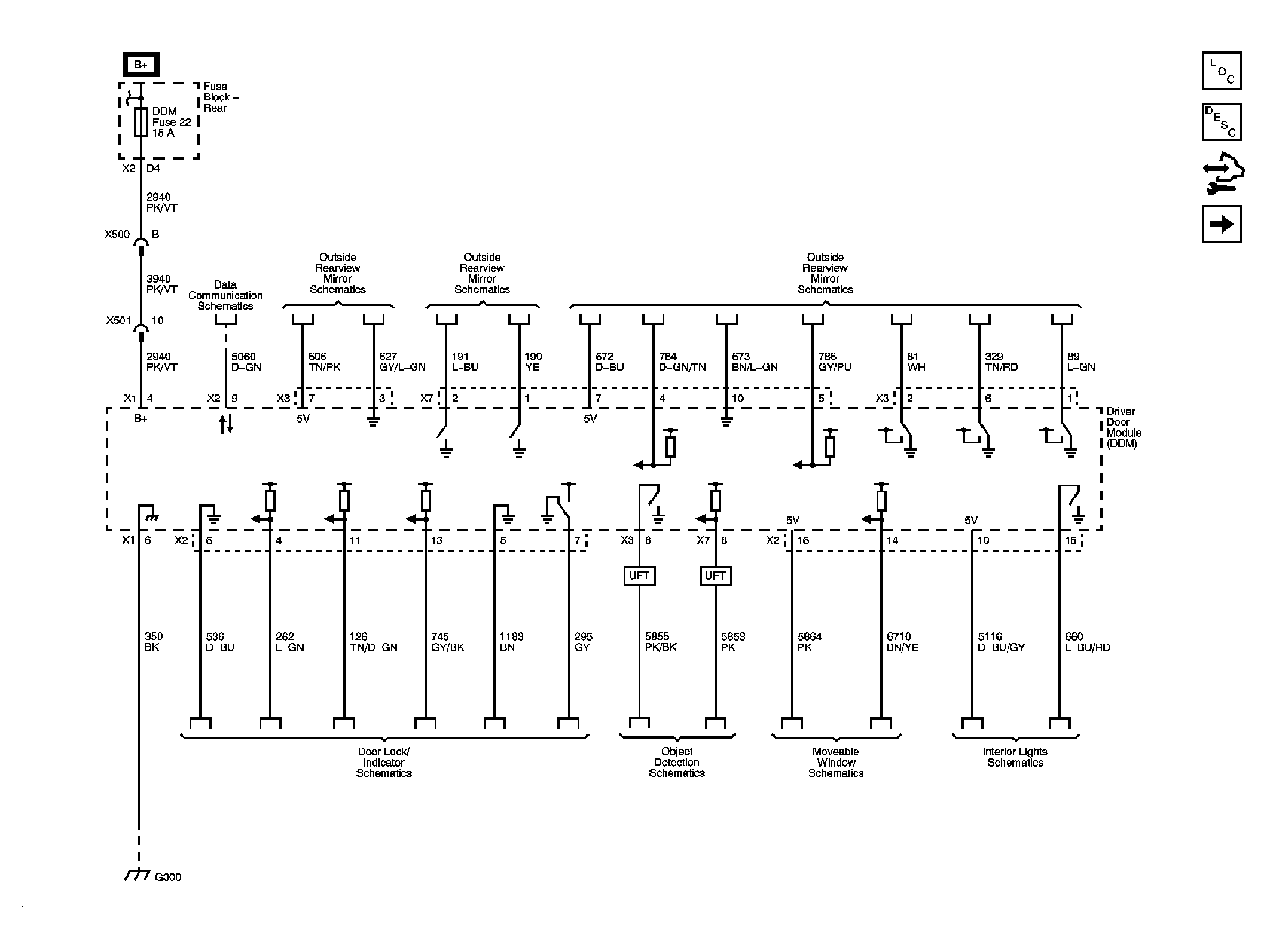

Fig 1: Door Control Module Schematics (DMM)
GM2082281Courtesy of GENERAL MOTORS CORP.

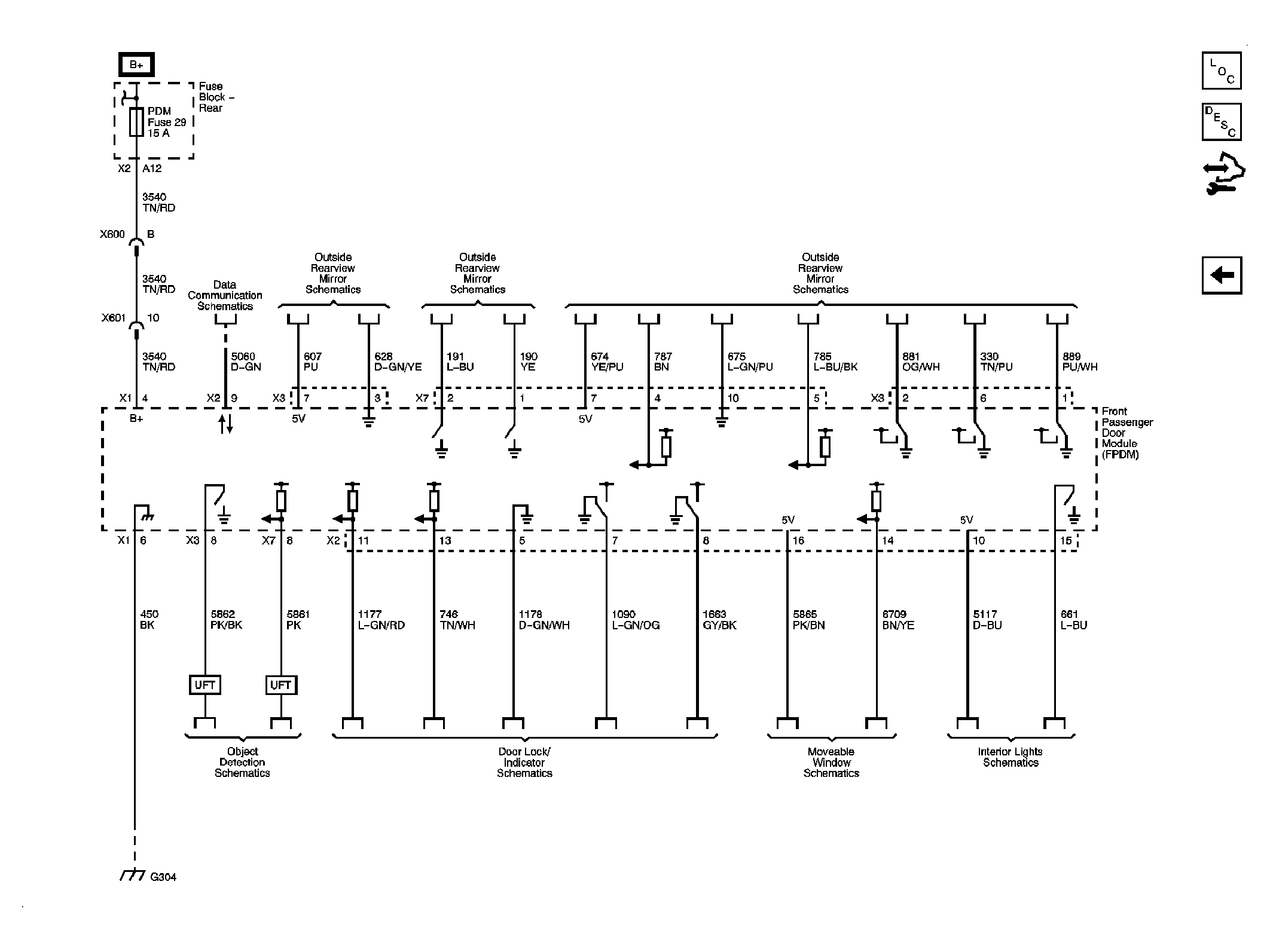

Fig 2: Door Control Module Schematics (PDM)
GM2082282Courtesy of GENERAL MOTORS CORP.
