Ground Distribution Schematics

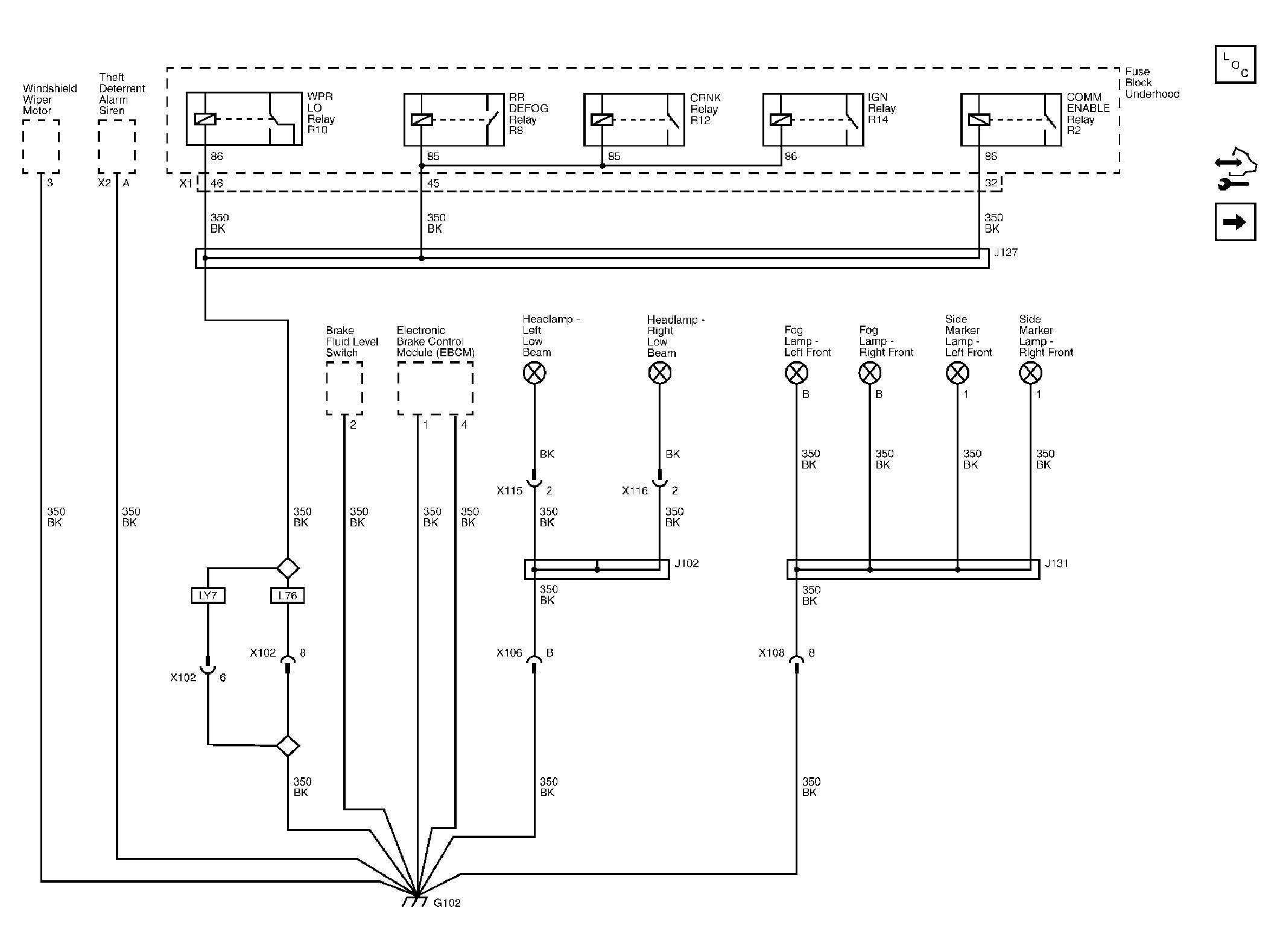

Fig 1: G102

GM2034177

Courtesy of GENERAL MOTORS CORP.

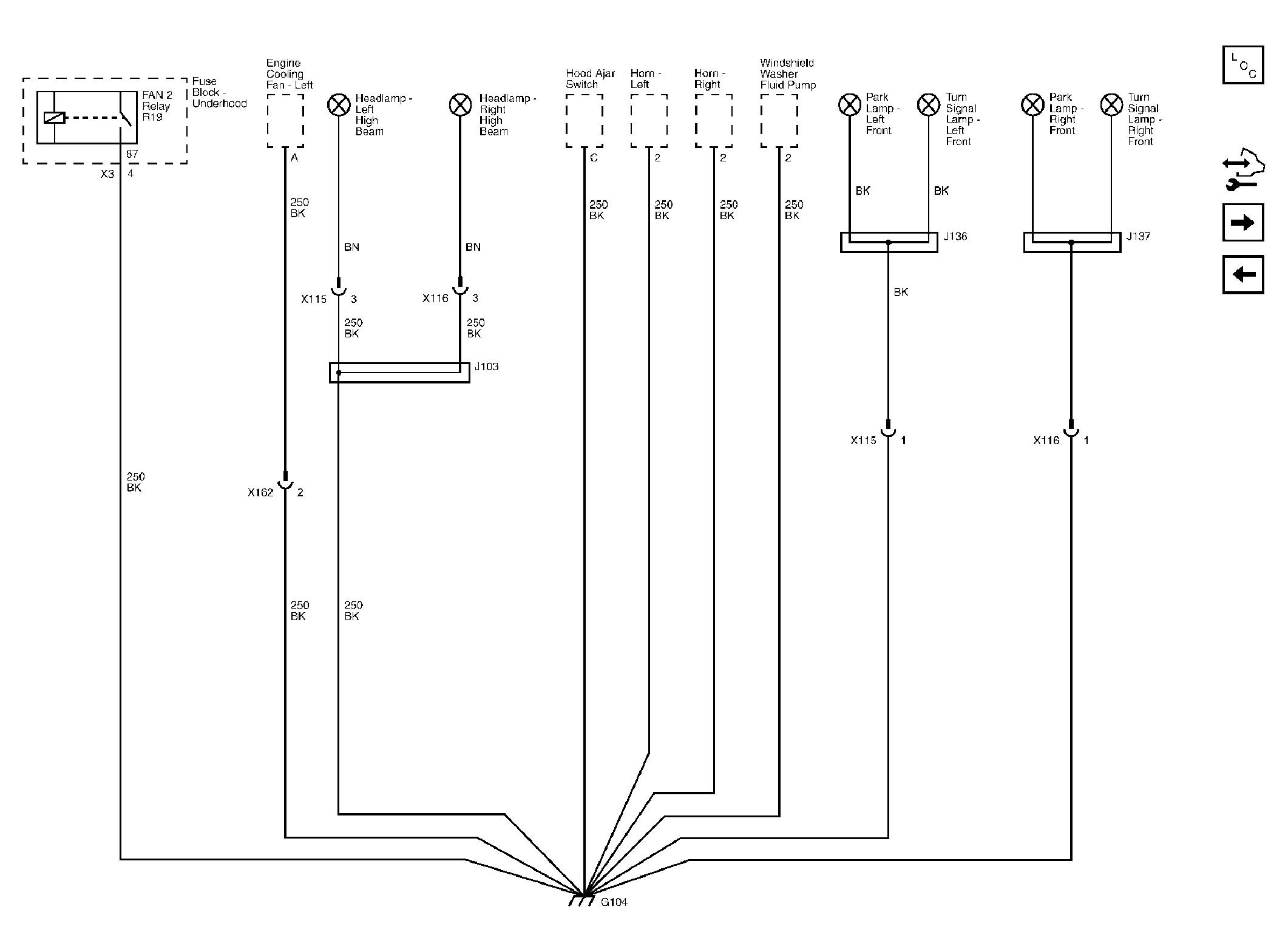

Fig 2: G104

GM2034178

Courtesy of GENERAL MOTORS CORP.

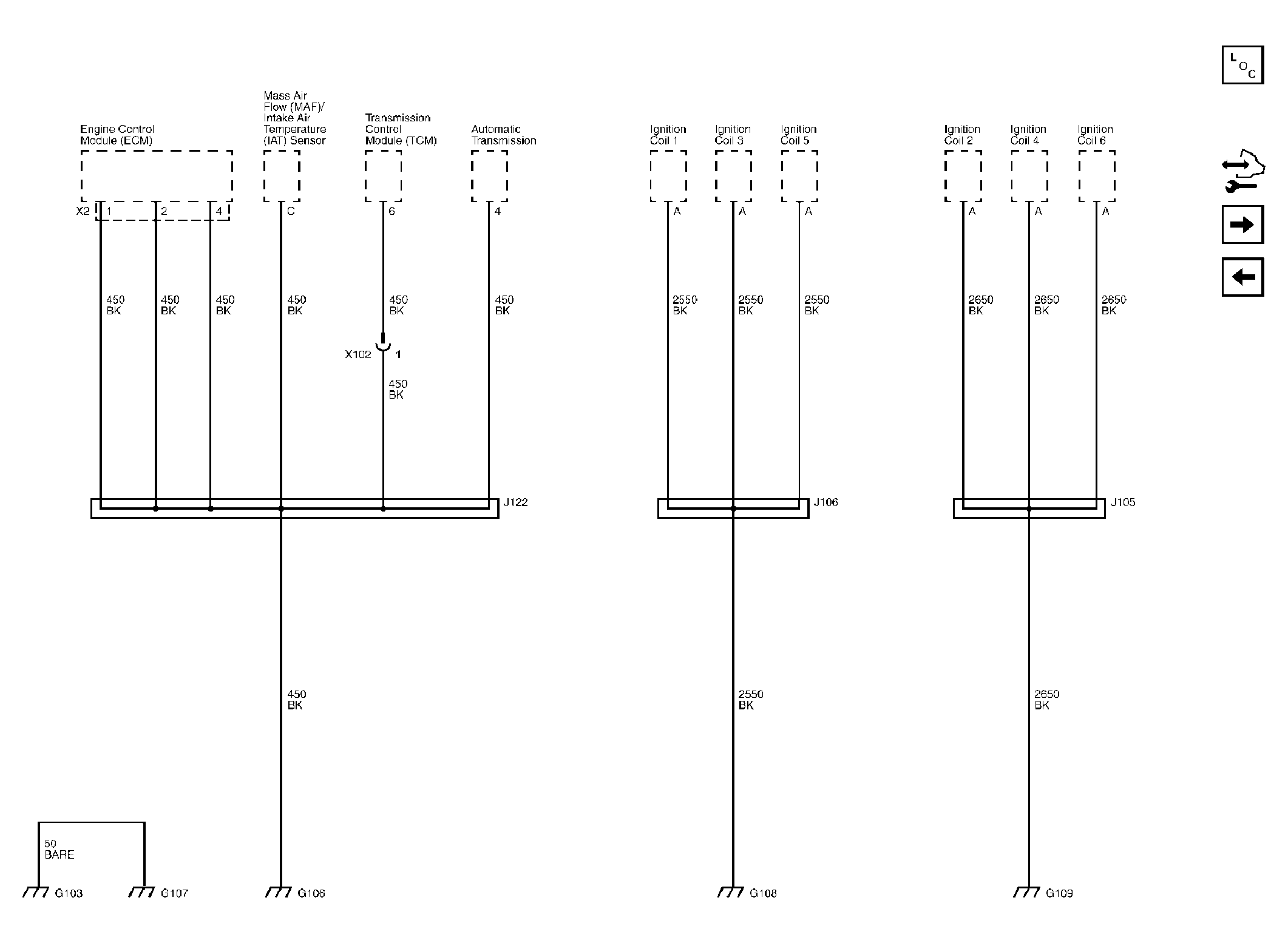

Fig 3: G103, G106, G107, G108 and G109 (LY7)

GM2034188

Courtesy of GENERAL MOTORS CORP.

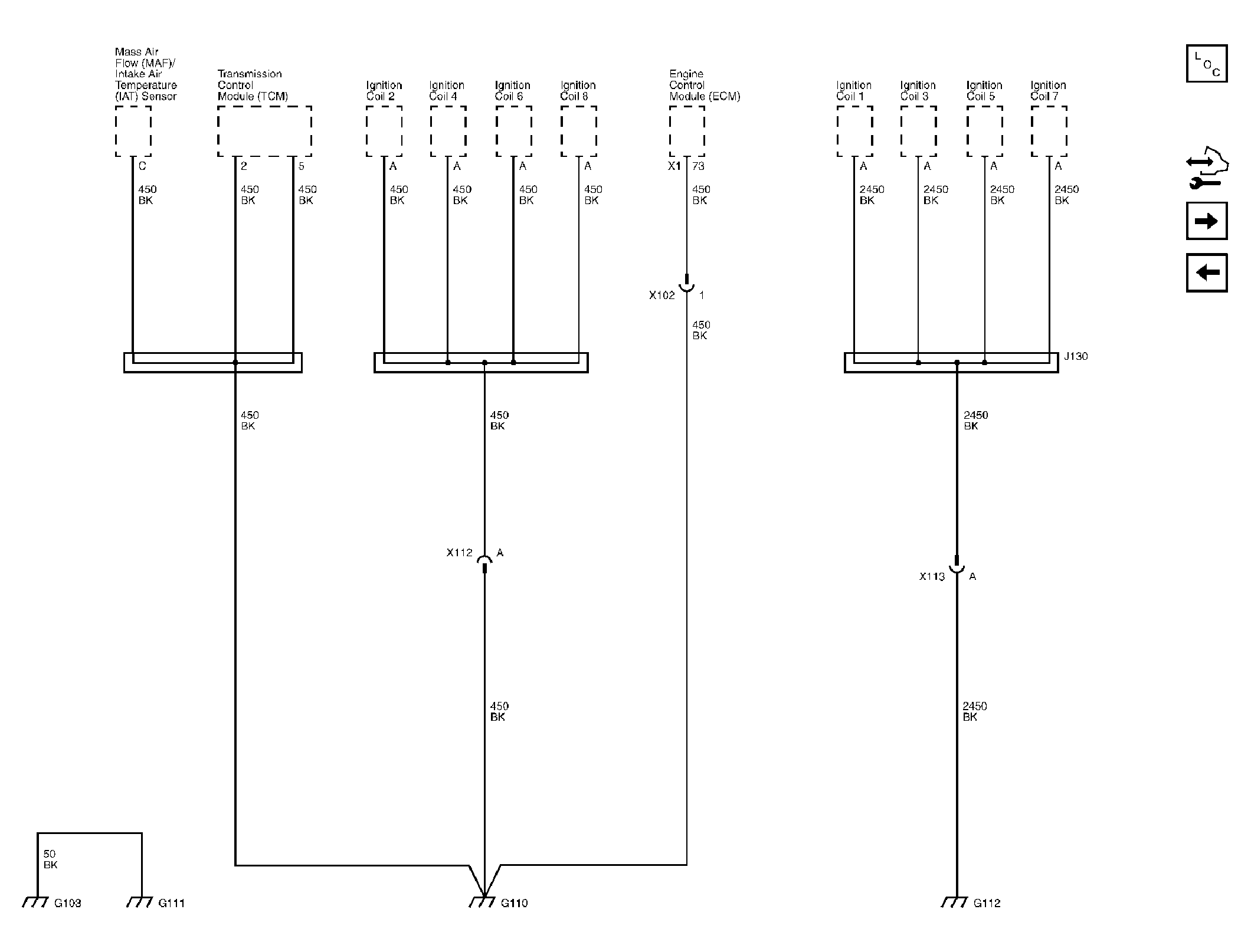

Fig 4: G103, G110, G111 and G112 (L76)

GM2034187

Courtesy of GENERAL MOTORS CORP.

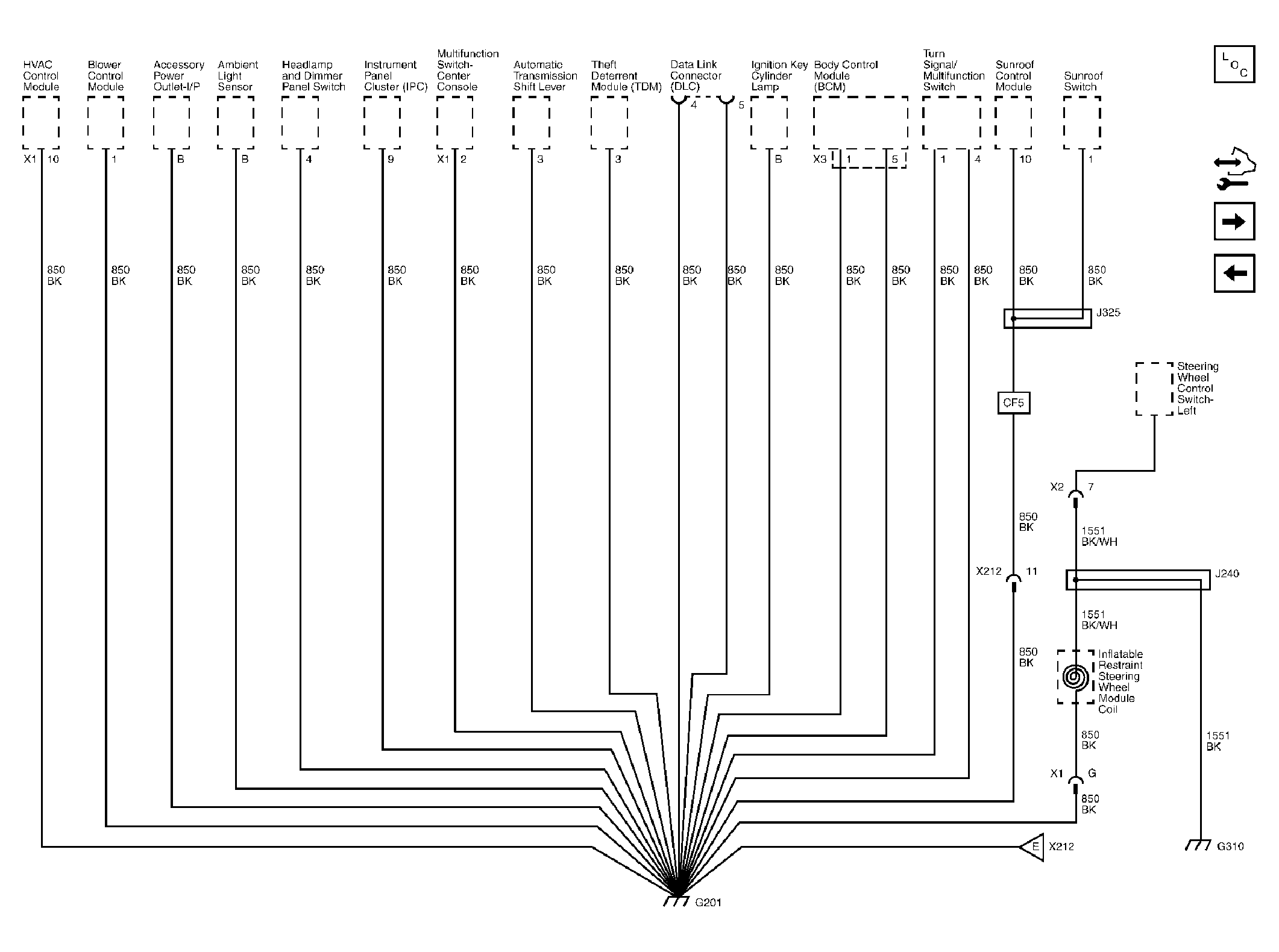

Fig 5: G201 - 1 of 2

GM2034179

Courtesy of GENERAL MOTORS CORP.

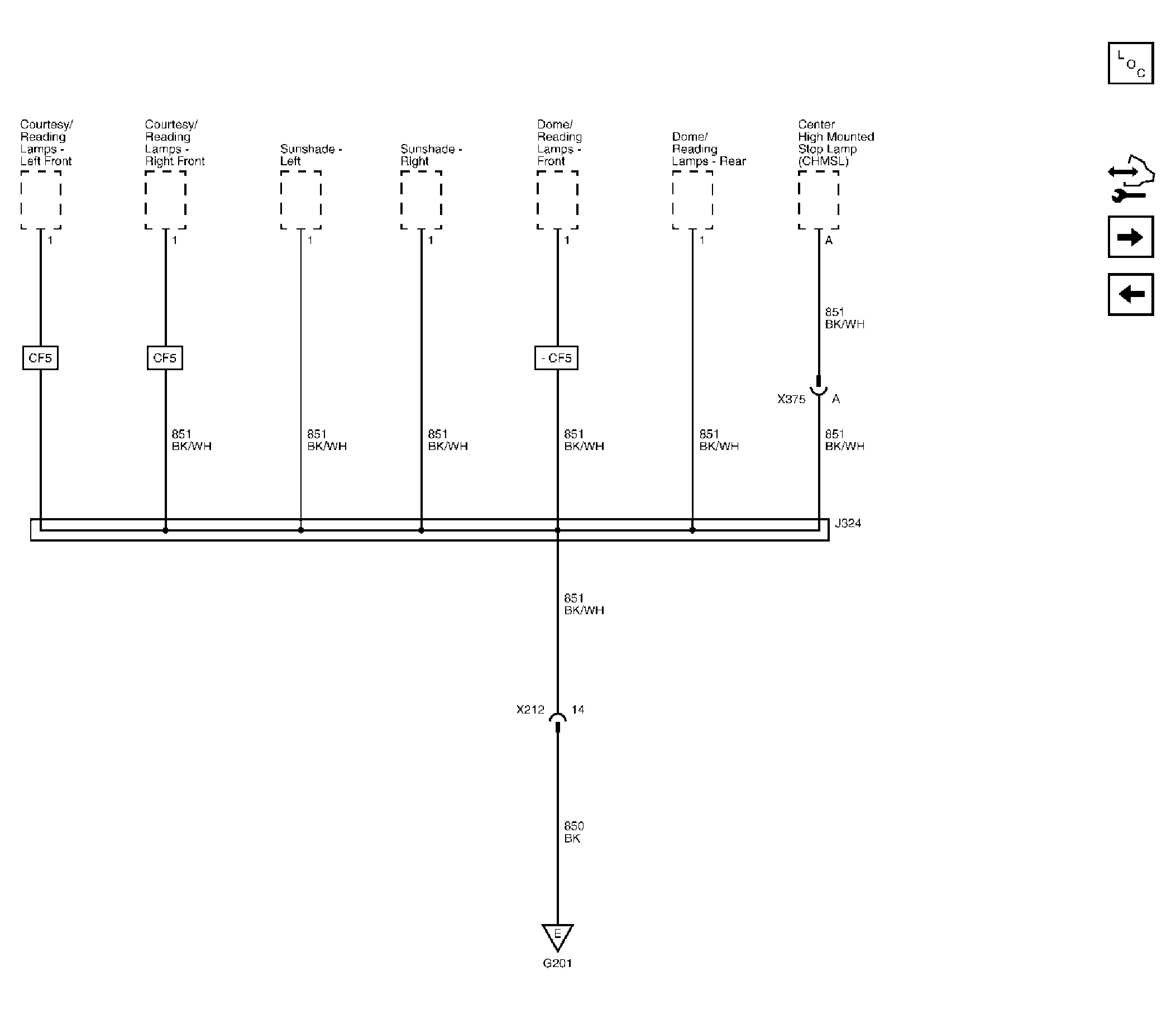

Fig 6: G201 - 2 of 2

GM2034180

Courtesy of GENERAL MOTORS CORP.

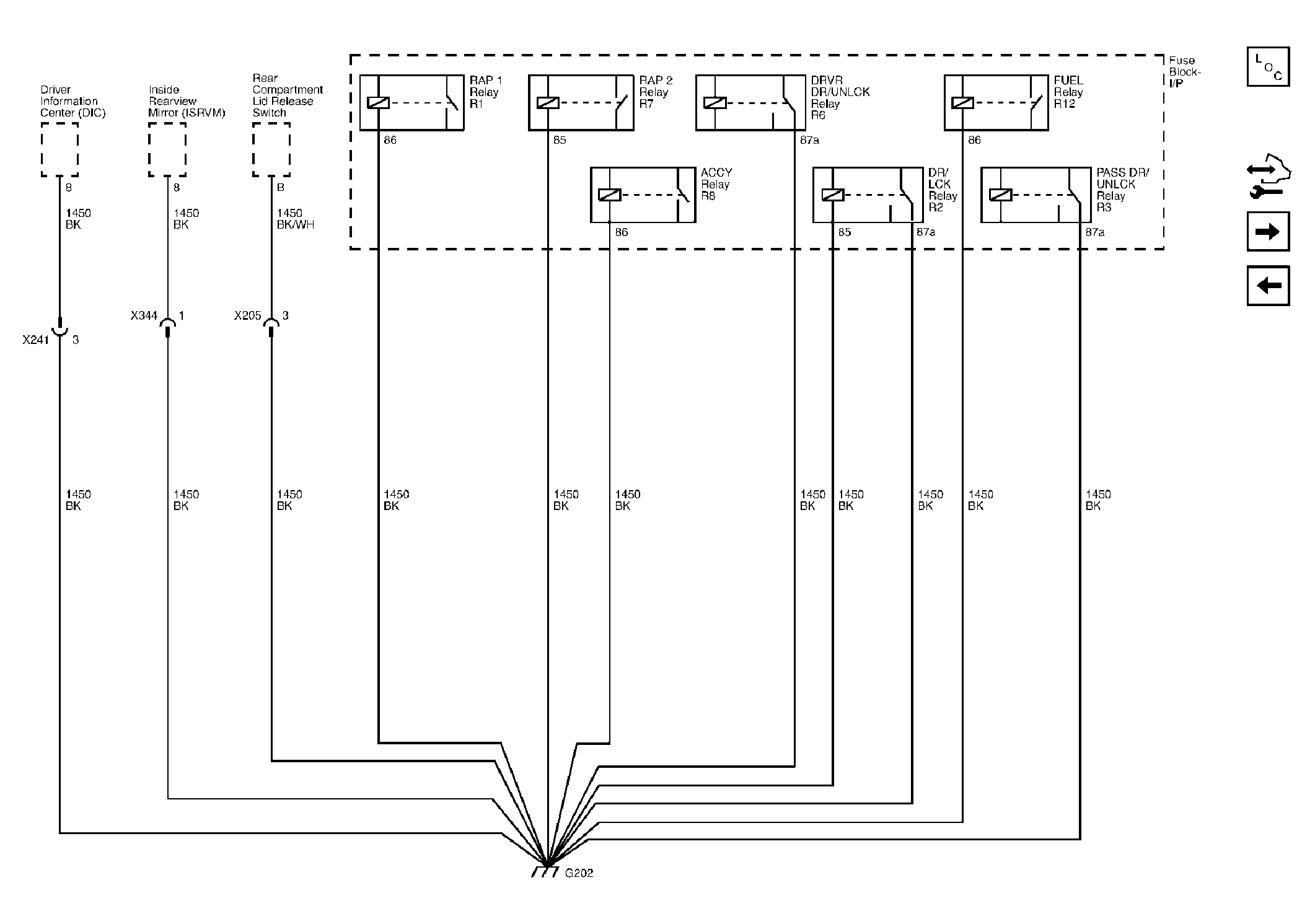

Fig 7: G202

GM2034181

Courtesy of GENERAL MOTORS CORP.

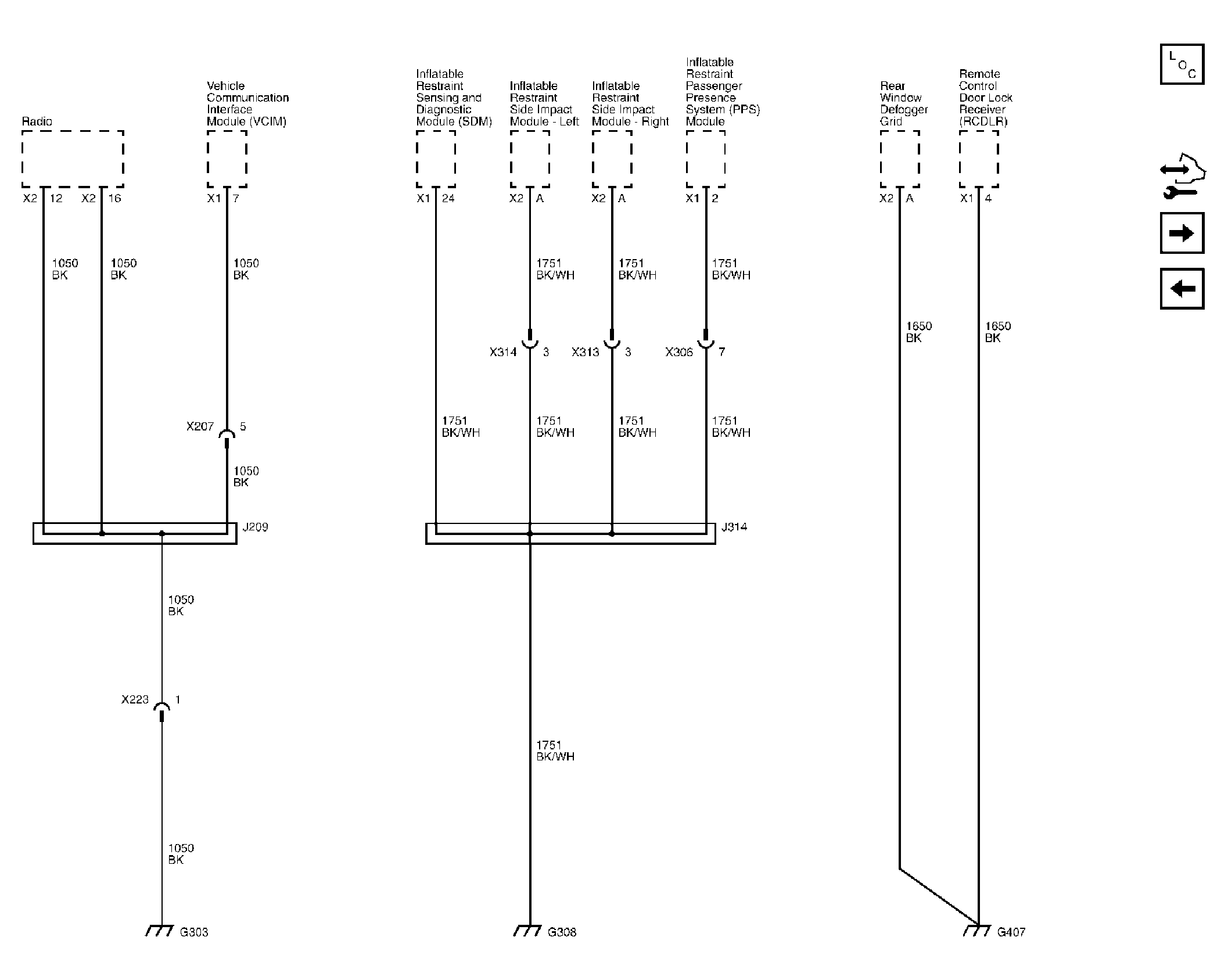

Fig 8: G303, G308 and G407

GM2034182

Courtesy of GENERAL MOTORS CORP.

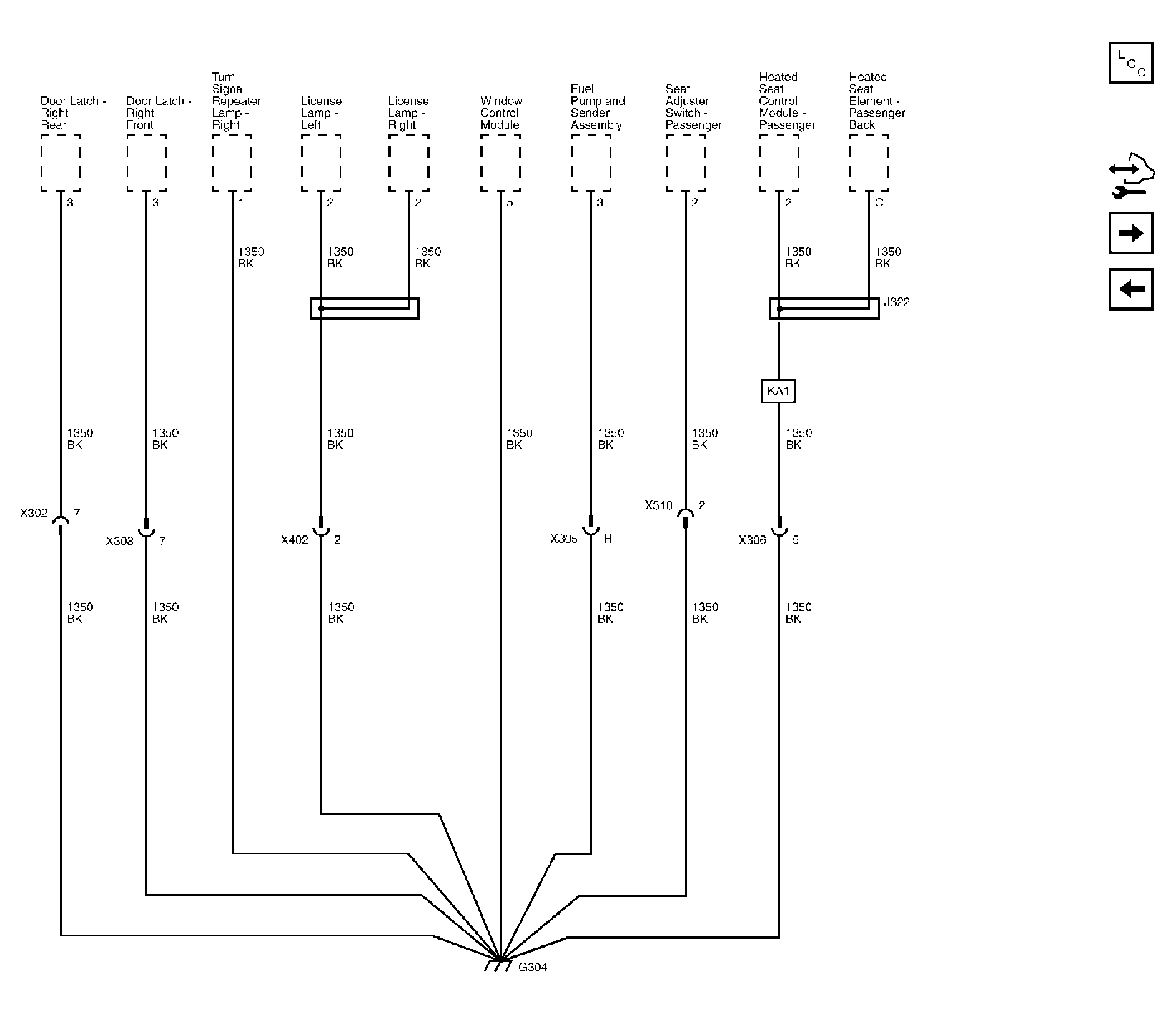

Fig 9: G304

GM2034183

Courtesy of GENERAL MOTORS CORP.

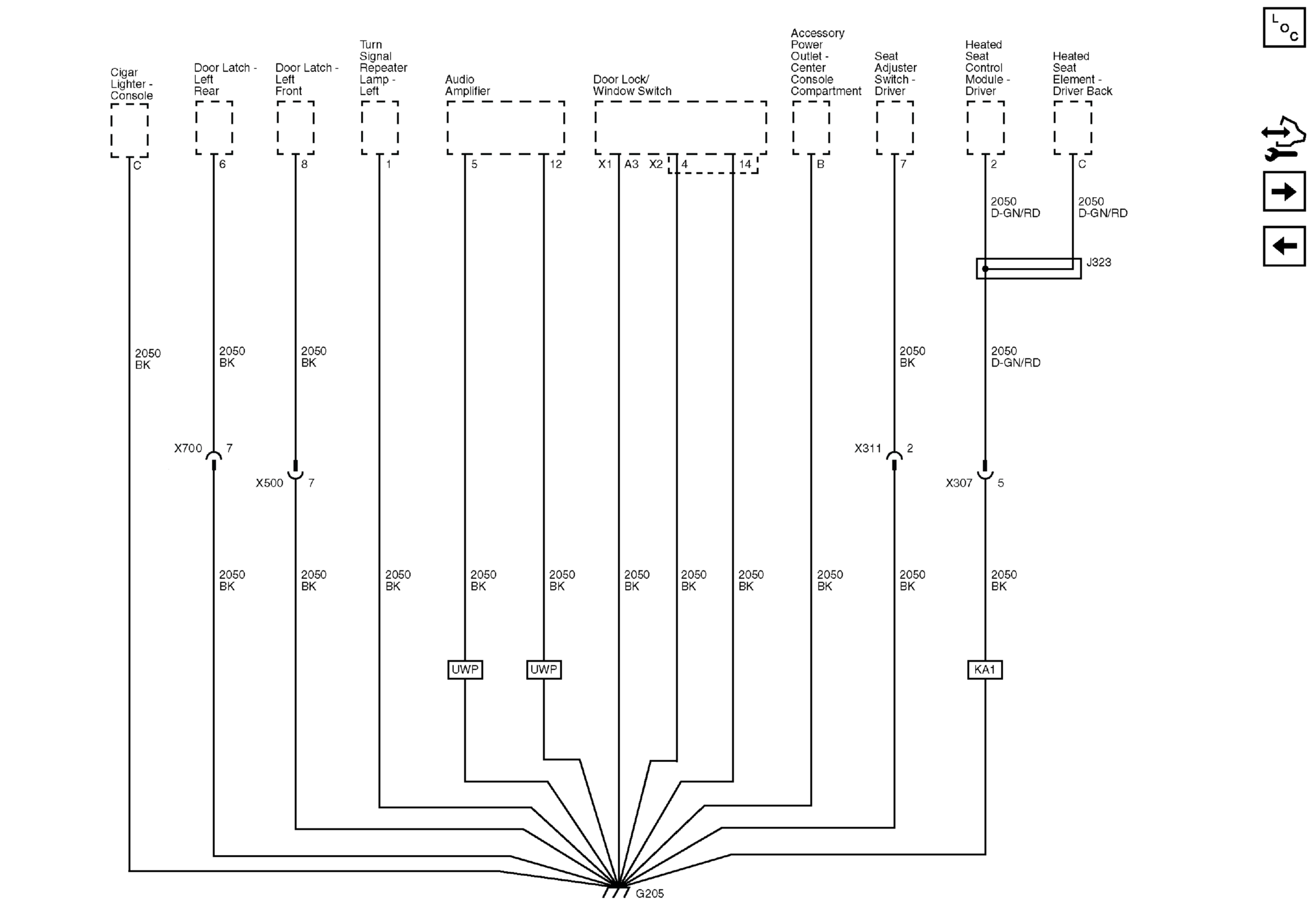

Fig 10: G305

GM2034184

Courtesy of GENERAL MOTORS CORP.

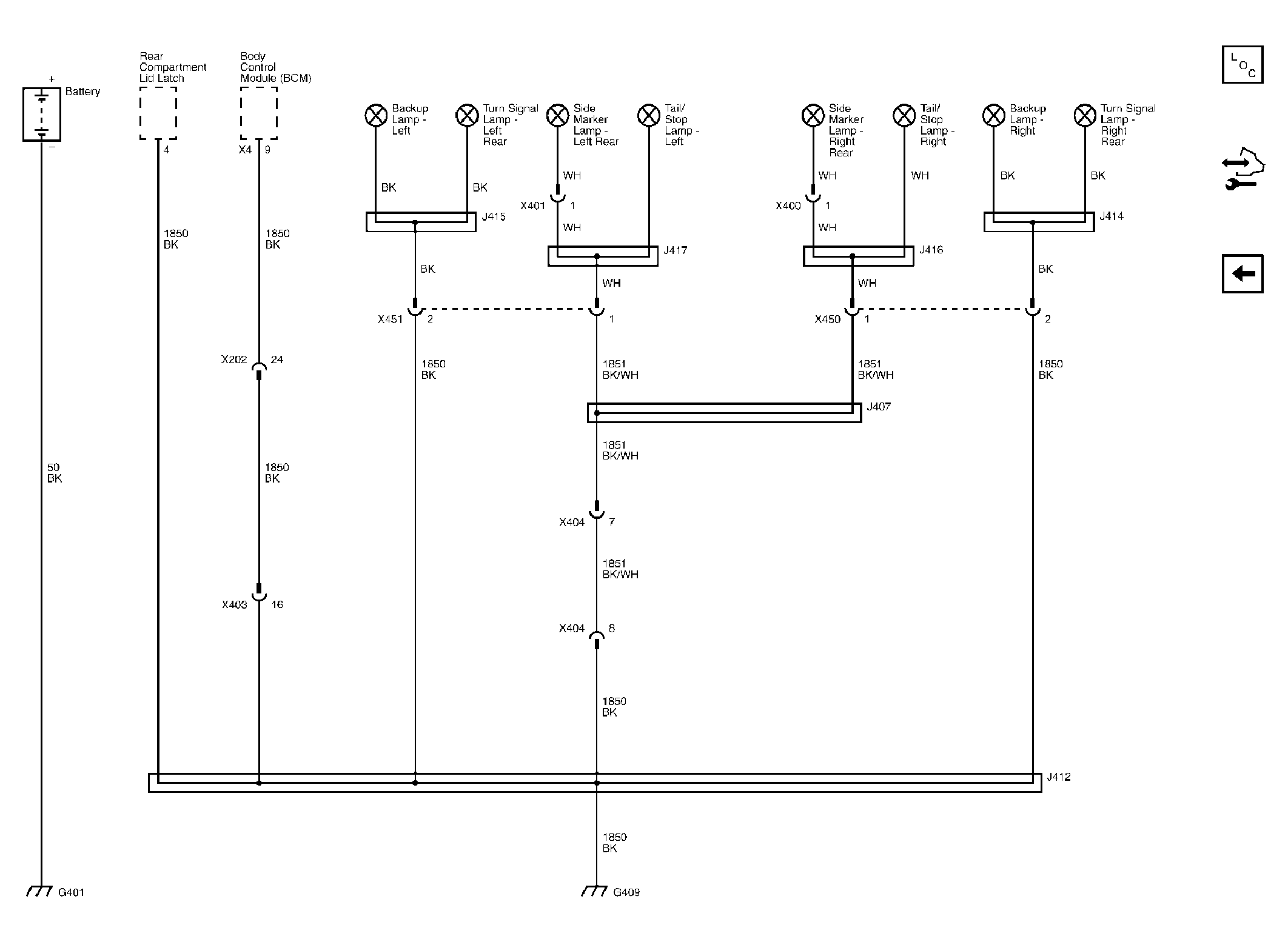

Fig 11: G401 and G409

GM2034185

Courtesy of GENERAL MOTORS CORP.
