Removal Procedure

CAUTION: Refer to Heated Oxygen and Oxygen Sensor Caution .

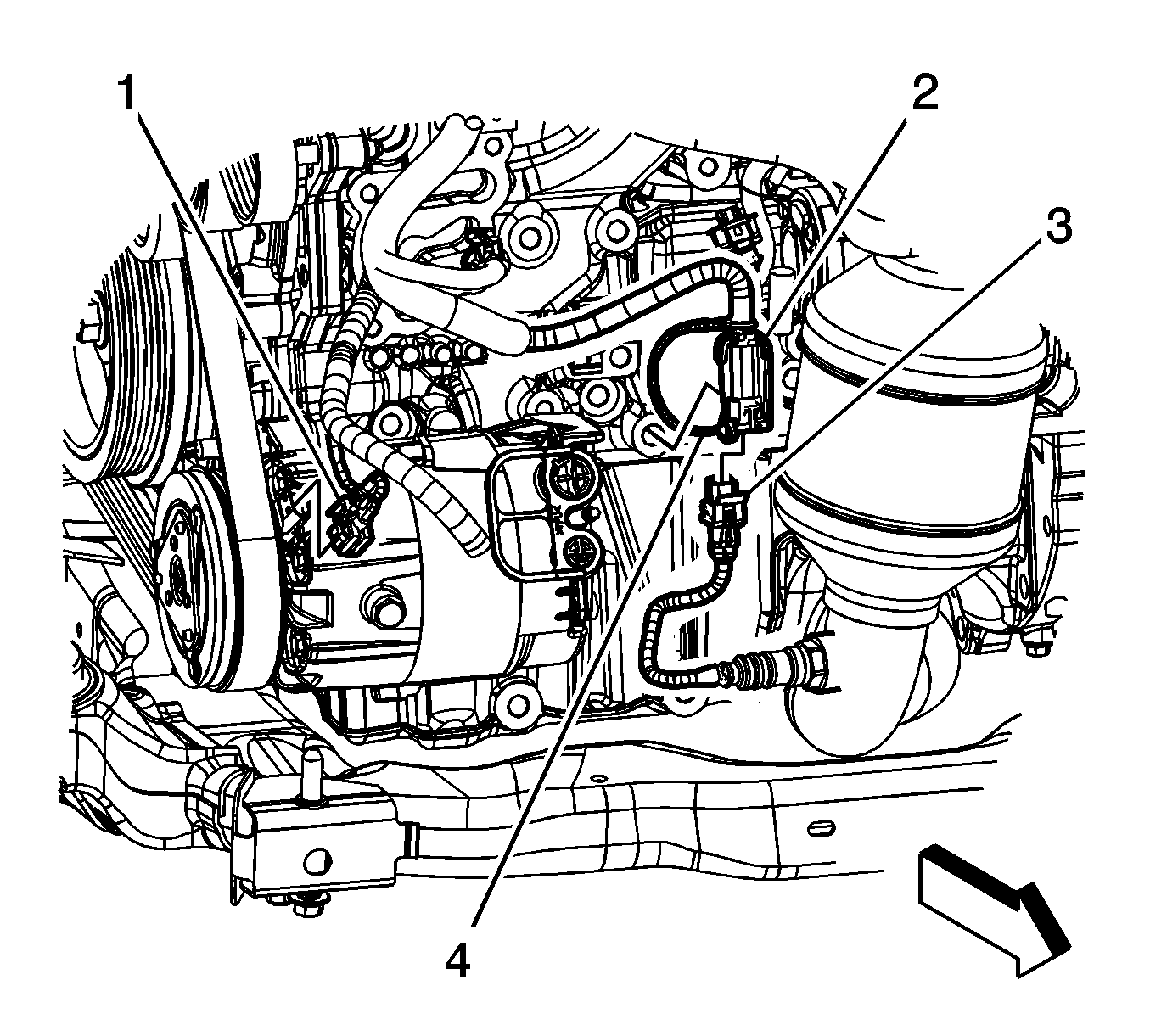

    Fig 1: Electrical Connectors - Left Side
    GM1839013Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the connector position assurance (CPA) retainer (4) from the HO2S electrical connection.
  3. Disconnect the heated oxygen sensor (HO2S) electrical connector (3) from the engine wiring harness electrical connector (2).

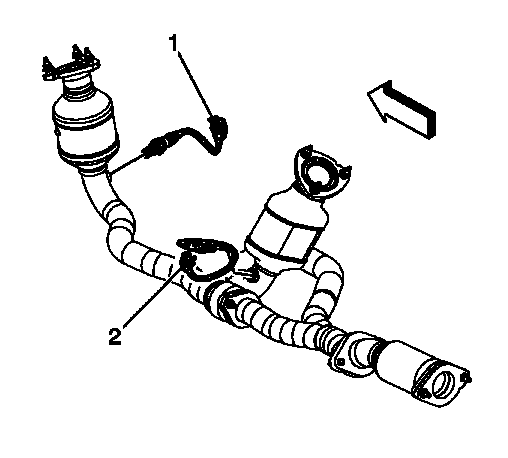

    4. Fig 2: Identifying Bank 1-2 Sensor 2 HO2S
    GM1839022Courtesy of GENERAL MOTORS CORP.
  4. Remove the bank 2 sensor 2 HO2S (1) from the catalytic converter.
