Installation Procedure

    Fig 1: View Of Left CMP Sensor - Intake
    GM1285241Courtesy of GENERAL MOTORS CORP.
  1. Install the CMP sensor.
    2. CAUTION: Refer to Fastener Caution .
  2. Install the CMP sensor bolt and tighten to 10 N.m (89 lb in).

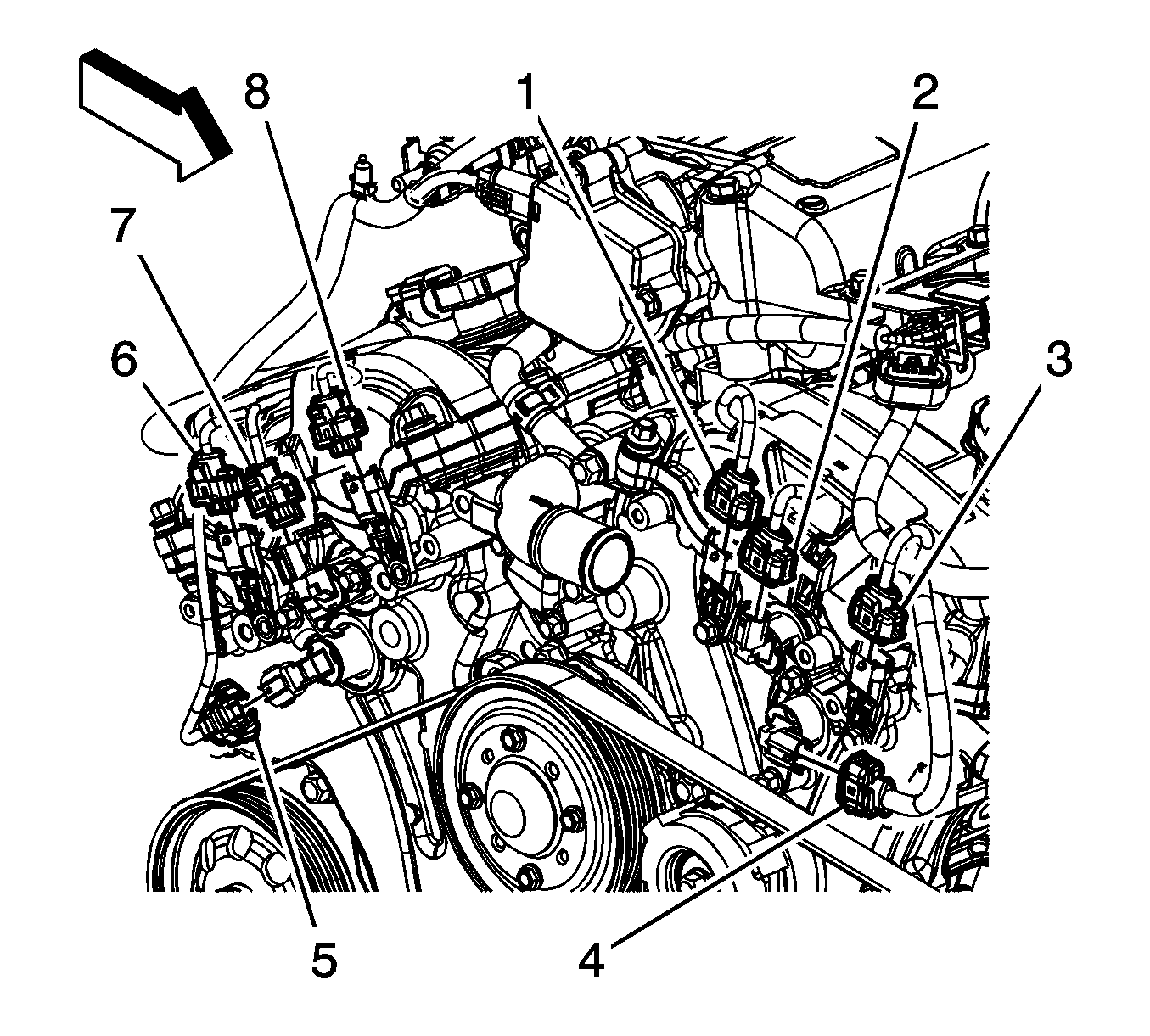

    3. Fig 2: Identifying Camshaft Position Sensors
    GM1839729Courtesy of GENERAL MOTORS CORP.
  3. Connect the engine wiring harness electrical connector (1) to the bank 2 intake CMP sensor.
  4. Install the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
