Fuel Fill Pipe

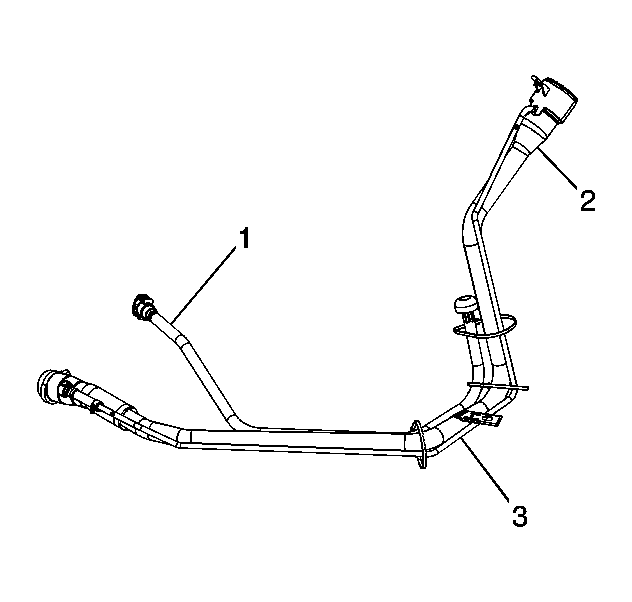

Fig 1: View Of Fuel Fill Pipe

GM1558074

Courtesy of GENERAL MOTORS CORP.

The fuel fill pipe (2) has a built-in restrictor and deflector in order to prevent refueling with leaded fuel.
