Power Moding Schematics

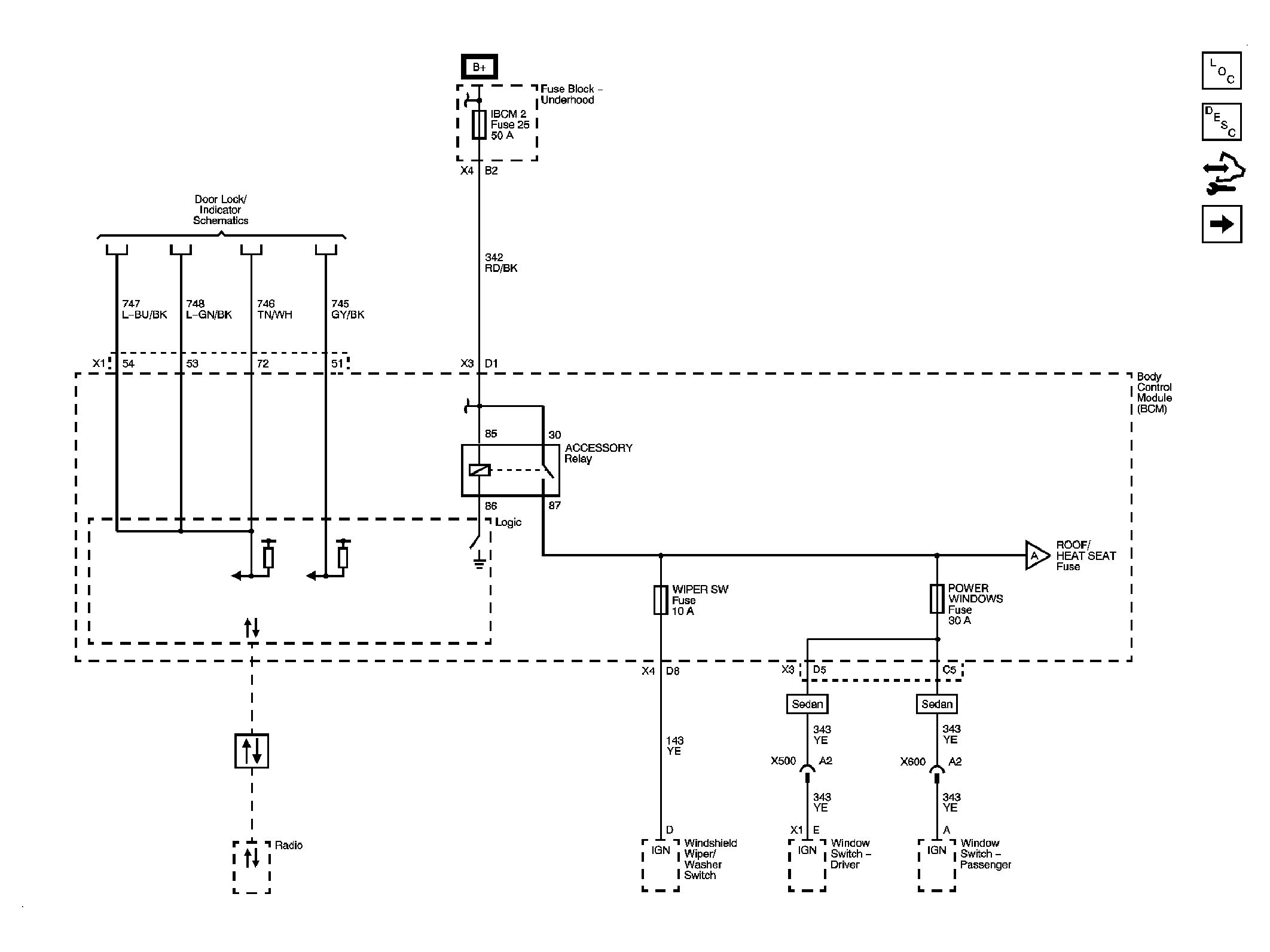

Fig 1: Power Moding Schematic (1 of 2)

GM2079495

Courtesy of GENERAL MOTORS CORP.

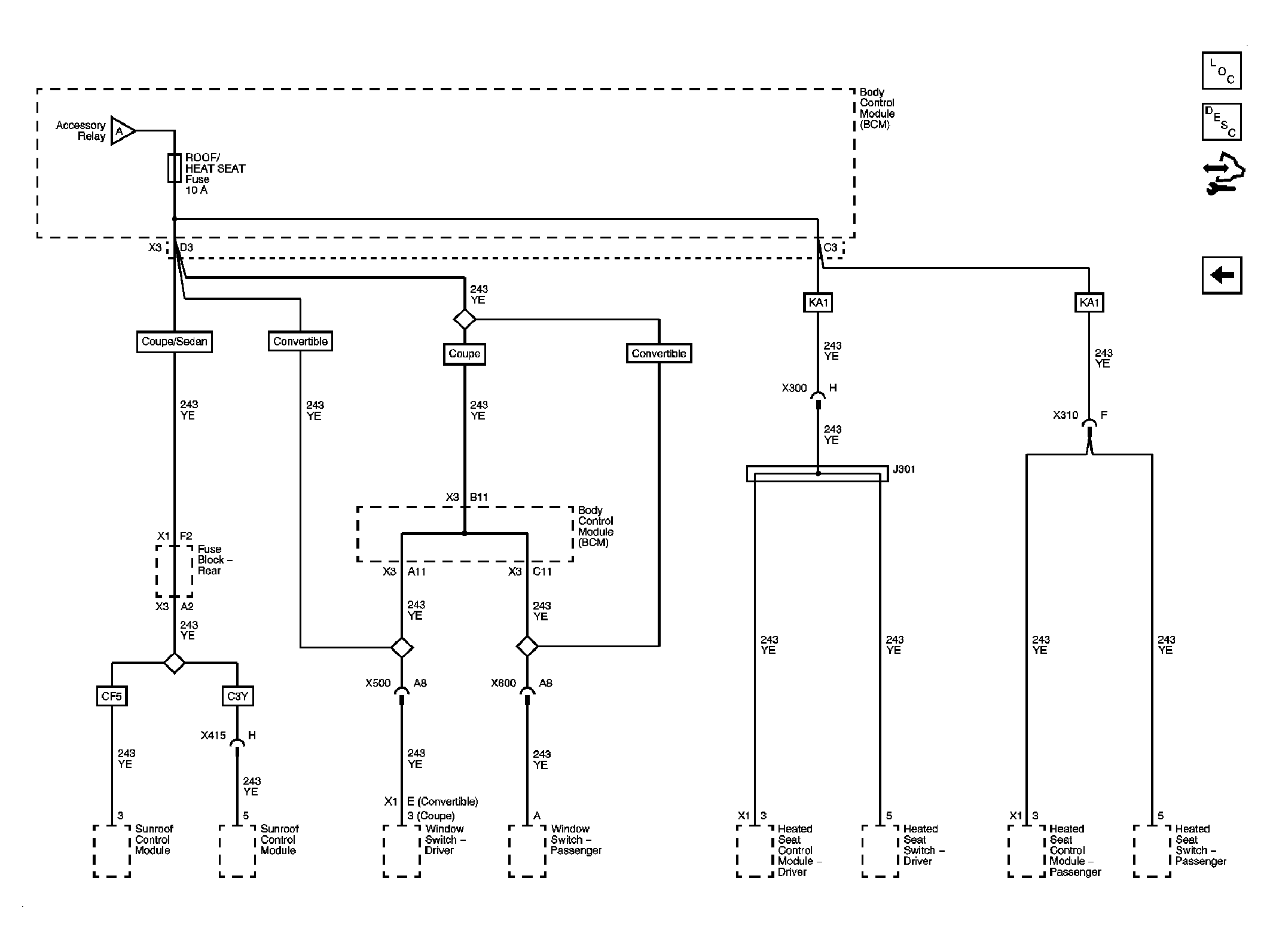

Fig 2: Power Moding Schematic (2 of 2)

GM2079497

Courtesy of GENERAL MOTORS CORP.
