Power Distribution Schematics

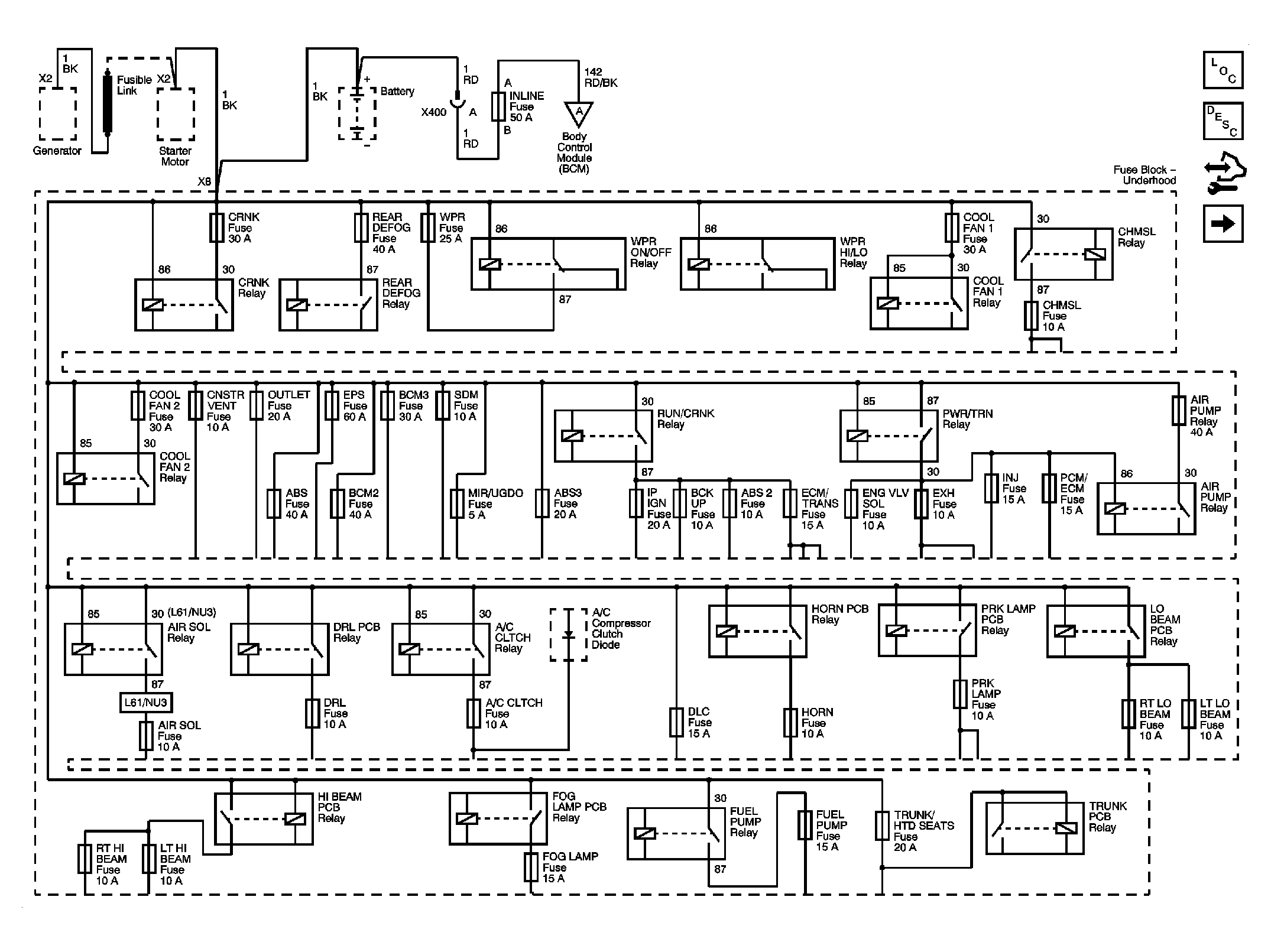

Fig 1: B+ Bussing, Underhood Fuse Block B+ Bus Schematic

Courtesy of GENERAL MOTORS CORP.

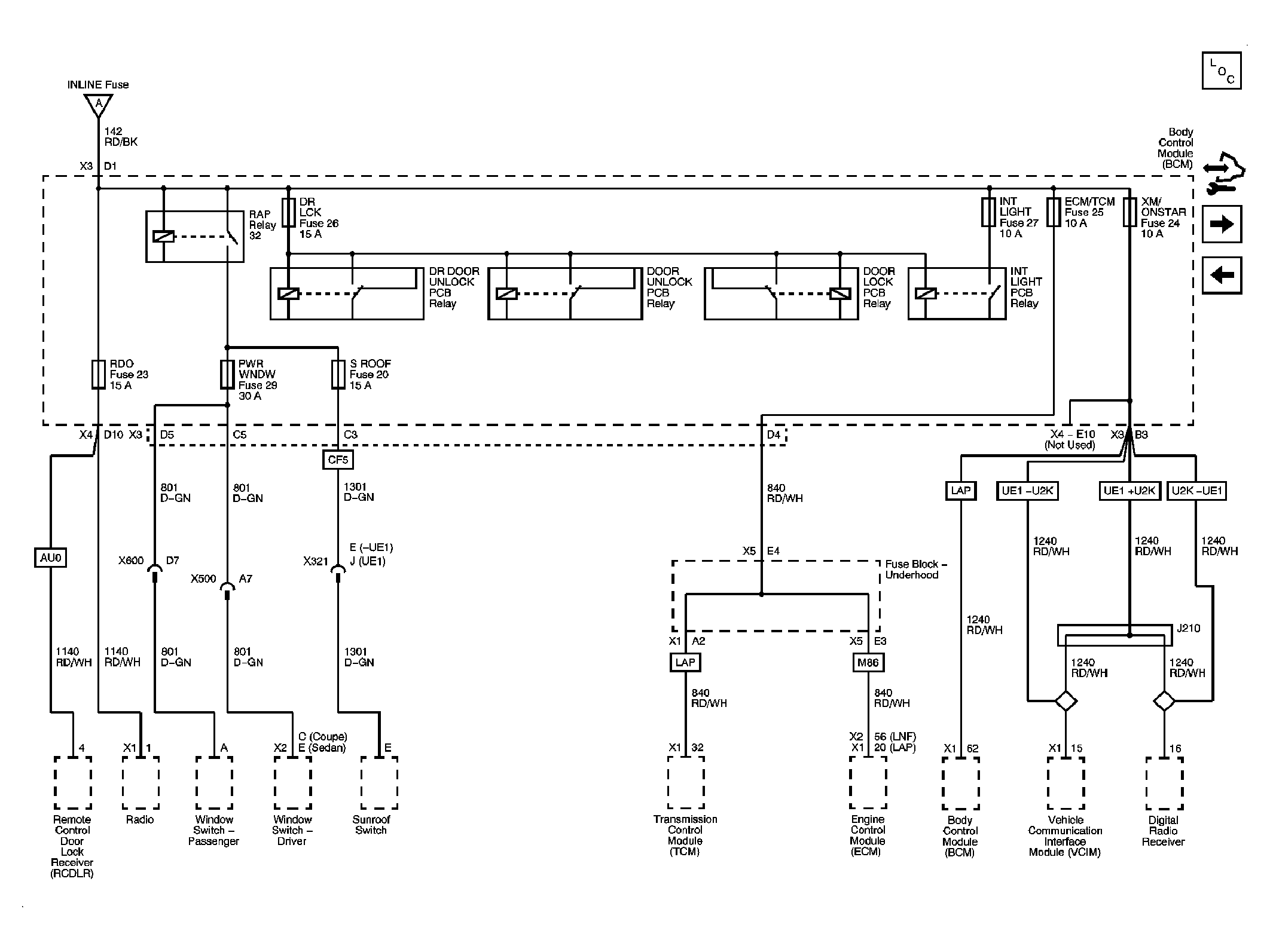

Fig 2: BCM Fuses - DR LCK, ECM/TCM, INT LIGHT, PWR WNDW, RDO, SDM, S ROOF Schematic

Courtesy of GENERAL MOTORS CORP.

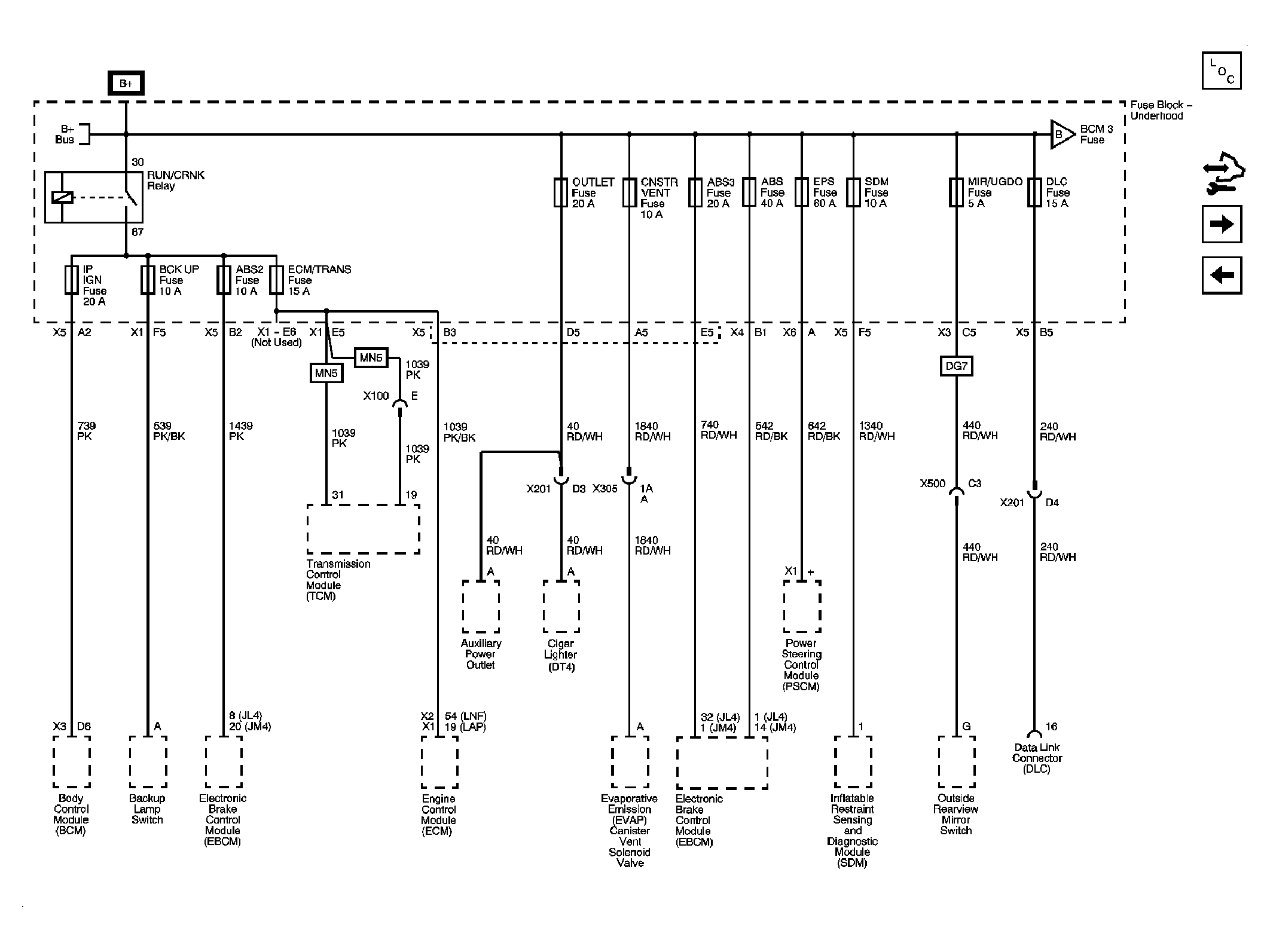

Fig 3: Underhood Fuse Block Fuses - ABS, ABS2, BCK UP, CNSTR VENT, ECM/TRANS, EPS, HTD SEATS, IP IGN, LTR, MIR, PRK/NEUT, S-BAND/ONSTAR, and RUN/CRANK Relay Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 4: Body Control Module - AUDIO AMPLIFIER Fuse, BCM2 Fuse, CLUSTER Fuse, IGN SW Fuse, STOP LPS Fuse Schematic

Courtesy of GENERAL MOTORS CORP.

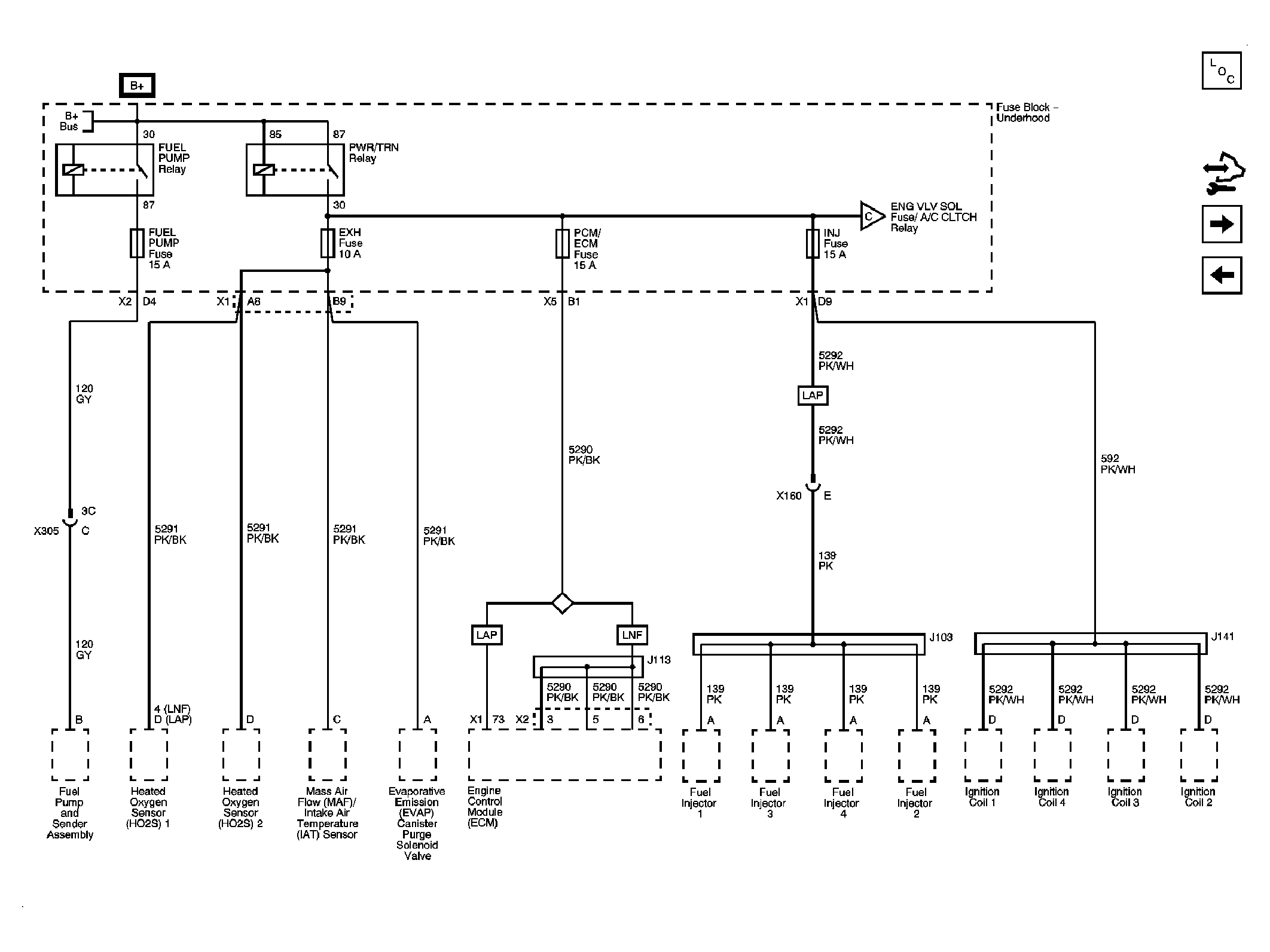

Fig 5: Underhood Fuse Block Fuses - EMISN, FUEL PMP, INJ, PCM/ECM, and FUEL PMP Relay and PWR/TRN Relay Schematic

Courtesy of GENERAL MOTORS CORP.

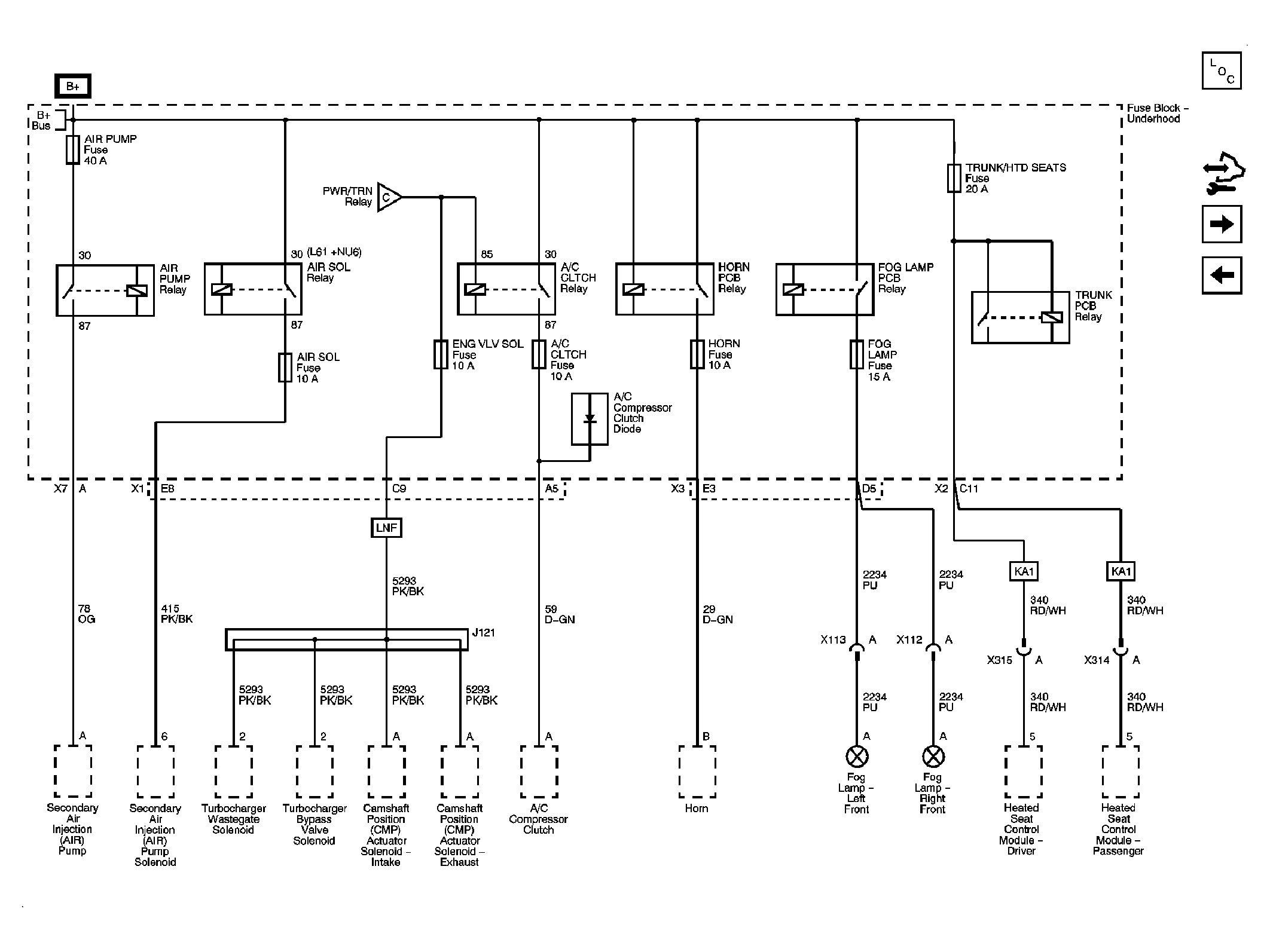

Fig 6: Underhood Fuse Block Fuses - AFTERCOOL, AIR PMP, AIR SOL, FOG LP, HORN, TRUNK/OUTLET Schematic

Courtesy of GENERAL MOTORS CORP.

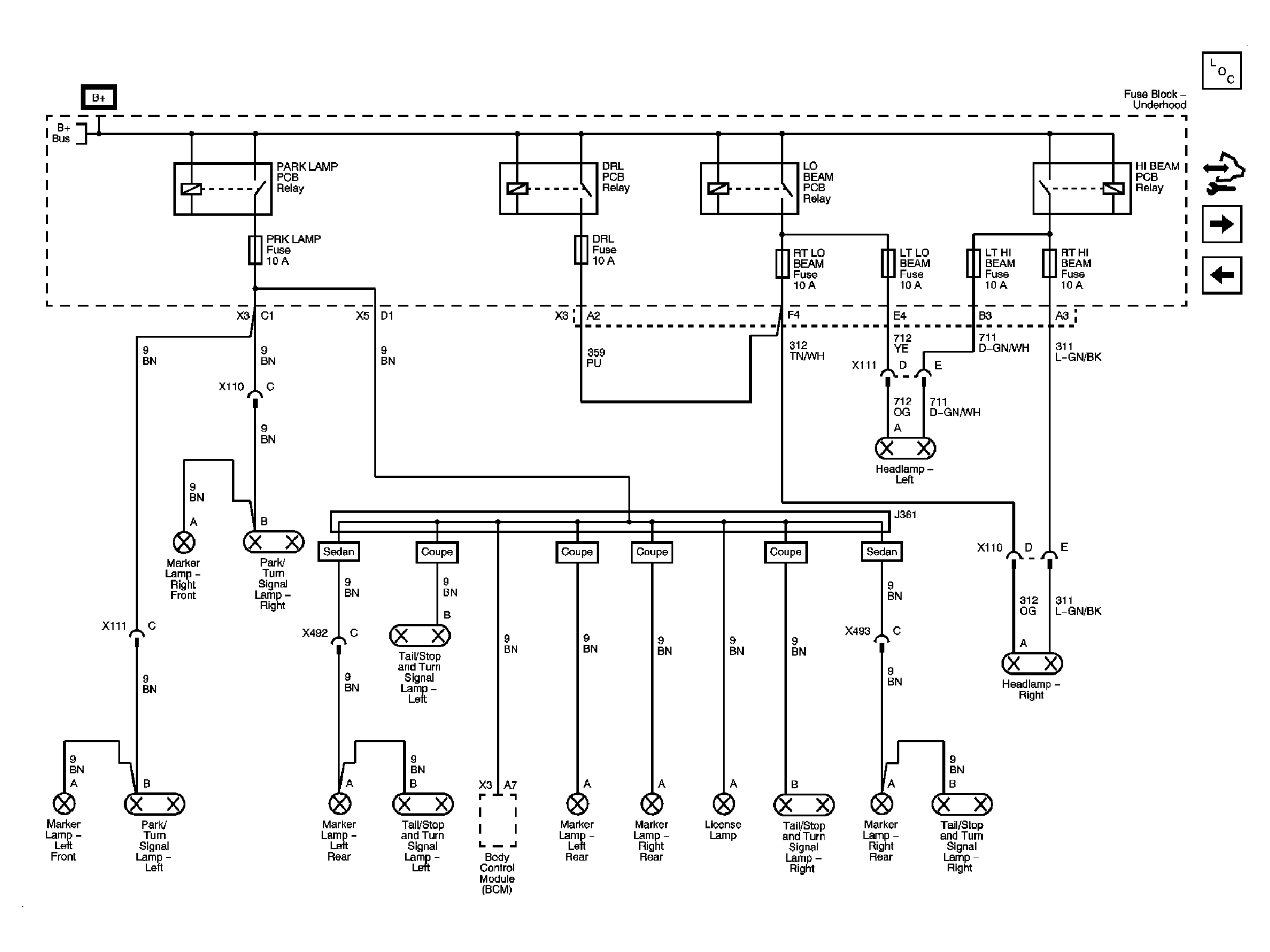

Fig 7: Underhood Fuse Block Fuses - LH HI BEAM, LH LO BEAM, PRK LPS, RH HI BEAM, RH LO BEAM Schematic

Courtesy of GENERAL MOTORS CORP.

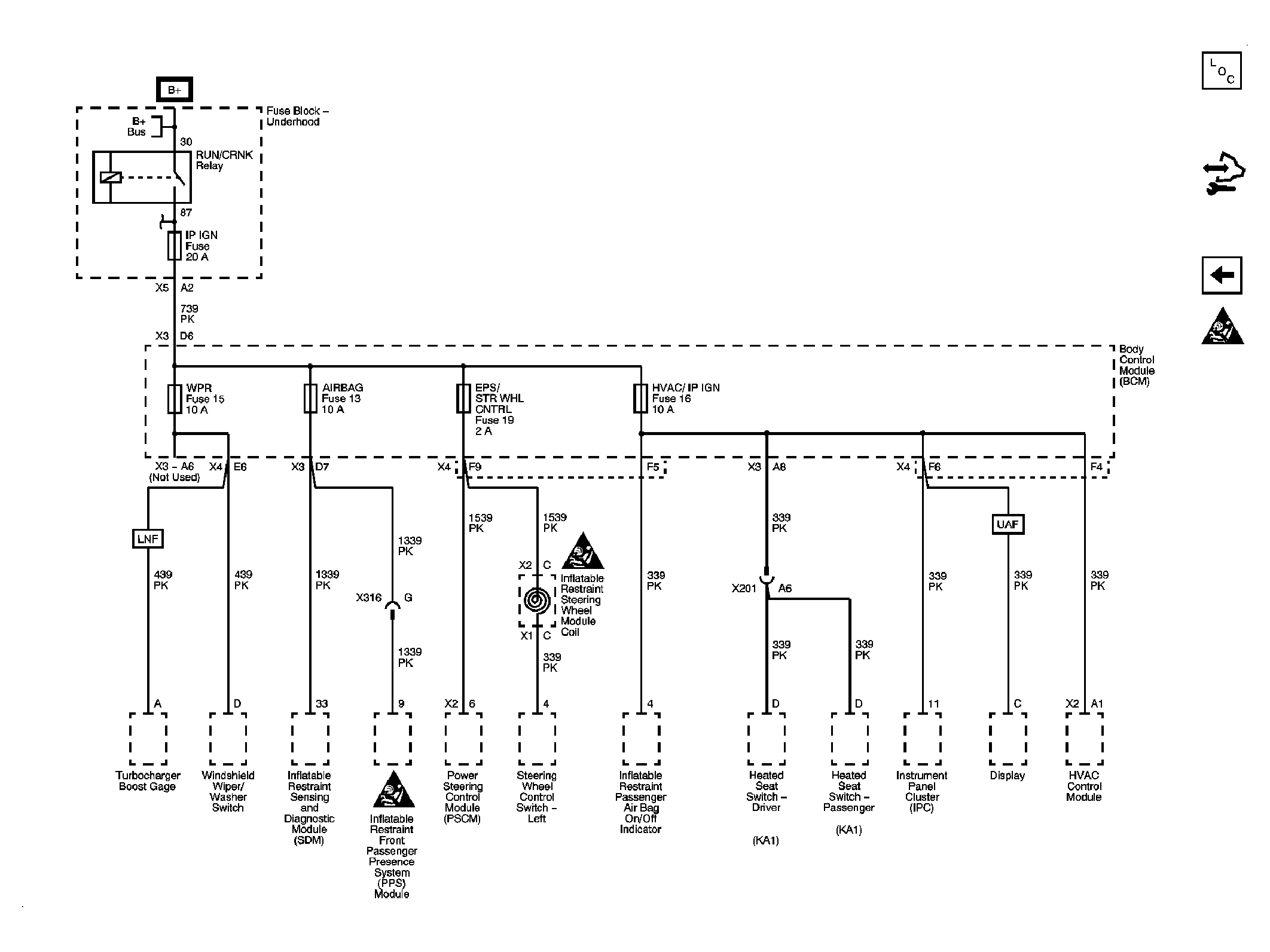

Fig 8: Underhood Fuse Block I/P IGN Fuse, Body Control Module Fuses - AIRBAG, EPS/STR WHL CNTRL, HVAC/IP IGN, WPR Schematic

Courtesy of GENERAL MOTORS CORP.
