Ignition Lock Cylinder Replacement

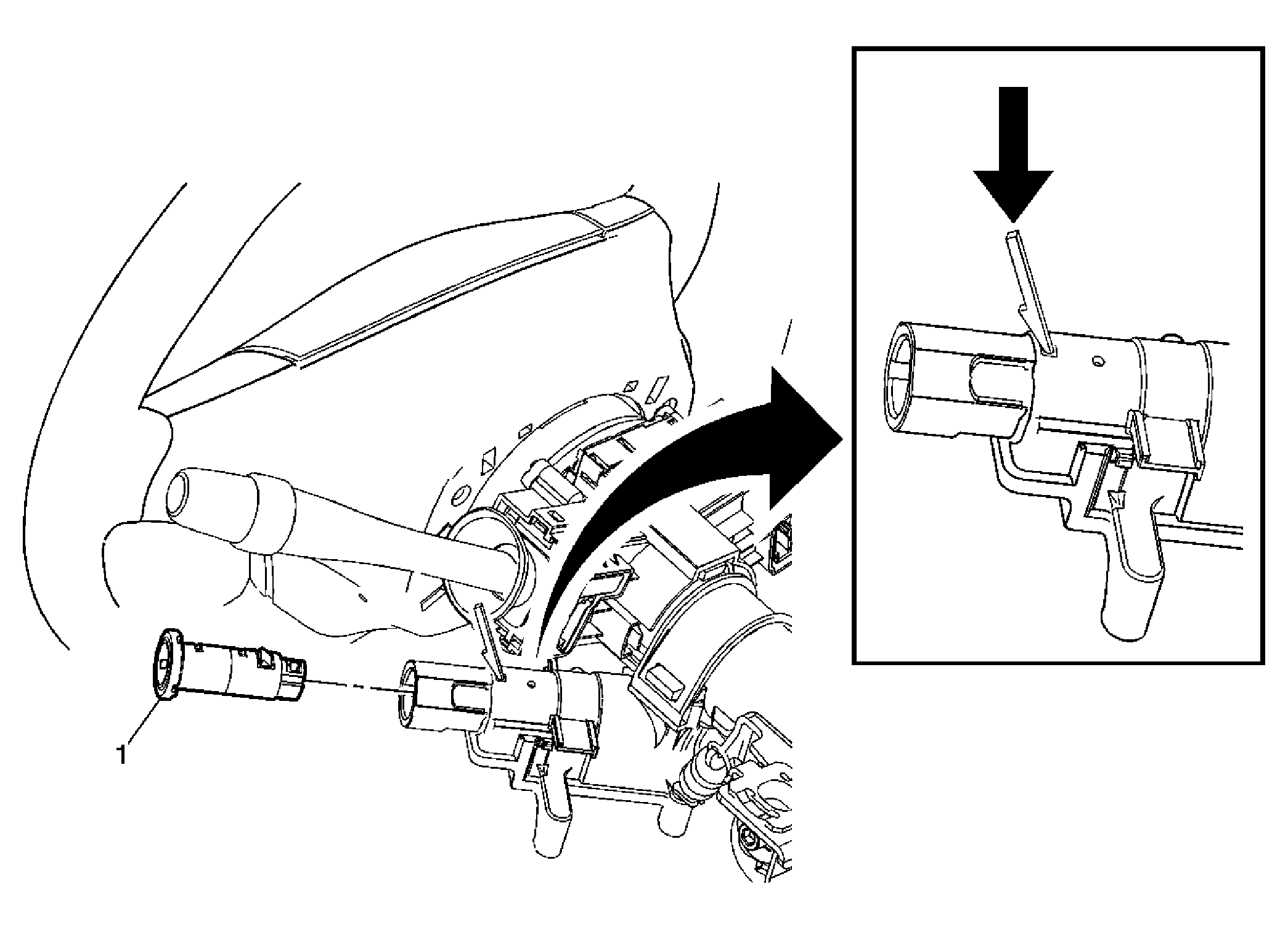

Fig 1: Identifying Ignition Lock Cylinder

GM2085596

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

1

Ignition Lock Cylinder

Procedure

Turn the ignition lock cylinder to the RUN position.
Insert a pick-type tool into the proper hole on the ignition lock cylinder case and press the lock tab on the ignition lock cylinder down.
Pull the ignition lock cylinder out of the ignition lock cylinder case.
If installing a new ignition lock cylinder then refer to Key and Lock Cylinder Coding .
