Removal Procedure

WARNING: This page is about a different car, the 2011 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.

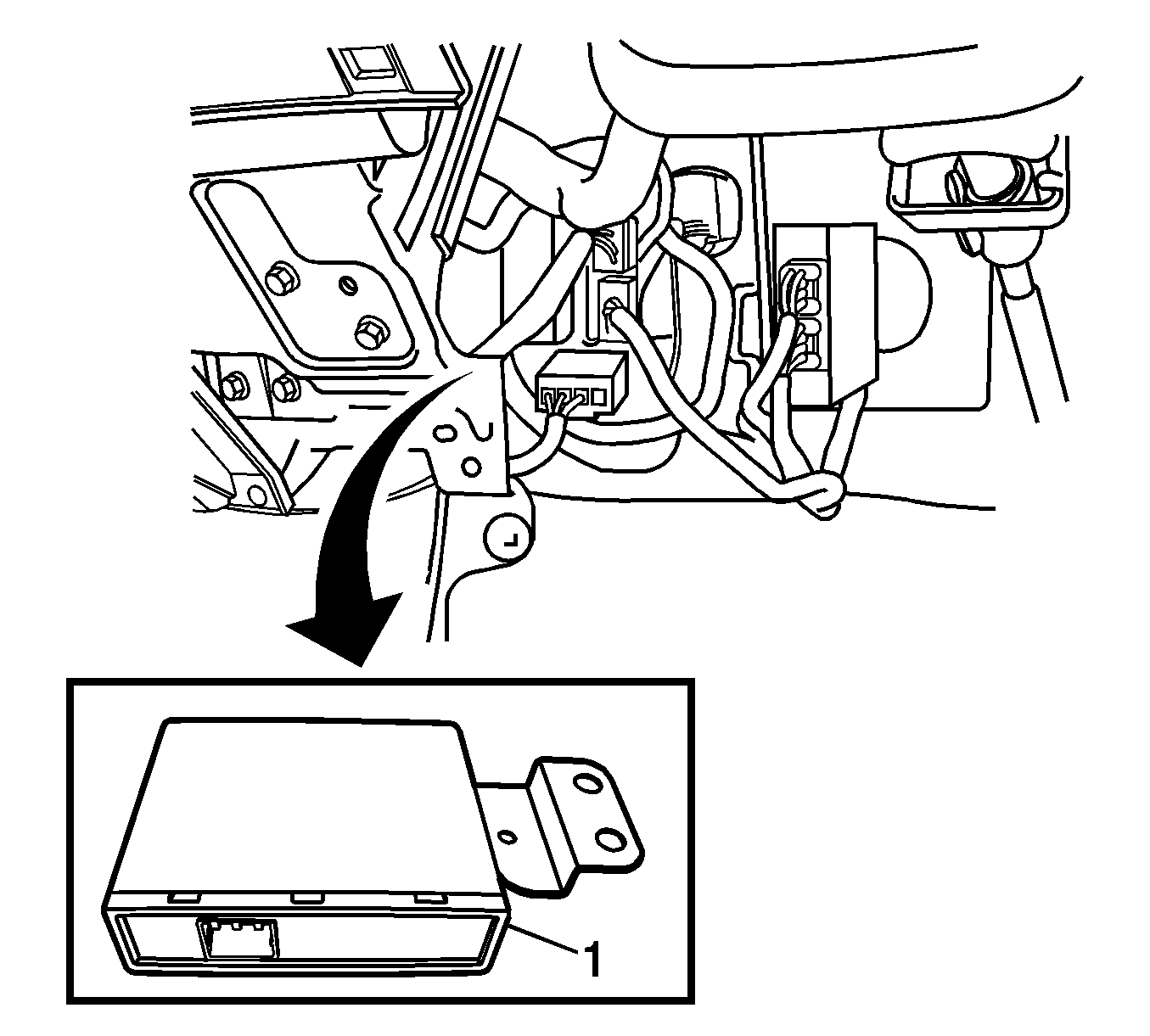

    Fig 1: Tire Pressure Module Retaining Screws And Module
    GM2065657Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the hood release cable from the hood latch release handle.
  2. Remove the I/P undercover.
  3. Remove the driver side knee bolster.
  4. Disconnect the tire pressure module connector.
  5. Remove the tire pressure module retaining screws and the module (1).
