Radio/Navigation System Schematics

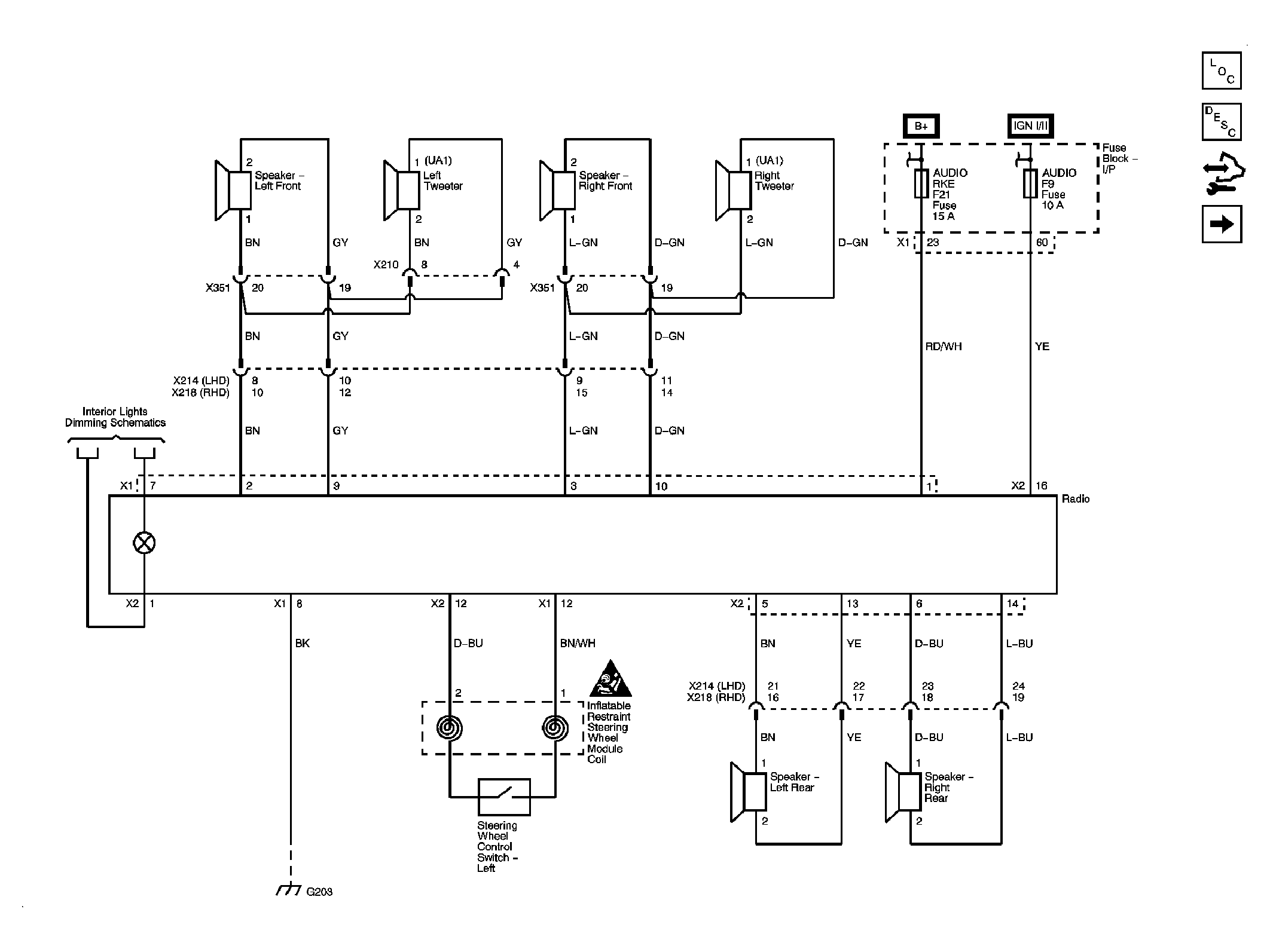

Fig 1: Radio Schematic

GM2120426

Courtesy of GENERAL MOTORS CORP.
