Splice Pack Connector End Views

WARNING: This page is about a different car, the 2010 Saturn Outlook, 2010 GMC Acadia, 2010 Chevrolet Traverse, and 2010 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

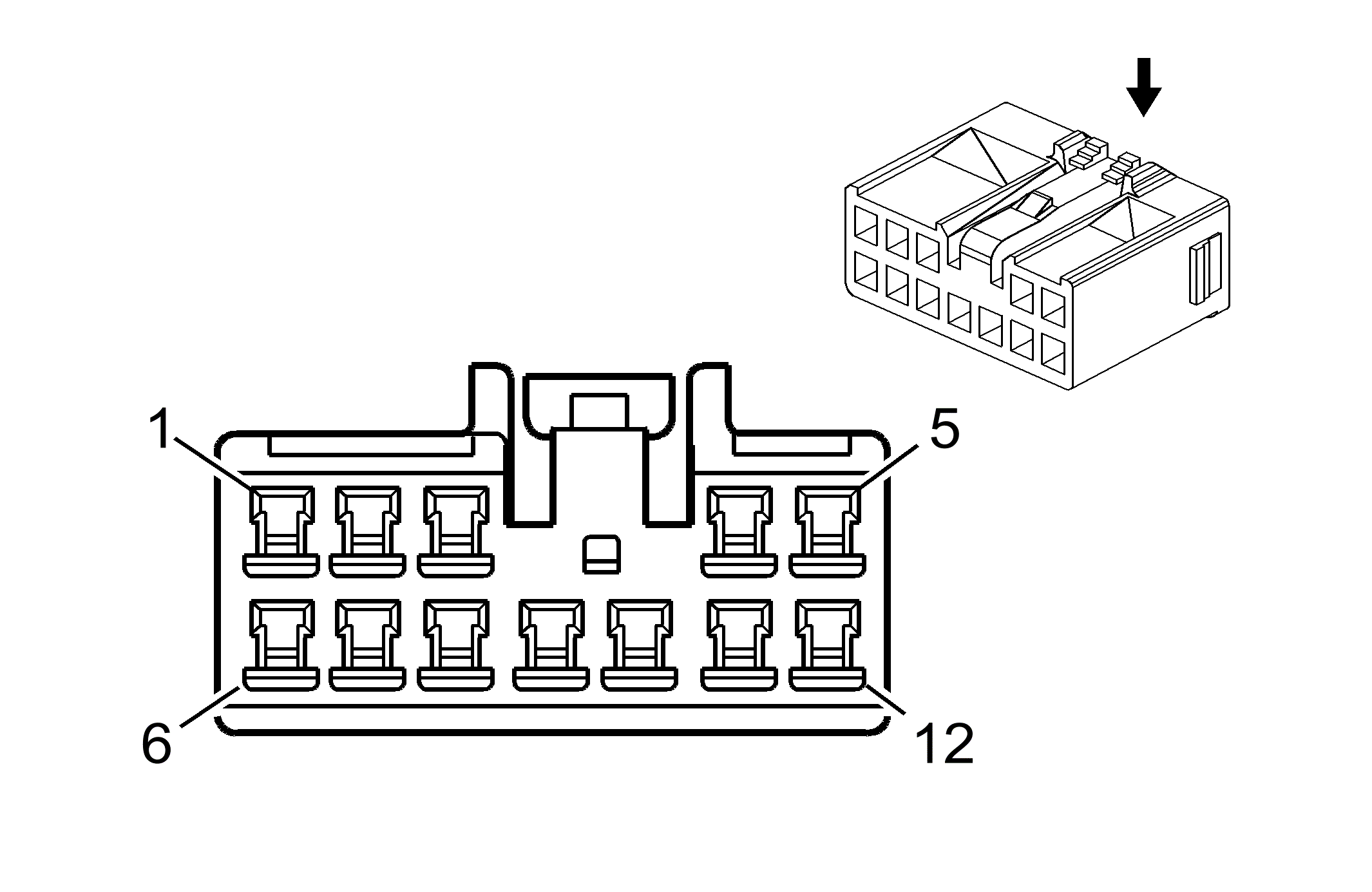

Fig 1: JX405 Splice Pack Connector End View

Courtesy of GENERAL MOTORS CORP.

JX405 Splice Pack Connector Pin Identification

Pin	Wire Color	Circuit No.	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2	0.35 D-GN	5060	Low Speed GMLAN Serial Data
3	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45)
4	-	-	Not Used
5	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45)
6	-	-	Not Used
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data
8	0.35 D-GN	5060	Low Speed GMLAN Serial Data
9	0.35 D-GN	5060	Low Speed GMLAN Serial Data
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11	0.35 D-GN	5060	Low Speed GMLAN Serial Data
12	0.35 D-GN	5060	Low Speed GMLAN Serial Data

Connector Part Information

OEM: 7283-1120
Service: See Catalog
Description: 12-Way F 090 Series (NA)

Terminal Part Information

Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)

Fig 2: JX405 Splice Pack Connector End View

Courtesy of GENERAL MOTORS CORP.

JX405 Splice Pack Connector Pin Identification

Pin	Wire	Circuit	Function
1	0.35 D-GN	5060	Low Speed GMLAN Serial Data
2-3	-	-	Not Used
4	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UK6)
5	-	-	Not Used
6	0.35 D-GN	5060	Low Speed GMLAN Serial Data
7	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UD7)
8	0.35 D-GN	5060	Low Speed GMLAN Serial Data (UE1)
9	0.35 D-GN	5060	Low Speed GMLAN Serial Data (U2K)
10	0.35 D-GN	5060	Low Speed GMLAN Serial Data
11	0.35 D-GN	5060	Low Speed GMLAN Serial Data (TB5)
12	0.35 D-GN	5060	Low Speed GMLAN Serial Data (A45/KA1)

Connector Part Information

OEM: 7283-1120
Service: See Catalog
Description: 12-Way F 090 Series (NA)

Terminal Part Information

Terminal/Tray: 7116-4020/11
Core/Insulation Crimp: E/C
Release Tool/Test Probe: 15315247/J-35616-18 (BK)
