Electronic Navigation Antenna Replacement

WARNING: This page is about a different car, the 2009 Pontiac Torrent and 2009 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

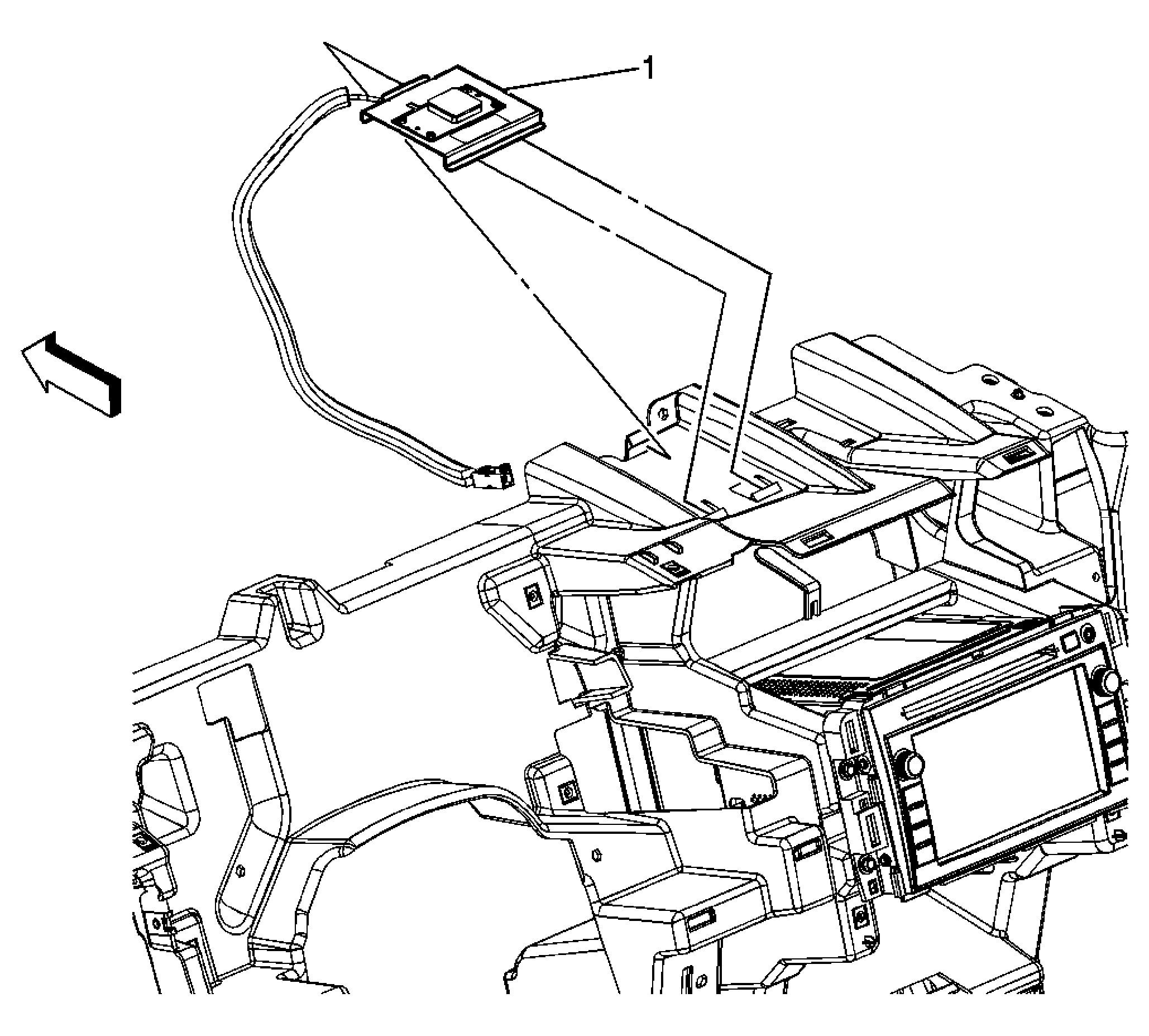

Fig 1: Identifying Electronic Navigation Antenna

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement . Remove the radio. Refer to Radio Replacement .
1	Navigation Antenna Assembly Procedure Unclip the navigation antenna from the instrument panel retainer. Note the routing of the antenna for installation purposes.

Callout

Component Name

Preliminary Procedures

Remove the instrument panel upper trim pad. Refer to Instrument Panel Upper Trim Panel Replacement .
Remove the radio. Refer to Radio Replacement .

Navigation Antenna Assembly

Procedure

Unclip the navigation antenna from the instrument panel retainer.
Note the routing of the antenna for installation purposes.
