Defogger Schematics

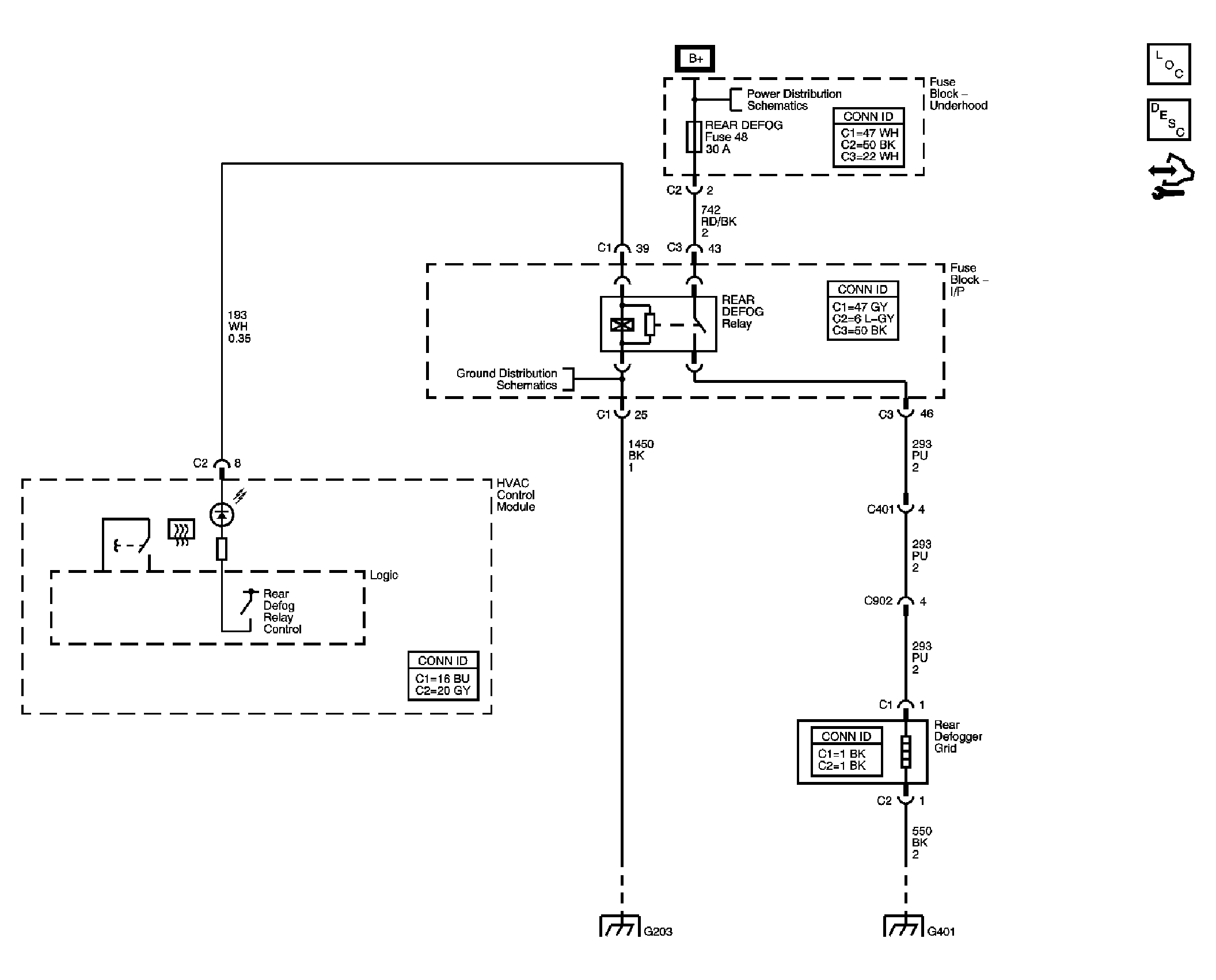

Fig 1: Identifying Defogger Schematics

GM1923508

Courtesy of GENERAL MOTORS CORP.
