Engine Controls Schematics

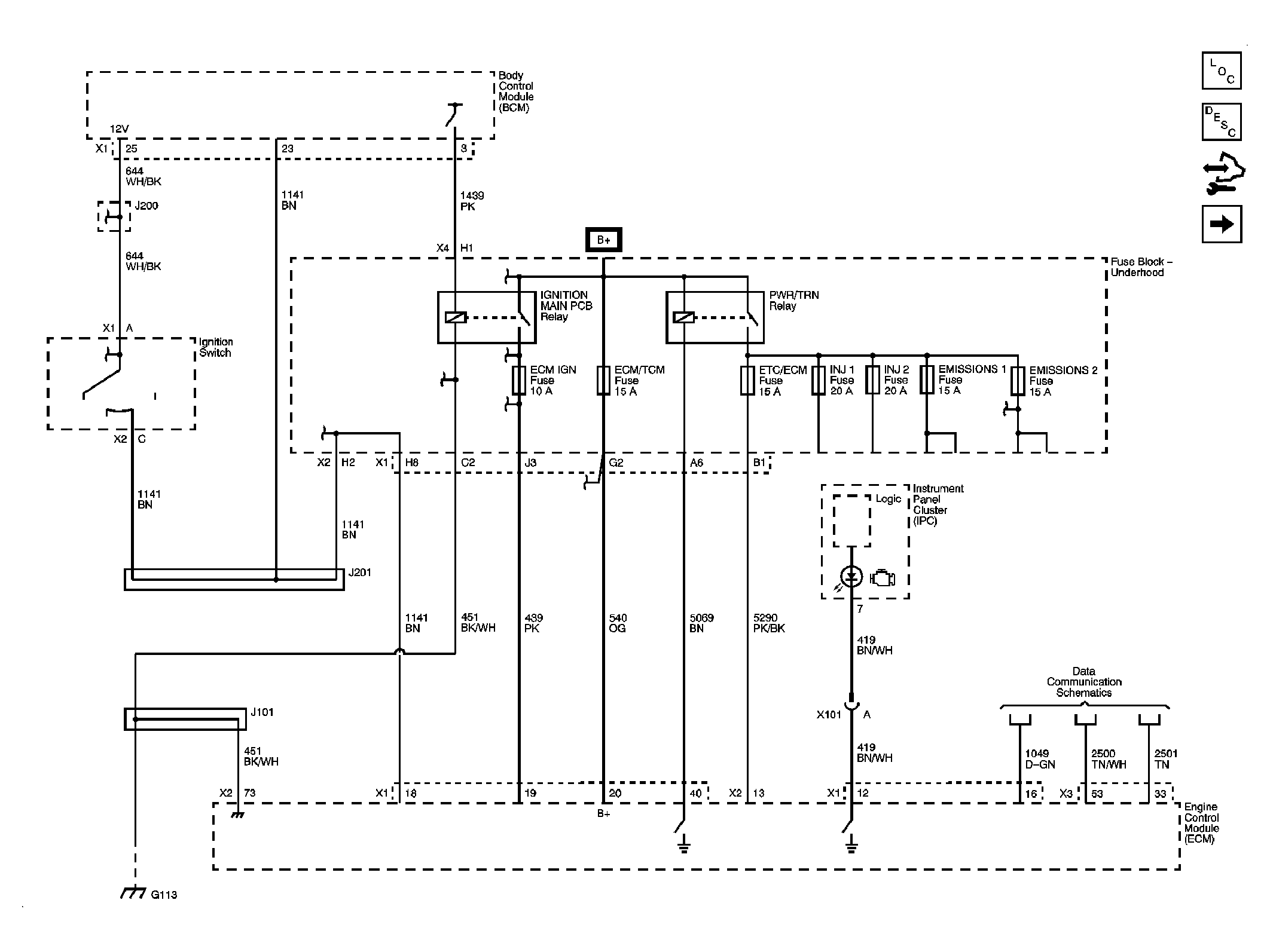

Fig 1: PCM Power, Ground, MIL and Serial Data

Courtesy of GENERAL MOTORS CORP.

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

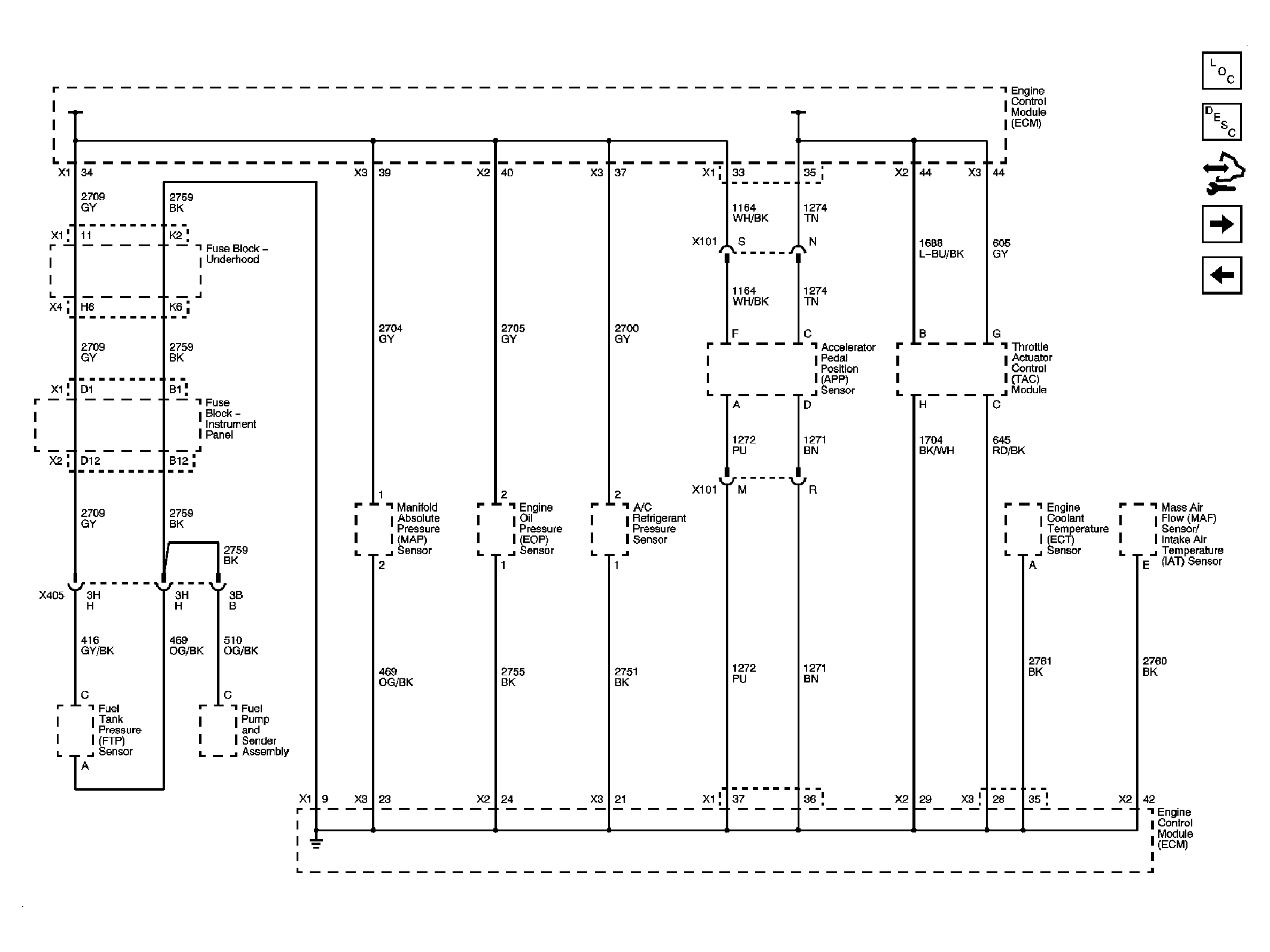

Fig 3: MAP, ECT, and MAF/IAT Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 4: MAP/IAT Sensor, Stop Lamp Switch Signal and VSS

Courtesy of GENERAL MOTORS CORP.

Fig 5: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

Fig 6: Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

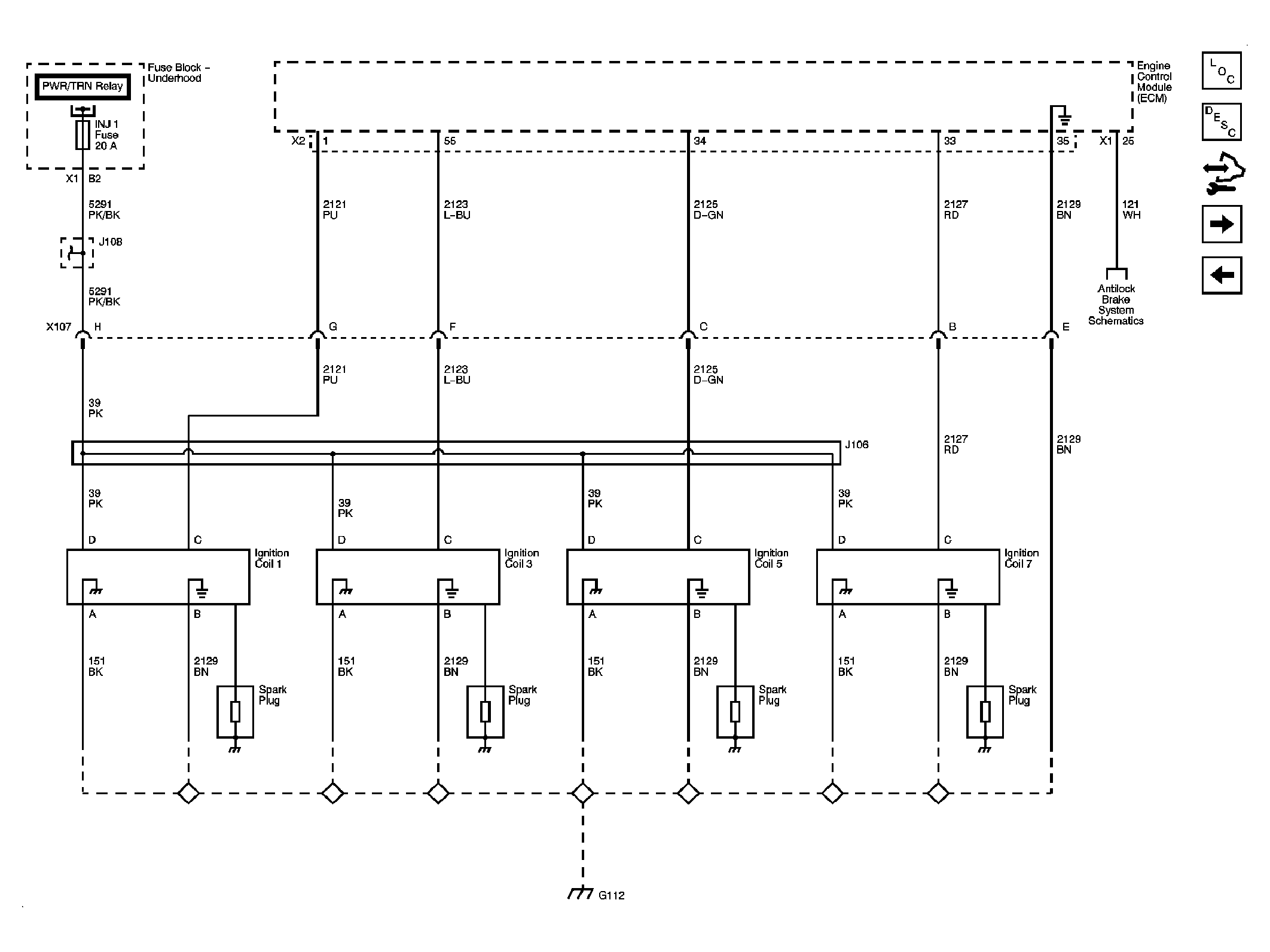

Fig 7: Ignition Controls Bank 1 Ignition Coils 1, 3, 5, and 7

Courtesy of GENERAL MOTORS CORP.

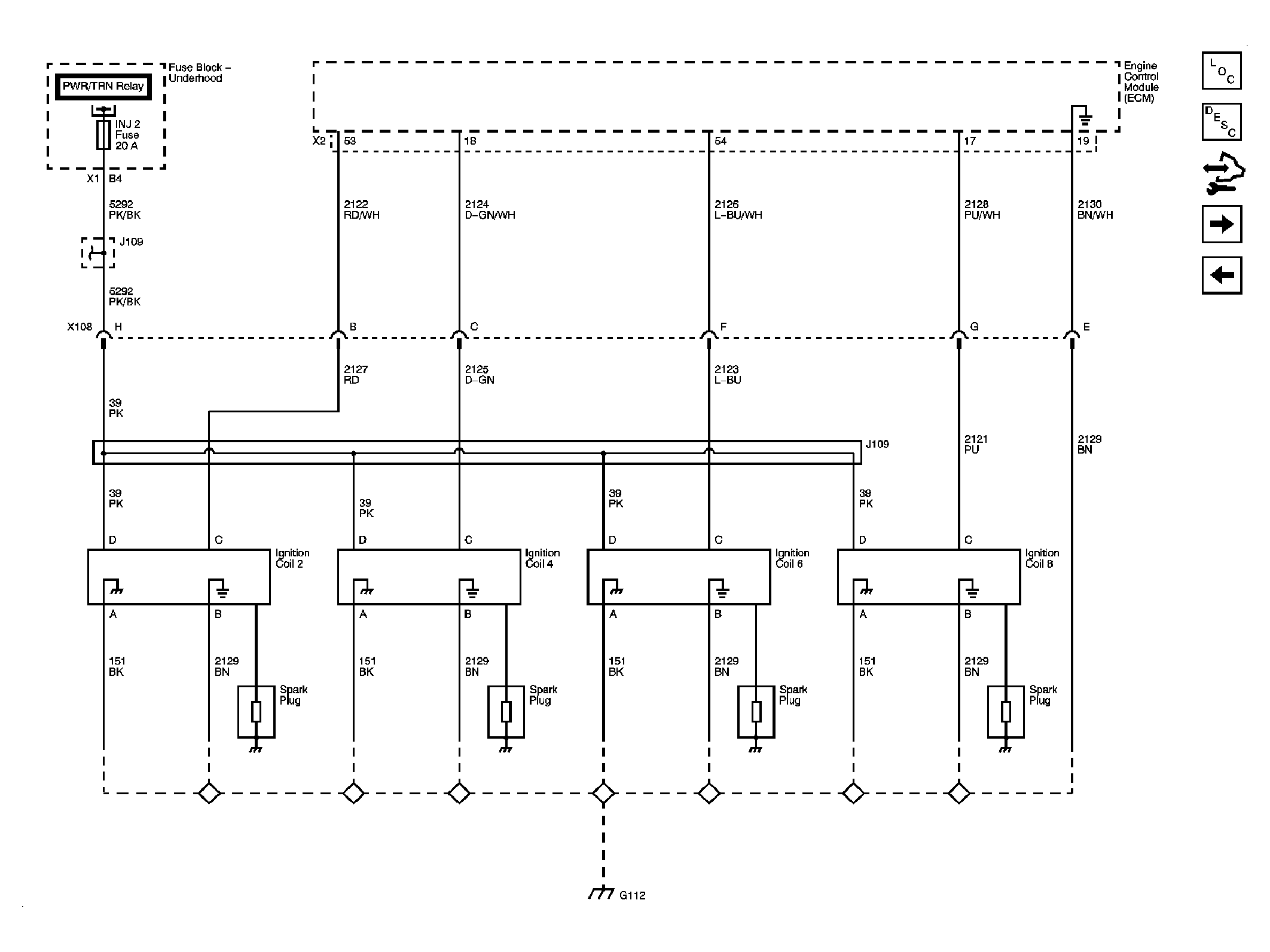

Fig 8: Ignition Controls Bank 2 Ignition Coils 2, 4, 6, and 8

Courtesy of GENERAL MOTORS CORP.

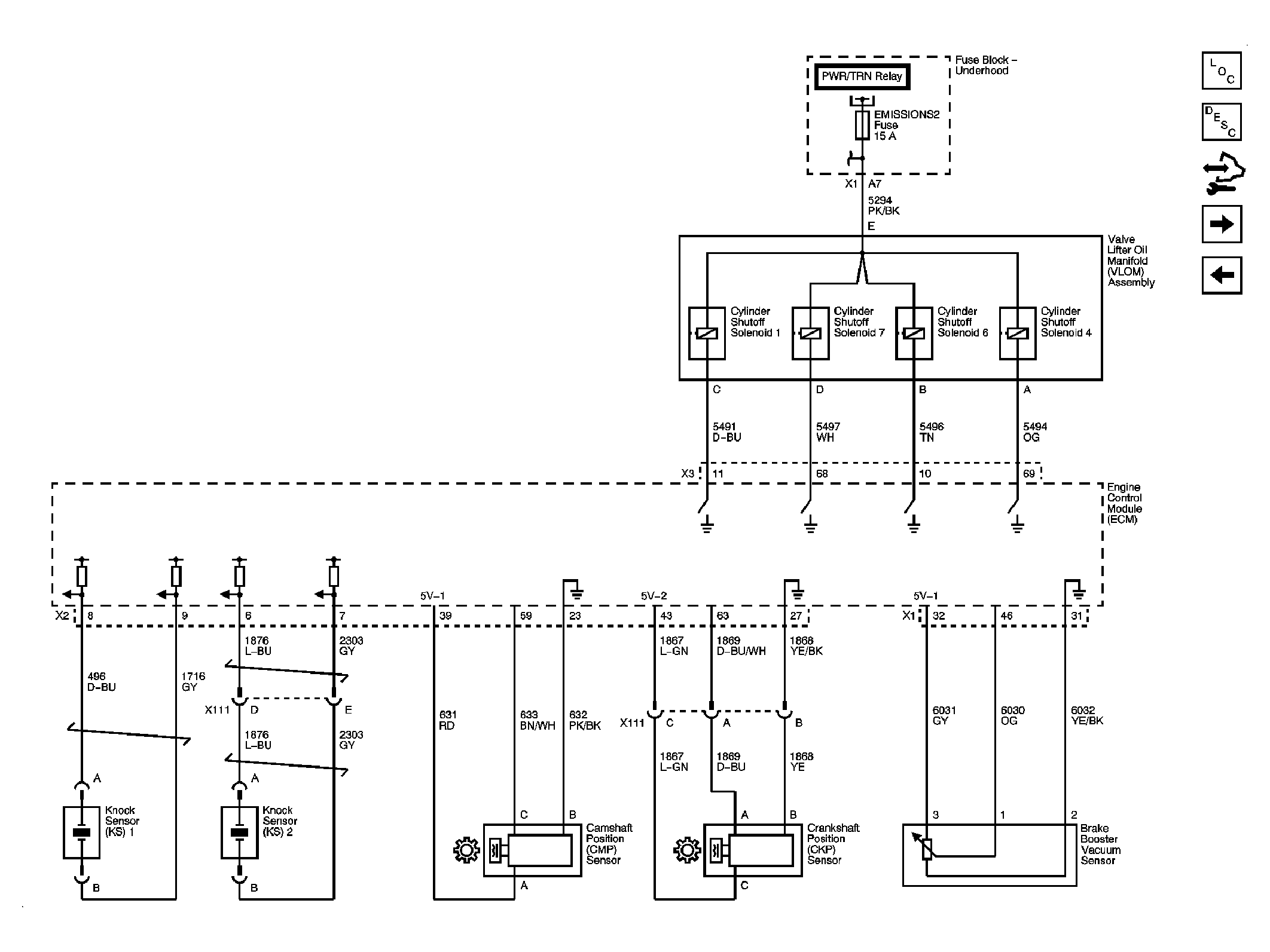

Fig 9: Ignition Controls Knock, CMP, CKP, Brake Vacuum Sensors and Valve Lifter Oil Manifold Assembly

Courtesy of GENERAL MOTORS CORP.

Fig 10: Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

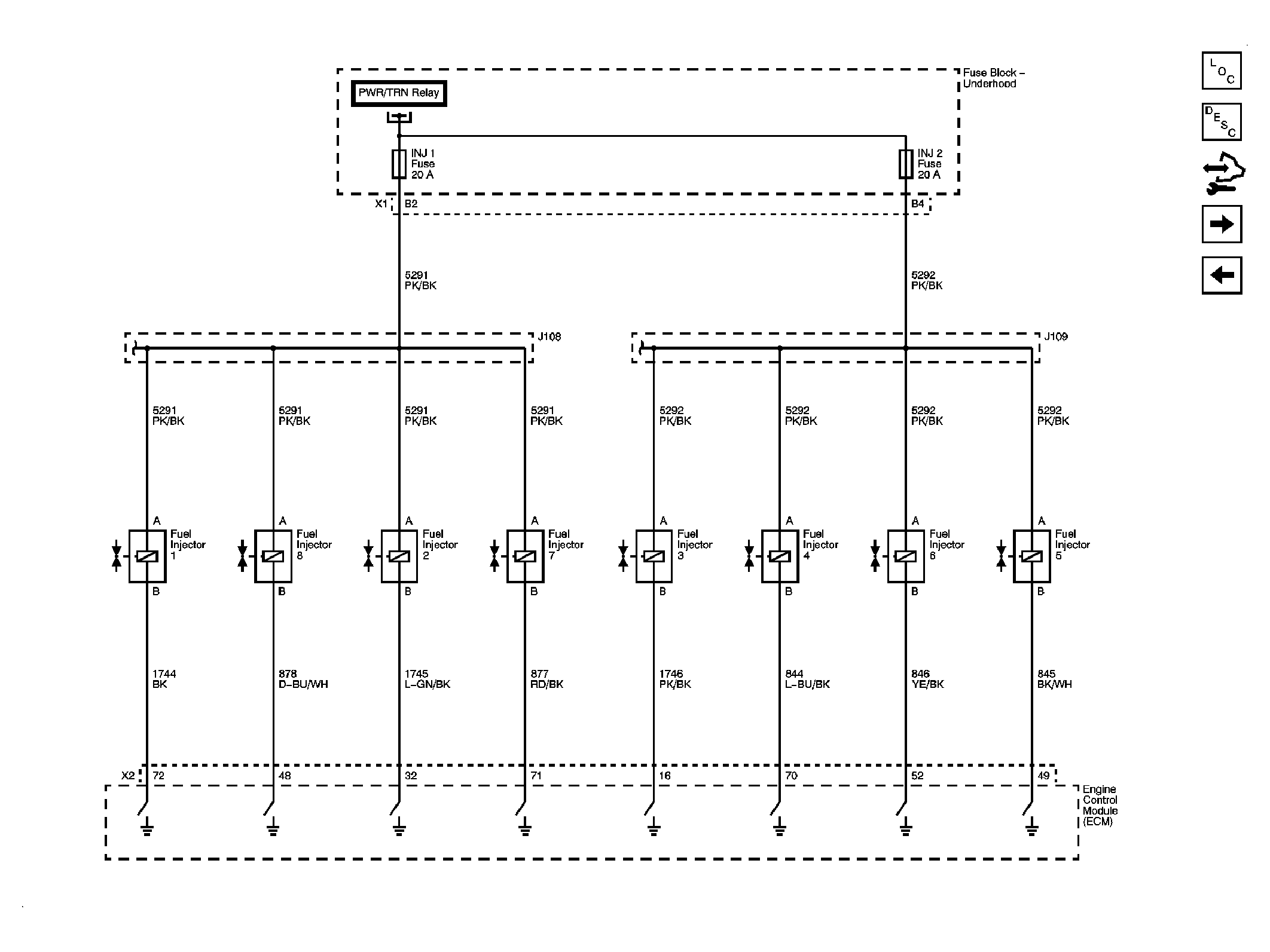

Fig 11: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

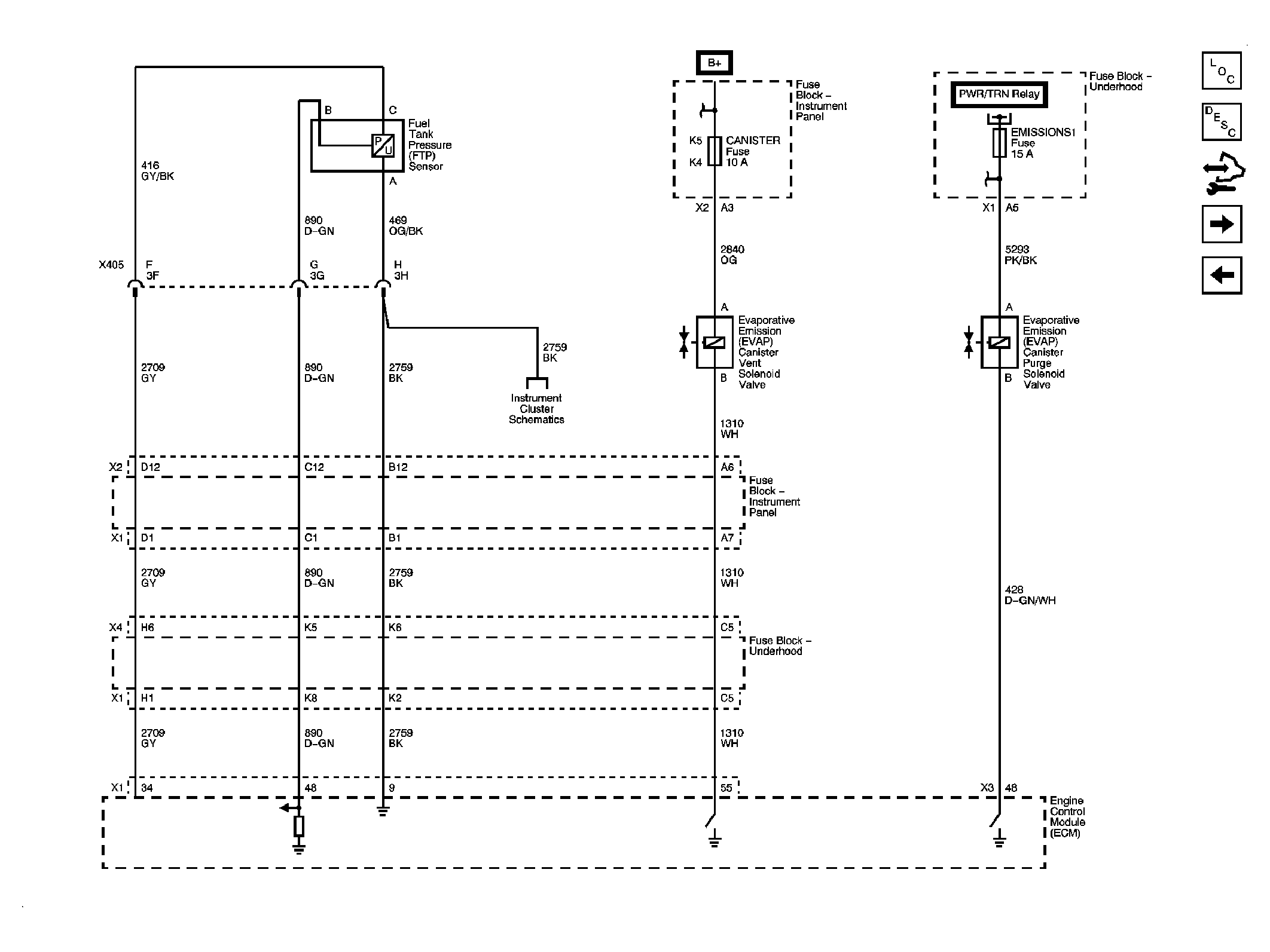

Fig 12: EVAP Solenoids and FTP Sensor

Courtesy of GENERAL MOTORS CORP.

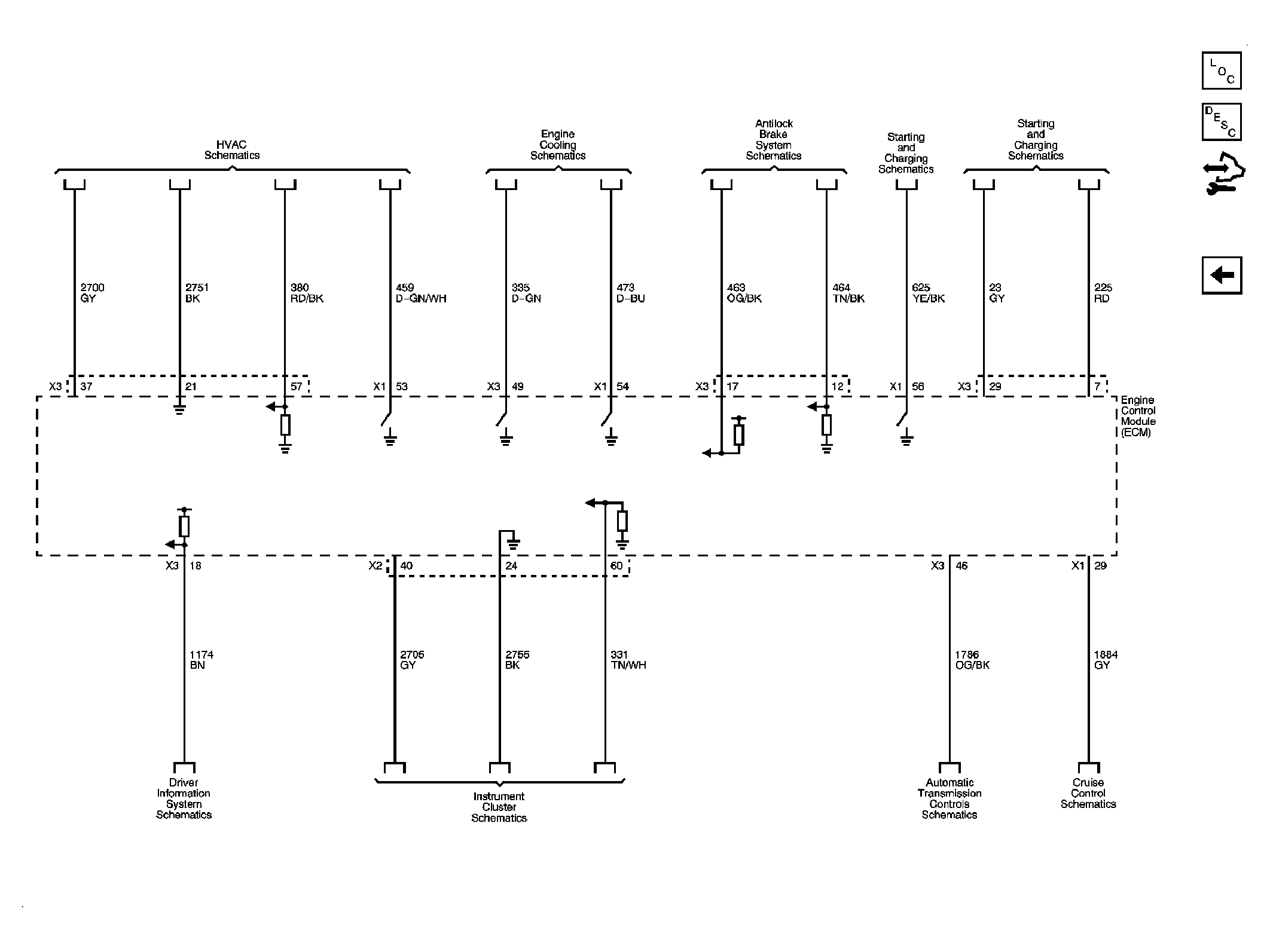

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
