Power Moding Schematics

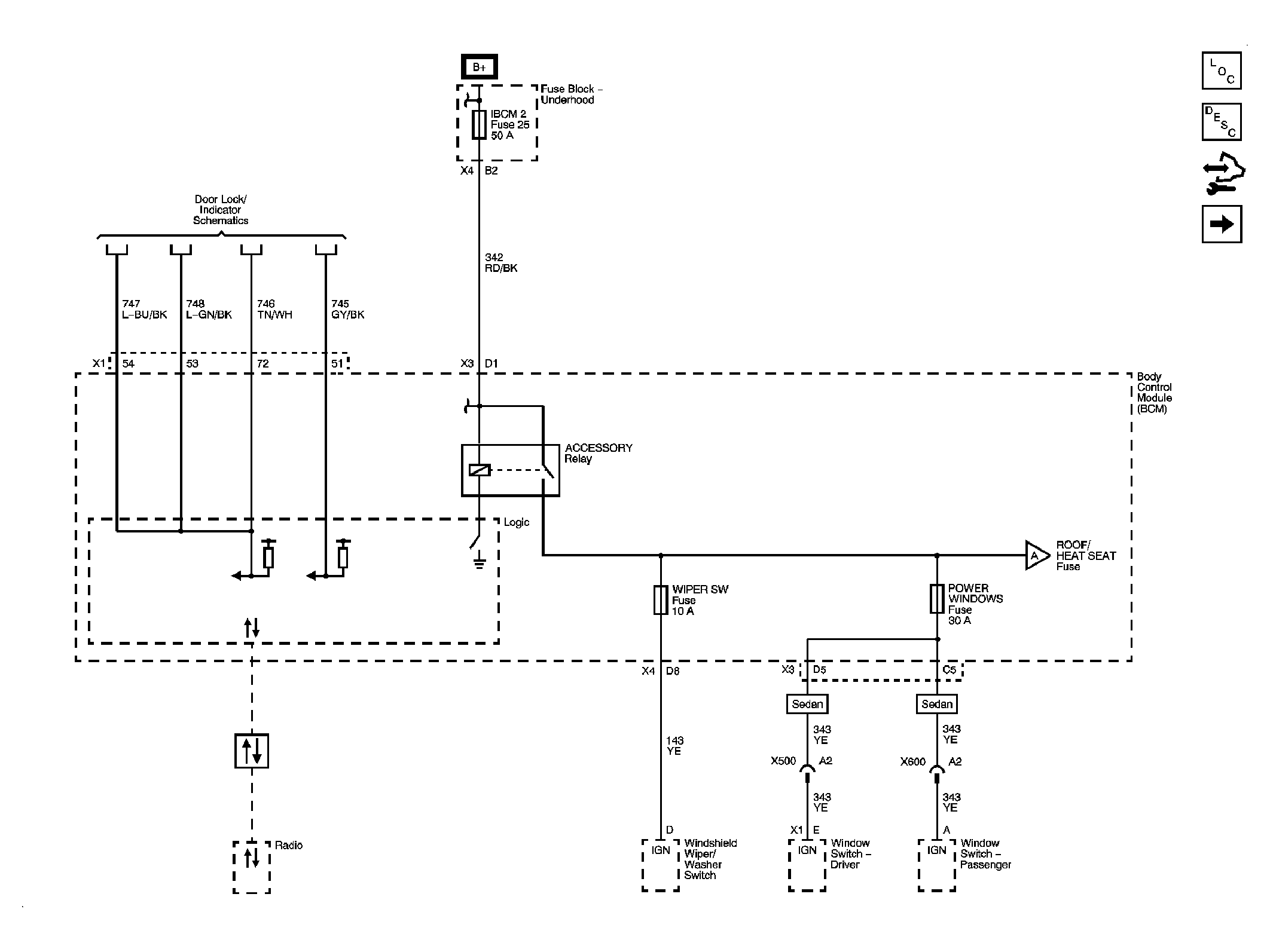

Fig 1: Power Moding Schematic - 1 of 2

GM1913426

Courtesy of GENERAL MOTORS CORP.

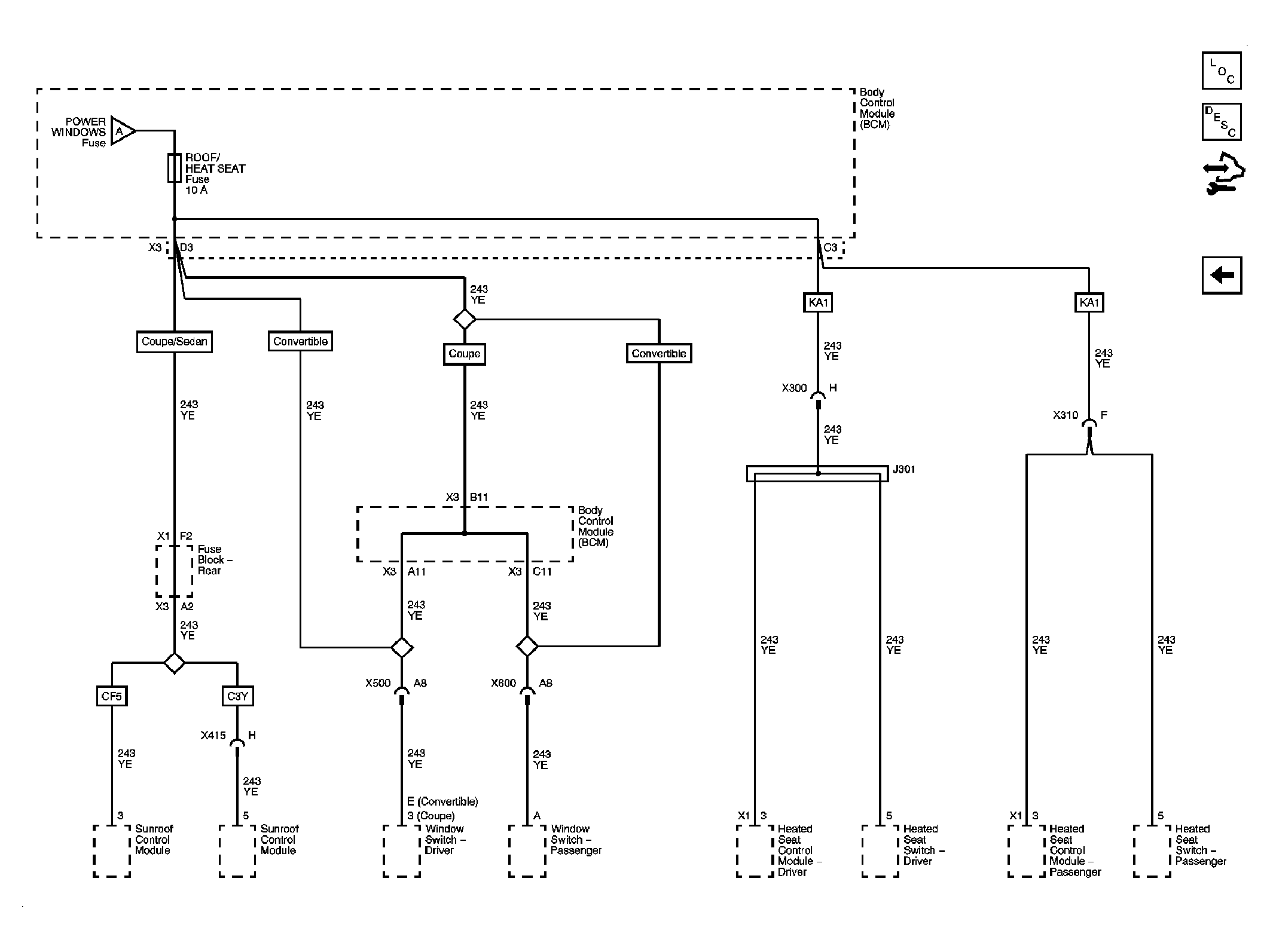

Fig 2: Power Moding Schematic - 2 of 2

GM1913429

Courtesy of GENERAL MOTORS CORP.
