Installation Procedure

    Fig 1: View Of Air Cleaner Assembly
    GM1838005Courtesy of GENERAL MOTORS CORP.
  1. Install the air cleaner assembly to the upper tie bar.

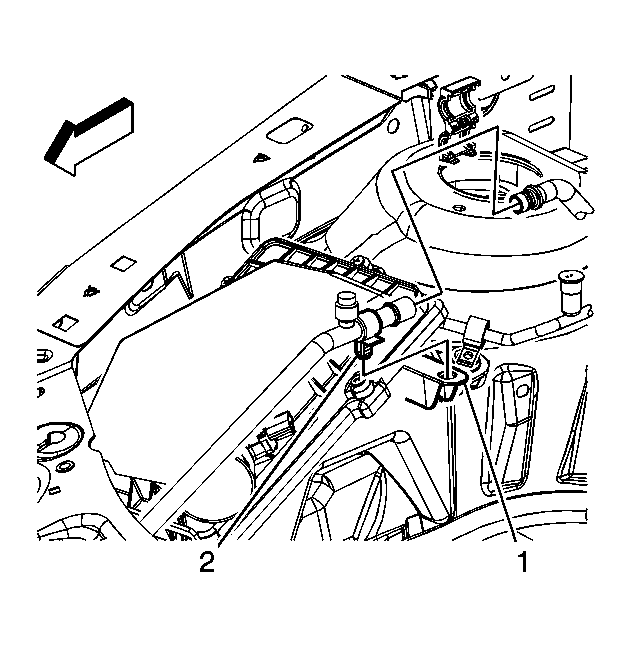

    2. Fig 2: View Of Air Cleaner Tab & A/C Condenser/Evaporator Line Tab
    GM1890353Courtesy of GENERAL MOTORS CORP.
  2. Install the A/C compressor and condenser line clip (2) to the air cleaner tab (1).
    3. Fig 3: View Of Air Cleaner Housing Rear Bolt & A/C Condenser/Evaporator Tube Clamp
    GM1838002Courtesy of GENERAL MOTORS CORP.
  3. Position the A/C condenser and evaporator tube clamp as required.
    4. NOTE: Refer to Fastener Notice .
  4. Install the air cleaner housing rear bolt.

    Tighten:  Tighten the bolt to 10 N.m (89 lb in).

    5. Fig 4: View Of Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor
    GM1889700Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine wiring harness electrical connector (1) to the MAF/IAT sensor.
  6. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement (1st Design)  or Air Cleaner Outlet Duct Replacement (2nd Design) .
