Antilock Brake System Schematics

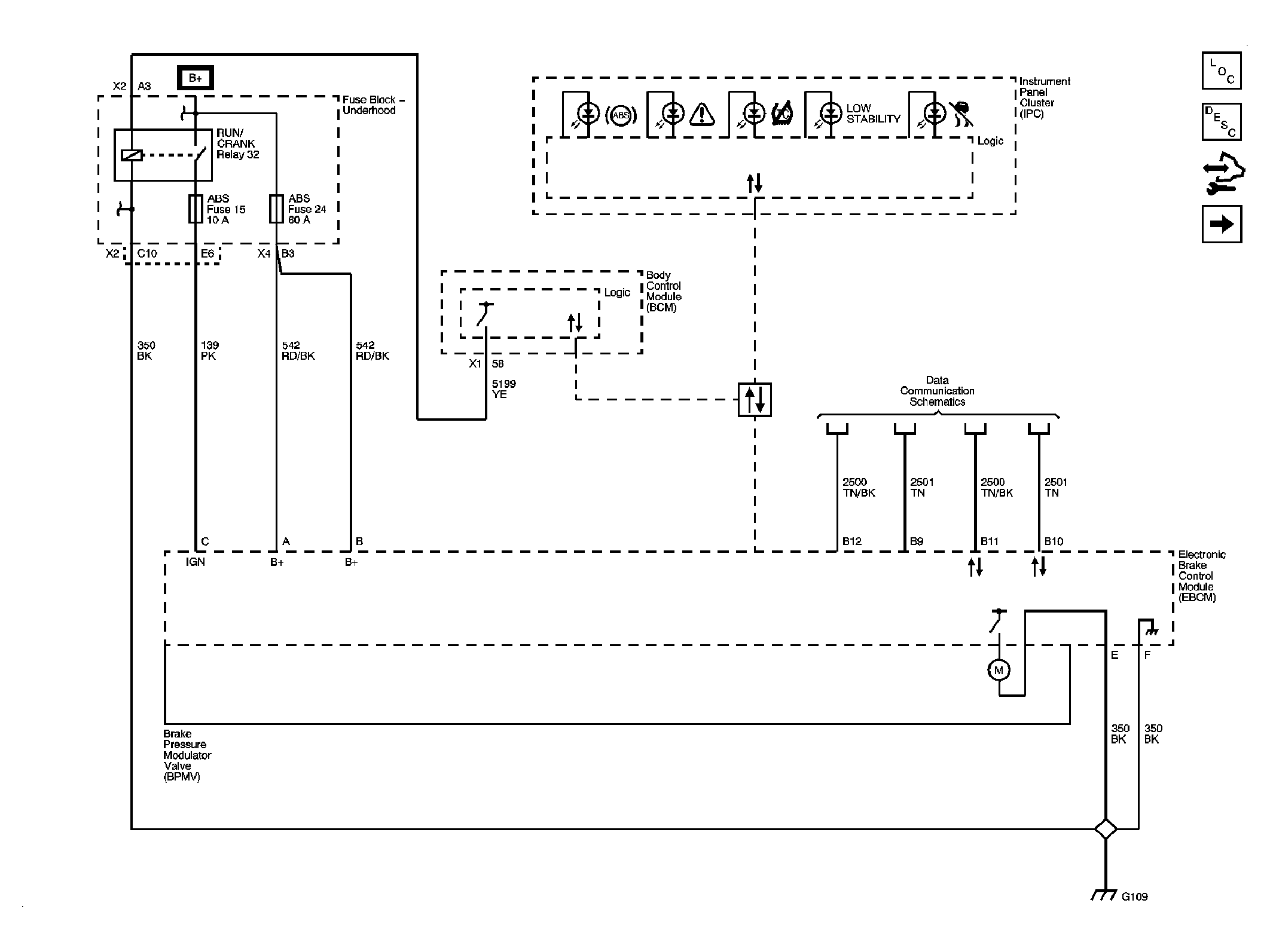

Fig 1: DLC, Ground, Indicators and Power - Schematic
GM1912505Courtesy of GENERAL MOTORS CORP.

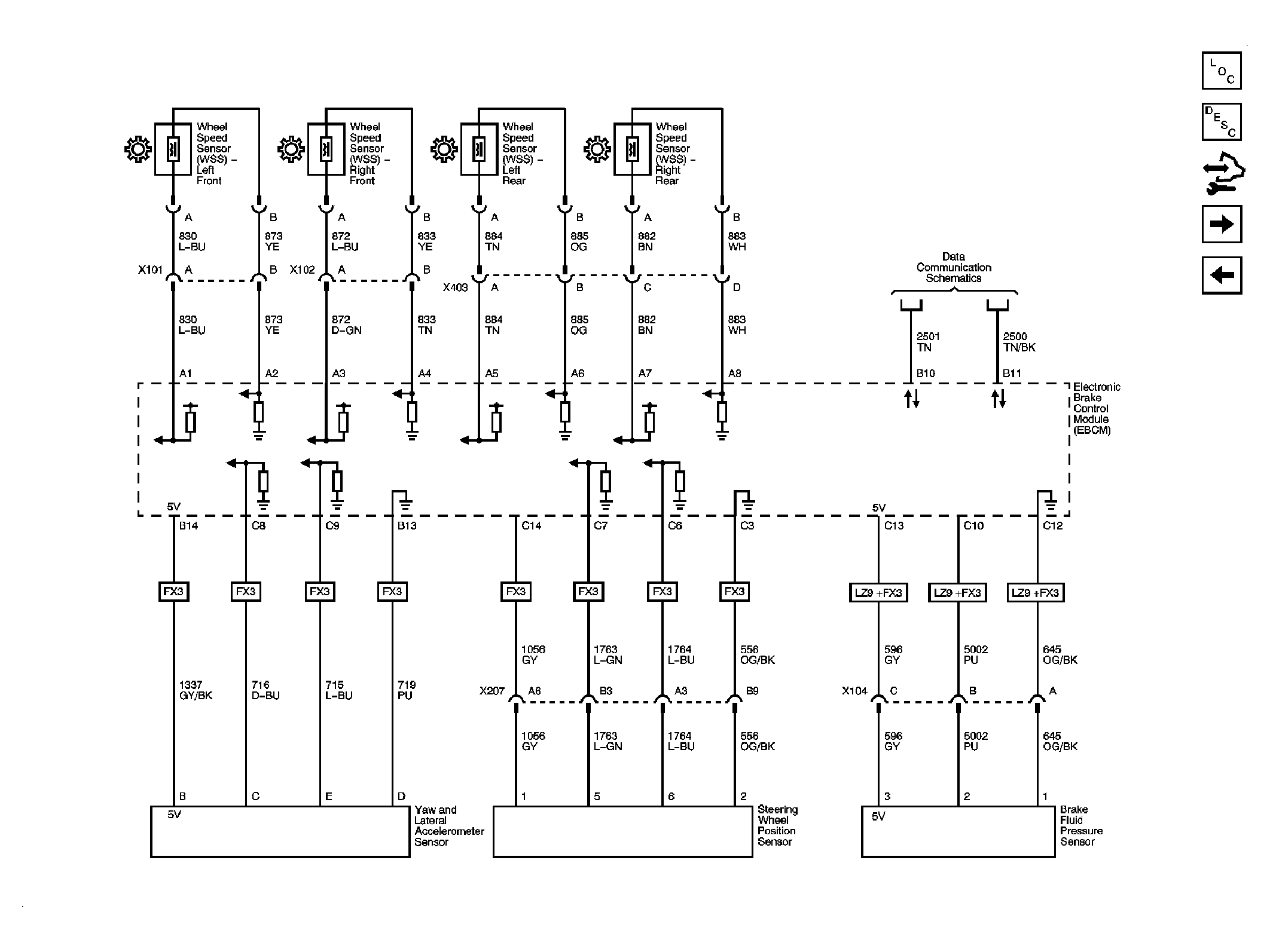

Fig 2: Sensors and Traction Control - Schematic
GM1912508Courtesy of GENERAL MOTORS CORP.
Fig 3: Brake Pedal Position Sensor and Traction Control Switch - Schematic
GM1912510Courtesy of GENERAL MOTORS CORP.
