Body Control System Schematics

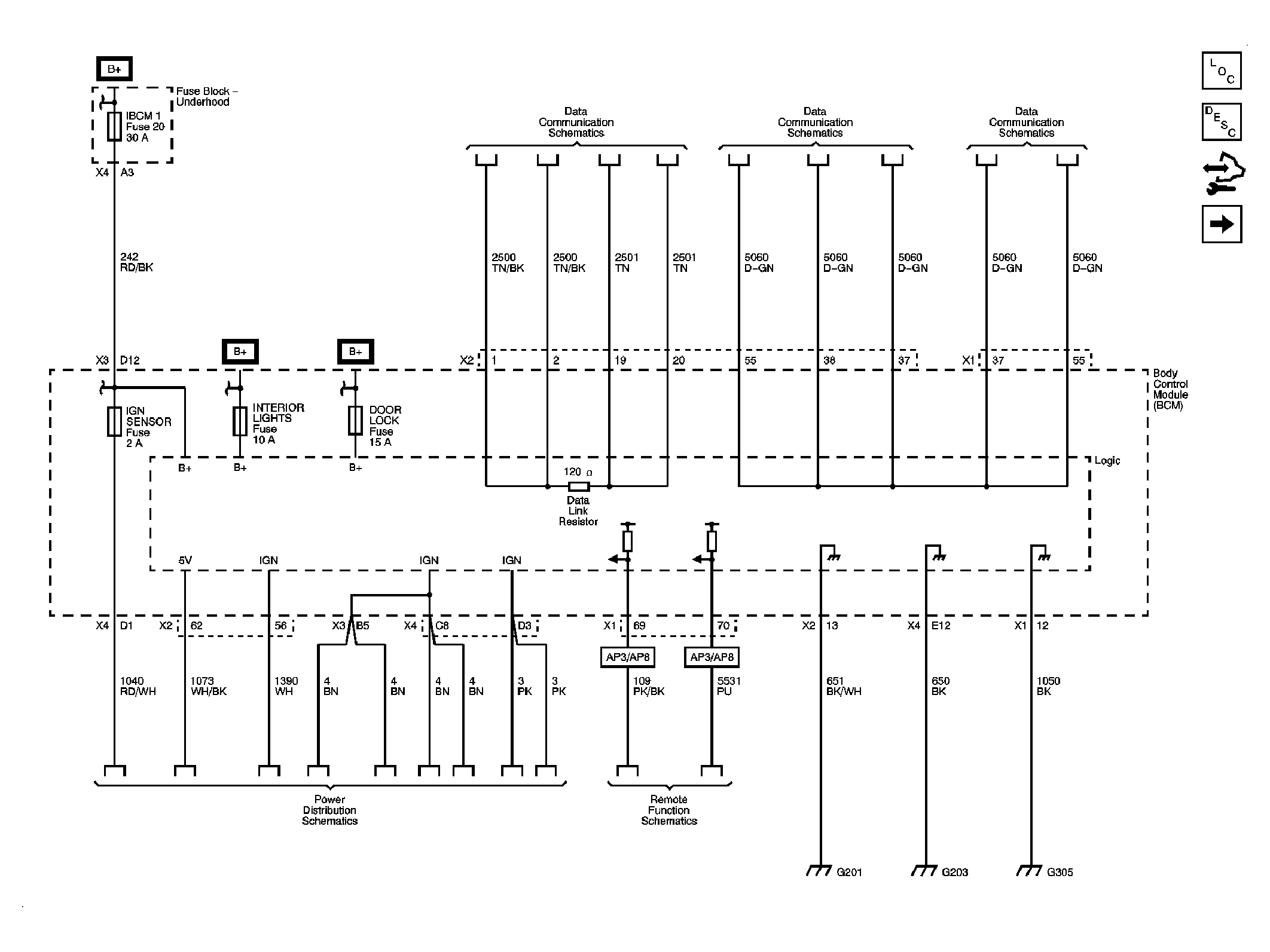

Fig 1: Power, Ground, and DLC Schematic
GM1913303Courtesy of GENERAL MOTORS CORP.

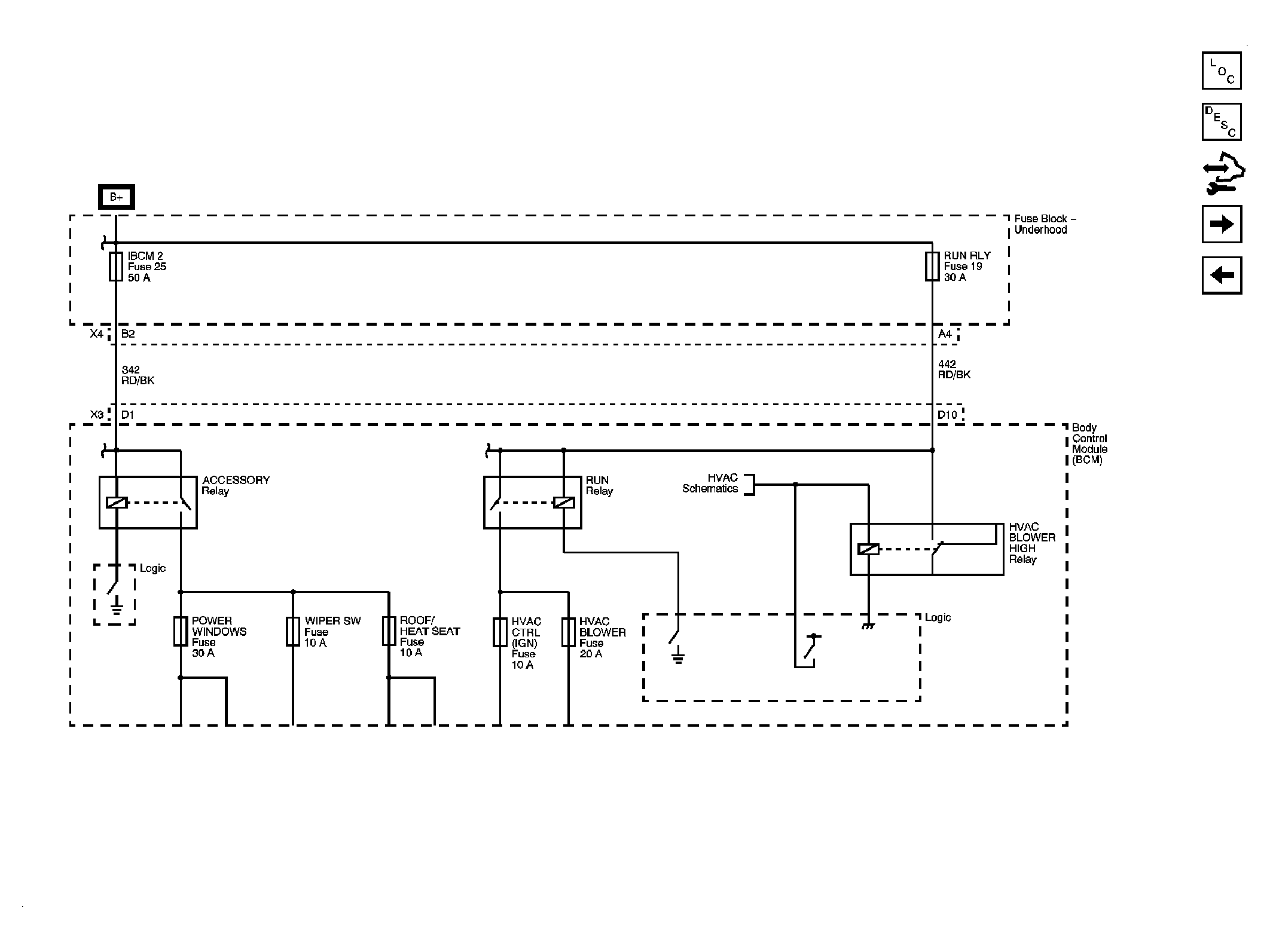

Fig 2: ACCESSORY, HVAC BLOWER HIGH and RUN Relays Schematic
GM1913307Courtesy of GENERAL MOTORS CORP.

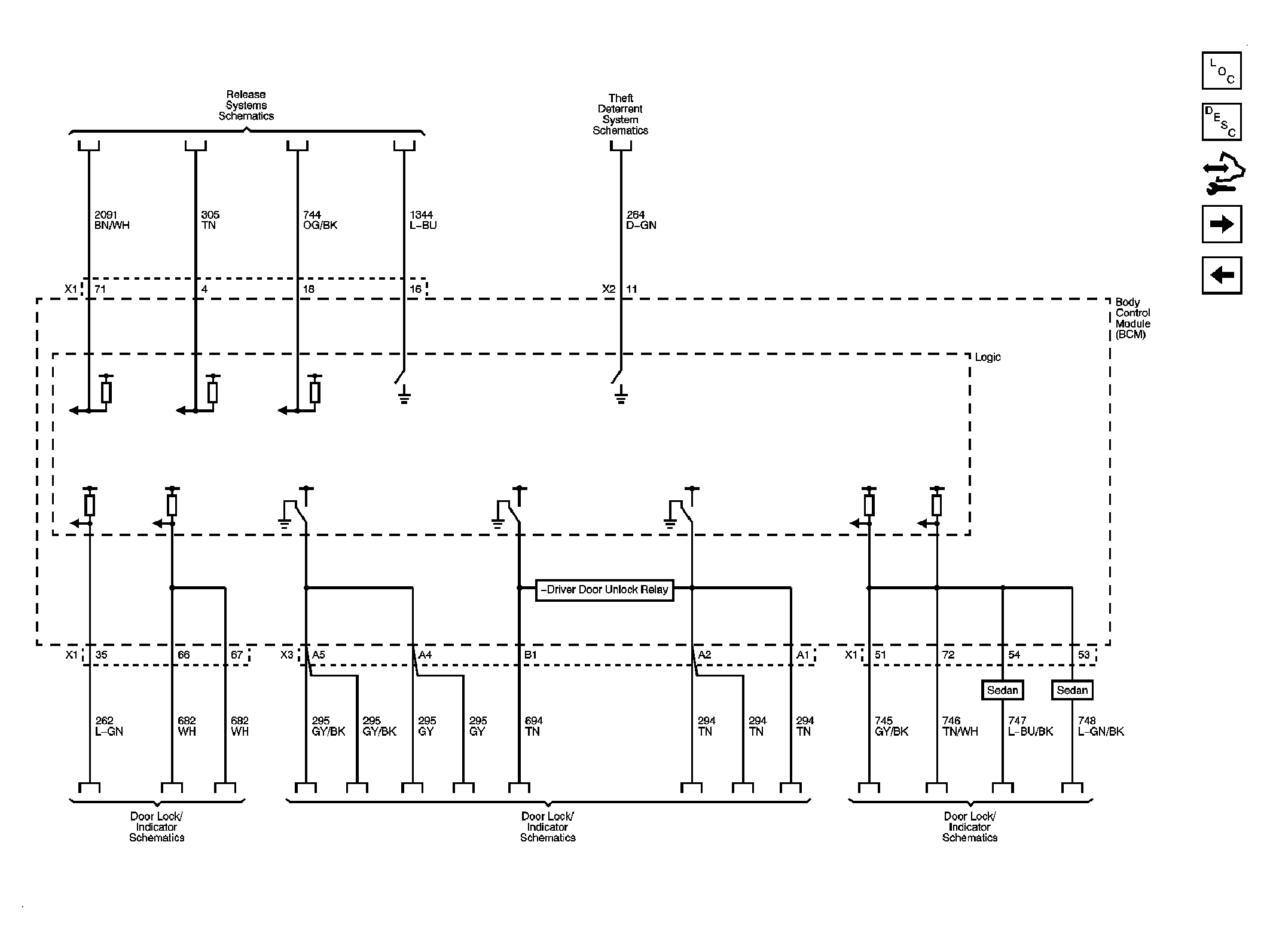

Fig 3: Controlled/Monitored Subsystem References Schematic (1 of 3)
GM1913311Courtesy of GENERAL MOTORS CORP.

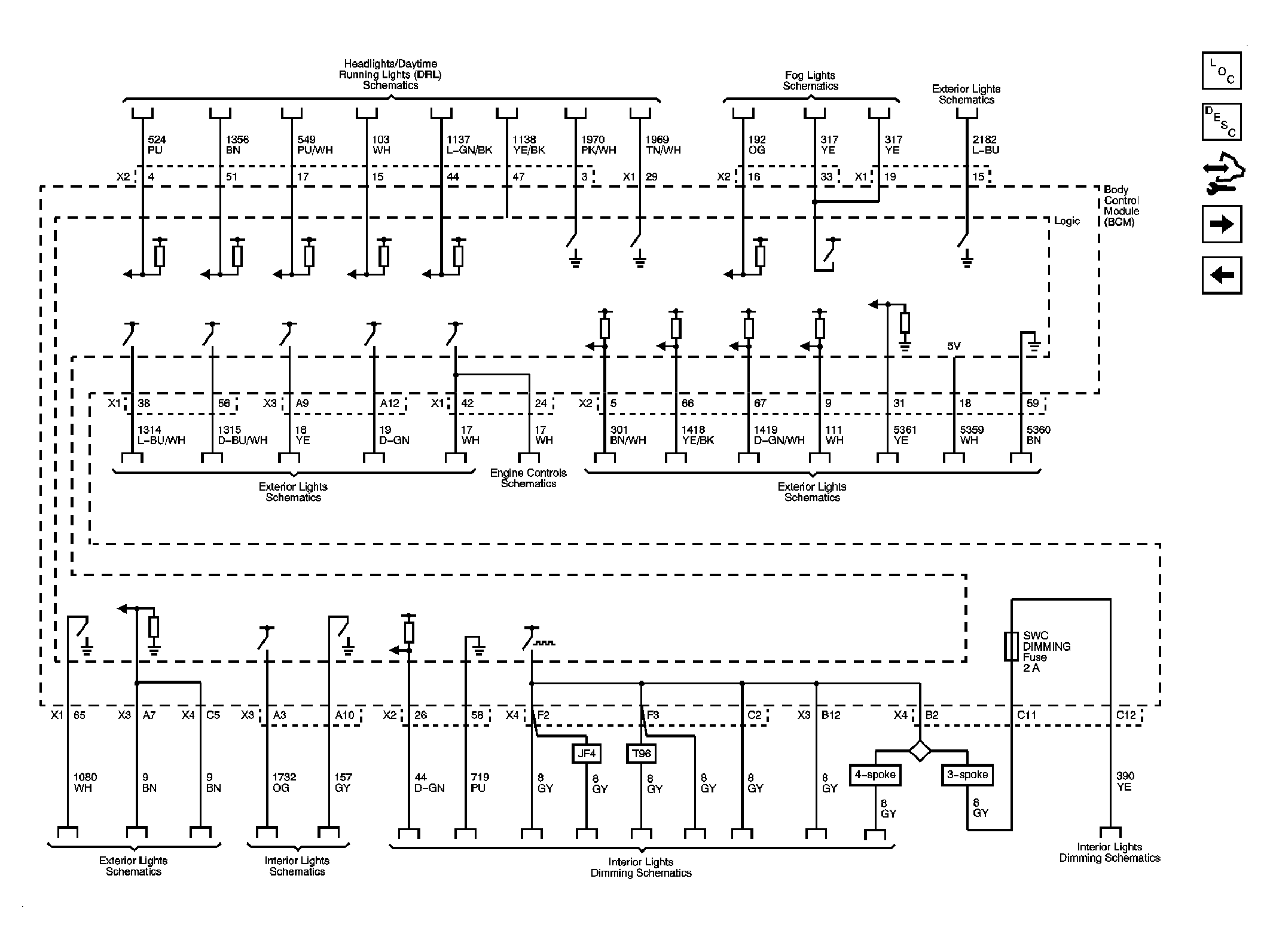

Fig 4: Controlled/Monitored Subsystem References Schematic (2 of 3)
GM1913314Courtesy of GENERAL MOTORS CORP.

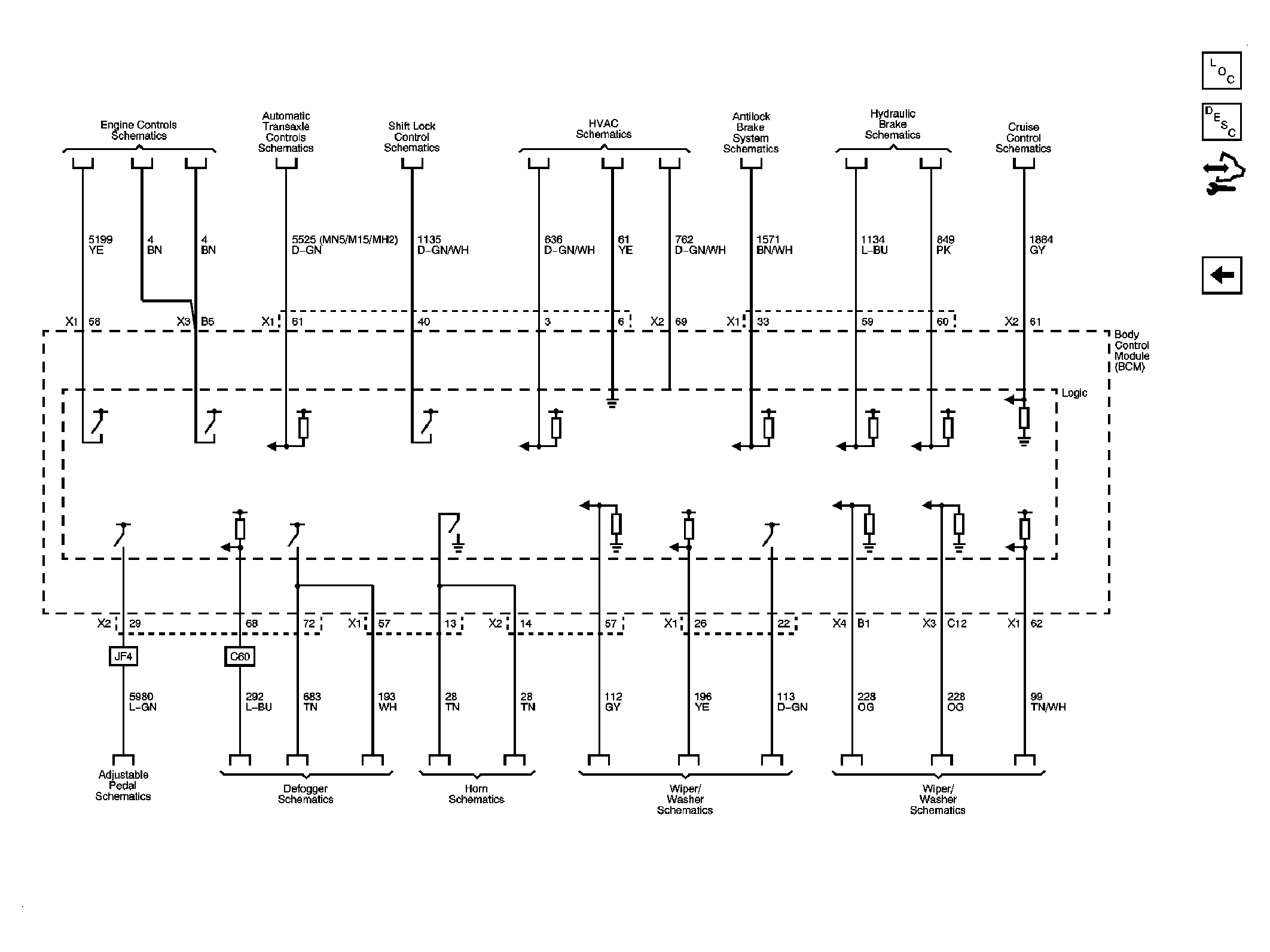

Fig 5: Controlled/Monitored Subsystem References Schematic (3 of 3)
GM1913317Courtesy of GENERAL MOTORS CORP.
