Installation Procedure

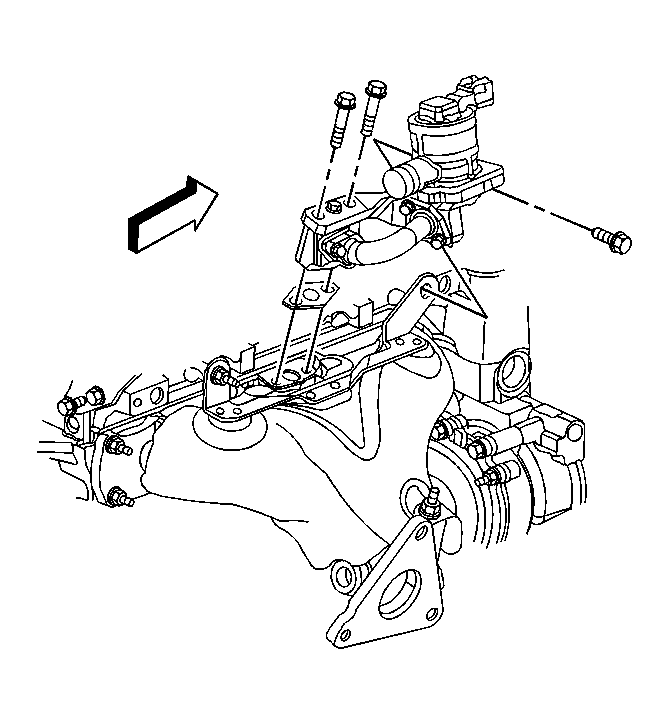

    Fig 1: Identifying AIR Check Valve & Bolts
    GM1652358Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW AIR check valve gasket onto the exhaust manifold.
  2. Install the AIR check.
    3. NOTE: Refer to Fastener Notice .
  3. Install the AIR check valve bolts.

    Tighten:  Tighten the bolts to 22 N.m (16 lb ft).

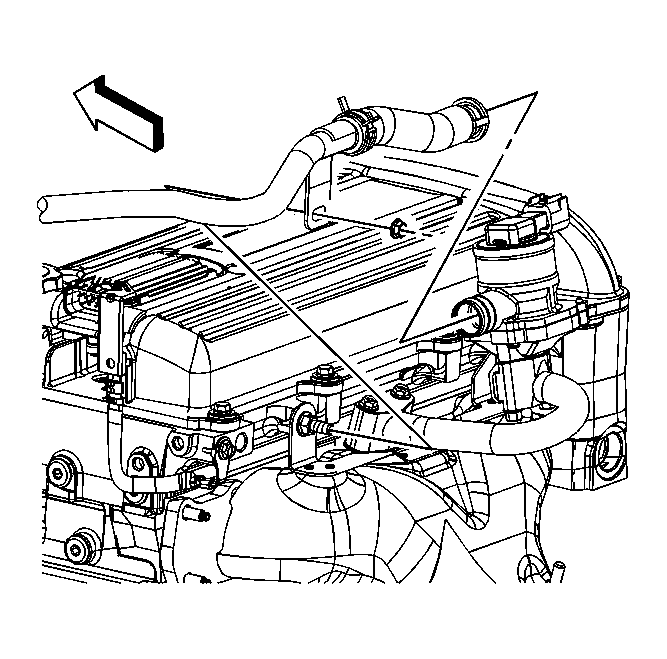

    4. Fig 2: Identifying AIR Outlet Hose/Pipe
    GM1650779Courtesy of GENERAL MOTORS CORP.
  4. Connect the AIR pump outlet hose quick connect fitting at the AIR check valve. Refer to Plastic Collar Quick Connect Fitting Service .

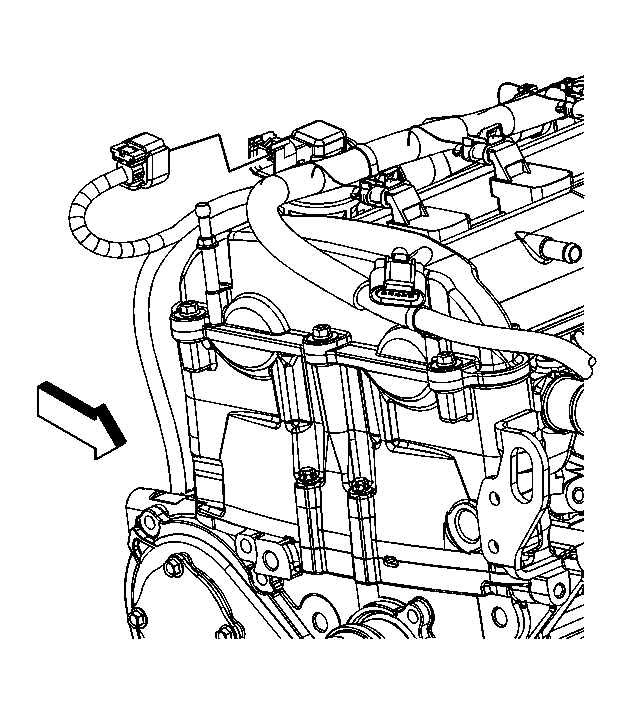

    5. Fig 3: View Of Intake Manifold Cover & Engine Harness Electrical Connector
    GM1751024Courtesy of GENERAL MOTORS CORP.
  5. Connect the engine harness electrical connector to the AIR check valve.
  6. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
