Installation Procedure

    IMPORTANT: Verify full engagement of the inlet onto the resonator neck.
  1. Position the air cleaner assembly.
    2. NOTE: Refer to Fastener Notice .
  2. Install the air cleaner assembly attachment nut (2).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

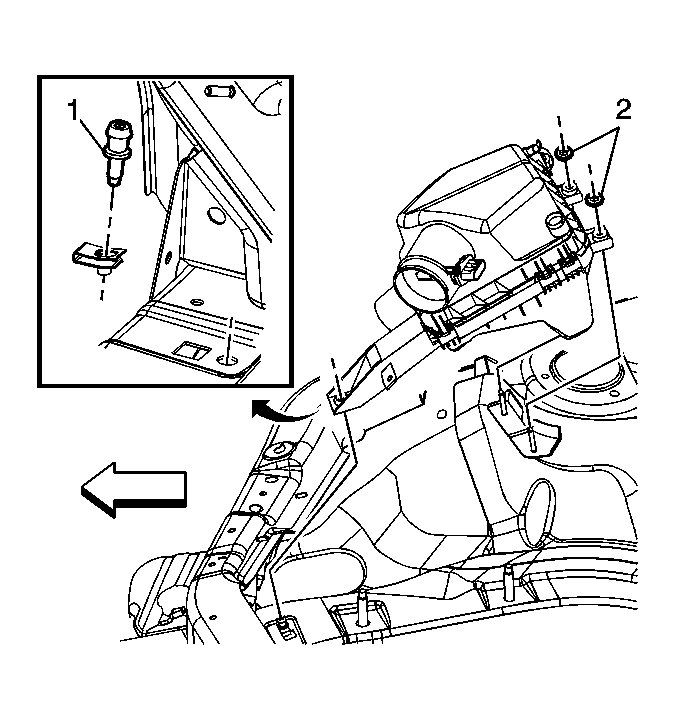

    3. Fig 1: View Of Push Pin & Air Cleaner Mounting Nuts
    GM1601304Courtesy of GENERAL MOTORS CORP.
  3. Install the push pin (1).
  4. Connect the air cleaner resonator to the air cleaner assembly.

    Tighten:  Tighten the air cleaner intake duct clamp to 5 N.m (44 lb in).
