Liftgate Bumper Replacement

WARNING: This page is about a different car, the 2008 Pontiac Torrent and 2008 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

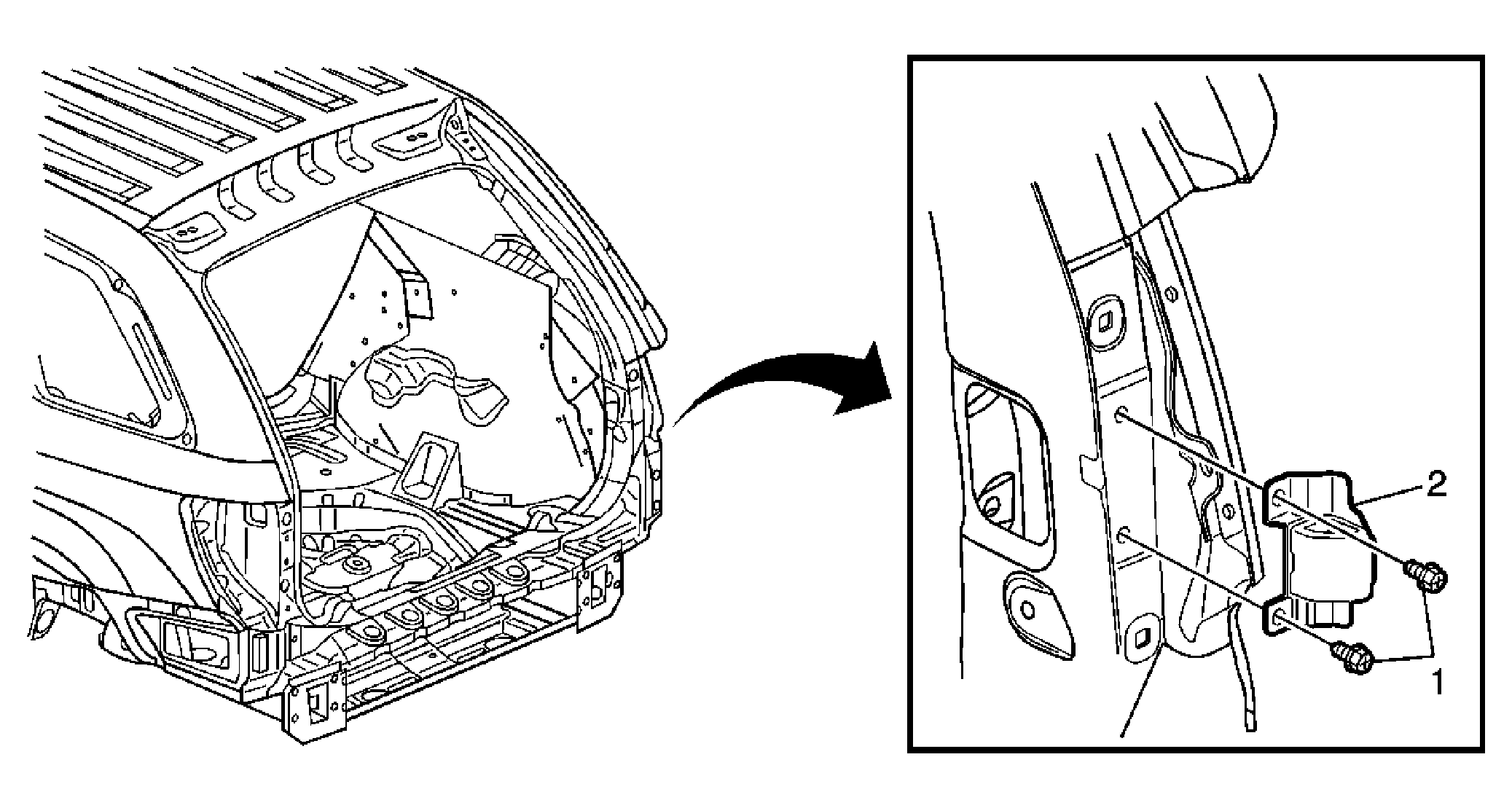

Fig 1: View Of Liftgate Bumper
GM1715250Courtesy of GENERAL MOTORS CORP.
Callout Component Name
NOTE: Refer to Fastener Notice .
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Liftgate Bumper Bolt (Qty: 2)

Tighten:  10 N.m (89 lb in)
2 Liftgate Bumper Assembly
Tip:  Inspect for proper engagement of the liftgate bumper.
