Engine Controls Schematics

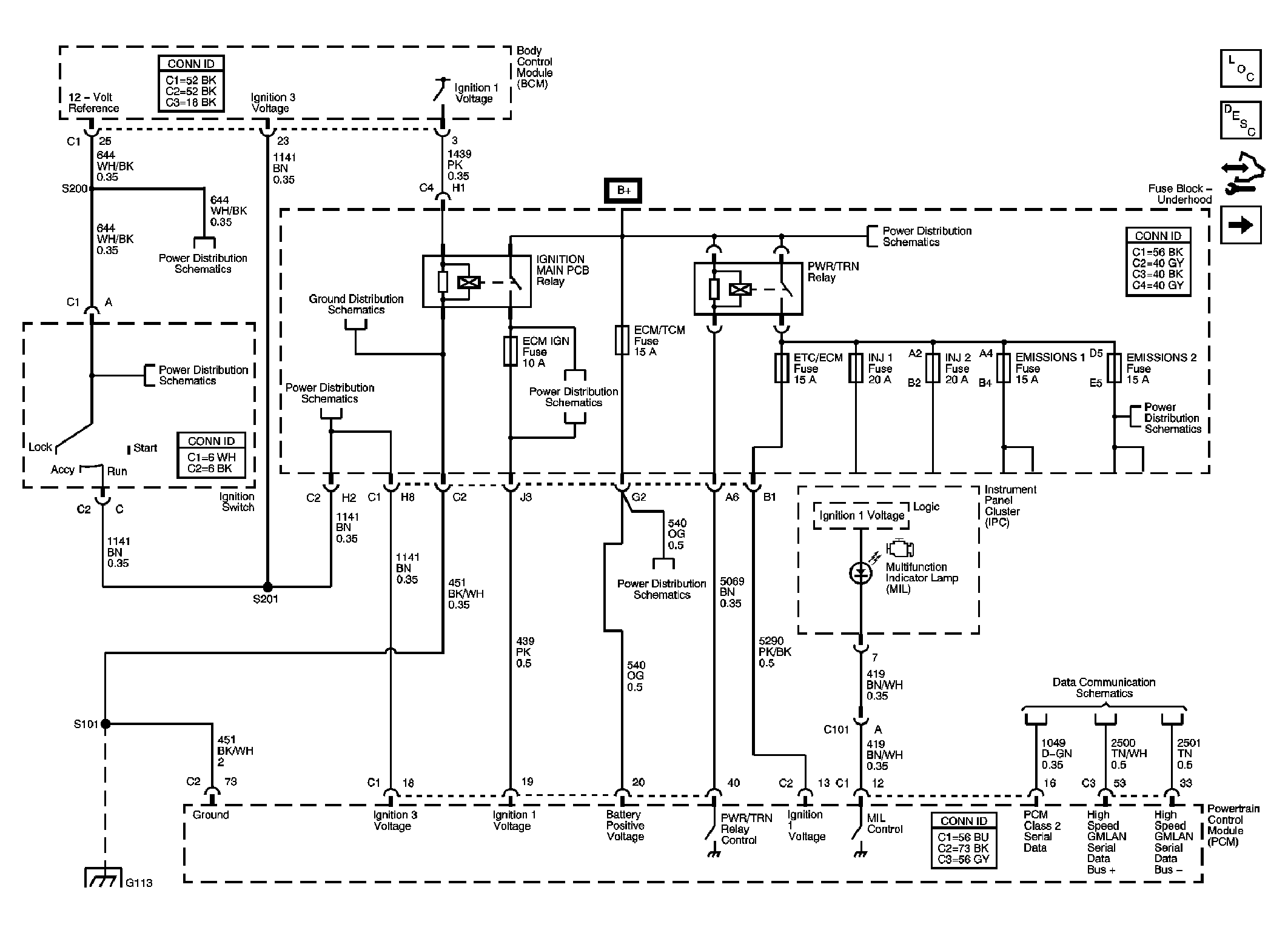

Fig 1: PCM Power, Ground, MIL, and Serial Data

Courtesy of GENERAL MOTORS CORP.

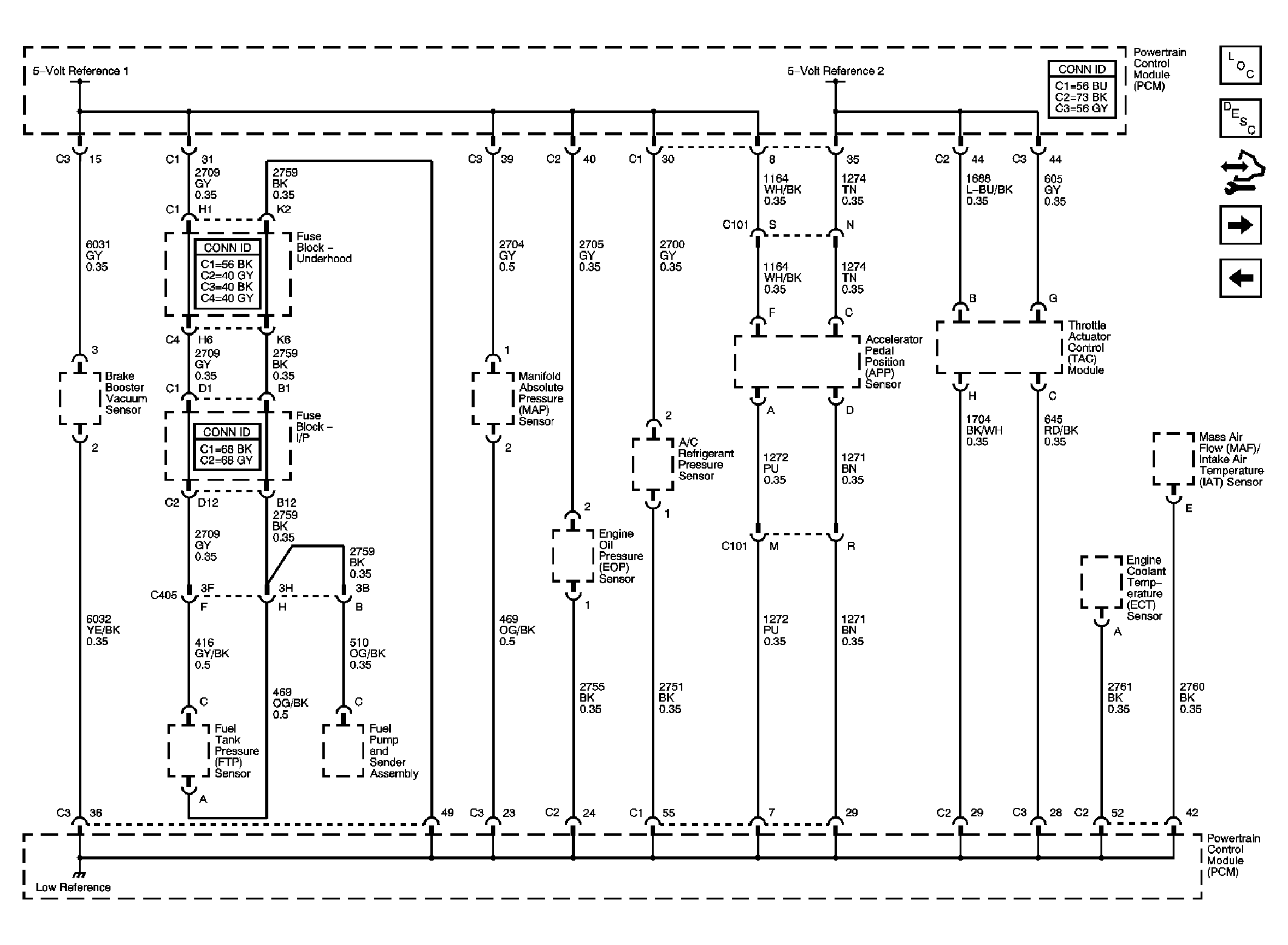

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

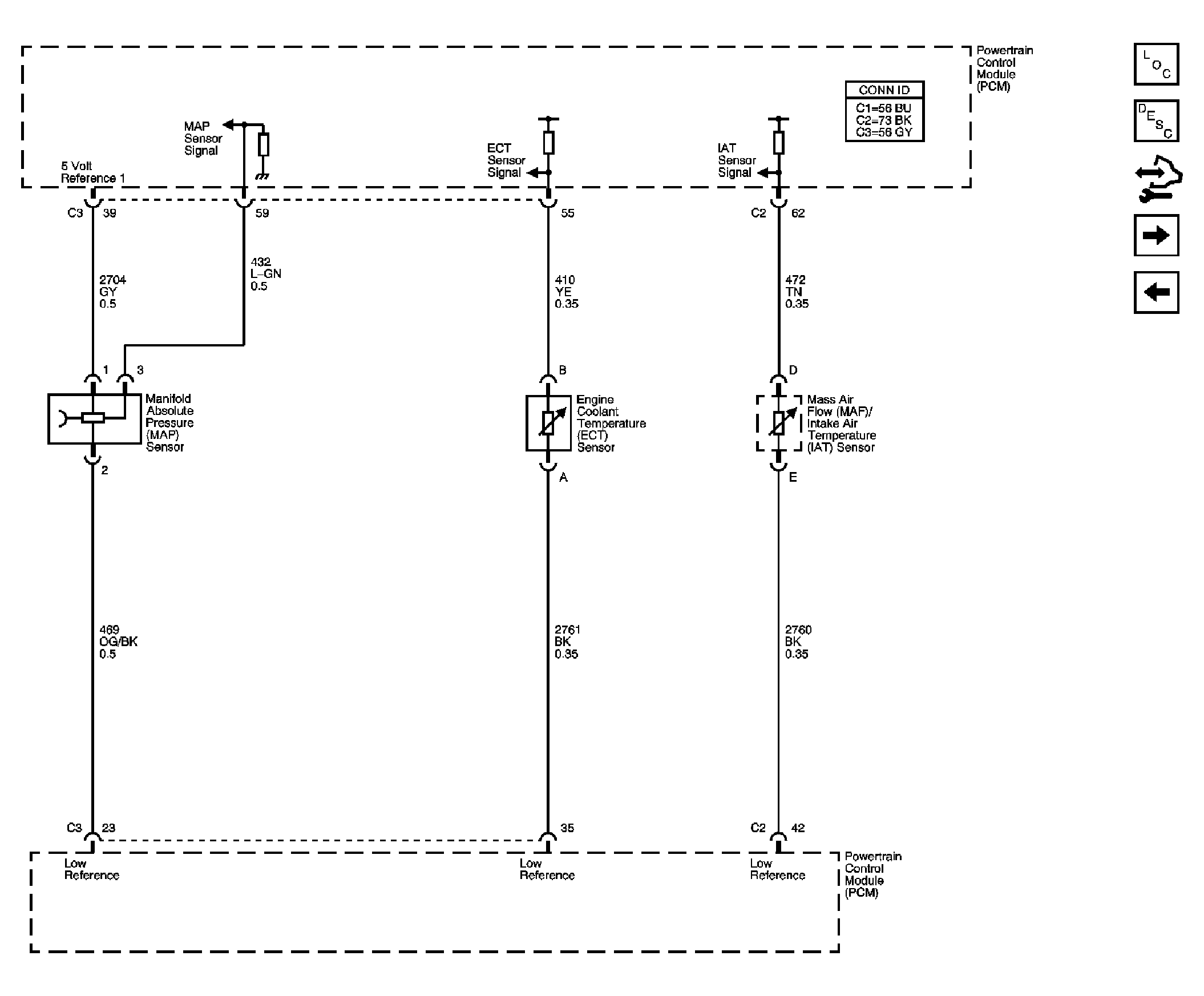

Fig 3: MAP, ECT, and MAF/IAT Sensors

Courtesy of GENERAL MOTORS CORP.

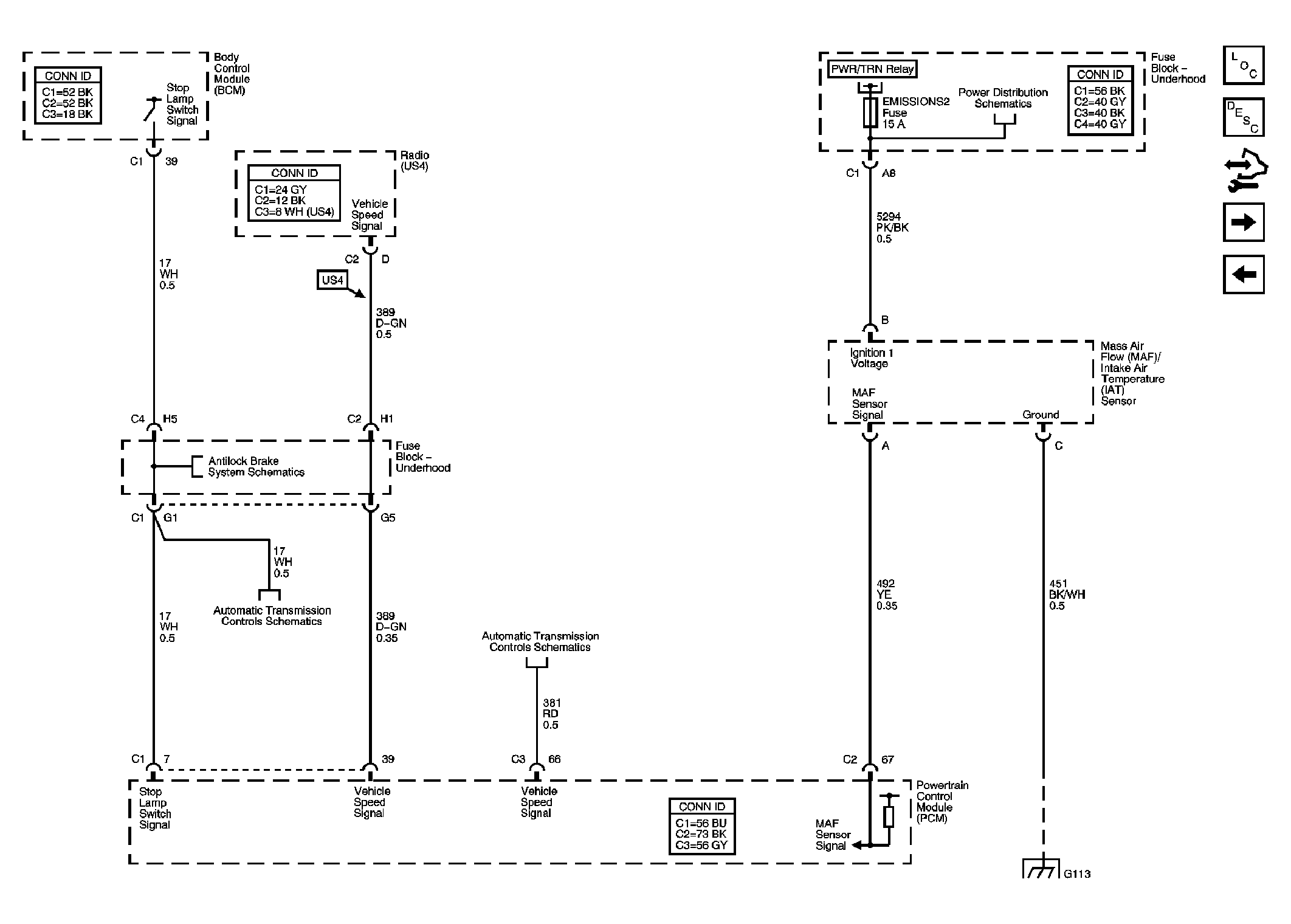

Fig 4: MAF/IAT Sensor, Stop Lamp Switch Signal and VSS

Courtesy of GENERAL MOTORS CORP.

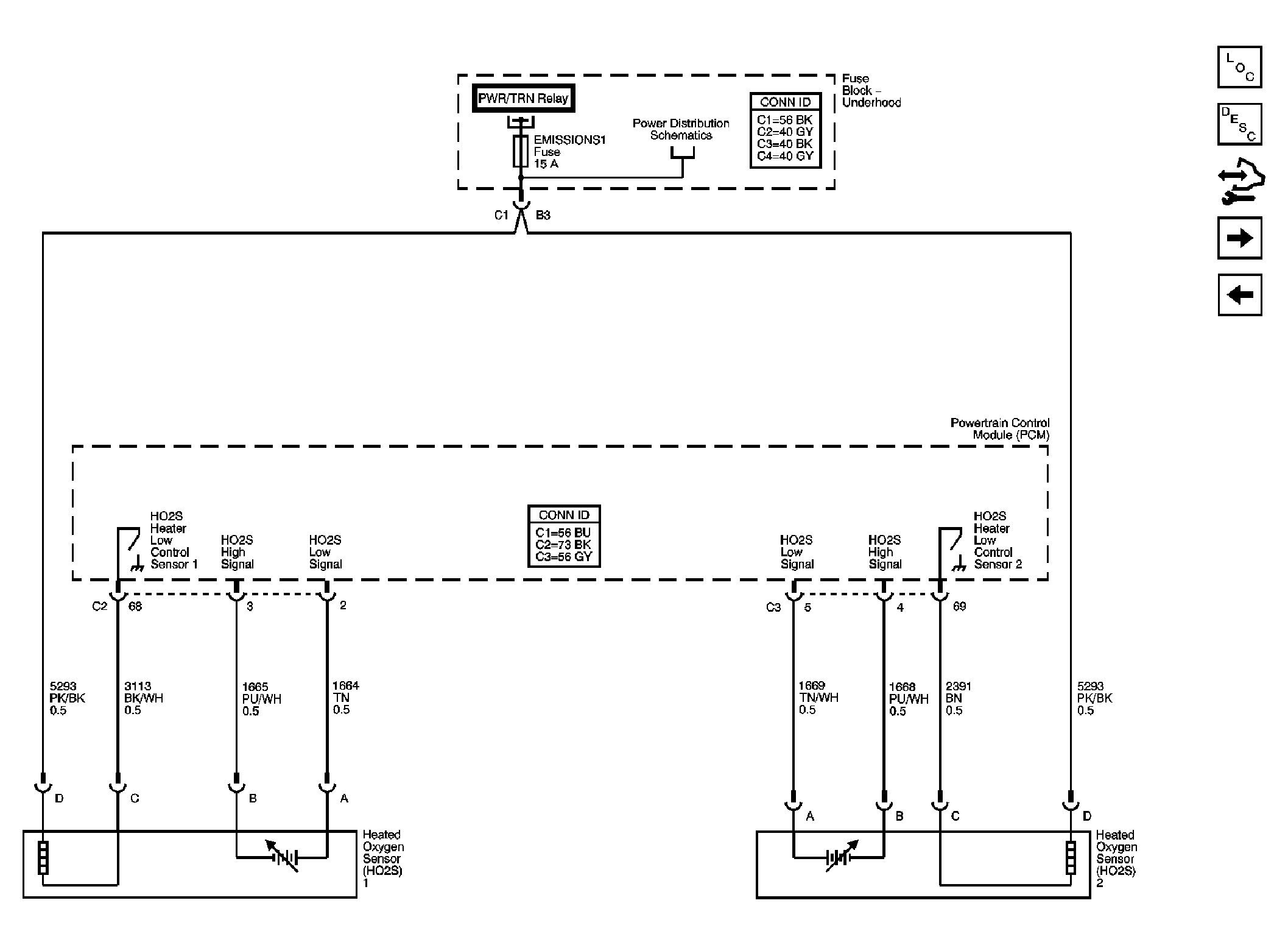

Fig 5: Heated Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

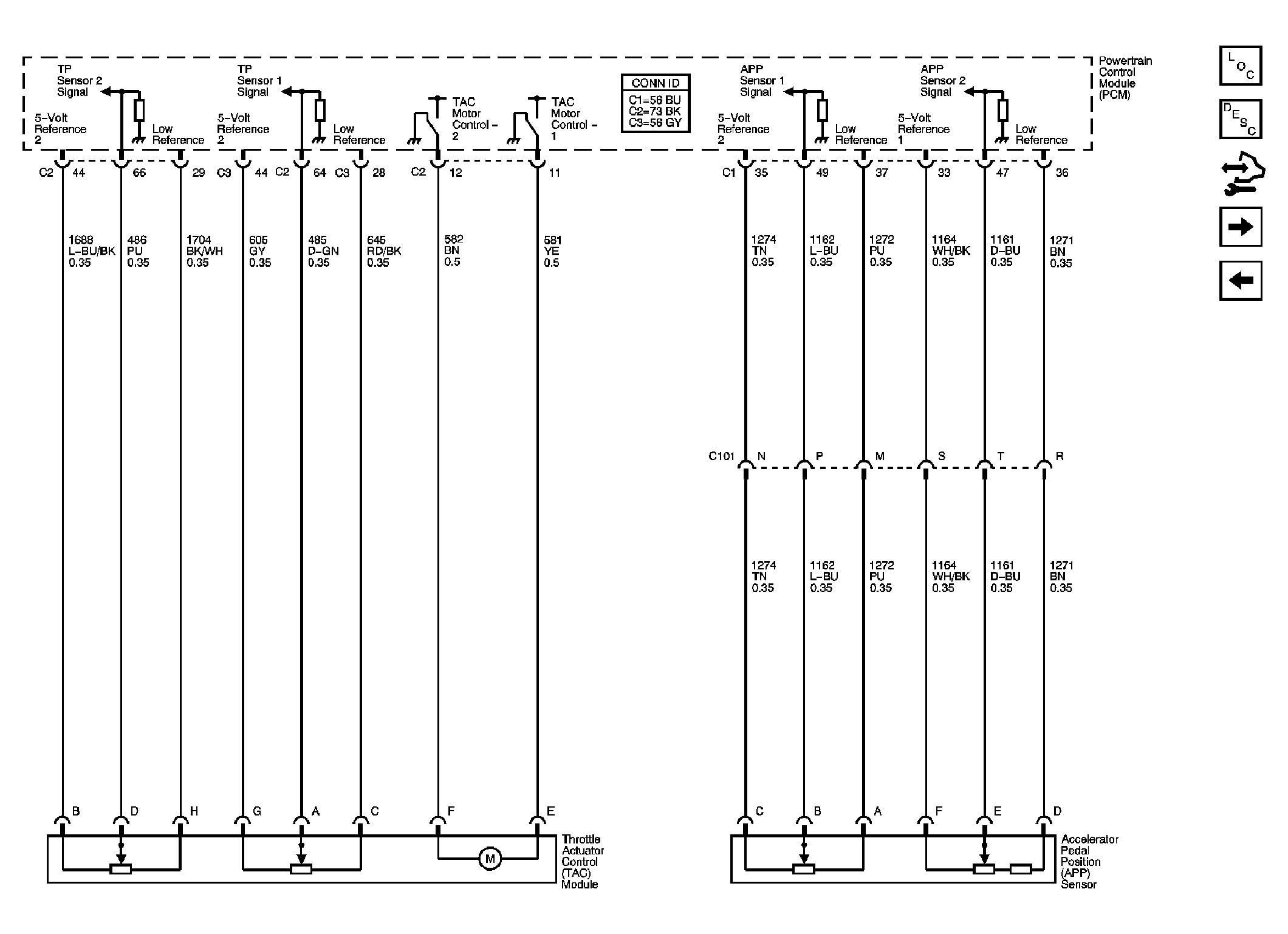

Fig 6: Electronic Throttle Controls

Courtesy of GENERAL MOTORS CORP.

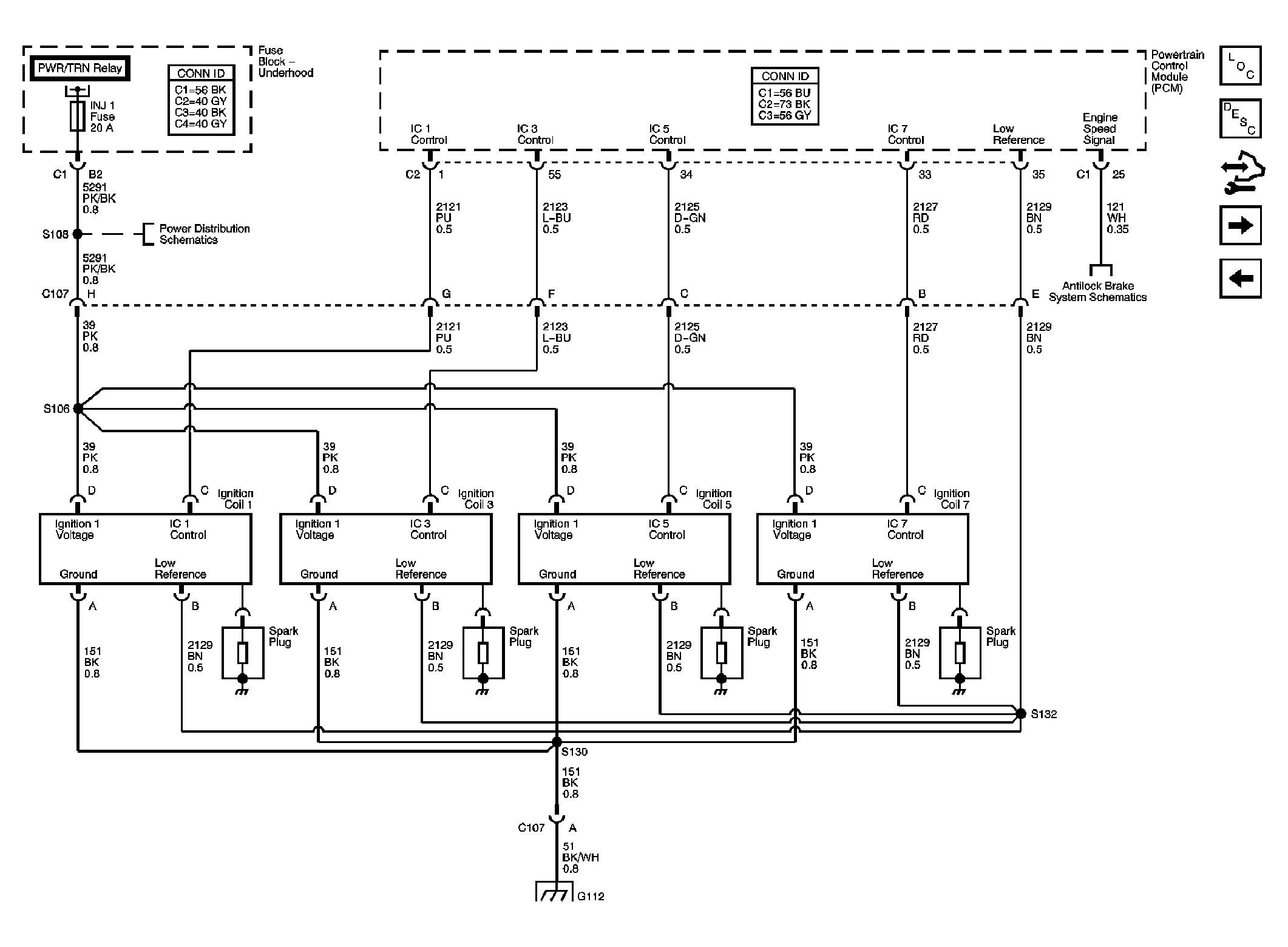

Fig 7: Ignition Controls Bank 1 (Odd) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

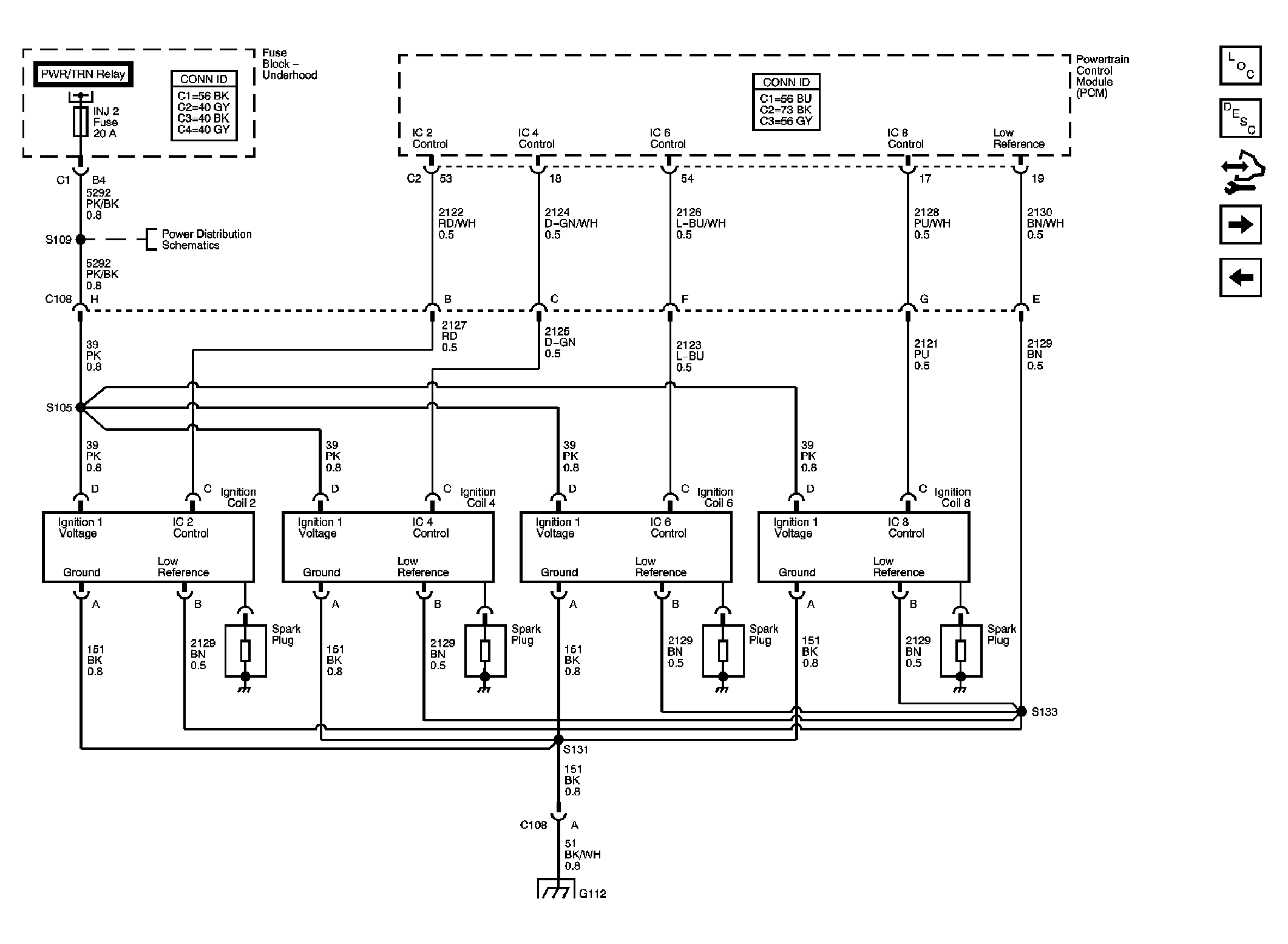

Fig 8: Ignition Controls Bank 2 (Even) Ignition Coils

Courtesy of GENERAL MOTORS CORP.

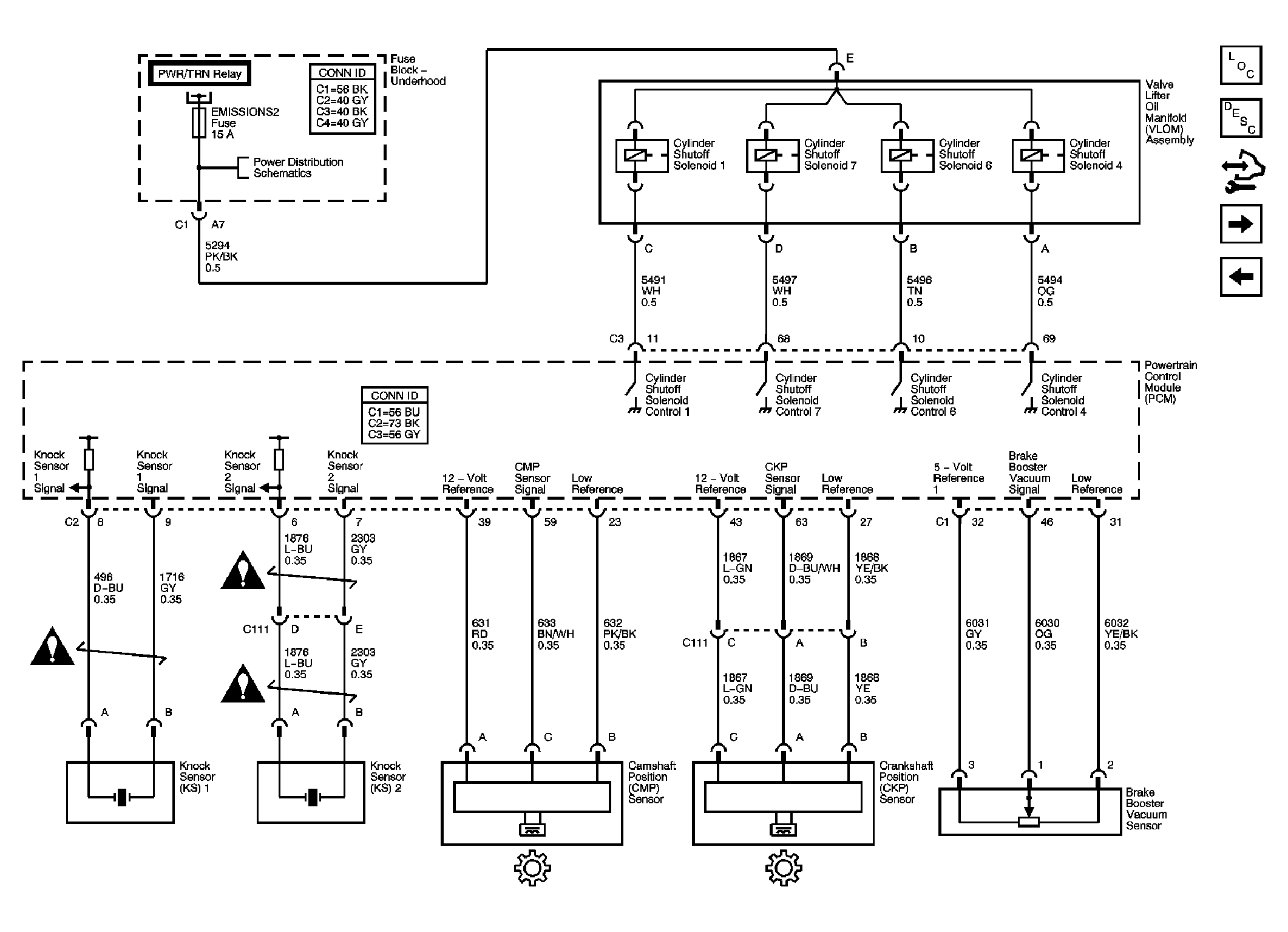

Fig 9: Ignition Controls Knock, CMP, CKP, Brake Booster Vacuum Sensors and Valve Lifter Oil Manifold Assembly

Courtesy of GENERAL MOTORS CORP.

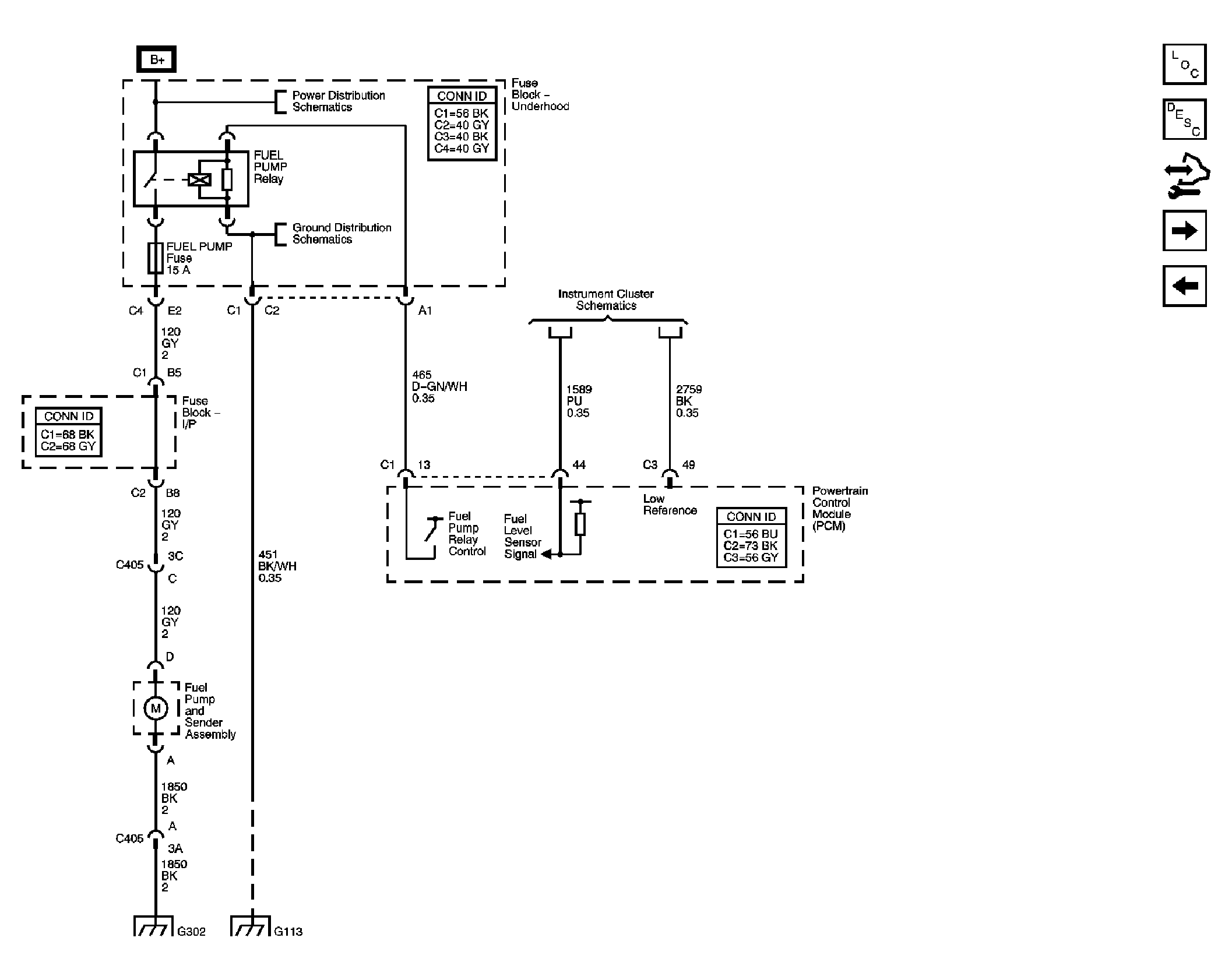

Fig 10: Fuel Pump Controls

Courtesy of GENERAL MOTORS CORP.

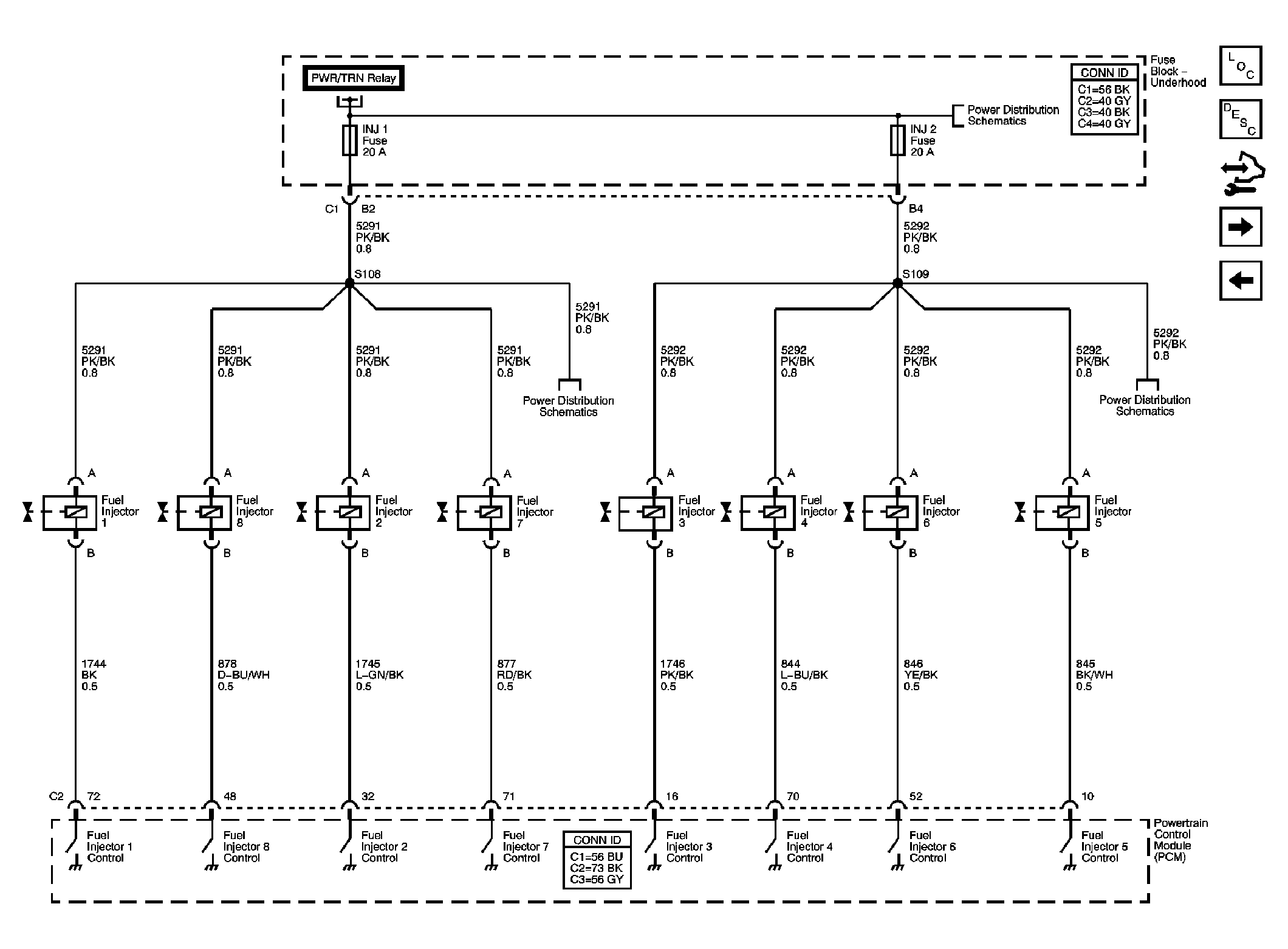

Fig 11: Fuel Injectors

Courtesy of GENERAL MOTORS CORP.

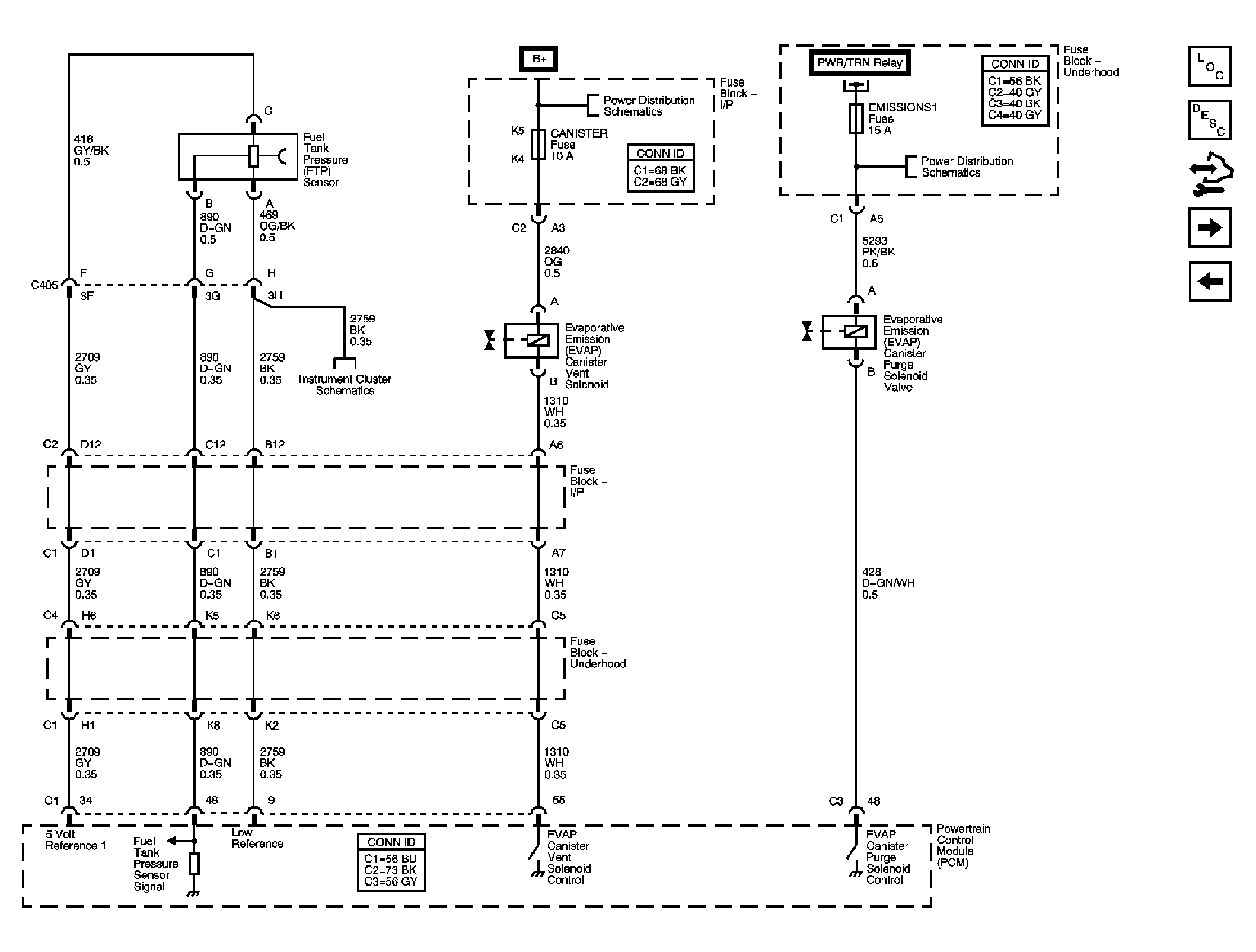

Fig 12: EVAP Solenoids and FTP Sensor

Courtesy of GENERAL MOTORS CORP.

Fig 13: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
