Installation Procedure

WARNING: This page is about a different car, the 2007 Buick LaCrosse and 2007 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

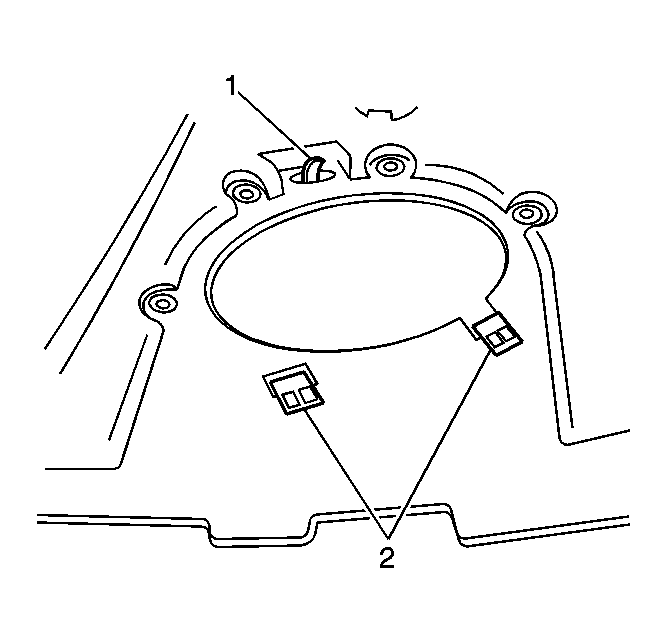

    Fig 1: View Of Rear Speaker Grille
    GM1230602Courtesy of GENERAL MOTORS CORP.
  1. Install the rear speaker grille to the rear window shelf trim panel. Ensure the retainer (1) is completely engaged.
  2. Install the rear window shelf trim panel. Refer to Rear Window Shelf Trim Panel Replacement in Interior Trim.
