Engine Controls Schematics

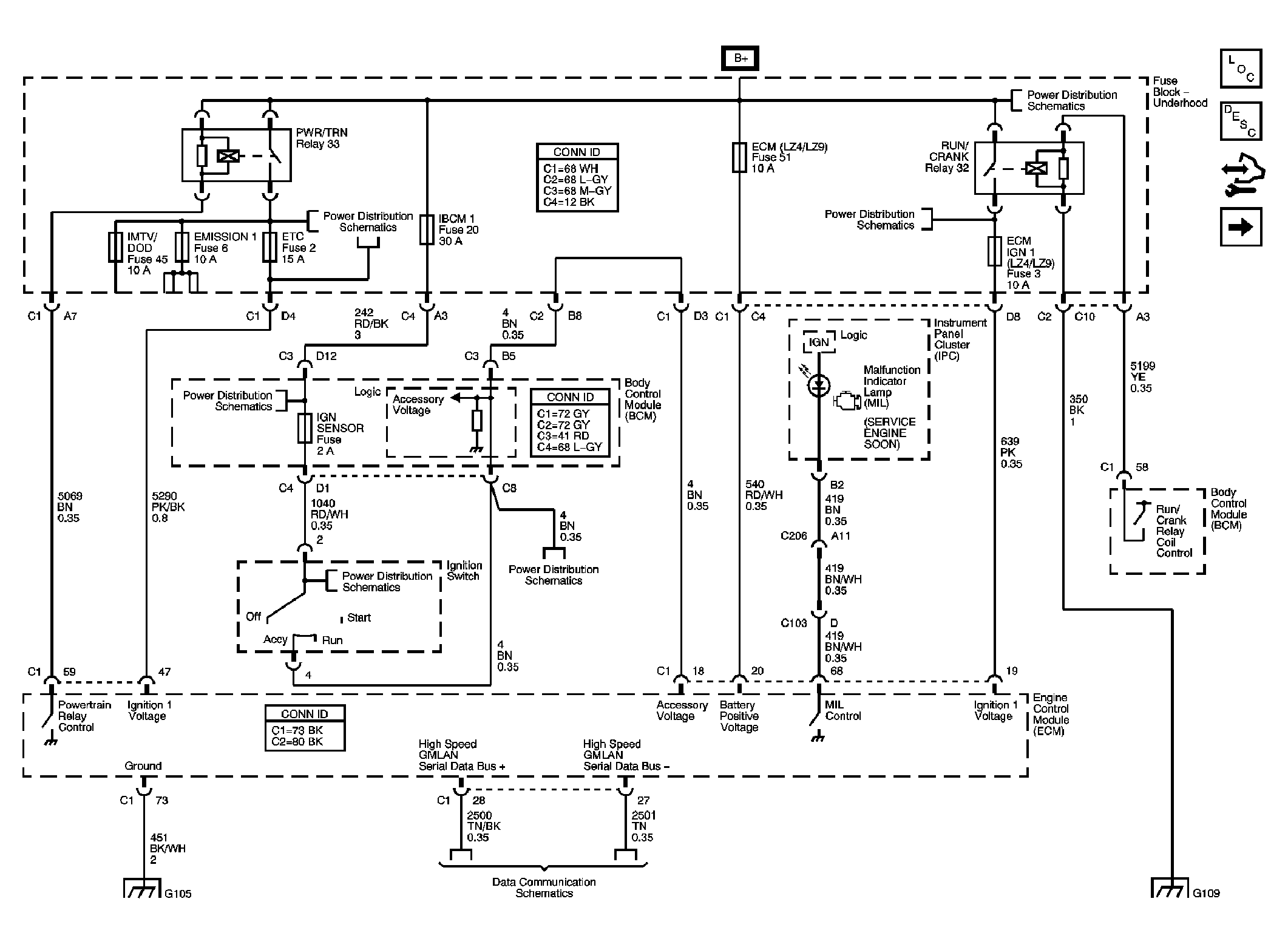

Fig 1: Power, MIL, DLC, Ignition Switch and Ground Schematic
GM1771375Courtesy of GENERAL MOTORS CORP.

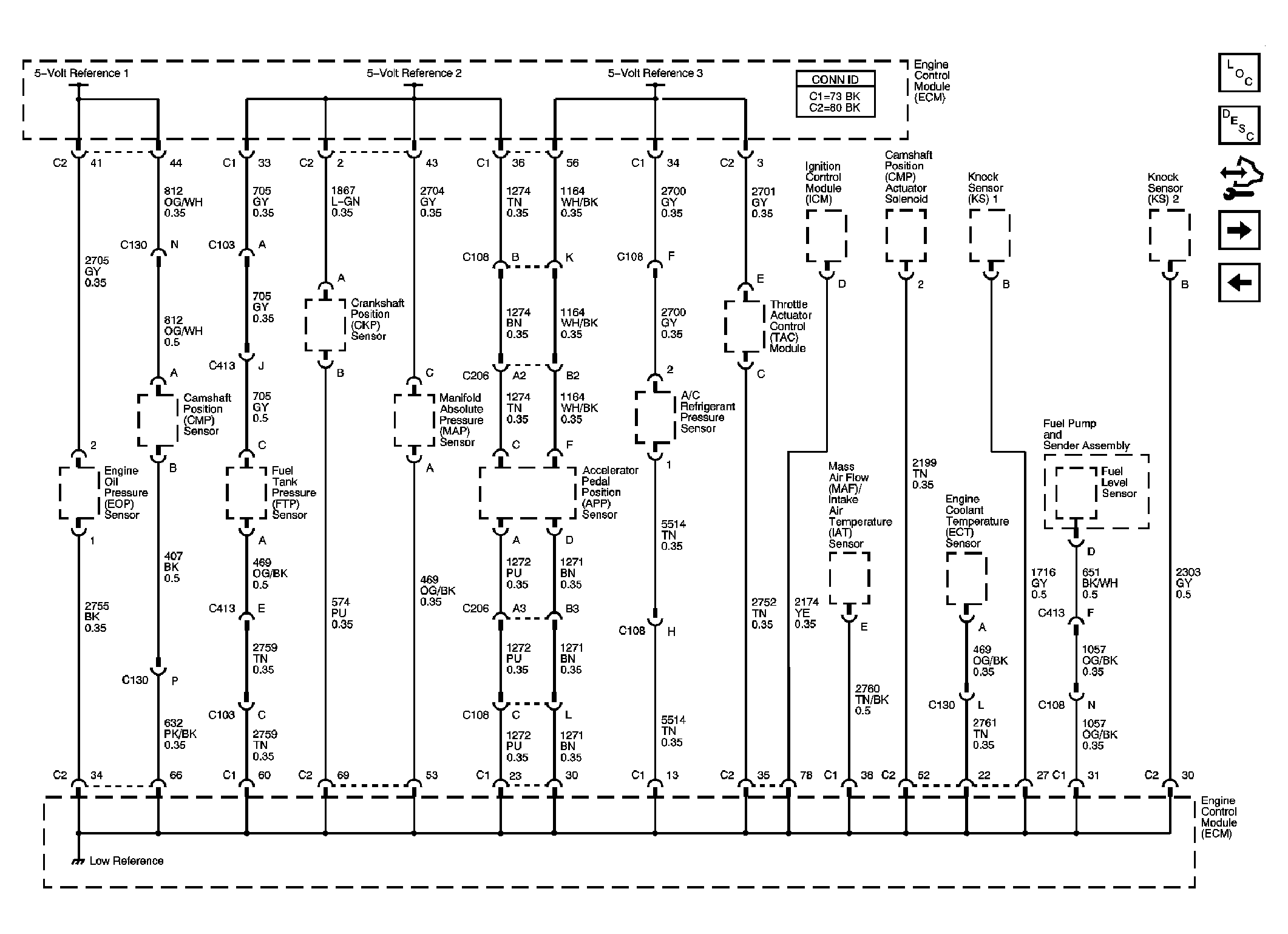

Fig 2: 5-Volt and Low References Schematic
GM1771381Courtesy of GENERAL MOTORS CORP.

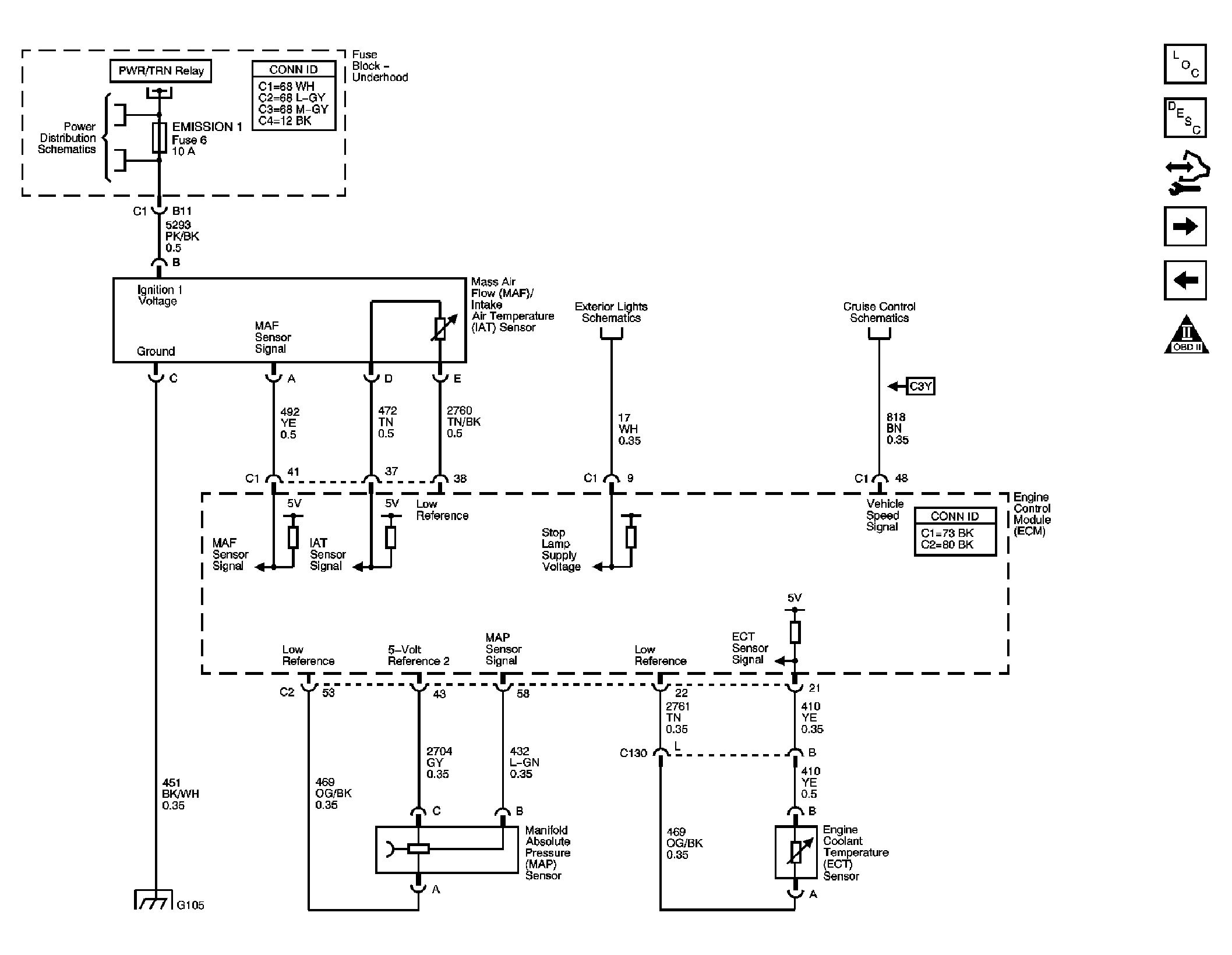

Fig 3: MAF/IAT, MAP, ECT Sensors Schematic
GM1771386Courtesy of GENERAL MOTORS CORP.

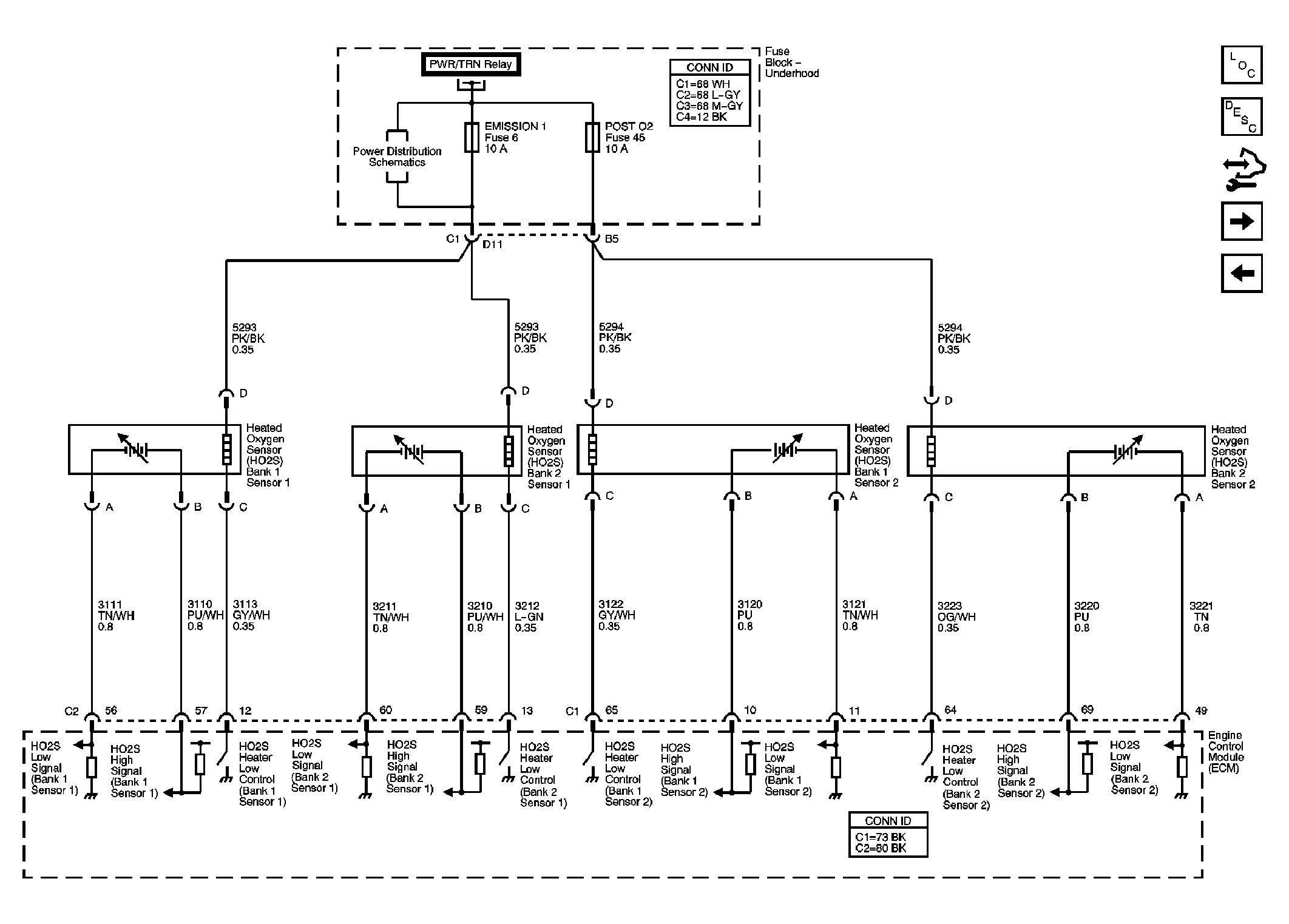

Fig 4: Heated Oxygen Sensors Schematic
GM1771390Courtesy of GENERAL MOTORS CORP.

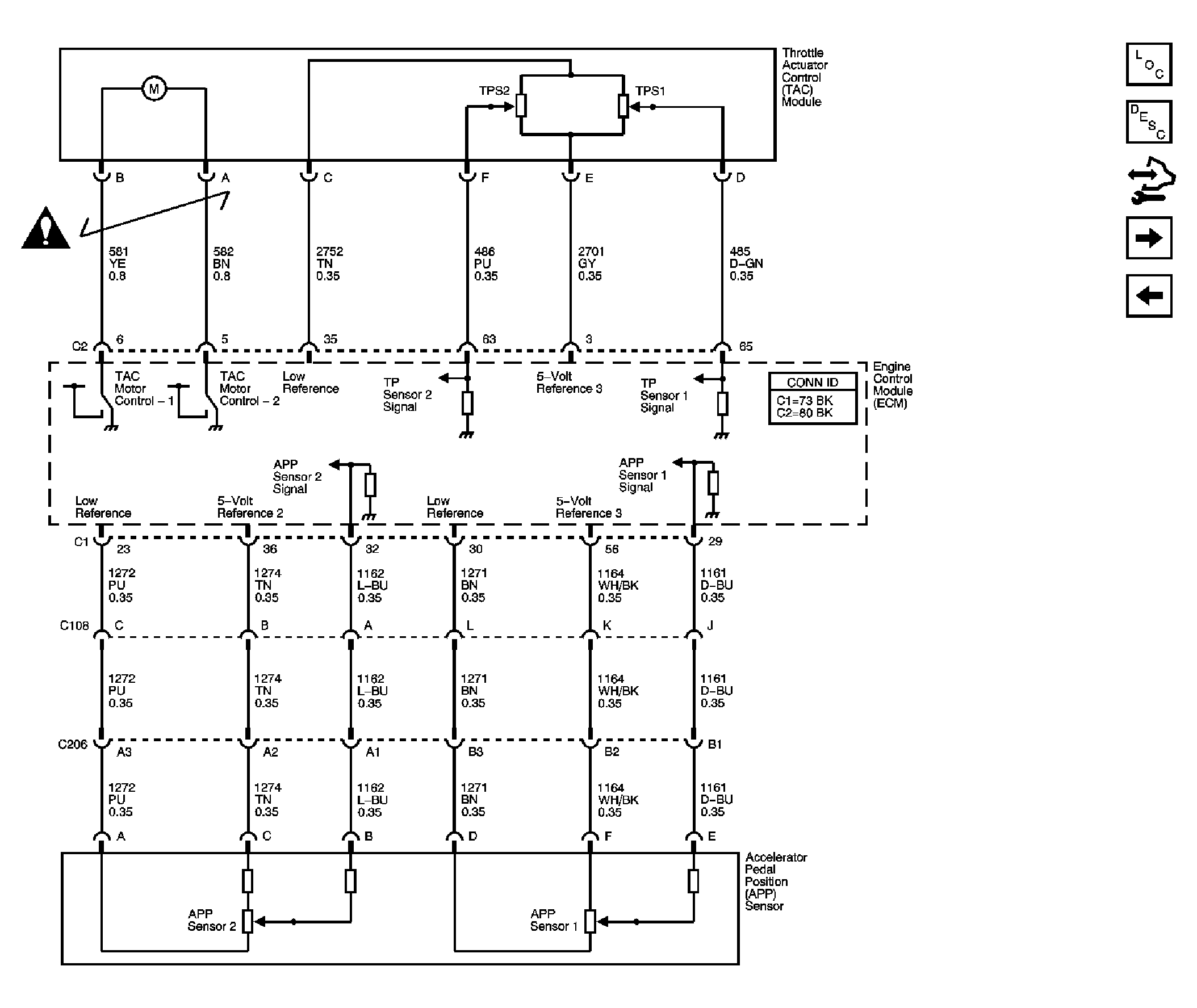

Fig 5: Electronic Throttle Controls Schematic
GM1771395Courtesy of GENERAL MOTORS CORP.

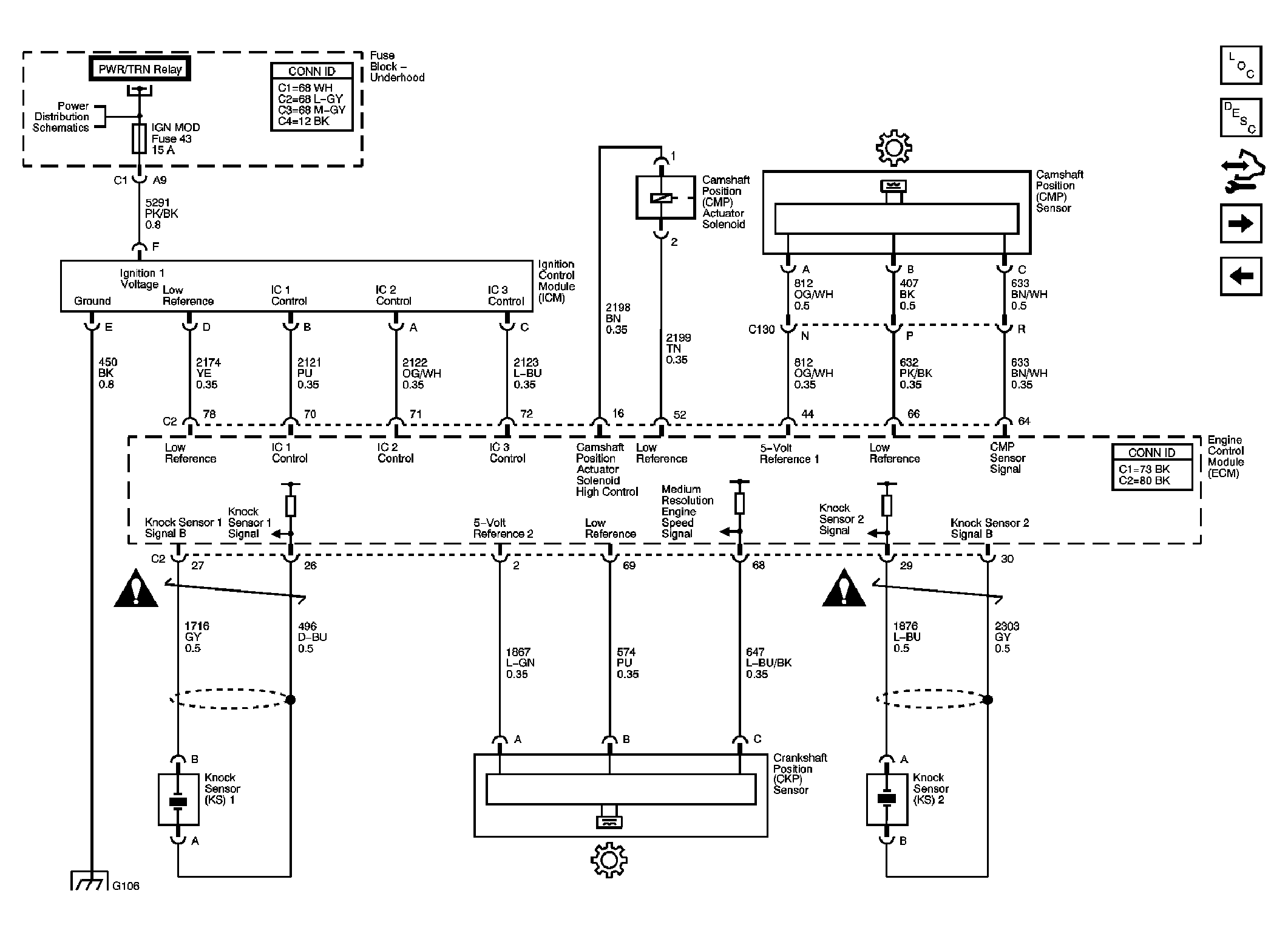

Fig 6: Ignition System Schematic
GM1771398Courtesy of GENERAL MOTORS CORP.

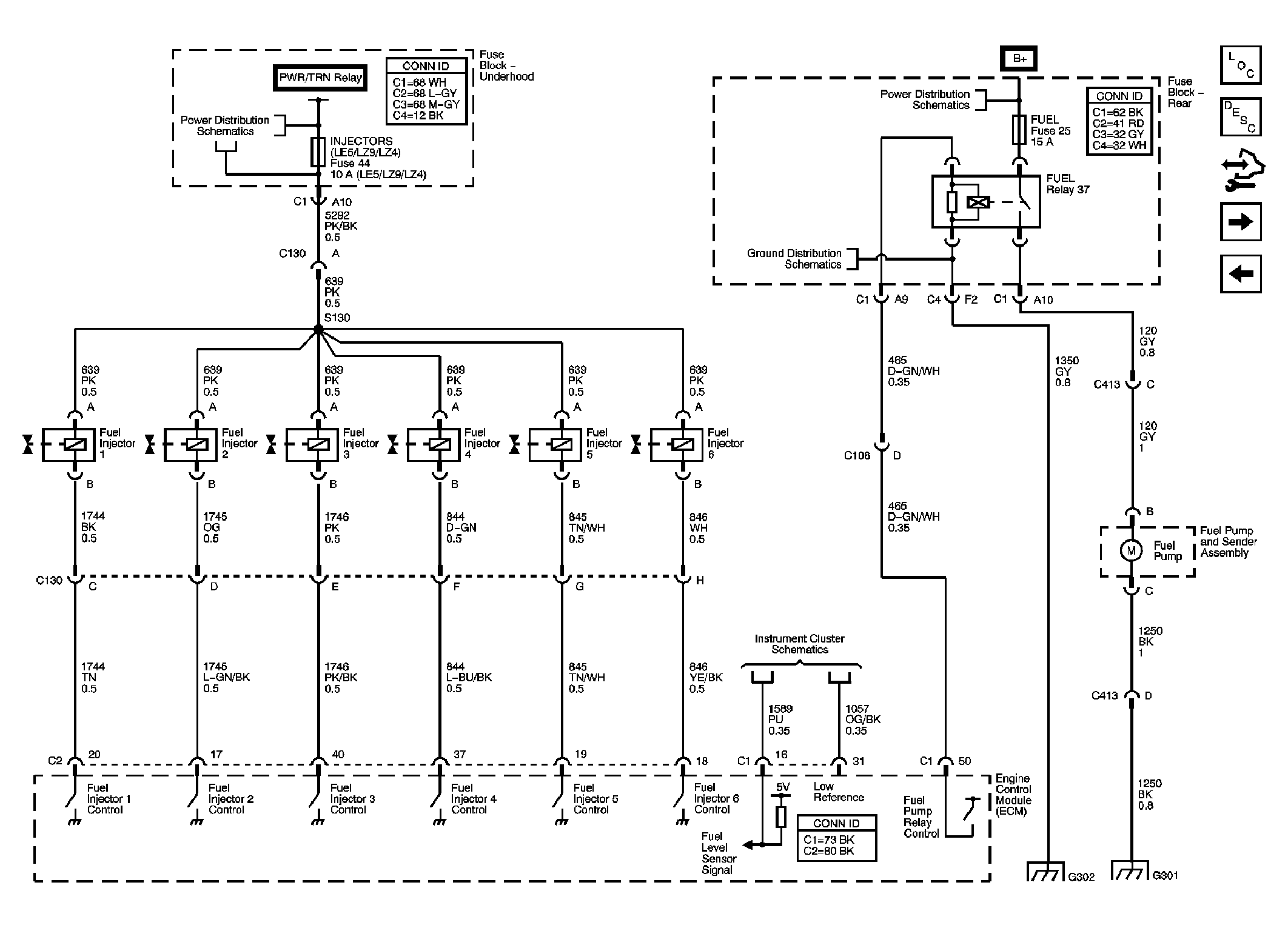

Fig 7: Fuel Injectors and Fuel Pump Schematic
GM1771469Courtesy of GENERAL MOTORS CORP.

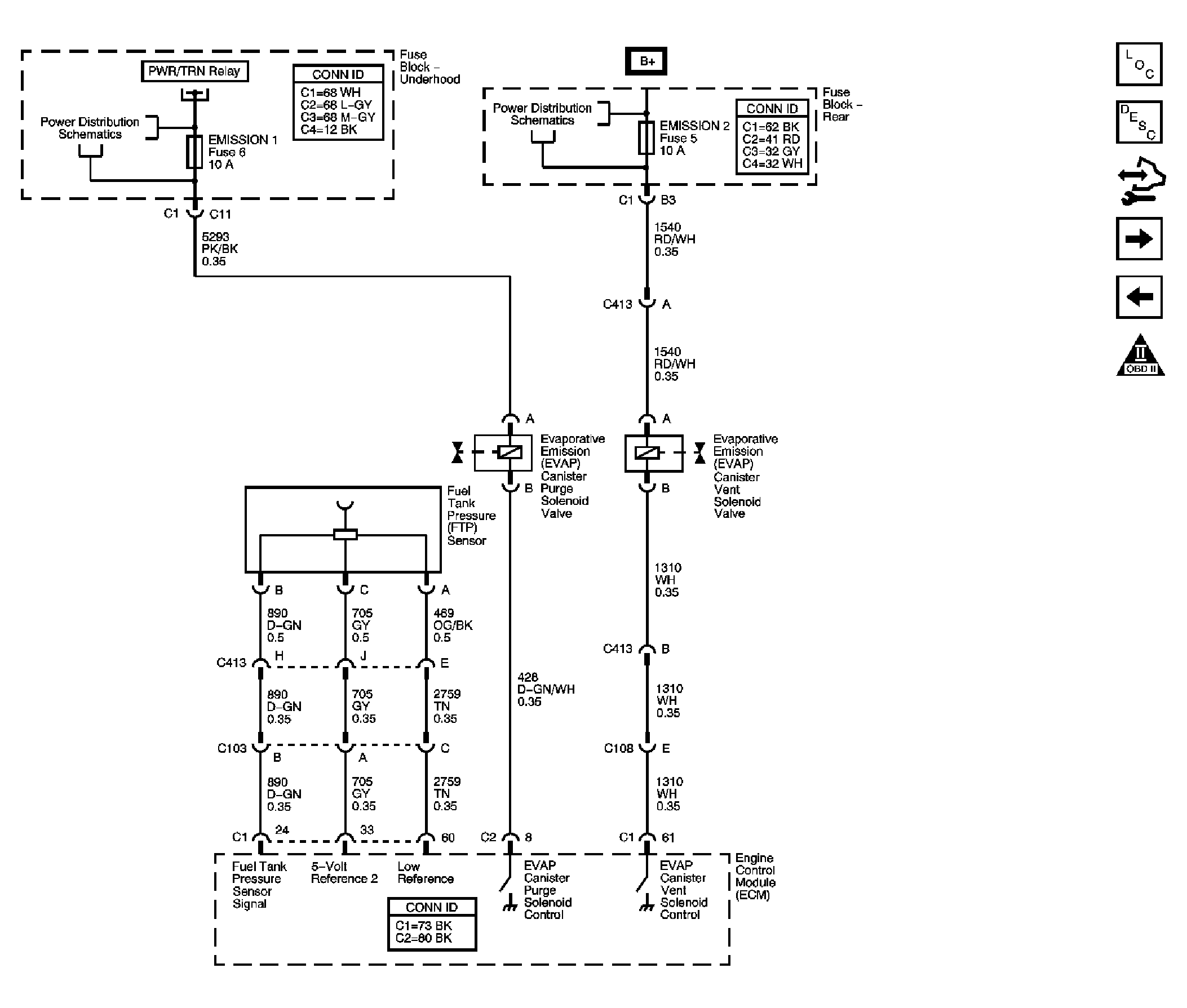

Fig 8: EVAP Controls and FTP Sensor Schematic
GM1771471Courtesy of GENERAL MOTORS CORP.

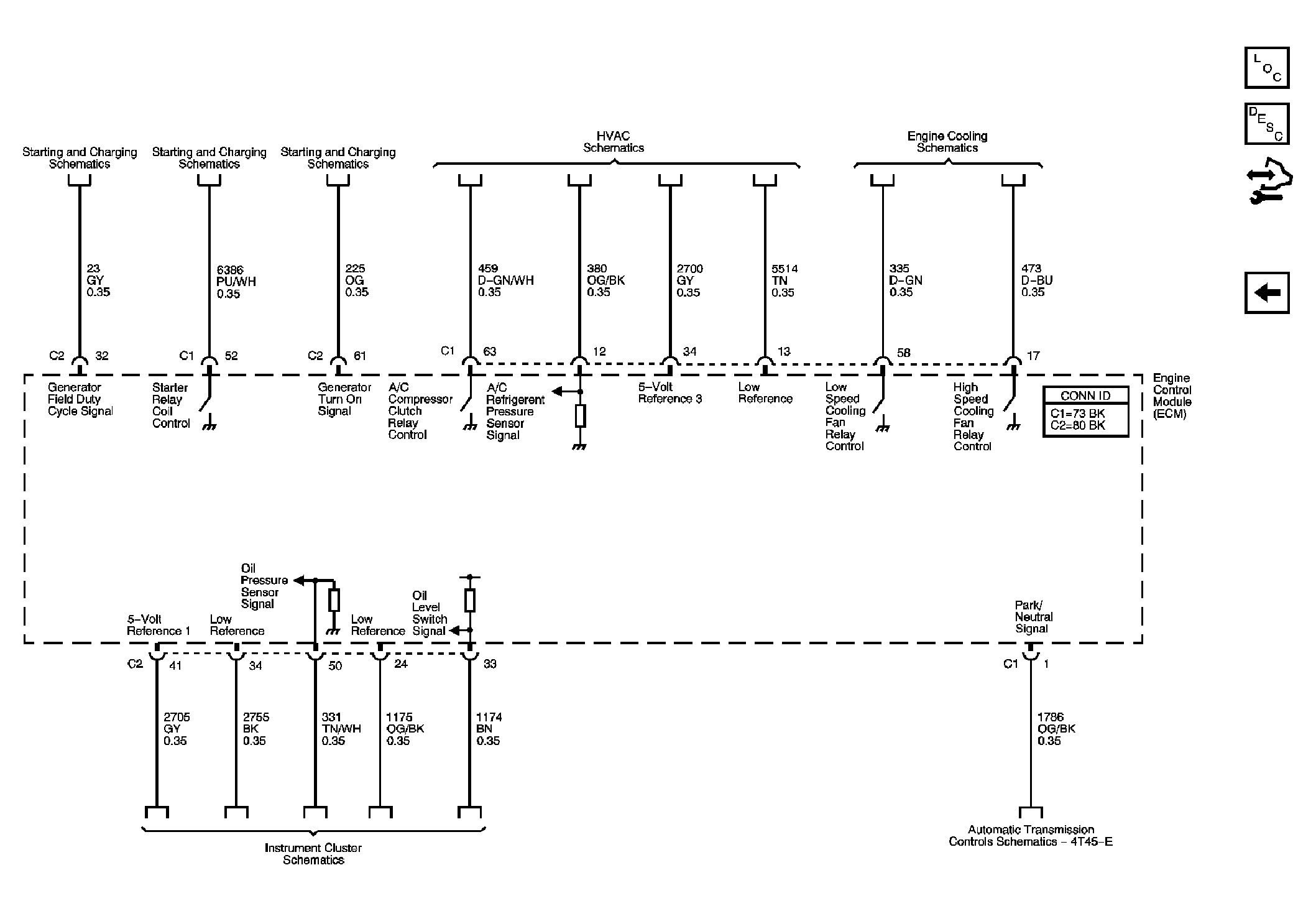

Fig 9: Controlled/Monitored Subsystem References Schematic
GM1771478Courtesy of GENERAL MOTORS CORP.
