Installation Procedure

    Fig 1: View Of Ignition Coils
    GM1578474Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the ignition coil(s).
  2. Install the ignition coil bolt(s).

    Tighten:  Tighten the bolt(s) to 10 N.m (89 lb in).

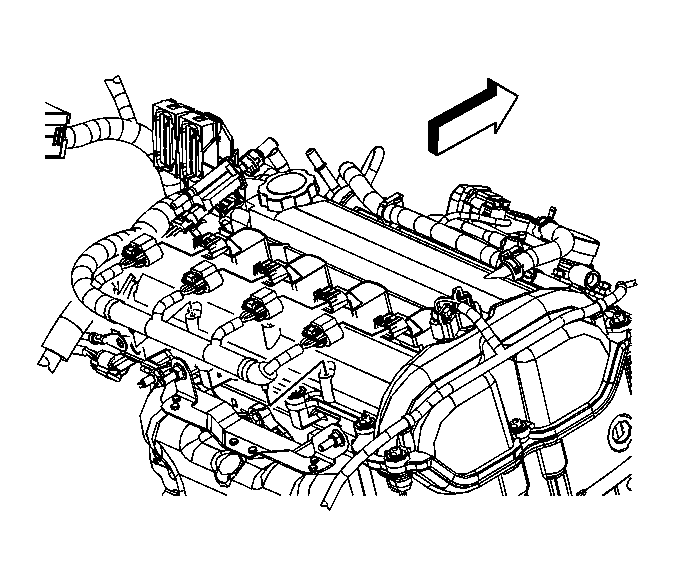

    3. Fig 2: Identifying Ignition Coil Electrical Connectors
    GM1578473Courtesy of GENERAL MOTORS CORP.
  3. Connect the ignition coil electrical connector(s).
  4. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
