Power Moding Schematics

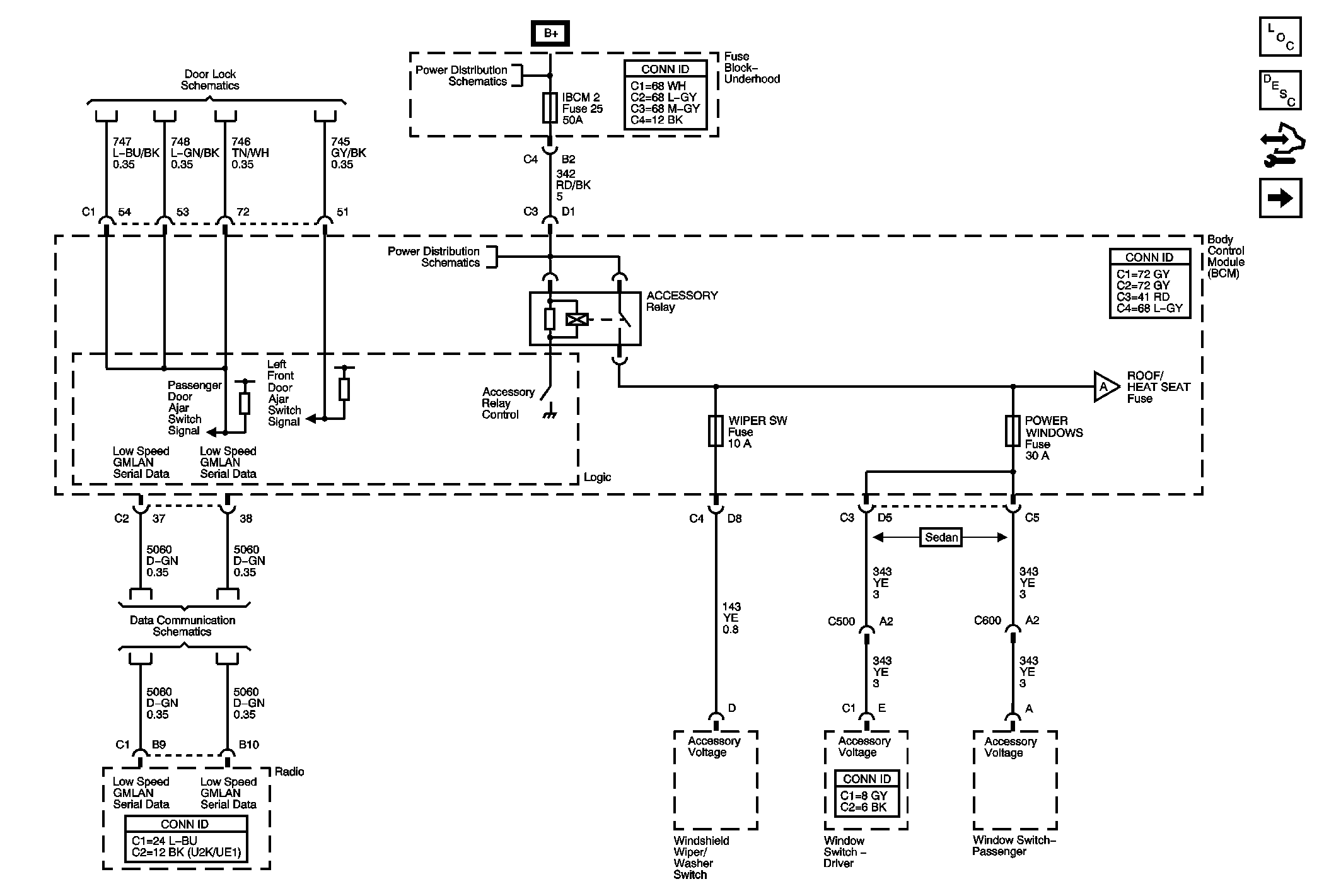

Fig 1: DLC & Power

GM1782656

Courtesy of GENERAL MOTORS CORP.

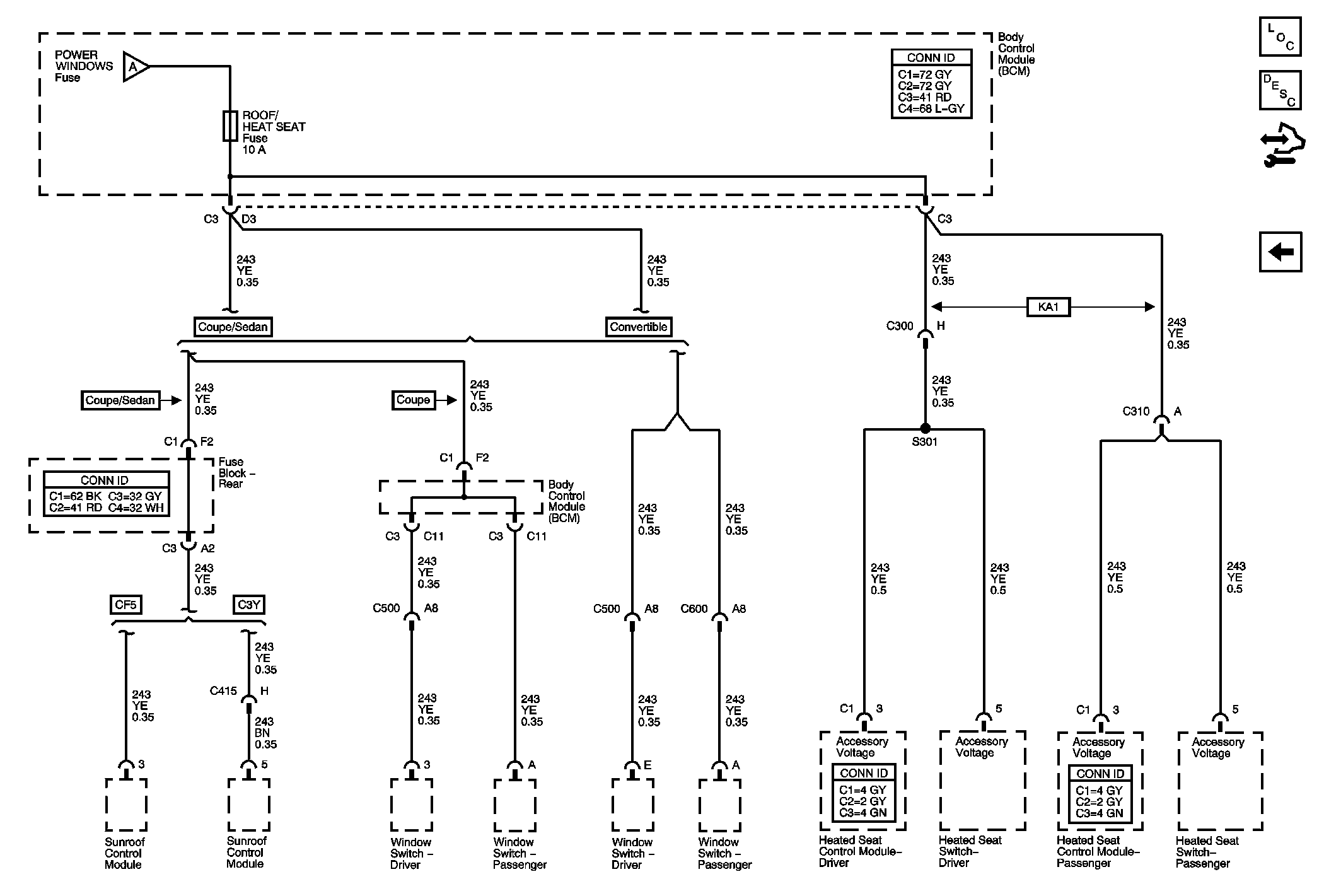

Fig 2: Power

GM1782658

Courtesy of GENERAL MOTORS CORP.
