Front Seat Belt Buckle Replacement

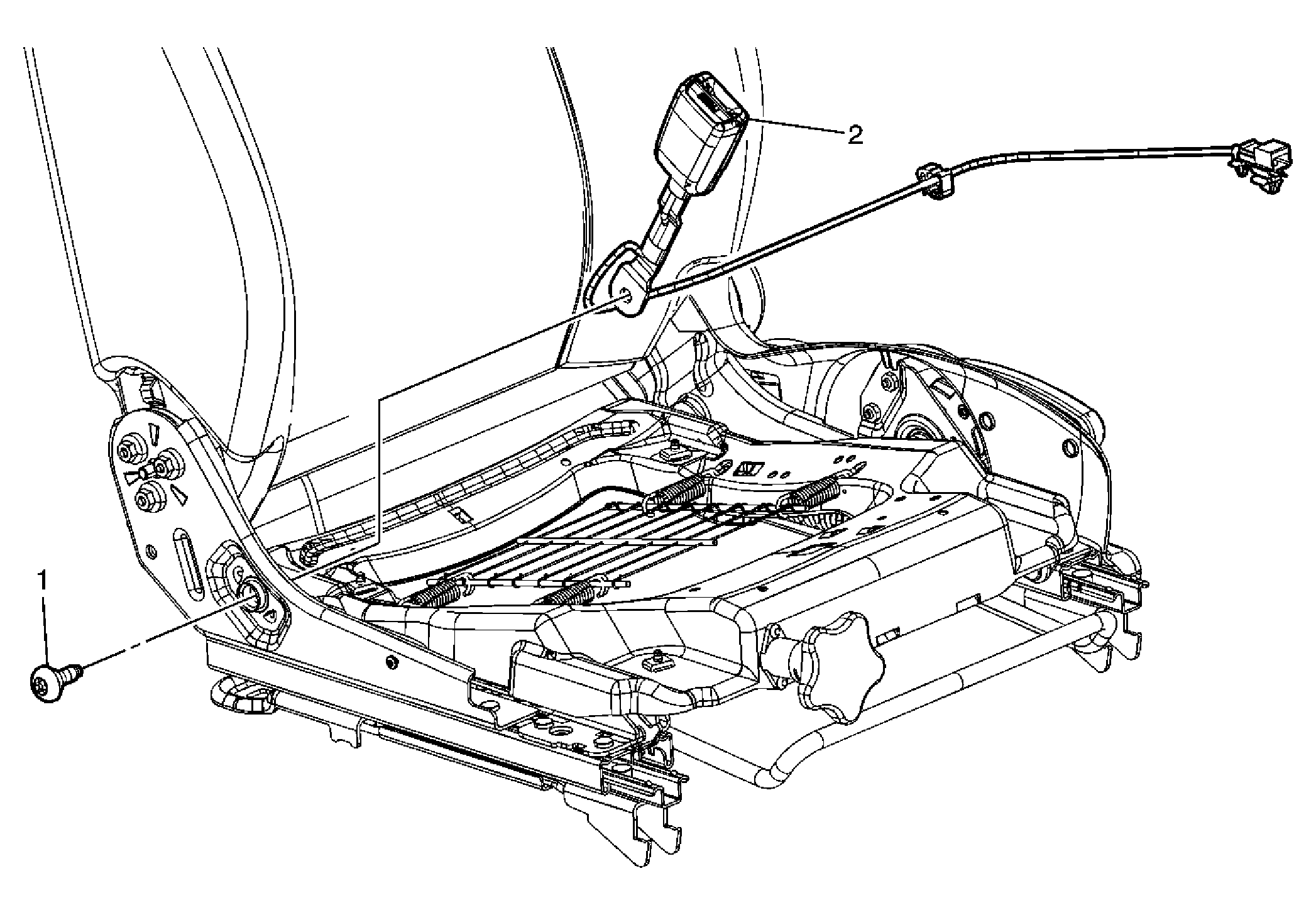

Fig 1: View of Front Seat Belt Buckle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedure Remove the front seat. Refer to Front Seat Replacement - Bucket . Remove the seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement . Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front .
1	Bolt, Seat Belt Buckle Tighten: 45 N.m (33 lb ft)
2	Buckle Assembly, Seat Belt

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedure

Remove the front seat. Refer to Front Seat Replacement - Bucket .
Remove the seat cushion inner trim panel. Refer to Seat Cushion Inner Trim Panel Replacement .
Remove the seat cushion cover and pad. Refer to Seat Cushion Cover and Pad Replacement - Front .

Bolt, Seat Belt Buckle

Tighten: 45 N.m (33 lb ft)

Buckle Assembly, Seat Belt
