Engine Controls Schematics

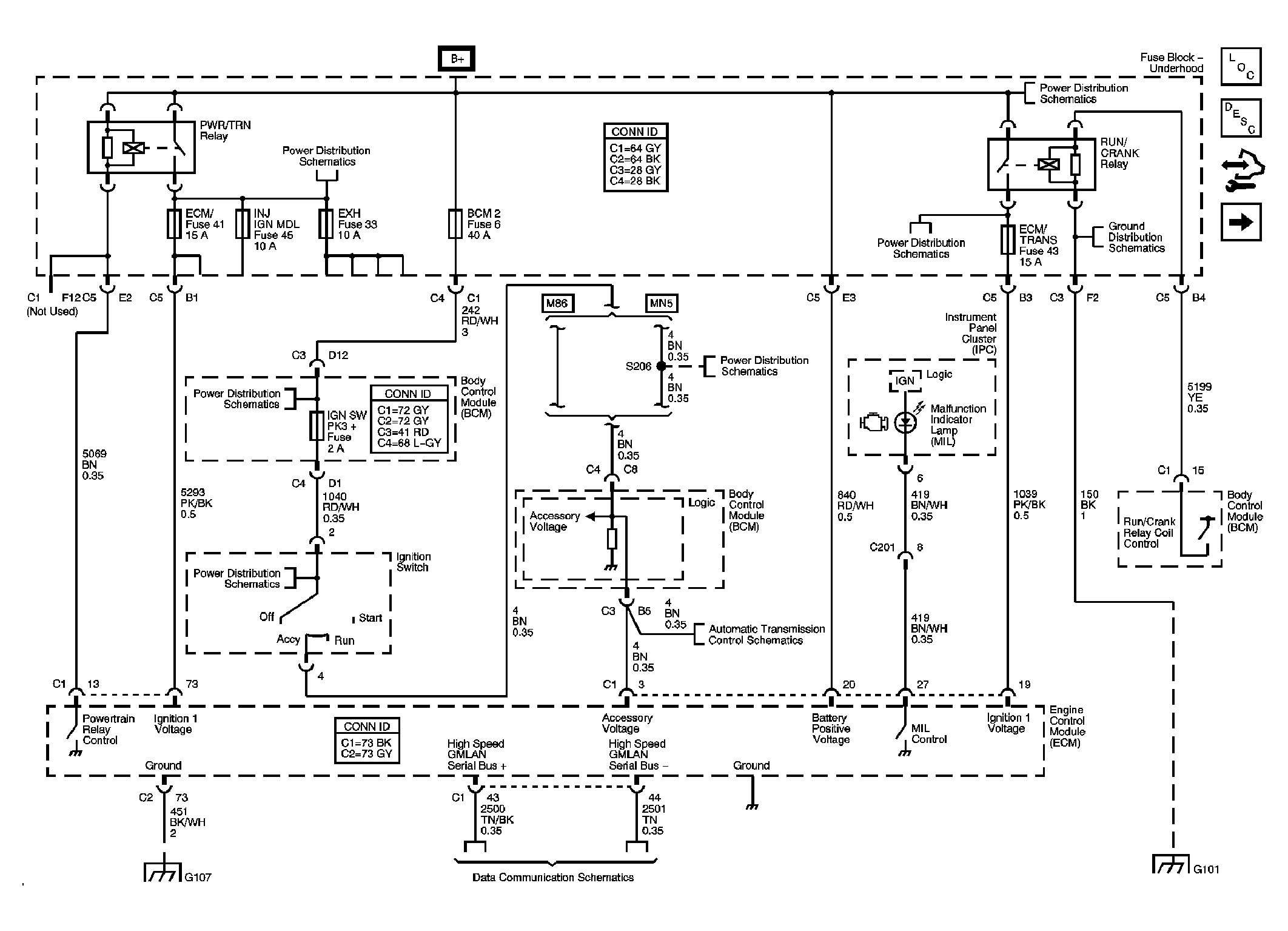

Fig 1: Power, Ground, MIL, Communication

Courtesy of GENERAL MOTORS CORP.

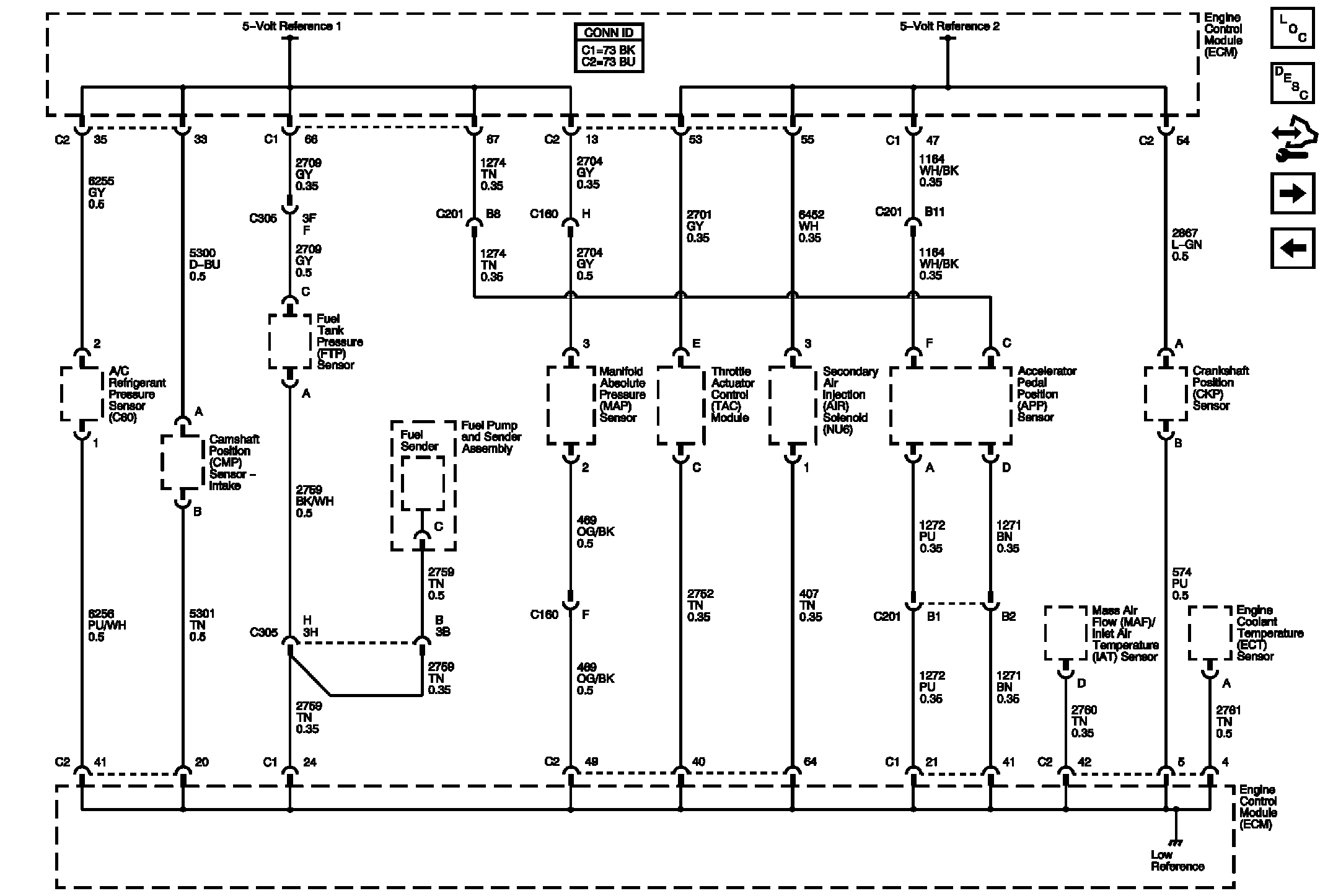

Fig 2: 5-Volt and Low Reference Bussing

Courtesy of GENERAL MOTORS CORP.

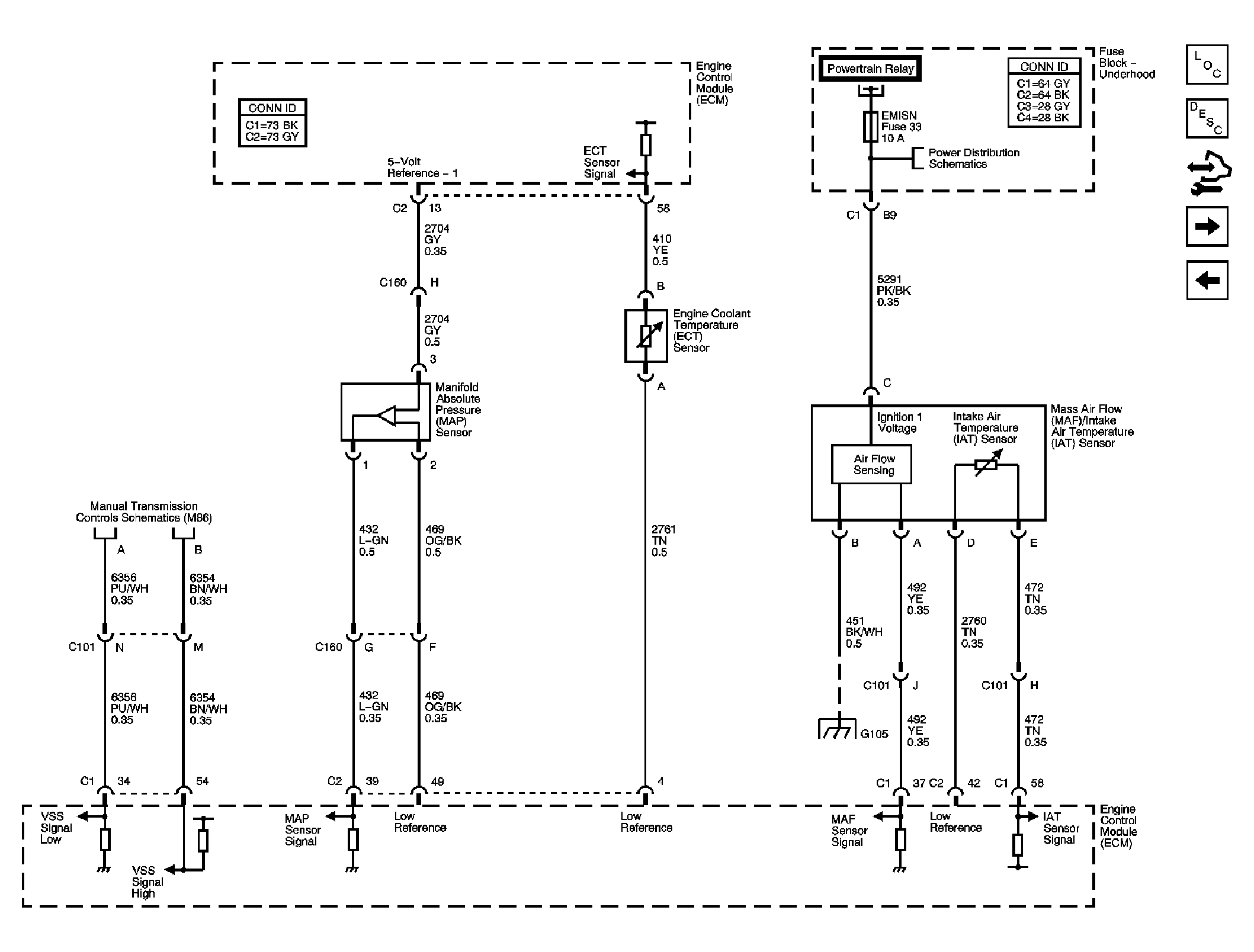

Fig 3: Engine Data Sensors - Pressure, Temperature, MAF/IAT

Courtesy of GENERAL MOTORS CORP.

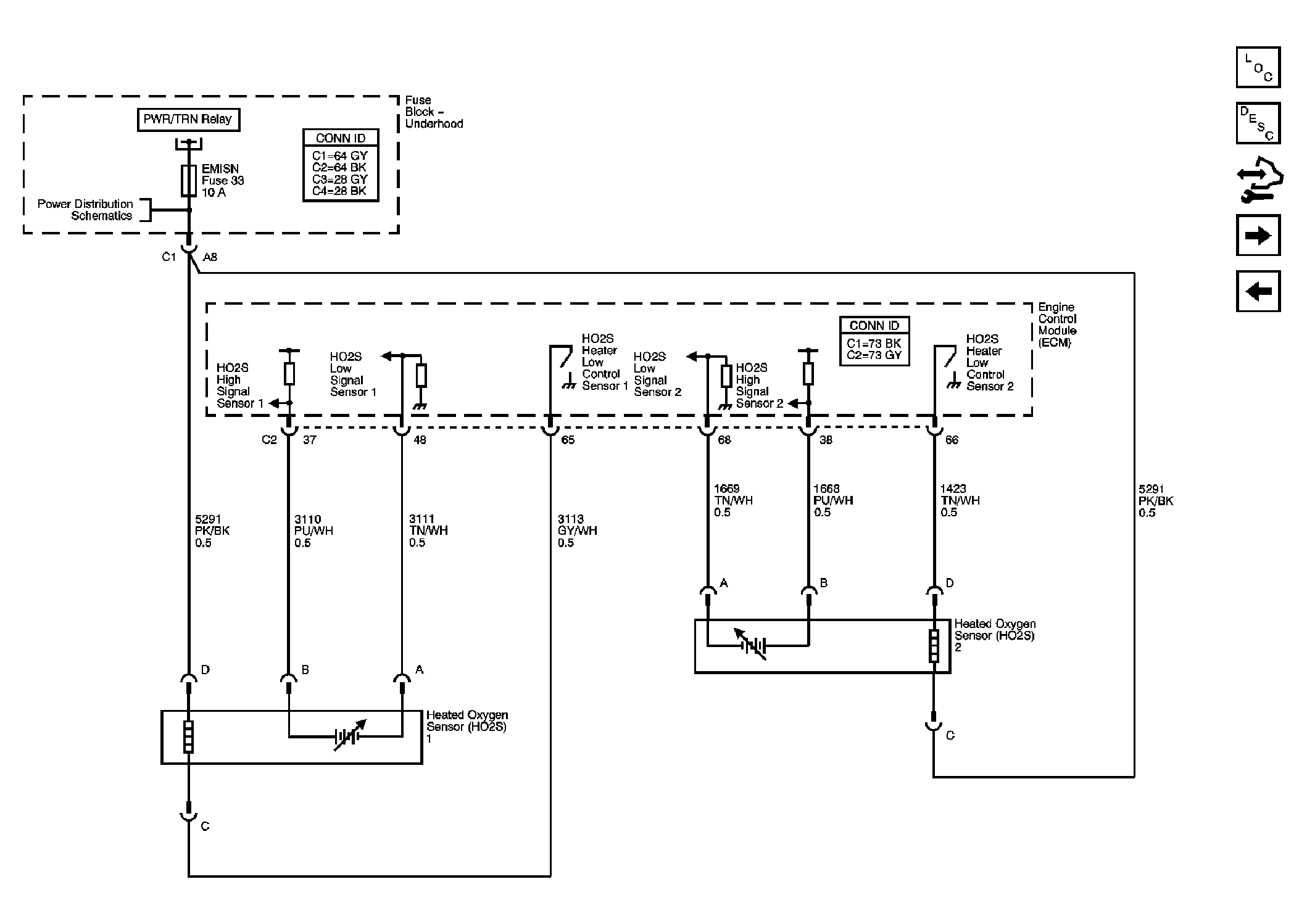

Fig 4: Engine Data Sensors - HO2S

Courtesy of GENERAL MOTORS CORP.

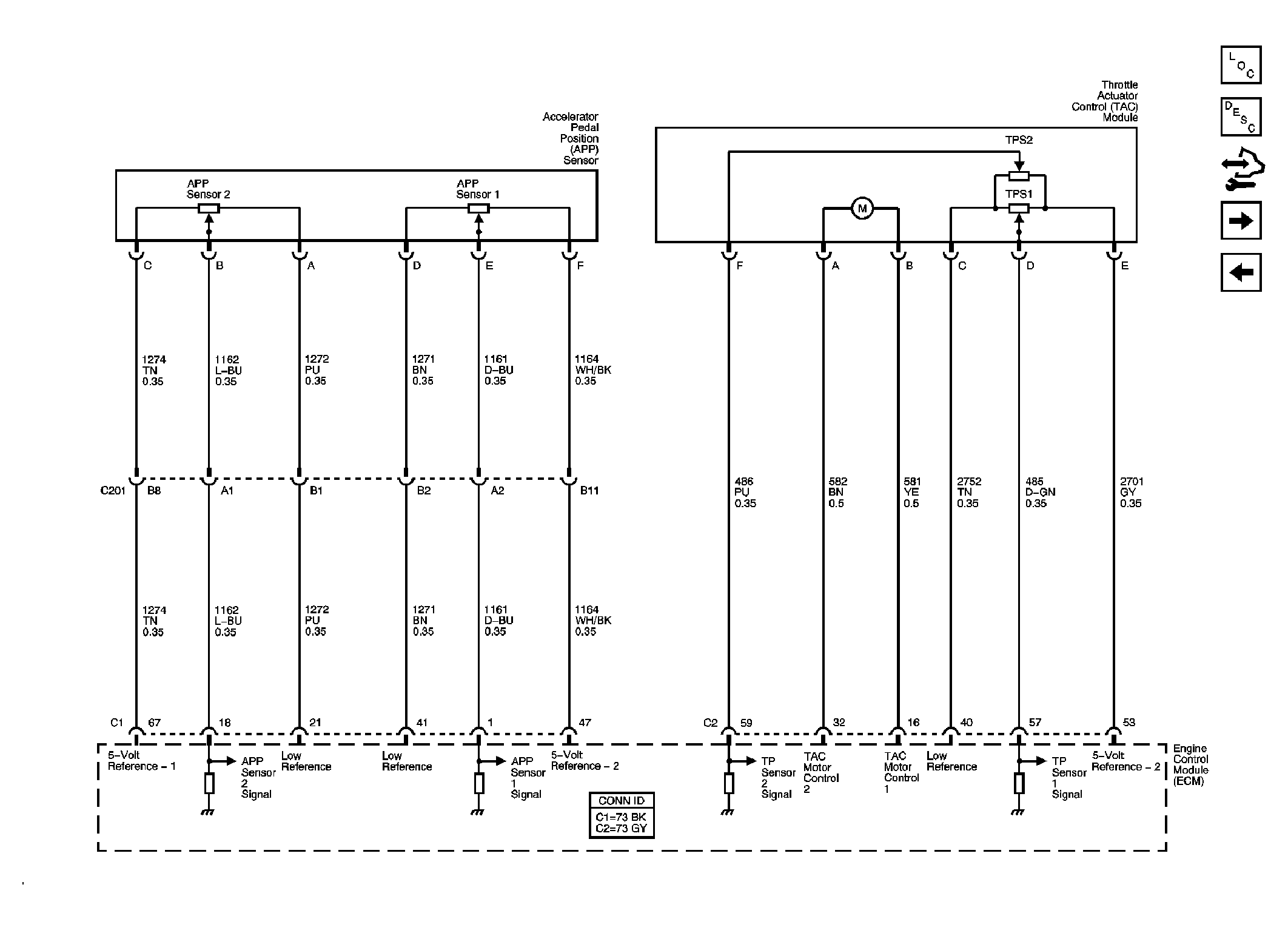

Fig 5: Engine Data Sensors - APP, TAC

Courtesy of GENERAL MOTORS CORP.

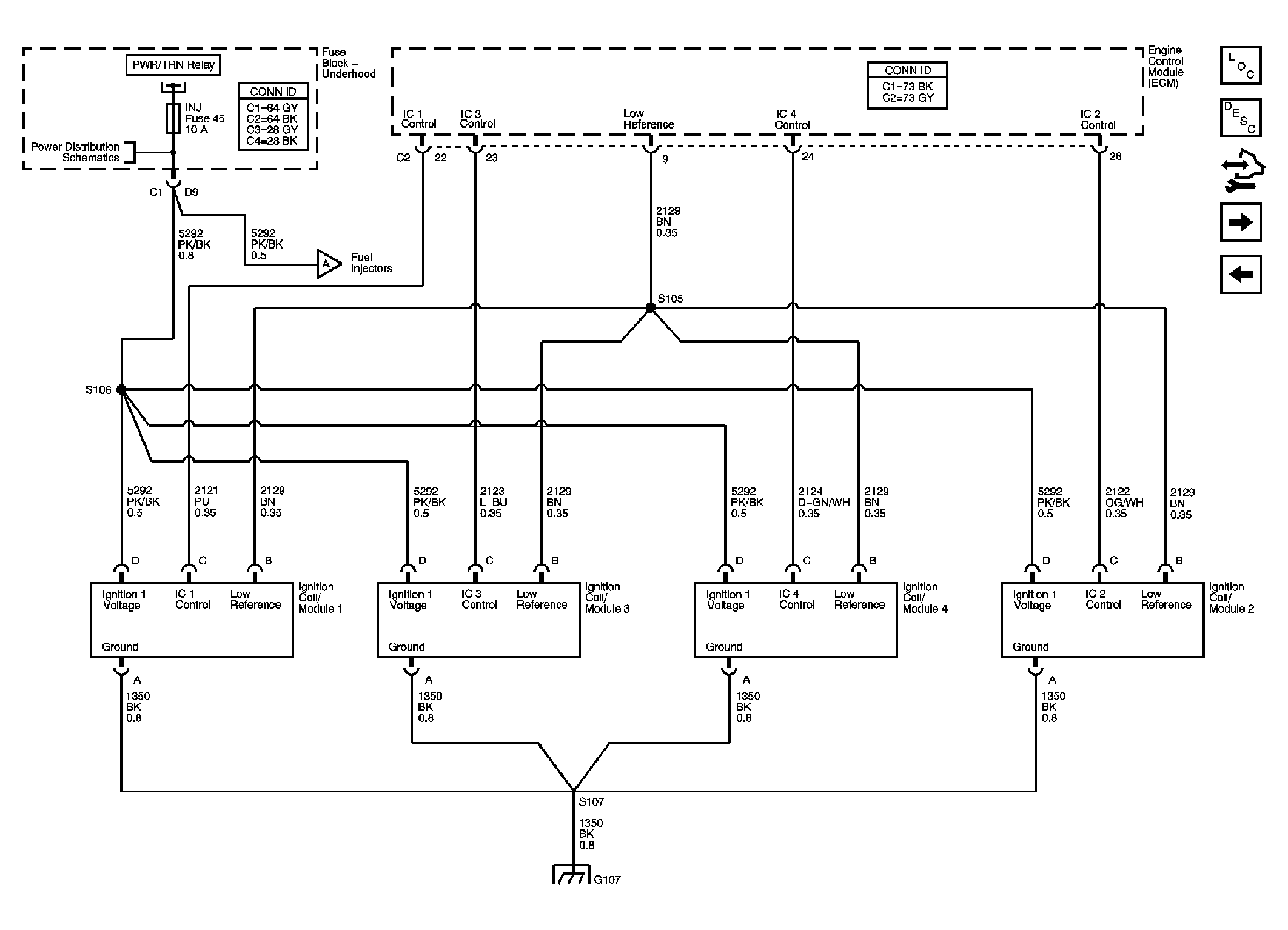

Fig 6: Ignition Controls - Ignition System

Courtesy of GENERAL MOTORS CORP.

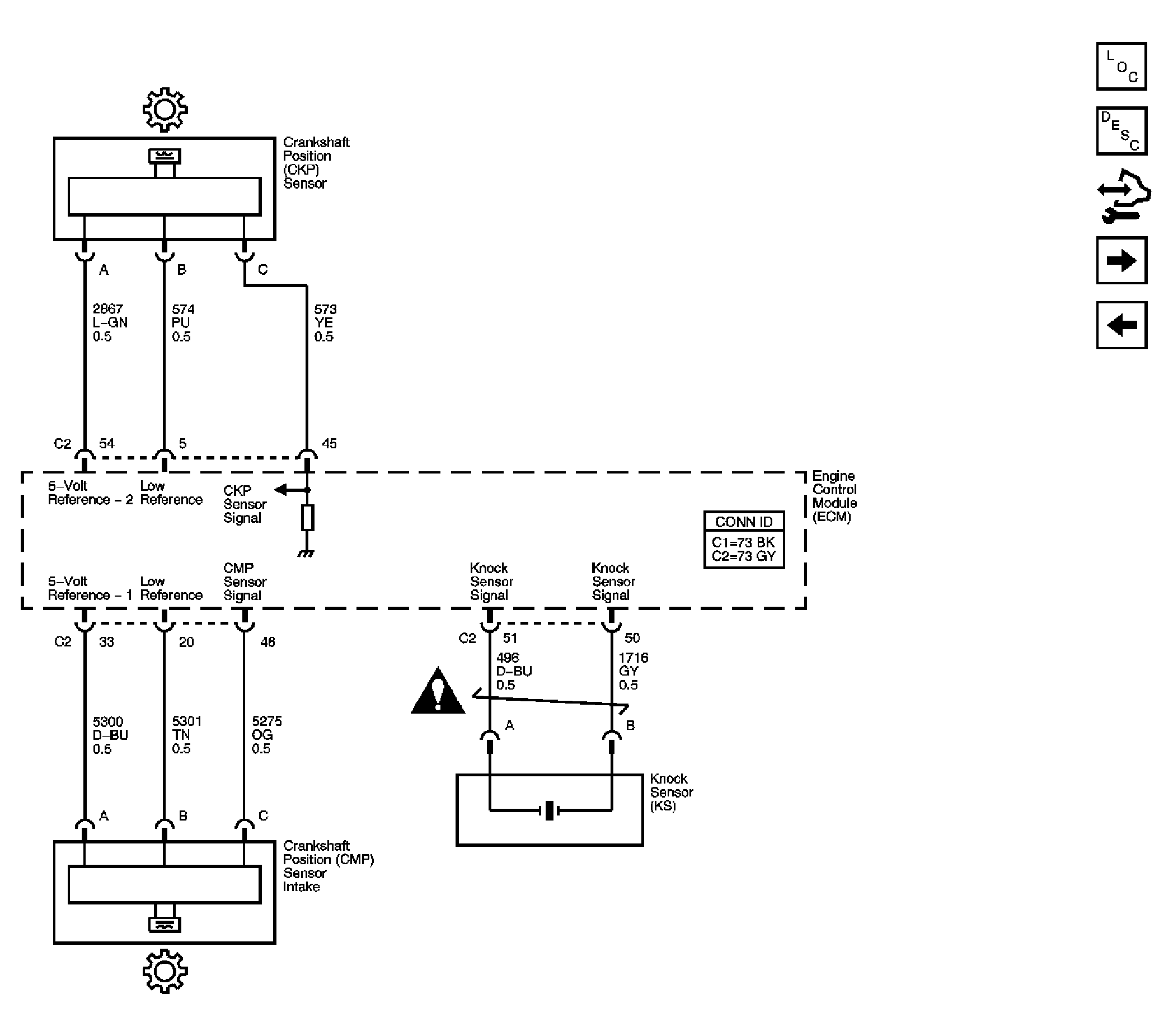

Fig 7: Ignition Controls - Sensors

Courtesy of GENERAL MOTORS CORP.

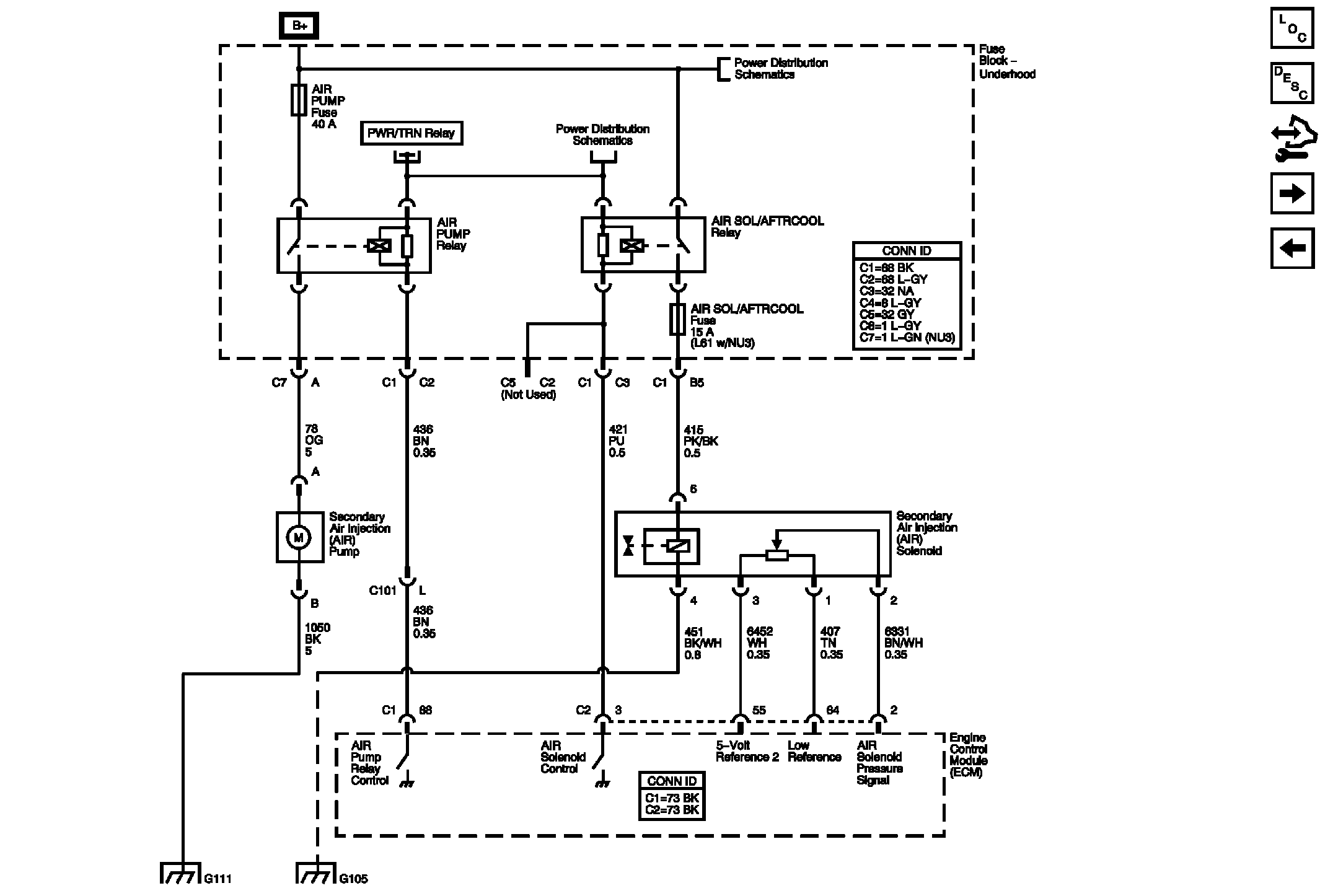

Fig 8: Secondary Air Injection (AIR) System (NU6)

Courtesy of GENERAL MOTORS CORP.

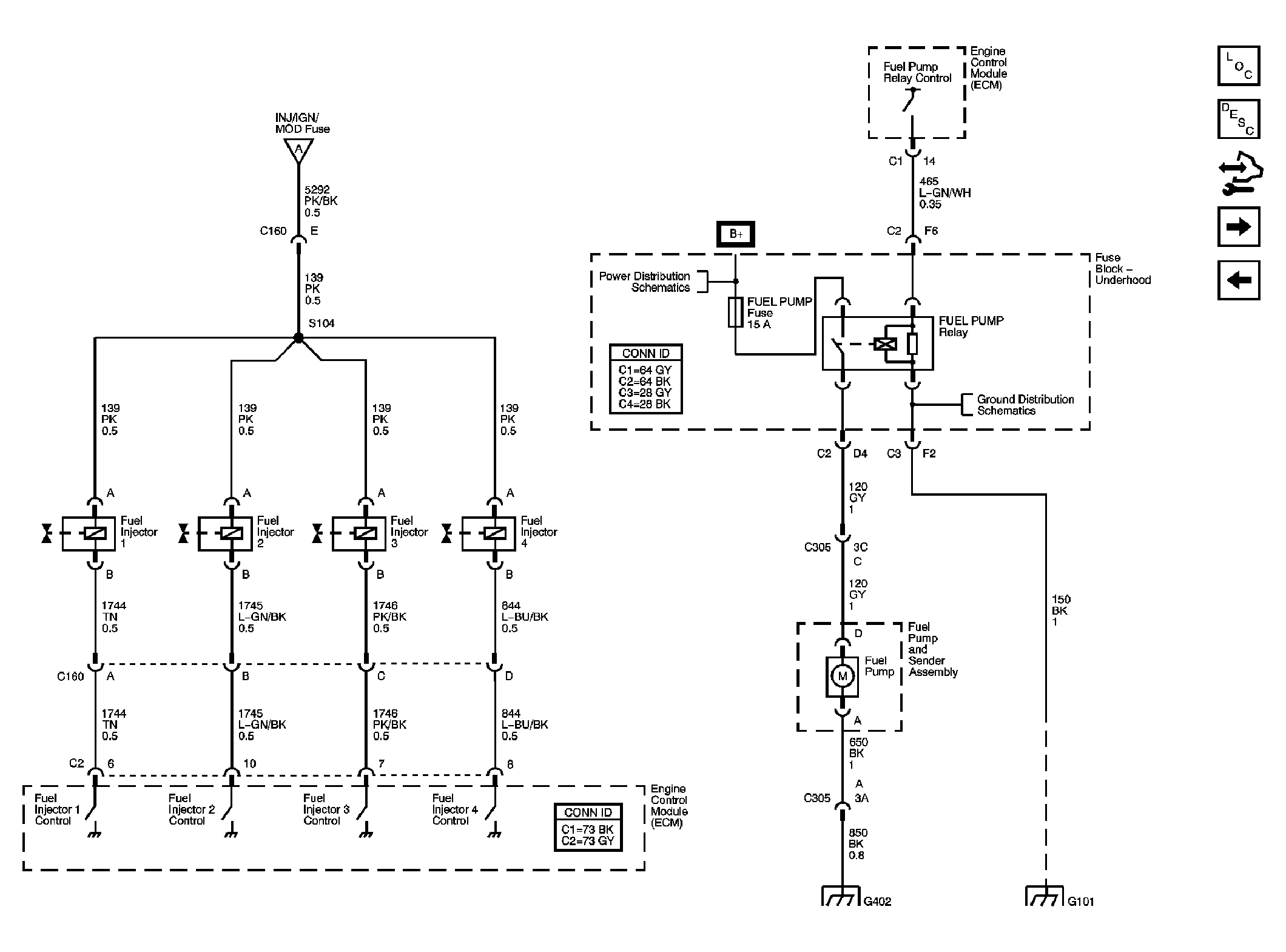

Fig 9: Fuel Controls, Injectors

Courtesy of GENERAL MOTORS CORP.

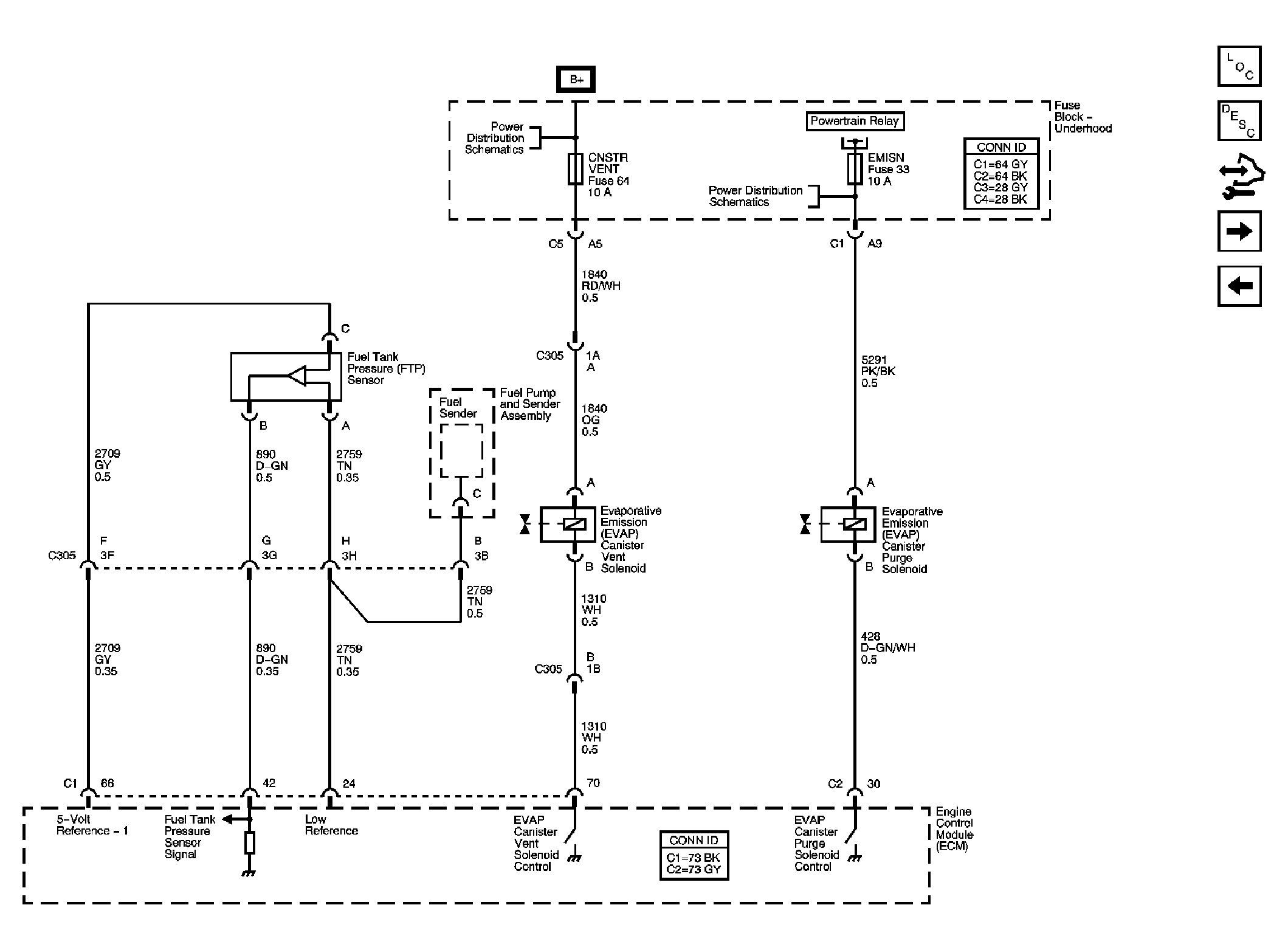

Fig 10: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

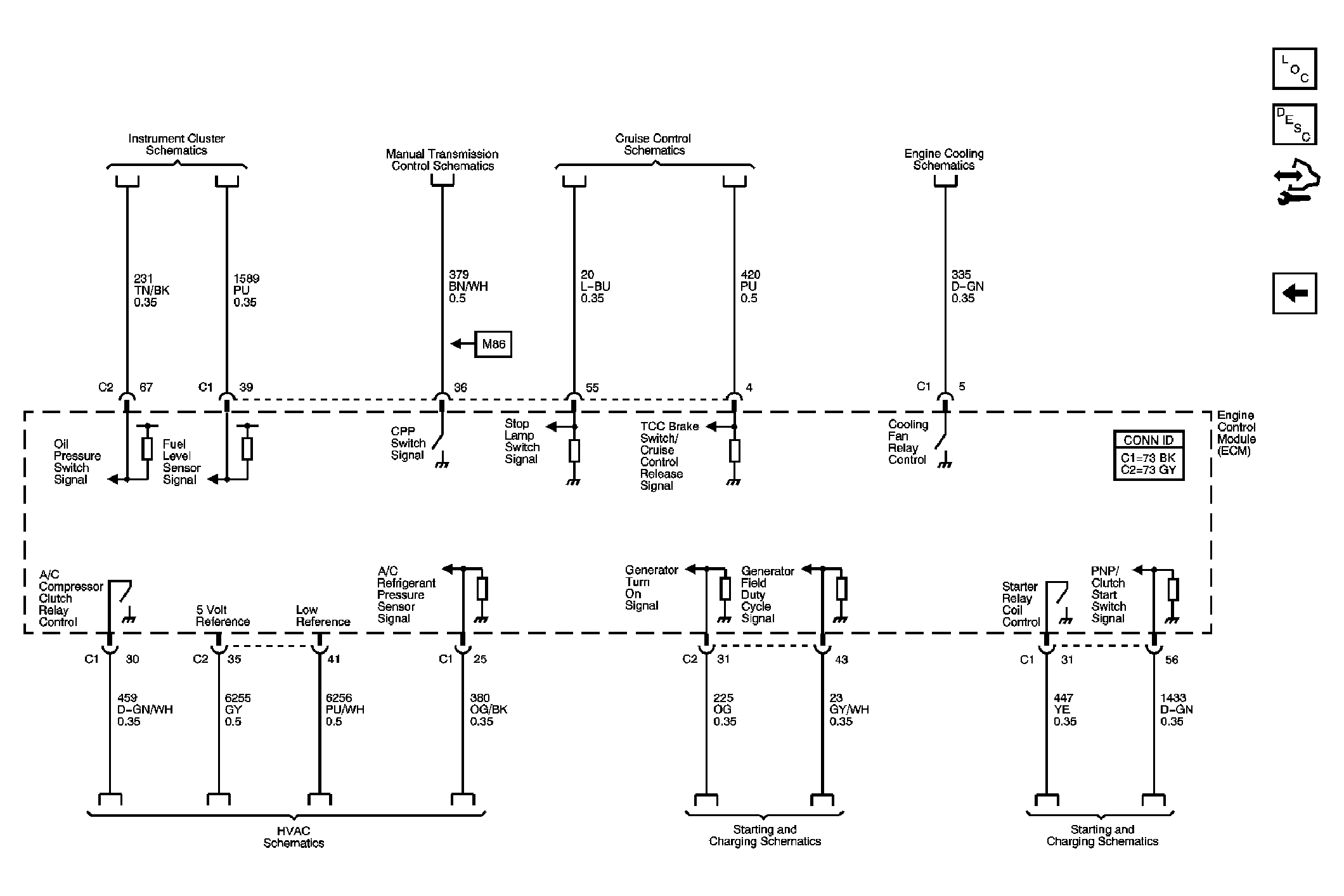

Fig 11: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.
