Power Distribution Schematics

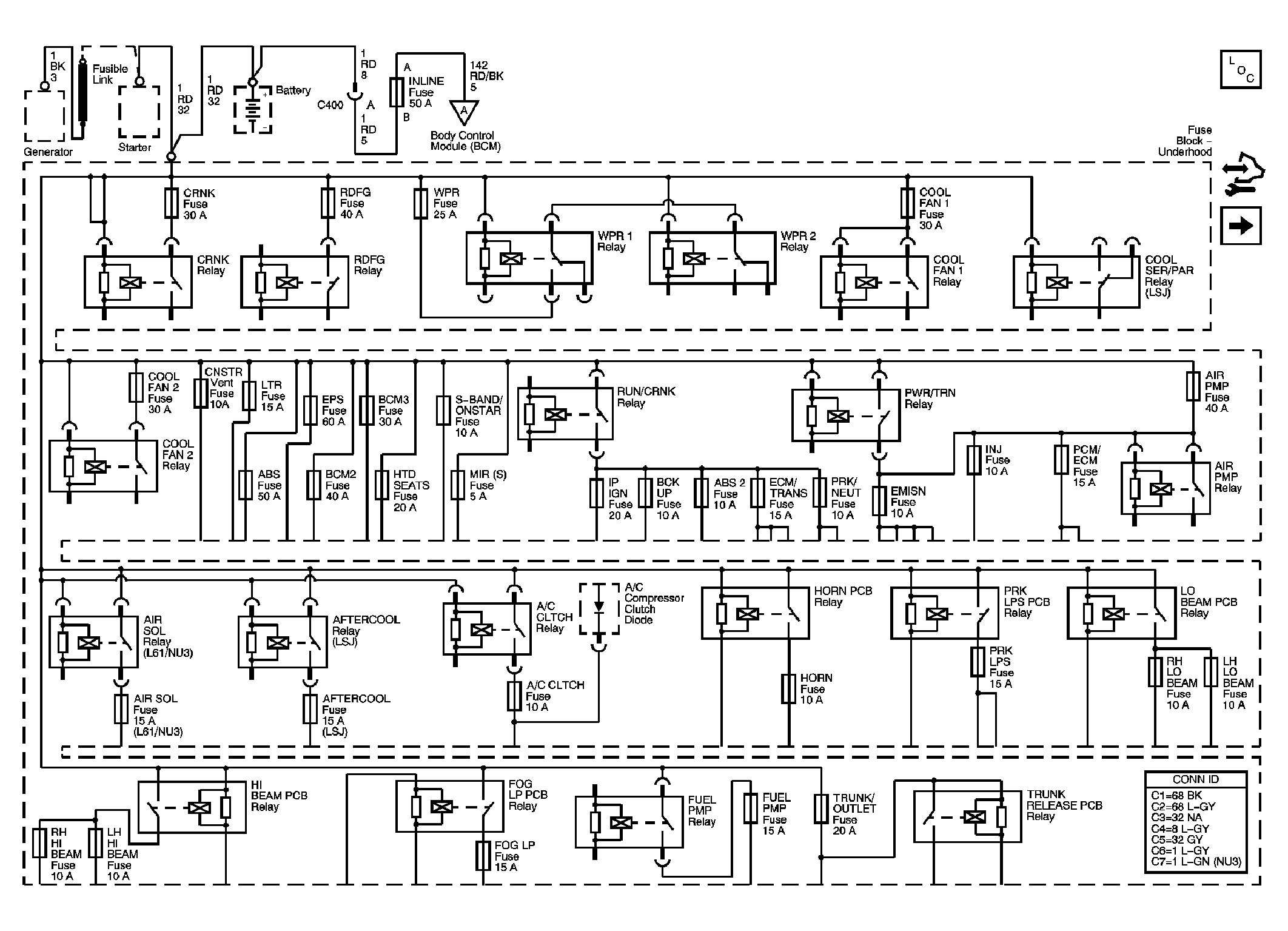

Fig 1: Underhood Fuse Block, B+ Bussing

Courtesy of GENERAL MOTORS CORP.

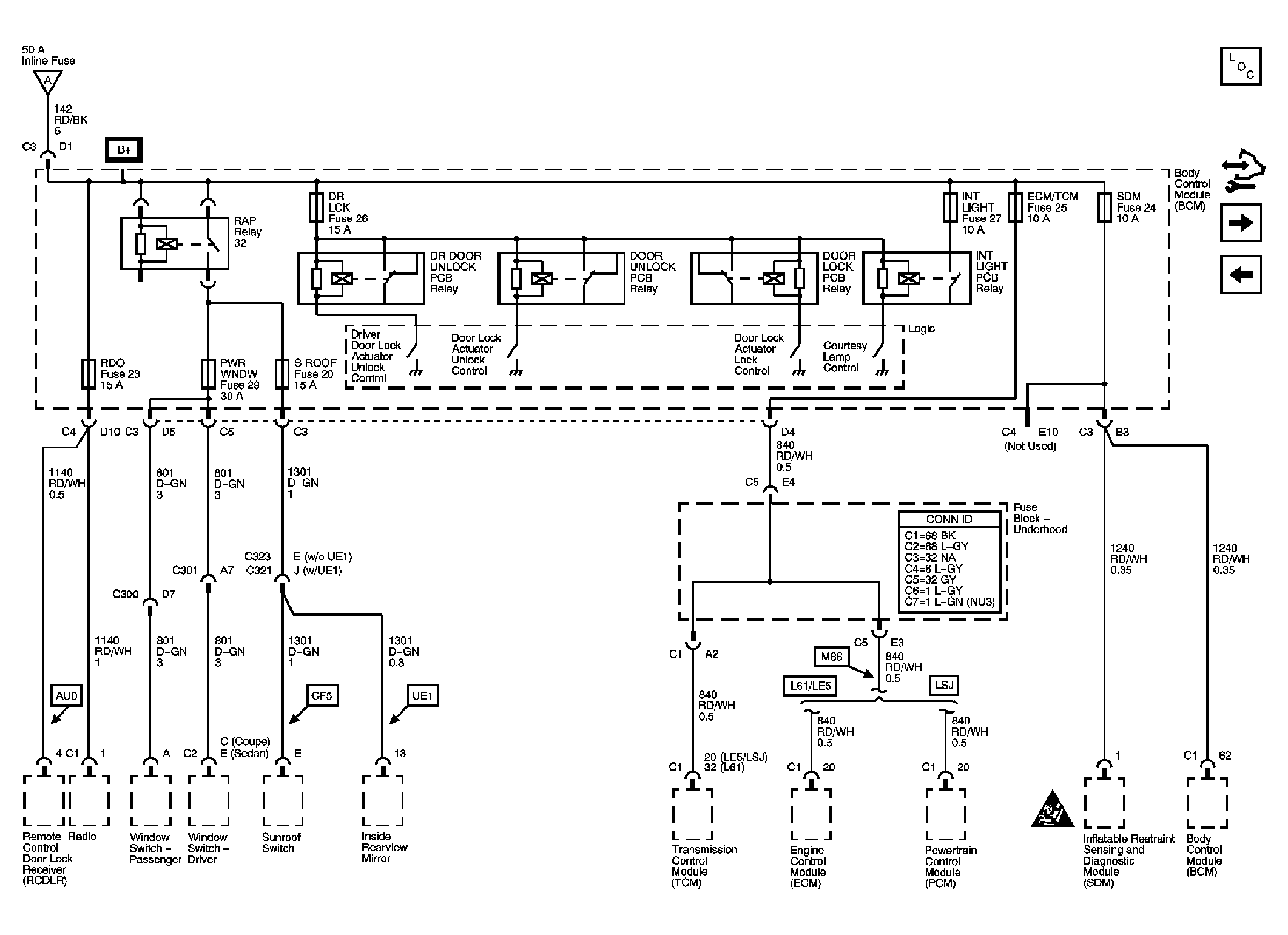

Fig 2: RAP, DOOR LOCK, DOOR UNLOCK, INTERIOR LAMPS Relays, DOOR LOCK RADIO, PWR WINDOW, SUNROOF, INT LPS, ECM/TCM, SDM, CURRENT SENSOR Fuses

Courtesy of GENERAL MOTORS CORP.

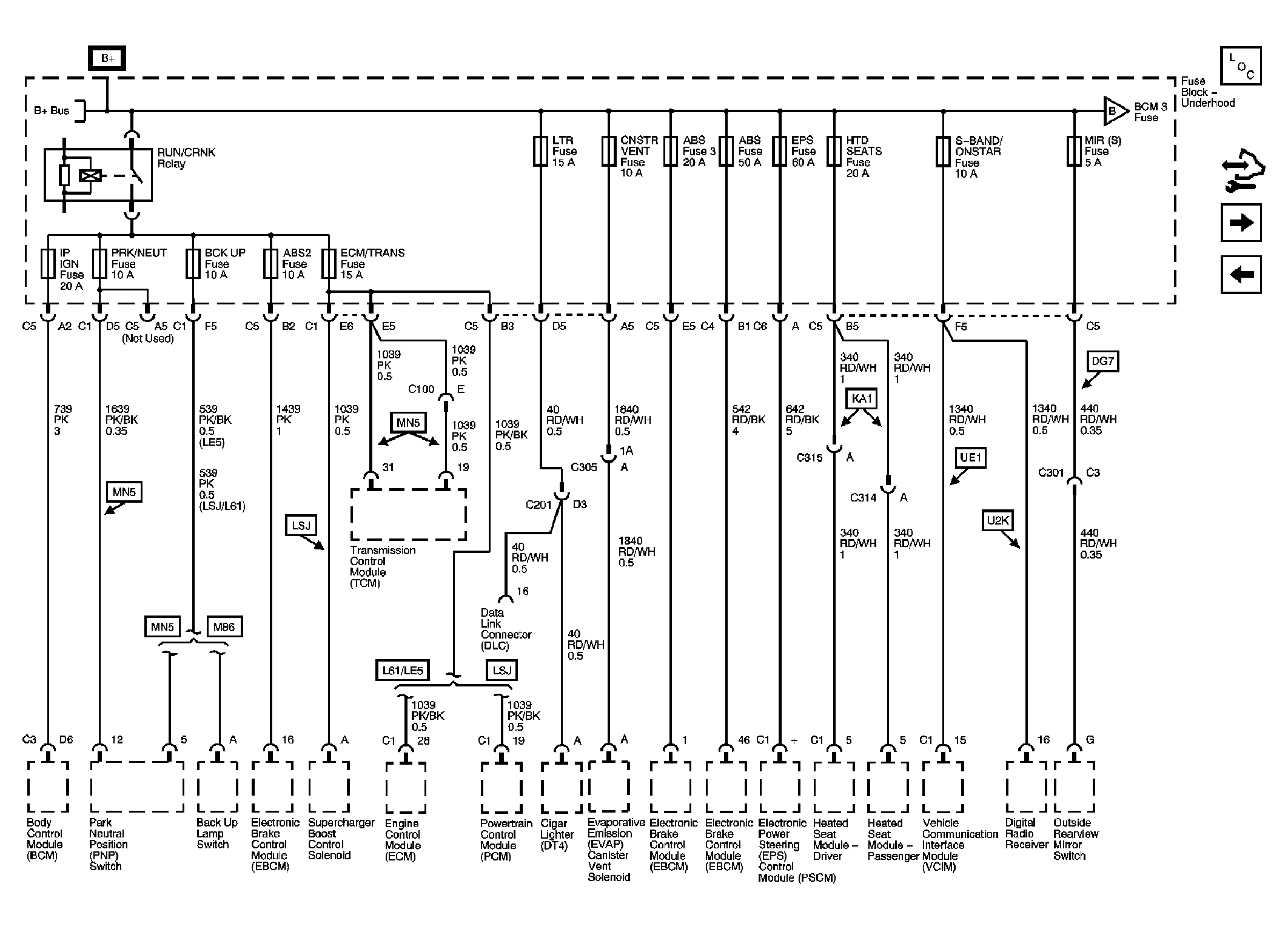

Fig 3: RUN/CRANK Relay, I/P IGN, BACKUP, ABS, ECM, TRANS, LIGHTING, S-BAND, MIRROR, ABS, EPS, BCM2, BCM3, HEATED SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

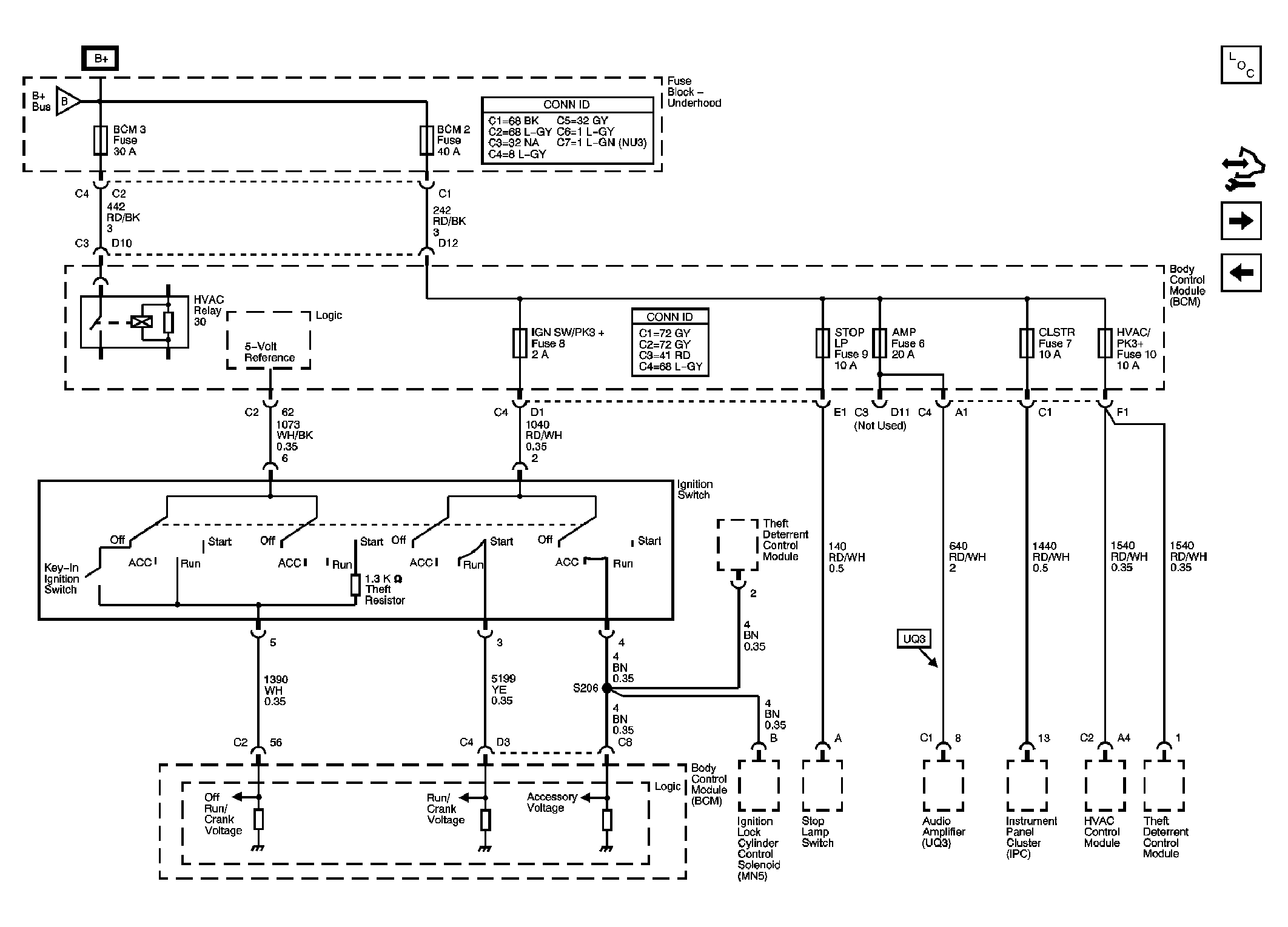

Fig 4: BCM2, CLUSTER, IGN SW, STOP LPS, AUDIO AMPLIFIER Fuses

Courtesy of GENERAL MOTORS CORP.

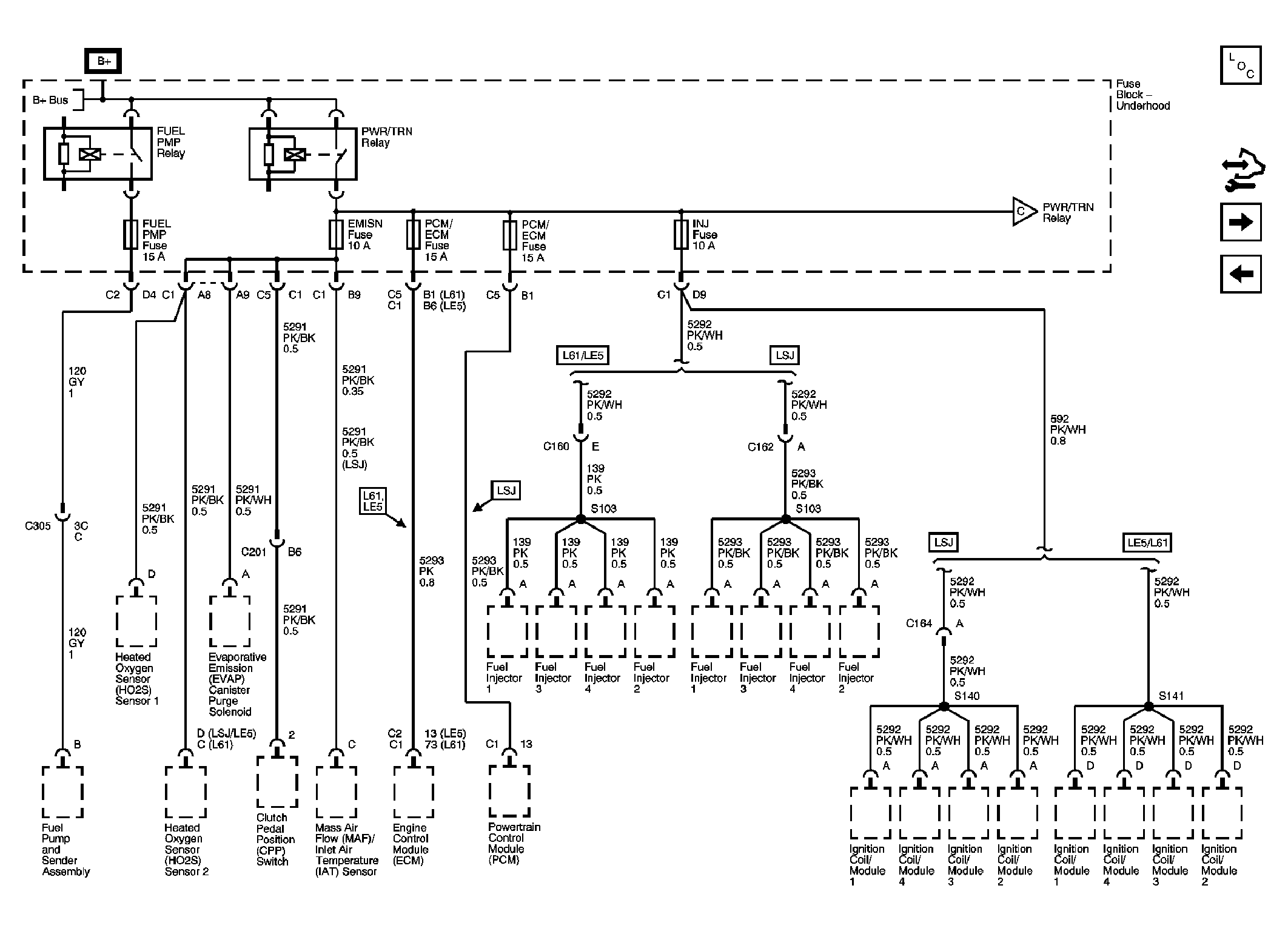

Fig 5: FUEL PUMP, POWERTRAIN Relay, FUEL PUMP, EMISSION, INJECTOR Fuses

Courtesy of GENERAL MOTORS CORP.

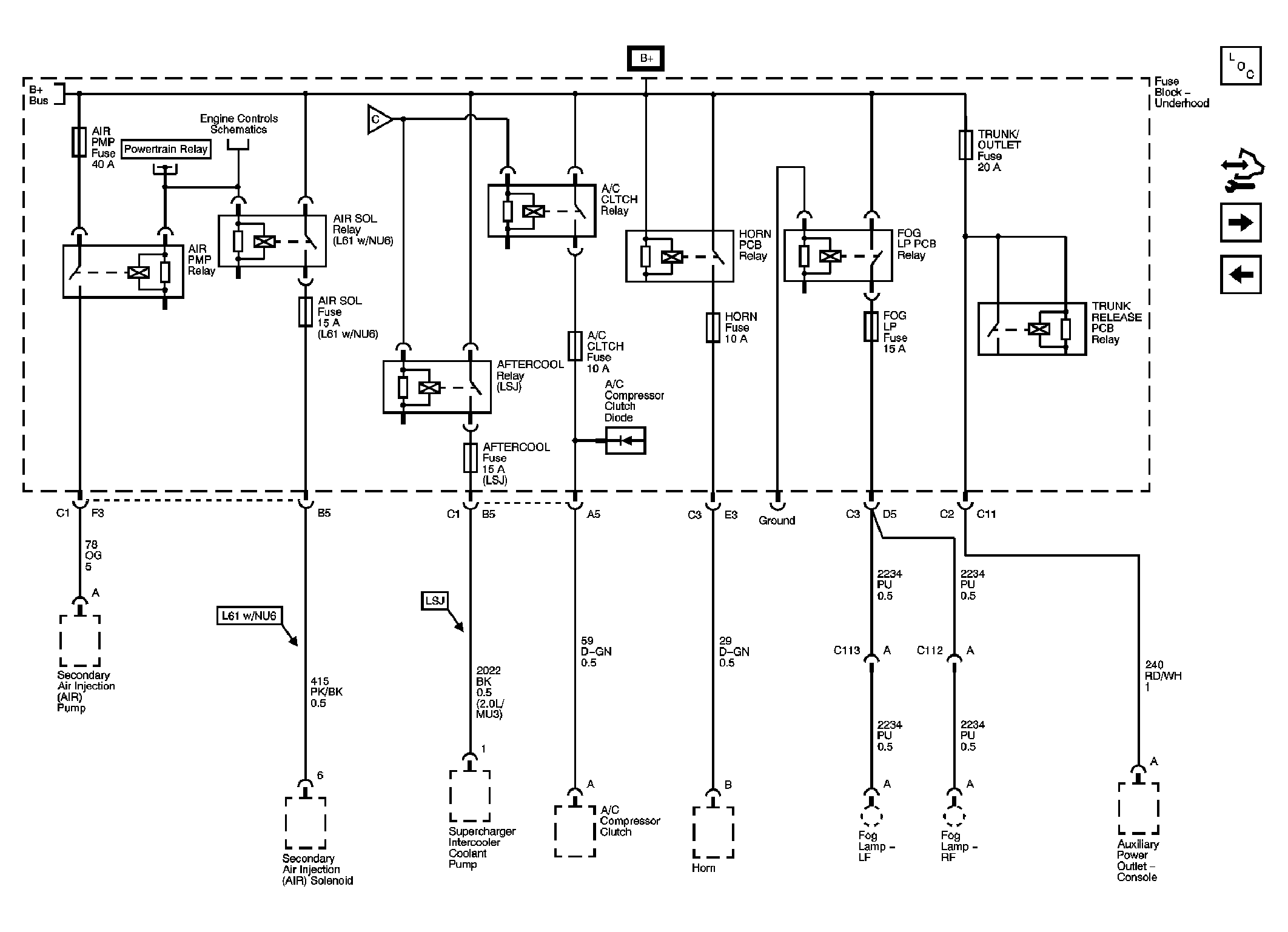

Fig 6: AIR SOLENOID, A/C CLUTCH, HORN, FOG LAMP Relays, AIR SOLENOID, A/C, HORN, FOG LAMP Fuses

Courtesy of GENERAL MOTORS CORP.

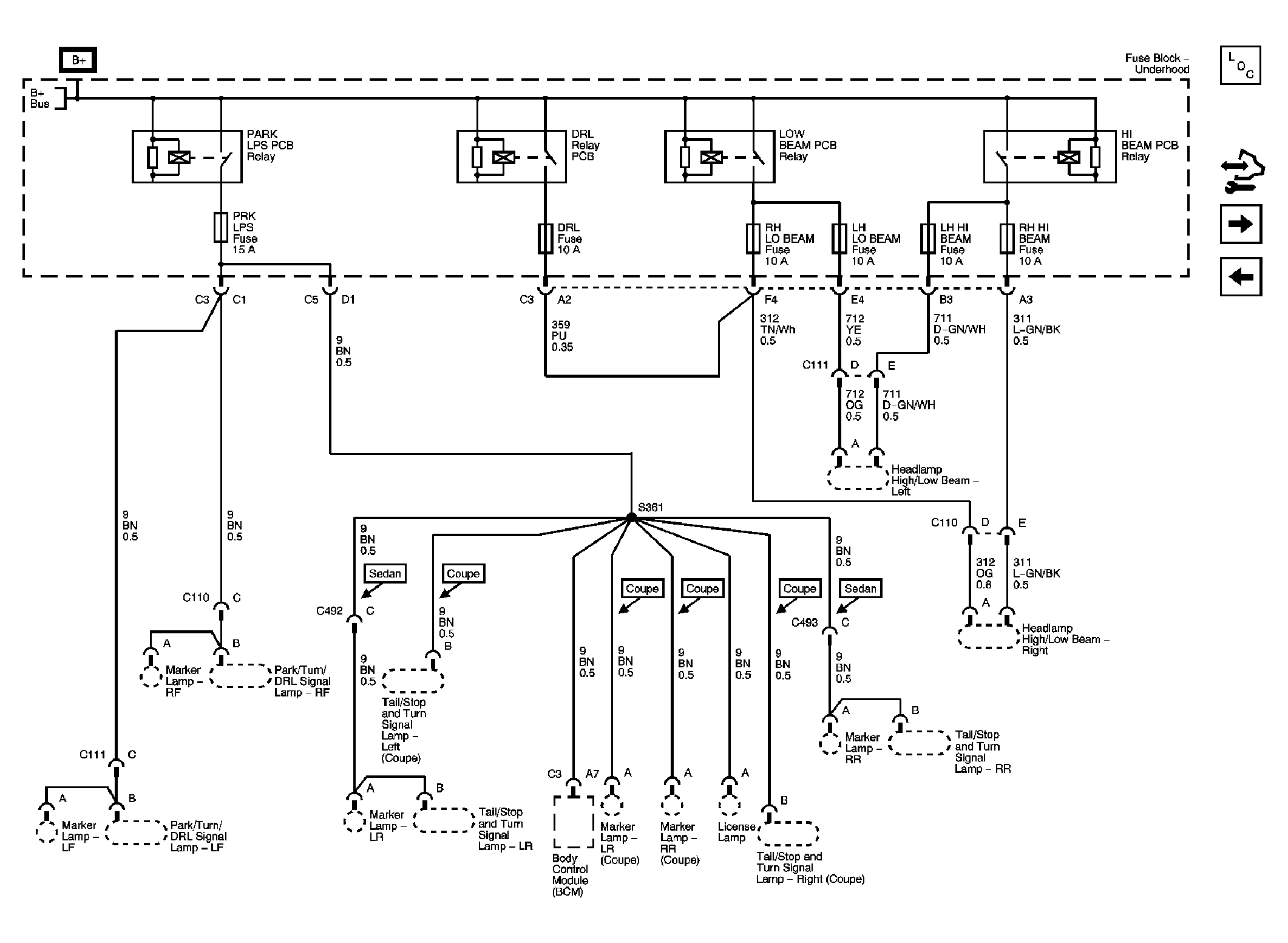

Fig 7: PARK LPS, LOW BEAM, HIGH BEAM Relays, PARK LPS, RF LOW BEAM, LF LOW BEAM, RF HIGH BEAM, LF HIGH BEAM Fuses

Courtesy of GENERAL MOTORS CORP.

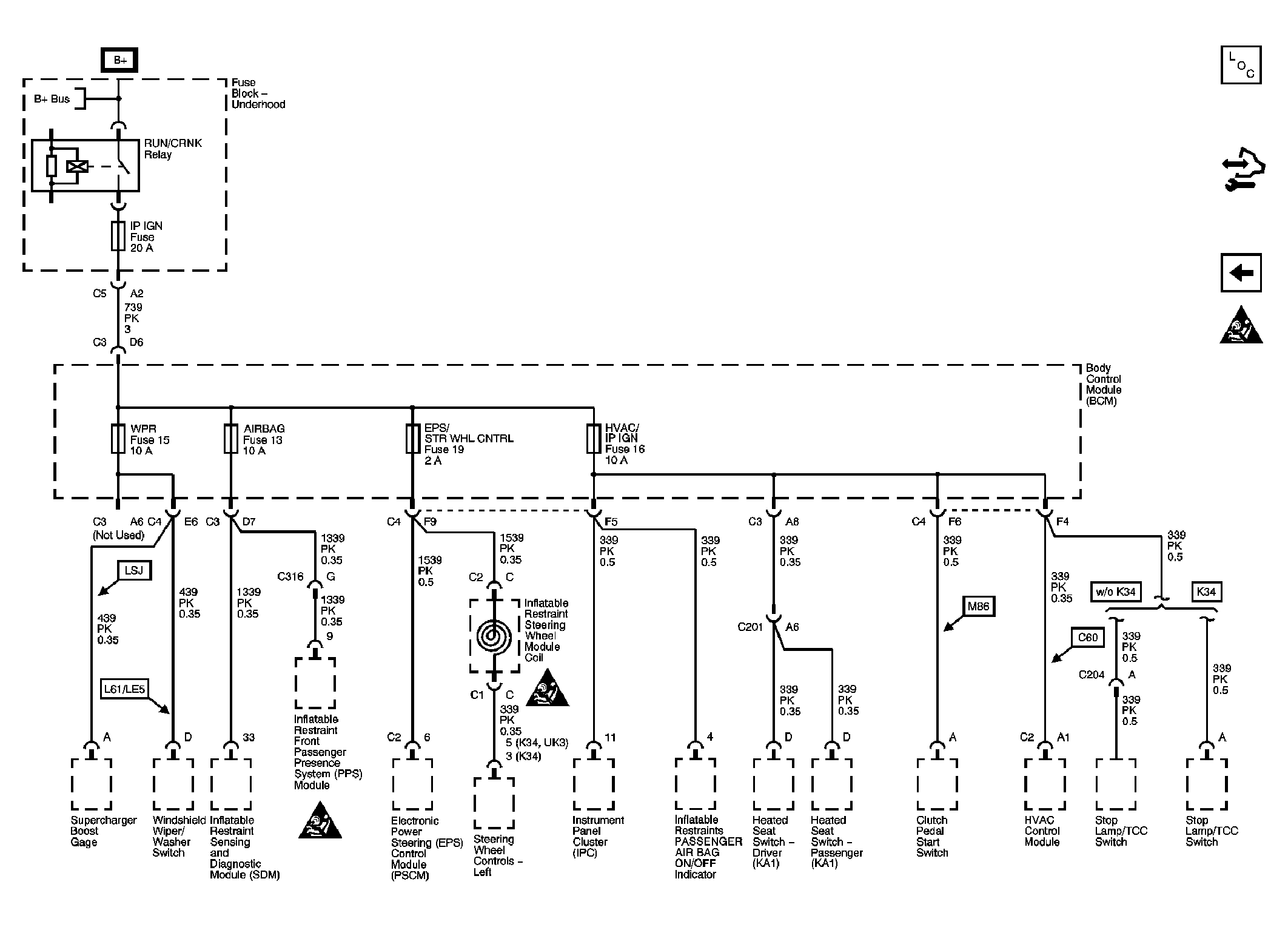

Fig 8: RUN/CRANK, HVAC Relays, I/P, IGN, BCM3, WIPER, I/P IGN Fuses

Courtesy of GENERAL MOTORS CORP.
