Splash Shield Replacement - Engine

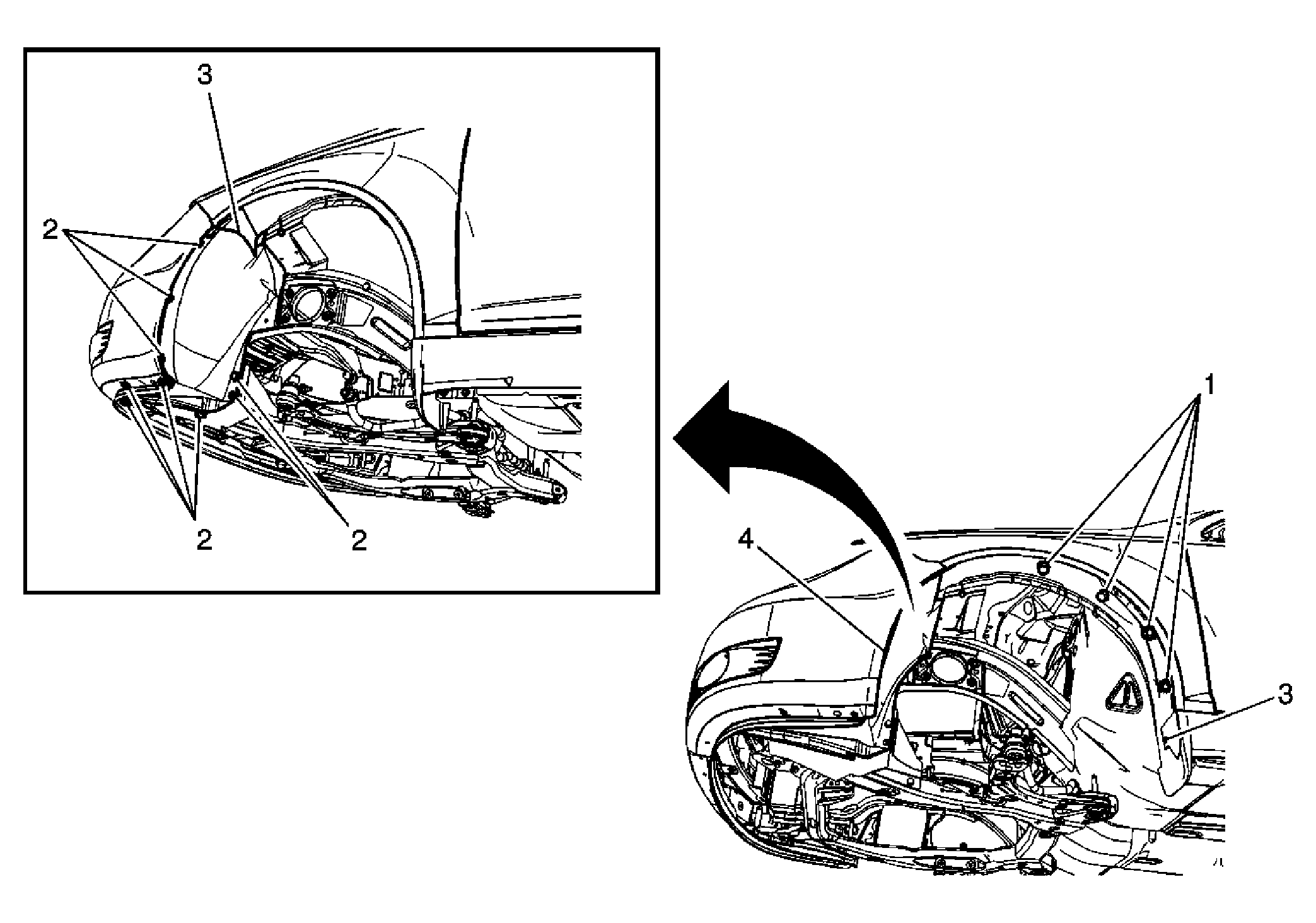

Fig 1: Splash Shield Replacement

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Lift and support vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (4 Lug Wheel) or Tire and Wheel Removal and Installation (5 Lug Wheel) . Remove the front fender liner. Refer to Front Fender Liner Replacement .
1	Engine Splash Shield Retainers (Qty: 3) Tip: Use a flat-bladed tool to remove the push-in retainers.
2	Engine Splash Shield

Callout

Component Name

Preliminary Procedures

Engine Splash Shield Retainers (Qty: 3)
Tip: Use a flat-bladed tool to remove the push-in retainers.

Engine Splash Shield
