Engine Controls Schematics

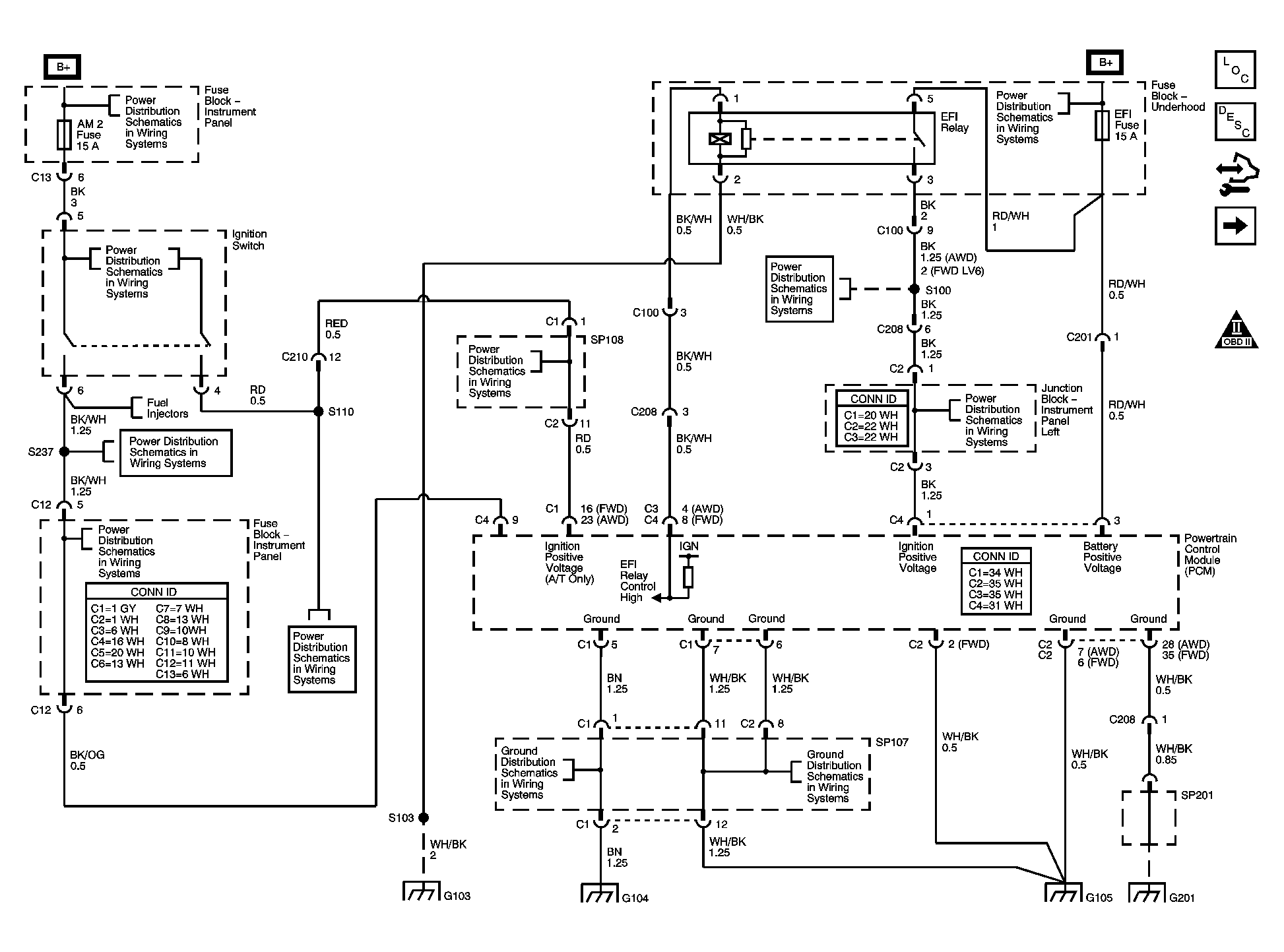

Fig 1: Powertrain Control Module (PCM) Power and Ground

GM1666789

Courtesy of GENERAL MOTORS CORP.

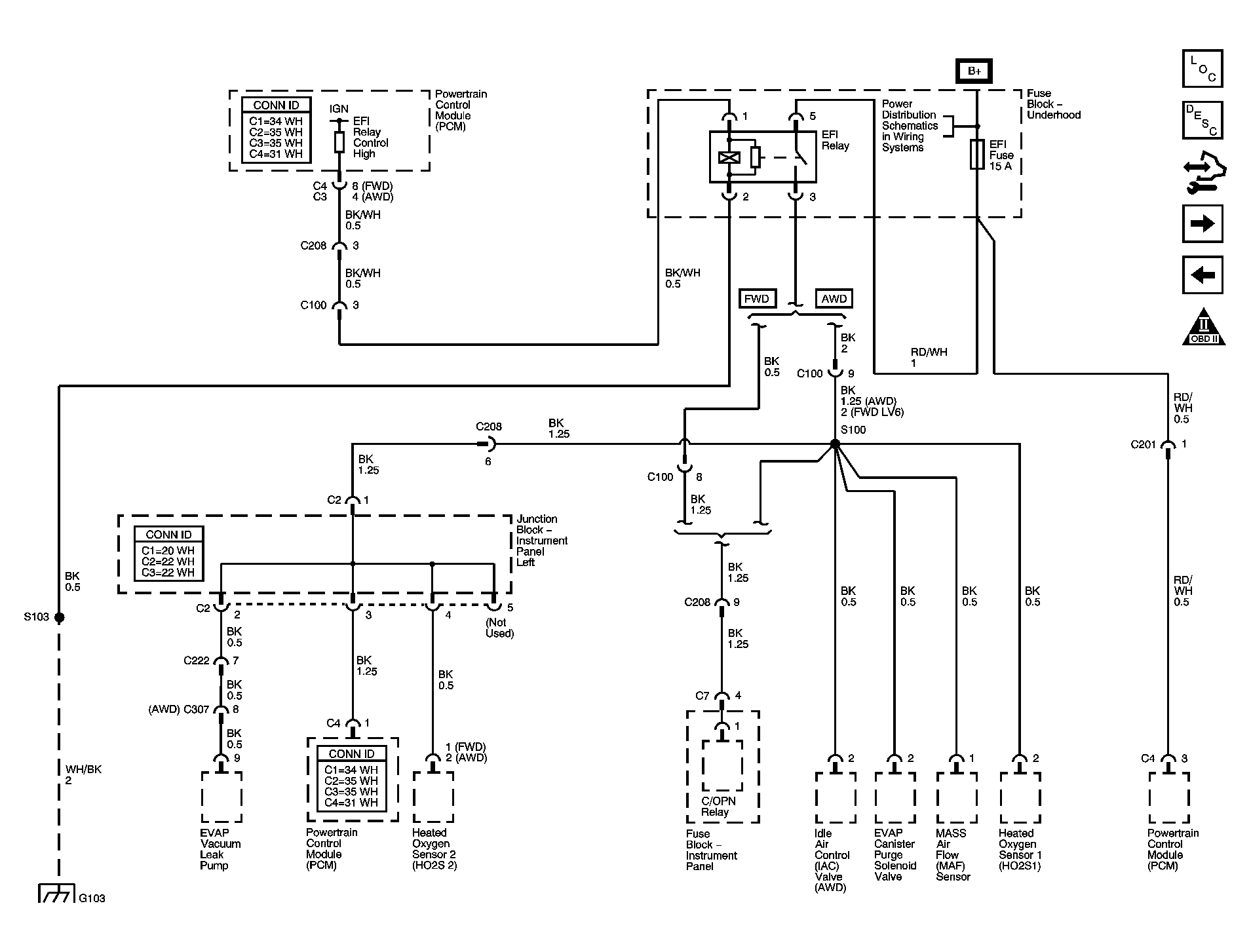

Fig 2: EFI Relay, S100

GM1666790

Courtesy of GENERAL MOTORS CORP.

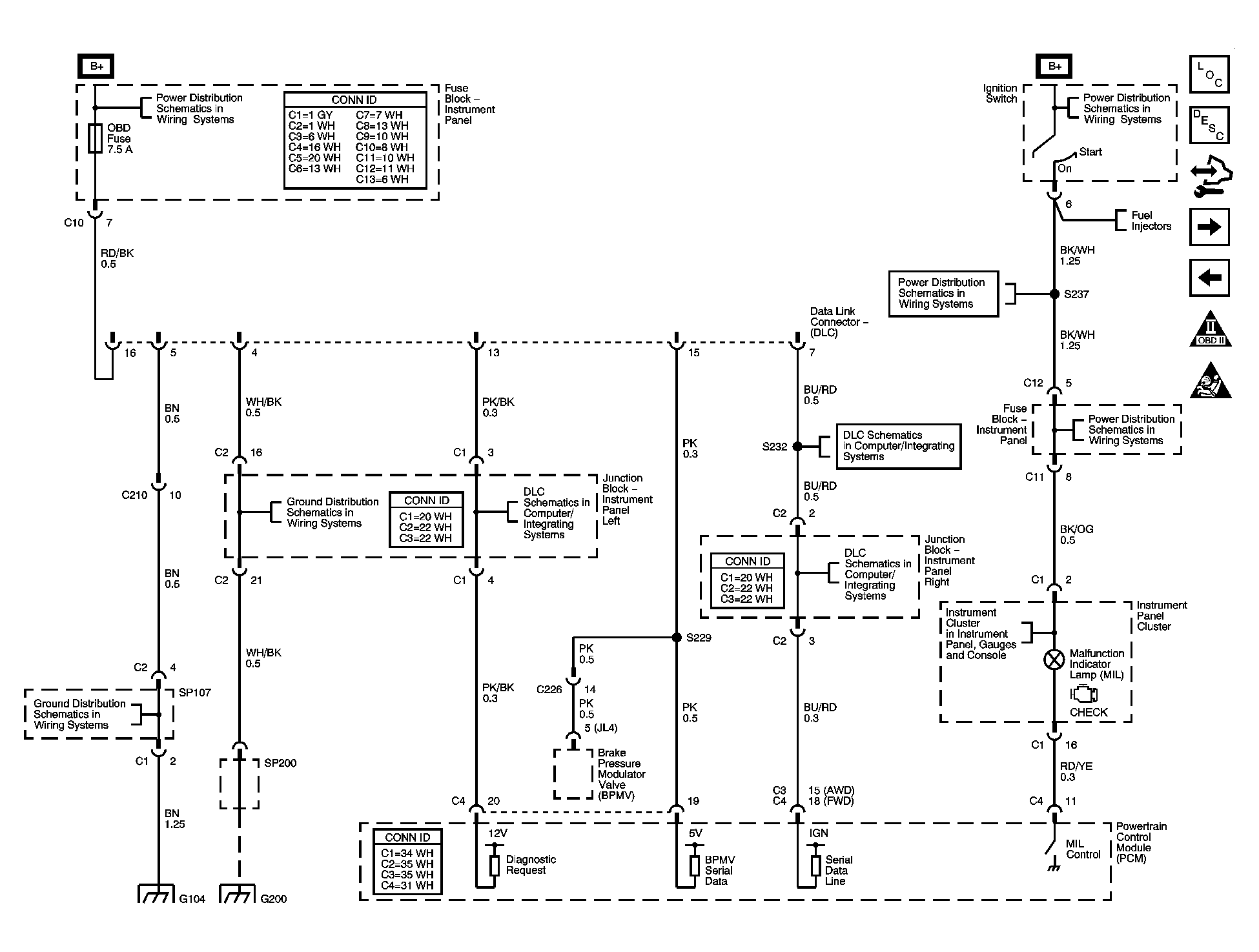

Fig 3: Data Link Connector

GM1666791

Courtesy of GENERAL MOTORS CORP.

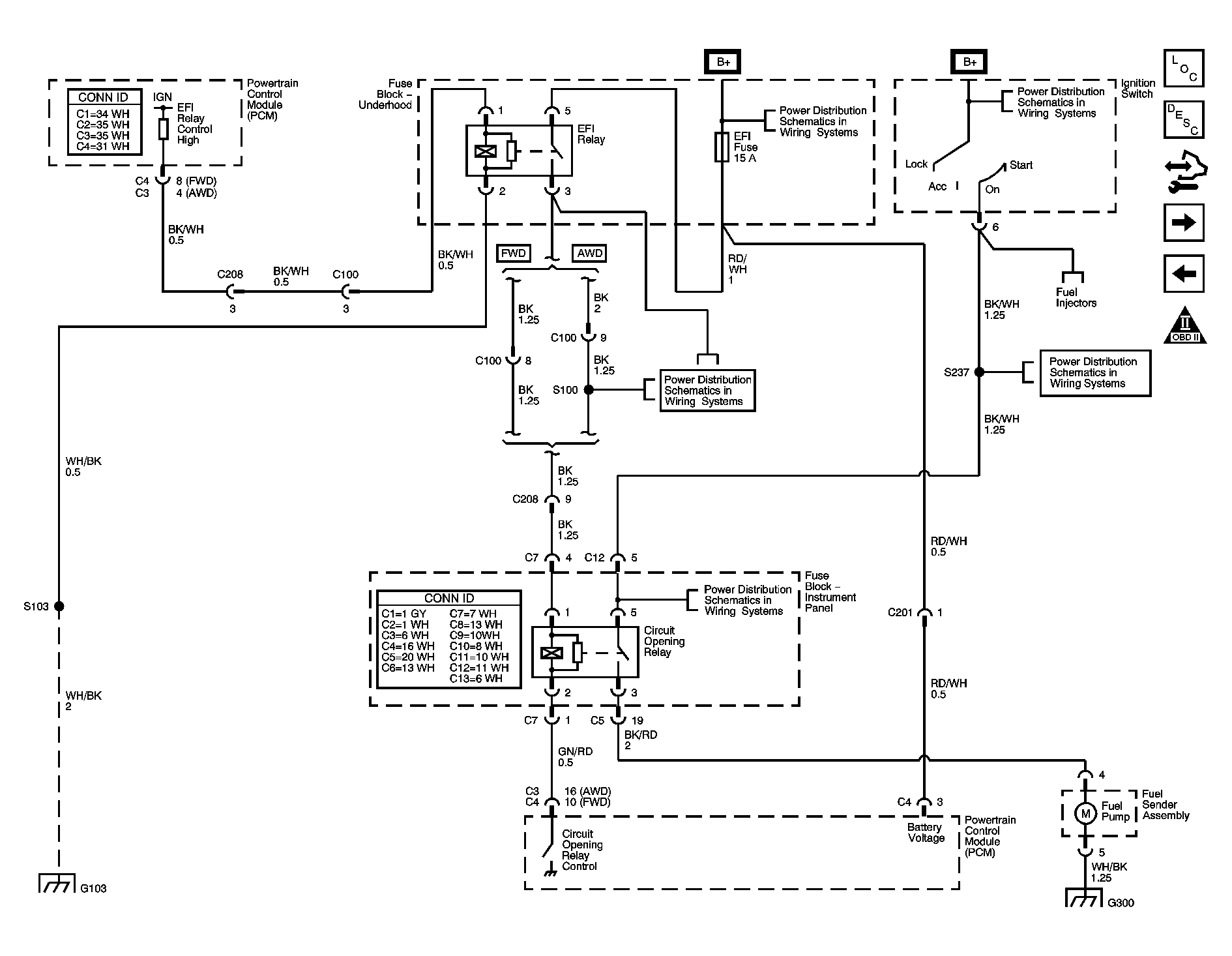

Fig 4: Fuel Sender Assembly

GM1666792

Courtesy of GENERAL MOTORS CORP.

Fig 5: Fuel Injectors

GM1422201

Courtesy of GENERAL MOTORS CORP.

Fig 6: Ignition Coils

GM1666794

Courtesy of GENERAL MOTORS CORP.

Fig 7: Accelerator Pedal Position (APP) Sensor

GM1470559

Courtesy of GENERAL MOTORS CORP.

Fig 8: EVAP System (FWD)

GM1666795

Courtesy of GENERAL MOTORS CORP.

Fig 9: Idle Air Control Valve and EVAP System (AWD)

GM1666796

Courtesy of GENERAL MOTORS CORP.

Fig 10: Engine Coolant Temperature (ECT) Sensor, A/C Resistor, EVAP Vacuum Leak Pump, Throttle Actuator Control (TAC) Module (FWD)

GM1422267

Courtesy of GENERAL MOTORS CORP.

Fig 11: Engine Coolant Temperature (ECT) Sensor, A/C Resistor, Fuel Tank Pressure (FTP) Sensor, Throttle Position (TP) Sensor (AWD)

GM1666797

Courtesy of GENERAL MOTORS CORP.

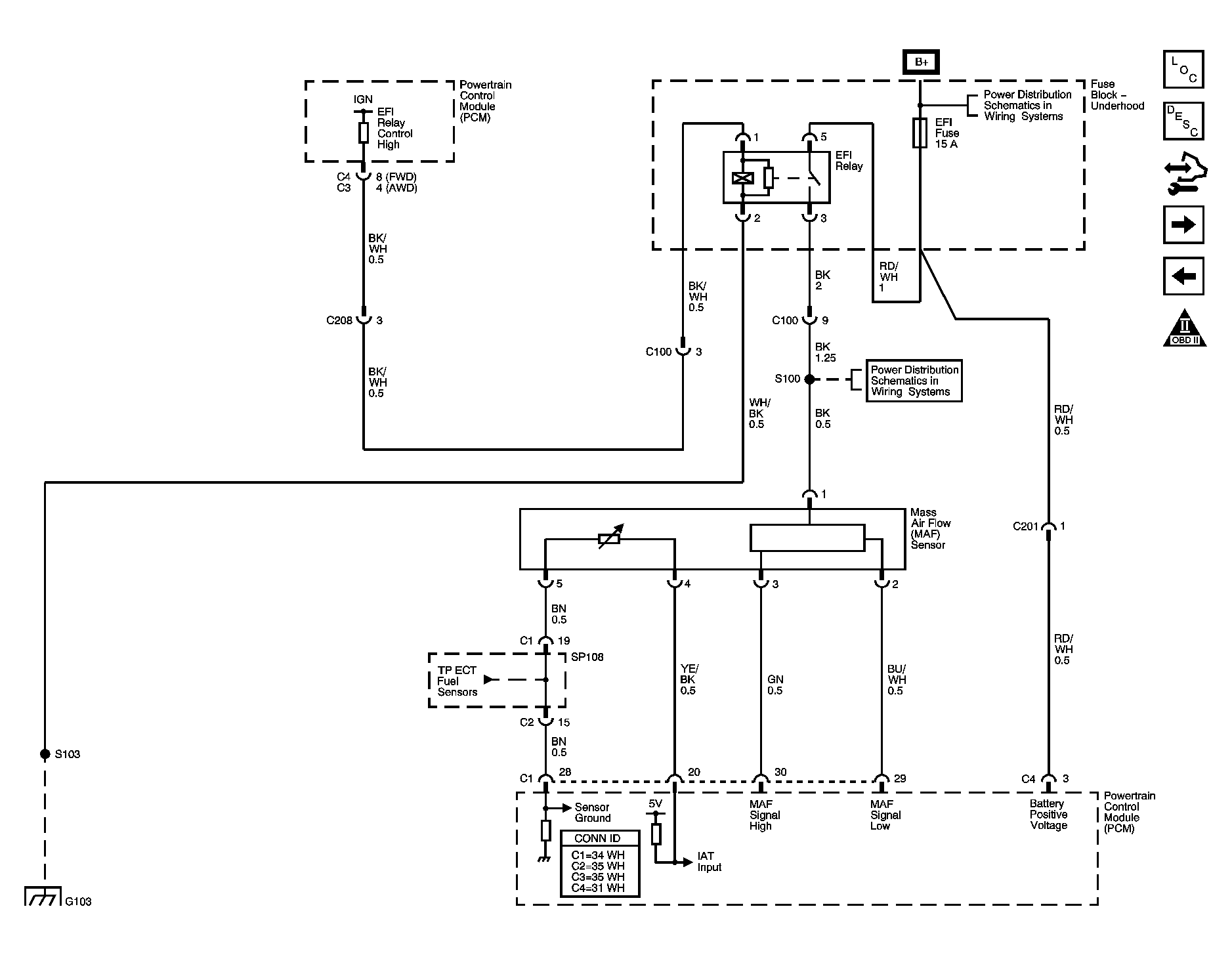

Fig 12: Mass Air Flow (MAF) Sensor

GM1666798

Courtesy of GENERAL MOTORS CORP.

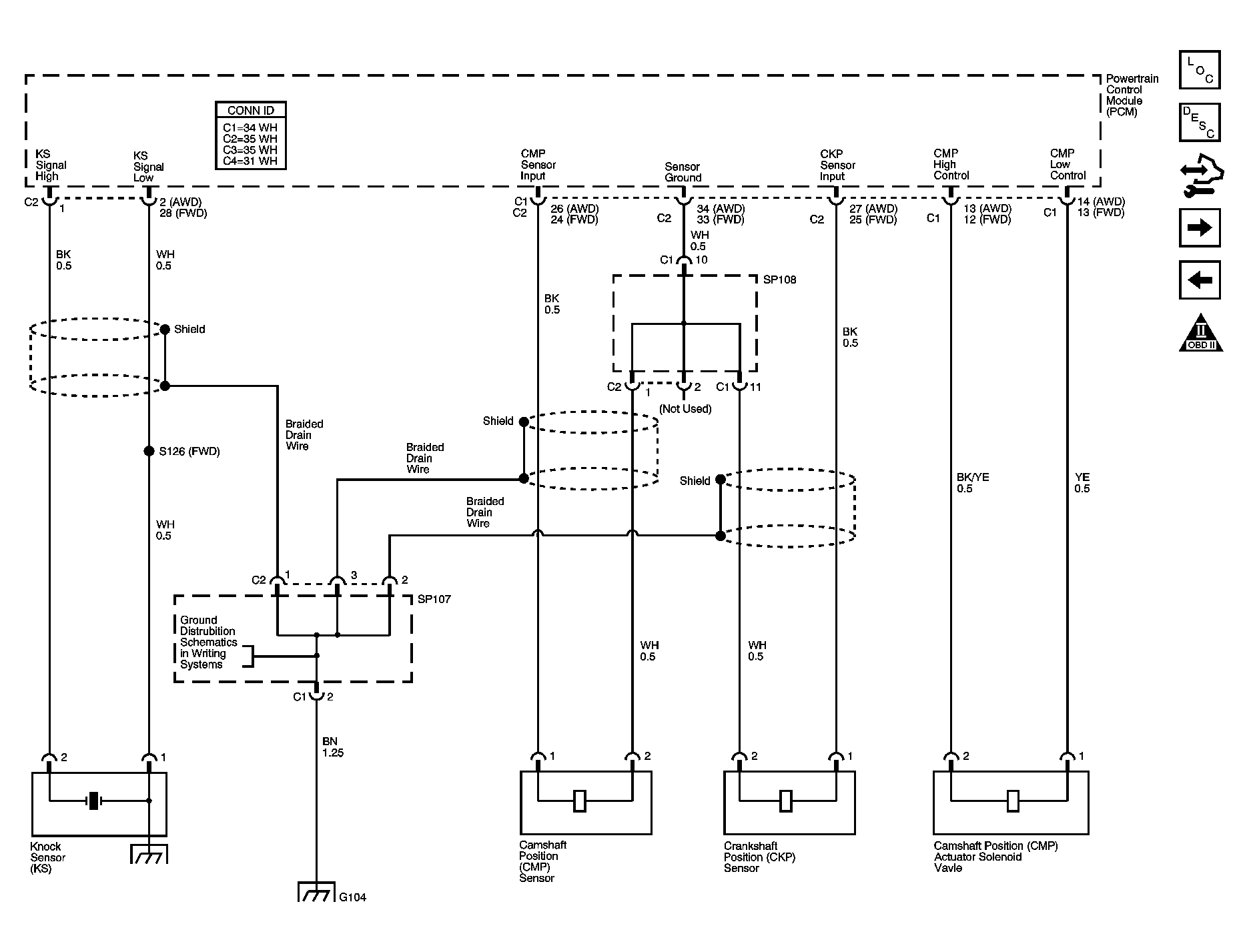

Fig 13: Knock Sensor (KS), Camshaft Position (CMP), Crankshaft Position (CKP) Sensors, Camshaft Position Actuator Solenoid Valve

GM1666800

Courtesy of GENERAL MOTORS CORP.

Fig 14: Heated Oxygen Sensors (HO2S) (FWD)

GM1424565

Courtesy of GENERAL MOTORS CORP.

Fig 15: Heated Oxygen Sensors (HO2S) (AWD)

GM1666803

Courtesy of GENERAL MOTORS CORP.

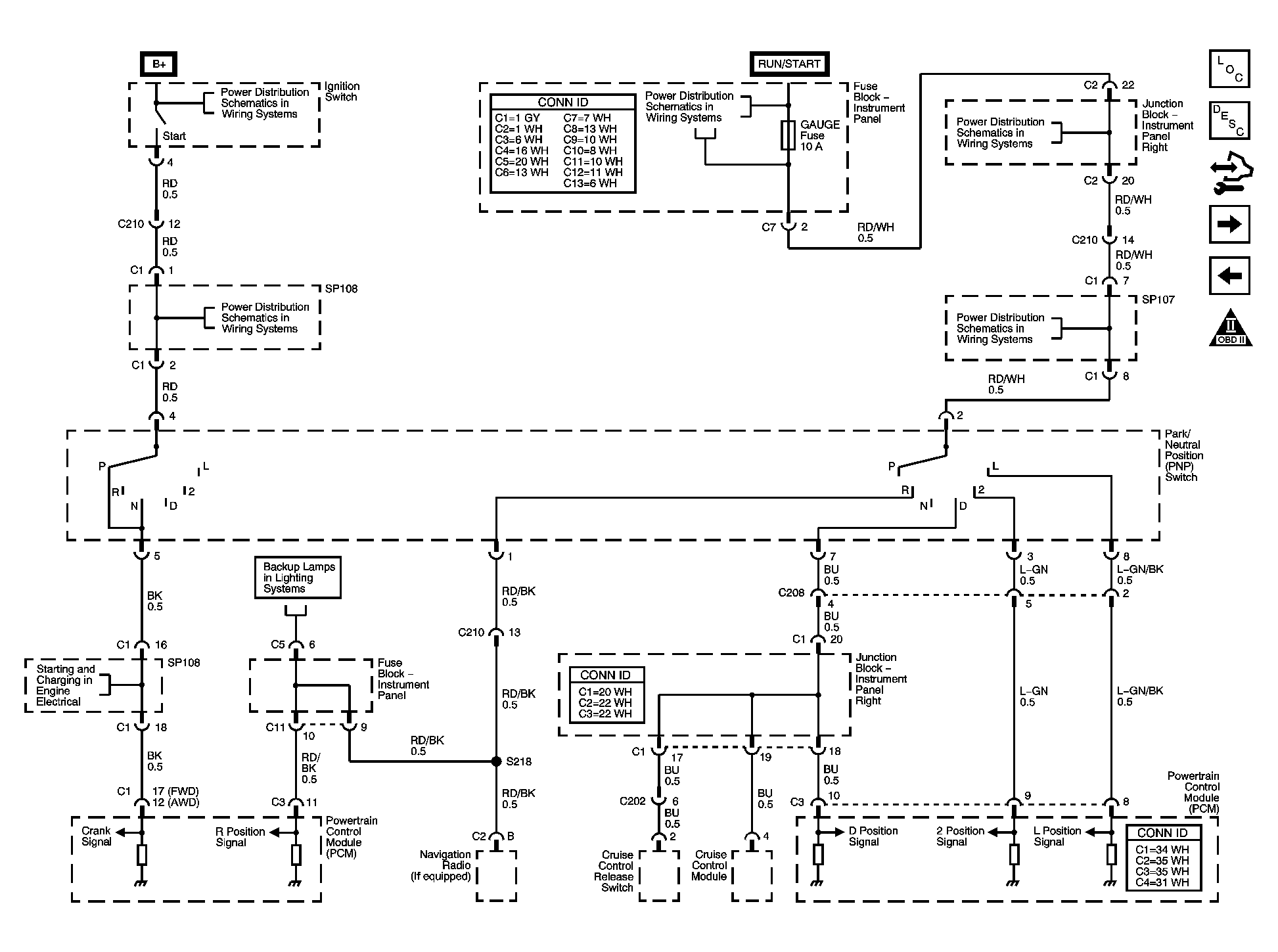

Fig 16: Park/Neutral Position Switch

GM1666807

Courtesy of GENERAL MOTORS CORP.

Fig 17: Park/Neutral Position Switch, Brake Pressure Modulator Valve (BPMV), Multifunction Alarm Module

GM1481319

Courtesy of GENERAL MOTORS CORP.

Fig 18: Vehicle Speed Signal Circuit

GM1422212

Courtesy of GENERAL MOTORS CORP.

Fig 19: Automatic Transaxle Controls (FWD) Schematic

GM1422223

Courtesy of GENERAL MOTORS CORP.

Fig 20: Automatic Transaxle Controls (AWD)

GM1666814

Courtesy of GENERAL MOTORS CORP.

Fig 21: Overdrive Switch and Indicator

GM1666815

Courtesy of GENERAL MOTORS CORP.

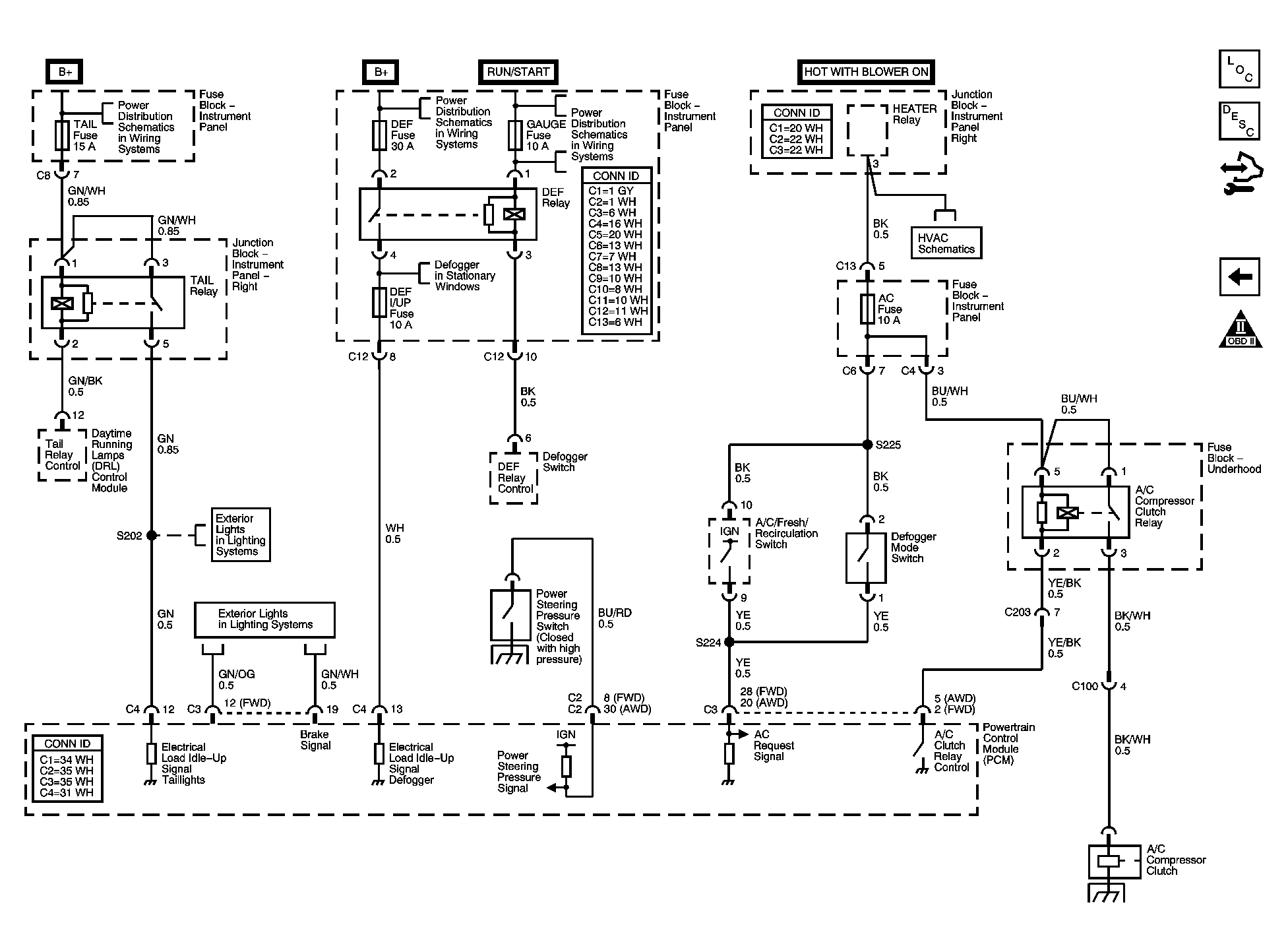

Fig 22: Powertrain Control Module (PCM) Idle-Up Inputs

GM1666816

Courtesy of GENERAL MOTORS CORP.
